MeetingBar A25

Yealink MeetingBar A25 Video Bar for Focus Rooms

Video: 3840 * 2160
Zoom: up to 1080p30fps
Pickup range: 28-100dBSPL
Platforms: 1080P30fps in meeting

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Yealink MeetingBar A25 is an all-in-one video bar sized for focus and huddle rooms of up to five people. Three cameras give a 151° horizontal field of view with telephoto close-ups, while eight MEMS microphones with a 5-metre pickup range handle full-duplex audio. It is offered as a Microsoft Teams Rooms on Android edition or a Zoom Rooms Appliances edition, and suits small meeting rooms in Doha, West Bay and Lusail.

What the MeetingBar A25 is

The Yealink MeetingBar A25 places a camera, microphone array, loudspeaker and video processing into one bar for small meeting spaces. It is offered in two platform editions: Microsoft Teams Rooms on Android and Zoom Rooms Appliances. Yealink rates it for focus and huddle rooms with two to five people, and it sits below the A40 and A50 in capacity within the MeetingBar series.

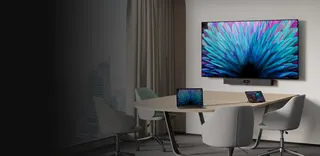

Camera coverage for compact rooms

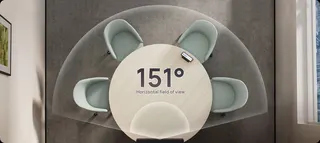

Three 4K cameras with 8MP sensors make up the system. The ultra-wide lens provides a 151° horizontal field of view, which helps when people sit close to a wall or along a curved table, while two telephoto lenses deliver close-up portraits for remote viewers. Video output reaches 4K at 30fps and 1080p at 60fps. An electric lens cap offers a physical privacy option, and features such as IntelliFocus, Auto Framing and Speaker Tracking keep the remote view on whoever is speaking.

Audio built for voices in a small room

Eight MEMS microphones pick up speech up to 5 metres away, with a high-quality pickup distance of 3.5 metres. Full-duplex operation with acoustic echo cancellation lets people talk at the same time without cutting each other out, and AI-enhanced noise suppression reduces background sound. The built-in 10W speaker faces forward, and a 3.5mm line-out port supports external audio connections. Expansion microphones are not supported, so the built-in array has to cover the whole room.

Cabling, ports and connectivity

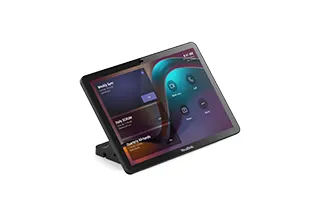

In the A25-031 kit, the bar links to the CTP25 touch console with a single Cat5e cable that carries power and network, and a single USB-C cable from the console to a PC handles 4K sharing, BYOD and charging. The bar also includes:

Ethernet port rated 10/100/1000Mbps
HDMI output for up to 4K at 30fps
USB 2.0 Type-A and Type-C ports, plus a USB 3.0 Type-C port
Yealink VCH RJ-45 port and a security lock slot

Wireless connectivity is Wi-Fi 6 dual-band and Bluetooth 5.1. Plan for at least 10Mbps of bandwidth for video calls.

Installation and room conditions

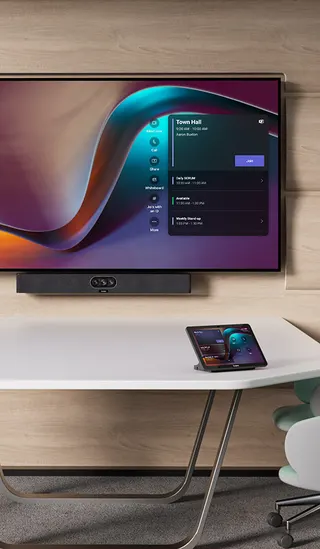

A wall mount is included. Optional mounts include the VB-TVMount-01, VCS-TVMount-02 and TV-Clip mount for displays, and the VB-TabletopMount-01 for a desk. The bar measures 570 x 80 x 65 mm. Its operating temperature range is 0 to 40°C with 10 to 95% humidity, and it can be stored from -30°C to 70°C. Heat output is rated at 38 BTU/hr idle and 58 BTU/hr during meetings, which should be included in the room's cooling plan. In Doha summers, keep the bar in an air-conditioned room away from direct sun through windows, and confirm the environment during a free site survey before fixing anything to a wall.

Where it fits in Qatar

A four-person huddle room in a West Bay ministry department, joining calls with a regional office and managed centrally by IT.
A research group room in Education City running the Zoom Rooms edition, with a laptop joining through BYOD mode for another platform.
A small boardroom in a Lusail engineering consultancy using the Teams Rooms edition on a tabletop mount.

Managing several rooms

The bar can be managed through Microsoft Teams Admin Center, MTR Portal Management Platform, Zoom Device Platform or Yealink Management Cloud Service. IT teams can upgrade firmware in bulk, receive alarms for problems such as poor call quality or failed upgrades, and schedule tasks outside office hours. The standard 2-year limited hardware warranty is included. Request a quote from SmartRooms Qatar with your room size, preferred platform and mounting plan, and we will confirm the right kit for your site.

Highlights

151° horizontal field of view from a triple-camera system
4K at 30fps video output with 1080p at 60fps
8 MEMS microphone array with 5-metre pickup range
Full-duplex audio with AI-enhanced noise suppression
Single Cat5e and USB-C cabling with CTP25 touch console
Microsoft Teams Rooms on Android or Zoom Rooms editions

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

76 specifications · Source: manufacturer · checked Oct 2026

Operating System1

Details: Android 13 Based on the Microsoft Device Ecosystem Platform (MDEP)

Camera11

Number of cameras: 3
1x Ultra-Wide Camera: DFOV 182°, HFOV 151°, VFOV 81°
2x Tele Camera: DFOV 93.5°, HFOV 84.4°, VFOV 53.1°
Maximum pixels: 3 * 4k Cameras, all with 8MP image sensors
Number of preset positions: 9
Depth of field: 0.4-2.5 meters
Maximum resolution: 3840 * 2160
Maximum frame rate: 30fps
Video output resolution: 4k (2160p) 30fps, 1080p60fps
Privacy cover: Electric lens cap
Details: Lens FOV Electronic gimbal Lens calibration Intelligence Features IntelliFocus (2 portraits) Auto Framing Speaker Tracking Picture in Picture Video Fence Smart Gallery (Zoom Rooms only)

Speaker10

Rated power: 10W
Maximum power: 12W
Maximum sound pressure level: 90dBSPL 10W@1m
Frequency response: 100-16kHz
Sensitivity: 86dB SPL @ 1W @ 0.5 meter
Sampling rate: 48kHz
Sound emission angle: Forward-facing
Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
Rated impedance: 4 ohms
Details: Built-in 10W speaker

Microphone11

Signal-to-noise ratio: 72dB@1kHz
Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
Dynamic range: 28-100dBSPL
Sensitivity: -38dBV/pa
Frequency response: 100-20kHz
Sampling rate: 48k32bit
Bit depth: 32-bit
Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
Noise suppression: AI-enhanced noise suppression
Expansion Mics: not supported
Details: Built-in 8 MEMS microphone array 5-meter pickup distance, 3.5-meter high-quality pickup distance

Resolution2

Lens Resolution: up to 4k30fps
Bandwidth requirement: 10Mbps or more

Content sharing5

Teams: 1080P30fps in meeting, 4k30fps in local sharing
Zoom: up to 1080p30fps
General Mode (BYOM): up to 4k30fps
RingCentral: 1080p30fps
H.323/SIP: 1080p30fps

Video Codec1

Details: H.264 High profile, H.264 SVC, H.264

Audio Codec6

ARES: 24kHz bandwidth
G.722.1C: 16kHz bandwidth
G.722.1: 8kHz bandwidth
G.722: 8kHz bandwidth
G.711 (PCMA/PCMU): 4kHz bandwidth
G.729: 8kHz bandwidth

Security5

Full Disk Encryption: AES-128, AES-256
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP

Communication standard protocol4

Dual stream protocol: H.239 (H.323) / BFCP (SIP)
FECC: H.224/H.281
H.323 protocol suit: H.245, H.225, H.235, H.241
Details: H.323/SIP in General Mode Gatekeeper account and SIP account

Network Protocol1

Details: Wi-Fi 6 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax 2x2 MIMO Bluetooth 5.1 TCP/IP (IPv4/IPv6), DHCP/static IP HTTPS secure web access

Configuration Management1

Details: Automatic configuration via web page/display/AutoP Firmware upgrade, factory reset Configuration import and export System log export

Device Management1

Details: Yealink Https Web Portal Yealink Device Management Platform Yealink Management Cloud Service Microsoft Device Management Platform(Microsoft Teams Admin Center/Intune) Zoom Device Management

Installation3

Use TV Mount (additional: purchase VB-TVMount-01, VCS-TVMount-02 or TV-Clip Mount)
Place on the desktop (additional: purchase VB-TabletopMount-01)
Details: Wall mount (provided with the product)

Ports2

1x Ethernet port: 10/100/1000Mbps
Details: 1x USB2.0 Type-A port 1x USB2.0 Type-C port（side） 1x USB3.0 Type-C port video input supports formats up to maximum 4K30 fps, including 1080P60fps（content sharing） video output supports formats up to 1080P30fps (BYOM） 1x Yealink VCH port (RJ-45) 1x HDMI-out port video output supports formats up to maximum 4k30fps, including 1080p60fps supports HDMI CEC 1x 3.5mm Line-out port 1x Power port 1x Security lock slot 1x Reset slot

Package3

A25-010: A25+VCR11+USB C to C cable (1.8m/5.91ft)
A25-031: A25+CTP25 Package (CTP25, 2m/6.56ft 65W PD power adapter, 7.5m/24.6ft Network cable, 1.2m/3.94ft USB C to C cable, High stand, Cable management cover)
Details: MeetingBar A25 Power adapter, 3.5m/11.48ft 1x HDMI cable, 1.8m/5.91ft 1x Network cable, 3m/9.84ft 1x USB-A to C cable, 3.0m/9.84ft Wall Mount Cable cover MeetingBar A25 quick start guide Optional Package

Environmental Factor4

Operating humidity: 10 - 95%
Operating temperature: 0 - 40℃
Storage temperature: -30℃~70℃
BTU/hr: 38 in idle, 58 in meeting

Dimensions and weight(W × D × H)3

MeetingBar A25: 570 x 80 x 65 mm
N.W/CTN: 3.812 kg
G.W/CTN: 4.290 kg

Warranty2

Standard: 2-year limited hardware warranty included
Extended: Additional extended warranties are available at the time of hardware purchase. Contact your reseller.

Downloads

111 files from the manufacturer

Questions about MeetingBar A25

Who is the MeetingBar A25 designed for?

Yealink positions the A25 for focus and huddle rooms with two to five people. It suits a four-person huddle room in a West Bay ministry department or a small meeting room in a Doha company office. Its 151° ultra-wide lens covers people seated close together along one side of the table, which makes it practical where space and setup time are limited.

How does the A25 compare with the A40 and A50?

Within the same series, the A40 supports up to 12 people with a 110° horizontal field of view and a 6-metre pickup range. The A50 supports up to 16 people with 98° and a 10-metre pickup range. The A25 has the widest field of view of the three at 151°, so it is the right choice for a focus room of up to five people rather than a larger boardroom.

Should we choose the Teams or Zoom edition?

Choose the Microsoft Teams Rooms on Android edition if your organisation schedules meetings in Teams, or the Zoom Rooms Appliances edition if it runs Zoom. Smart Gallery is listed for Zoom Rooms only, so check the feature list against your platform before ordering. Tell us which platform your staff use when you request a quote.

Can the A25 join meetings on Webex or other apps?

Yes, through BYOD mode. Connect a laptop to the A25, open the third-party application such as Cisco Webex, and select the A25 as the audio and video device. In BYOD mode the video output is listed at up to 1080p30fps, so it suits a single participant laptop in a small room.

Does the A25 reduce background noise during calls?

Yes. AI-enhanced noise suppression, acoustic echo cancellation, automatic gain control and full-duplex audio all run on the bar. Eight MEMS microphones pick up speech up to 5 metres away, with high-quality pickup to 3.5 metres. Hard surfaces and room layout still affect sound, so review the seating plan during the site survey.

Can we add extra microphones for a bigger room?

No. Expansion microphones are not supported, so the built-in array must cover the whole room. If your room seats more than five people or speakers regularly sit beyond about 5 metres, consider the MeetingBar A40 or A50, which the comparison table lists with support for extended microphones.

What is included in the box?

The A25-010 kit includes the MeetingBar A25, a VCR11 and a 1.8m USB-C to C cable. The A25-031 kit adds the CTP25 touch console, a 65W PD power adapter, a 7.5m network cable, a 1.2m USB-C cable, a high stand and a cable management cover. Standard packaging also lists a wall mount, cable cover, HDMI cable and quick start guide.

How is the MeetingBar A25 mounted?

A wall mount is included. For a display mount, the optional VB-TVMount-01, VCS-TVMount-02 or TV-Clip mount applies, and the VB-TabletopMount-01 is available for a desk. Mounting height and position depend on your display and the room. A free site survey lets our team check cable routes and wall construction before any drilling starts.

Can the A25 operate in a hot room in Doha?

The operating temperature range is 0 to 40°C, with 10 to 95% humidity. Keep the bar in an air-conditioned meeting room and away from direct sun through windows, which can heat a room quickly on summer afternoons in Doha. Heat output is rated at 38 BTU/hr idle and 58 BTU/hr in meetings, so include it in the cooling plan. Confirm the room with SmartRooms Qatar.

How can IT manage the A25 across several rooms?

Devices can be managed through Microsoft Teams Admin Center, MTR Portal Management Platform, Zoom Device Platform or Yealink Management Cloud Service. IT staff can upgrade firmware in bulk, receive alarms for issues such as poor call quality or failed upgrades, and schedule tasks outside office hours. This suits a government agency with meeting rooms spread across Msheireb and West Bay.

What warranty comes with the MeetingBar A25?

The standard warranty is a 2-year limited hardware warranty included with the product. Extended warranties are available at the time of hardware purchase, so ask for them to be included in your quotation if you expect a longer ownership period. SmartRooms Qatar will confirm the exact warranty terms that apply to the kit you order.

Can a school in Al Wakrah order the A25 through an LPO?

Yes. Schools can issue a local purchase order (LPO) for several units, and payment can be made by bank transfer, cheque or purchase order. Include the kit code, such as A25-010 or A25-031, and the edition needed. Quotations are usually provided within one working day, and delivery covers all eight municipalities of Qatar.
