Yealink Video Conferencing Current

MVC S90

Name: Yealink MVC S90 Microsoft Teams Rooms Boardroom System
Brand: Yealink
SKU: yealink-mvc-s90
Availability: InStock

Yealink MVC S90 Microsoft Teams Rooms Boardroom System

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Yealink MVC S90 is a complete Microsoft Teams Rooms system for boardrooms, built around two UVC86 4K PTZ cameras, an MCore 4 mini-PC with an Intel Core Ultra 5 125H processor, and an 11.6-inch MTouch Plus touch panel. Its AVHub processor can manage up to nine cameras in one room, and the RoomSensor reports occupancy and room conditions. It suits large boardrooms and training rooms in Qatar that run hybrid meetings. Request a quote from SmartRooms Qatar.

The Yealink MVC S90 is a Microsoft Teams Rooms on Windows system for boardrooms and other large meeting spaces. Rather than relying on one camera that moves mechanically, it uses two UVC86 cameras with AI tracking, so the room can follow whoever is speaking and show remote participants a natural view of the table. A mini-PC, a touch panel, an audio and video processor and a room sensor complete the set.

Camera performance and speaker tracking

Each UVC86 has a 4K sensor and a 12x optical zoom, giving a combined 20.4x zoom with digital enhancement. Its telephoto lens offers an 81-degree horizontal field of view, while the panoramic lens widens that to 110 degrees, so the same camera can frame a close presenter or the full table. Auto-framing, speaker tracking and presenter tracking are built in, and each camera stores up to nine preset positions. The camera body rotates 200 degrees horizontally and 130 degrees vertically.

Processing, sharing and connectivity

The MCore 4 mini-PC runs an Intel Core Ultra 5 125H with an integrated NPU rated at 34 TOPS, 16GB of DDR5 memory and a 256GB SSD. It drives up to three displays through HDMI outputs, one HDMI 2.1 and two HDMI 2.0, with CEC and EDID support. A 4K-capable HDMI input accepts auxiliary content, and four USB 3.0 Type-A ports, Gigabit Ethernet, a separate AV network port and Wi-Fi 802.11 a/b/g/n/ac/ax with Bluetooth 5.2 cover the remaining connections.

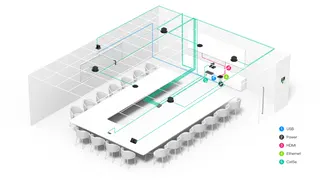

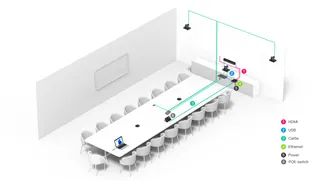

Planning the installation

A single CAT5e cable links the MCore 4 and MTouch Plus, carrying both data and power.

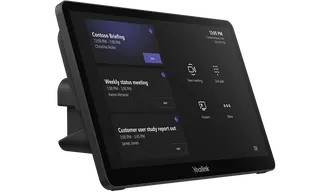

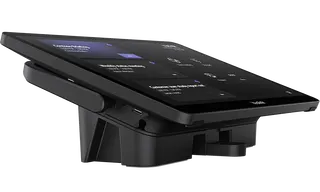

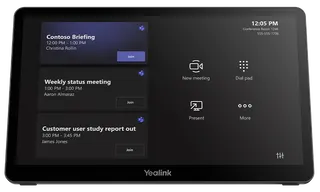

The 11.6-inch MTouch Plus can sit on the desk or be wall-mounted, with screen angles from 30 to 70 degrees.
The RoomSensor detects occupancy, temperature, humidity and light over Bluetooth 5.2 at 2.4 GHz, with a 30 m reach.
The VCH51 Pro measures 144 x 65 x 18 mm and is rated for 0 to 40 °C.

Camera position matters as much as the hardware. A free site survey from SmartRooms Qatar lets our team check sightlines, the table layout and cable routes before the equipment is ordered, and professional installation is available with supply.

Where the MVC S90 fits in Qatar

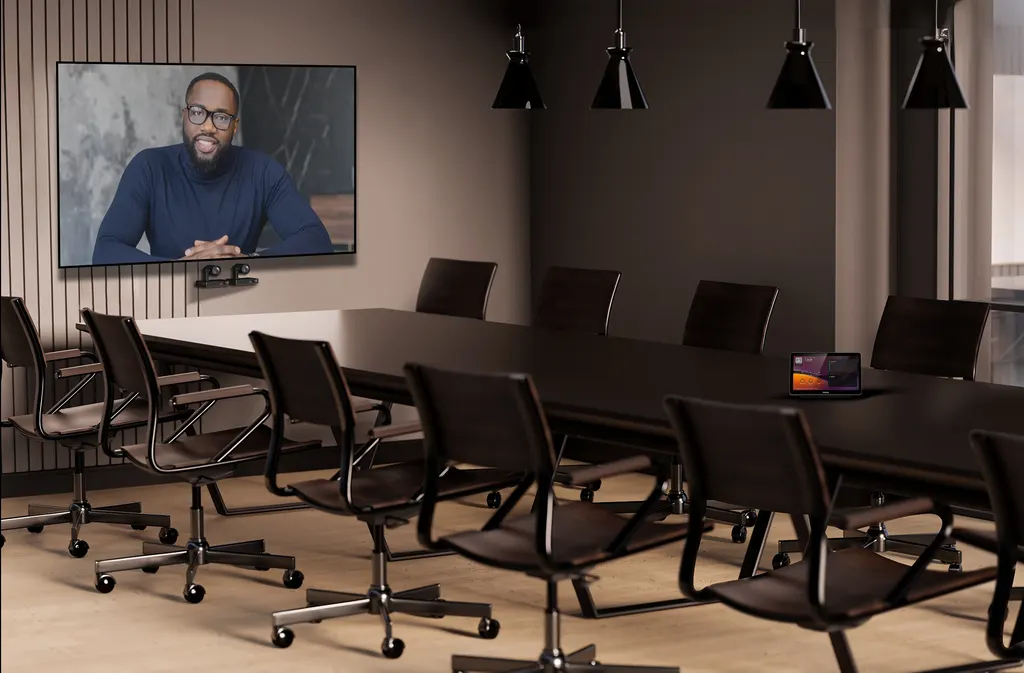

In a West Bay office tower, an executive boardroom can connect local leaders with colleagues in other Doha offices and abroad. The two cameras and the MTouch Plus let the chair start a call with one tap and keep every speaker in frame, while room controls stay on a single touch panel.

In a training room at Education City, the space can be arranged in a U-shaped or tiered layout. AVHub can divide and merge rooms, so one large hall can run as two separate sessions. The manufacturer publishes layouts for this kind of room, which help plan seating and audio.

In a government building in Msheireb, a visiting team can connect its own laptop through the MVC-BYOD-Extender and present from its own machine without changing the room set-up. Keep the room within the 0 to 40 °C range that the RoomSensor and VCH51 Pro are rated for, which means an air-conditioned space.

What to confirm before you request a quote

Confirm room dimensions, seat count, display sizes, network access and the Microsoft licensing your organisation already holds. Tell us whether you need a wireless presentation pod, mounting parts or a specific audio layout so the quotation lists every item. SmartRooms Qatar supplies all eight municipalities of Qatar, accepts purchase orders (LPOs) and government tenders, and usually issues quotations within one working day. Request a quote for the Yealink MVC S90 today.

Highlights

Two UVC86 4K PTZ cameras with 12x optical zoom
MCore 4 mini-PC with Intel Core Ultra 5 125H and 34 TOPS NPU
11.6-inch MTouch Plus panel at 1920 x 1080 resolution
AVHub supports up to nine cameras in one room
One CAT5e cable carries data and power between MCore 4 and touch panel
RoomSensor reports occupancy, temperature, humidity and light

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

21 specifications · Source: manufacturer · checked Oct 2026

Package Content1

Details: MCore 4 MTouch Plus RoomSensor UVC86 x 2 AVHub VCH51 Pro

Preload1

Details: Windows 11 IoT enterprise X64 Windows 11 IoT enterprise license Microsoft Teams Rooms app Yealink RoomConnect

MCore 4, Gen-4 Mini-PC6

Processor: Intel Ultra5 125H
Memory: 16GB(2*8GB) DDR5
Storage: 256GB SSD
WiFi: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: BT5.2
Details: BIOS feature: 3x HDMI video output - CEC - EDID TPM2.0 Kernel DMA Interfaces: 1 x HDMI-Out 2.1 port 2 x HDMI-Out 2.0 port 1 x HDMI-In port 4 x USB3.0 type-A port 1 x MTouch port (RJ-45) 1 x LAN port for AV network 1 x 10/100/1000 Gigabit Ethernet port 1 x power supply port 1 x 3.5mm headphone port 1 x reset port 1 x security slot

MTouch Plus1

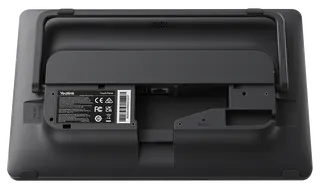

Details: Physical features: 11.6-inch narrow bezel IPS display Angle between screen and desktop (30° ~ 70°) Adjustable angle of support frame (50° ~ 180°) Function features： 1920 x 1080 video resolution Support wired and wireless (with WPP30) content sharing Support an external PD power supply to power the sharing device Support HDMI/USB-C video input Support desktop placement, desktop fixed, and wall-mounted deployment

RoomSensor4

Detection angle: 120°
Adjustable detection angle: ±20°
Operating temperature: 0-40℃
Operating humidity: 10-95%

UVC86 USB PTZ Camera3

Horizontal rotation: 200°
Vertical rotation: 130°
Details: Camera: 4K sensor 20.4 × HD zoom (12x optical, 1.7x digital) 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) Up to 9 preset positions can be set AI feature: Auto-framing Speaker tracking Presenter tracking, support area trigger, and gesture control Multi-focus Picture-in-picture Interfaces: 1 x HDMI output 1 x Yealink microphone port (RJ-45) 1 x USB 3.0 type-B port 1 x USB 2.0 type-A Port 1 x power port 1 x security lock 1 x reset hole

AVHub, audio and video processor1

Details: Interfaces: 2 x USB-A port 1 x USB-B port 1 x Codec port 7 x Yealink VCH port (RJ-45) 1 x RCA in/out interface 1 x 6.3mm line in interface 1 x 6.3mm line out interface 1 x power interface Function features： Dividable and merging meeting rooms are supported Support intelligent multi-speaker tracking Support Multi-Stream IntelliFrame (on device)

VCH51 Pro4

Operating humidity: 10 - 95%
Operating temperature: 0 - 40℃
Dimension (W.D.H): 144 x 65 x 18 mm
Details: Interfaces: 1 x 1000Mbps RJ45 port (IEEE 802.3af, full-duplex) 1 x USB 2.0 Type C (with DP video input) 1 x PD power port Physical Features:

Downloads

122 files from the manufacturer

Questions about MVC S90

Is the MVC S90 suited to a boardroom in West Bay?

Yes, the datasheet positions the MVC S90 for large boardrooms and extra-large meeting spaces. For an office tower in West Bay where executives join from Doha and abroad, the two UVC86 cameras keep each speaker framed without moving a single camera across the table. Confirm the room dimensions and seating plan with the SmartRooms Qatar team before the quotation, because camera placement depends on them.

Can the MVC S90 be used in a training room with a U-shaped seating layout?

The manufacturer publishes layout guidance for U-shaped and training rooms, so the MVC S90 suits a training room at a university or training centre in Education City with U-shaped or tiered seating. AVHub can divide and merge rooms, allowing one large hall to run as two separate sessions. Those layouts pair the system with a ceiling audio system or third-party DSP, so ask SmartRooms Qatar for an audio plan with your quotation.

What is included in the Yealink MVC S90 package?

The package specification lists an MCore 4 mini-PC, an MTouch Plus 11.6-inch touch panel, a RoomSensor, two UVC86 cameras, an AVHub audio and video processor and a VCH51 Pro. The datasheet FAQ also refers to an MVC-BYOD-Extender. Confirm the final list, including cables and mounting parts, in your quotation before you place an order.

How many cameras can the MVC S90 control?

The AVHub processor supports up to nine Yealink cameras at the same time, and each one can be controlled independently through the MTouch Plus. The MVC S90 starts with two UVC86 cameras, each with a 4K sensor and 12x optical zoom. Output from several cameras can be combined into a custom layout, which suits a large boardroom that needs a wide table view and a close shot of the presenter.

How does speaker tracking work on the UVC86 camera?

The UVC86 offers auto-framing, speaker tracking and presenter tracking. Speaker tracking can be triggered by a defined area of the room, so participants at the table are framed without operating a controller, and gesture control can be switched on or off. Each camera stores up to nine preset positions. Its telephoto lens gives an 81-degree horizontal field of view, while the panoramic lens widens it to 110 degrees.

Can staff connect their own laptop to the room system?

Yes. The datasheet describes an MVC-BYOD-Extender: plug a USB cable from a laptop into it and use the room's audio and video devices for your own meeting. The VCH51 Pro works in a similar way when a PC is connected over its USB Type-C port. In a government meeting room in Msheireb, a visiting team can present from its own machine without changing the room set-up.

Does the MVC S90 support wired and wireless content sharing?

It supports both. Wireless sharing uses the WPP30 pod: plug it into a laptop, press the button and start sharing at 1080p and 30fps. Wired sharing runs through USB-C or HDMI on the MTouch Plus, and the MCore 4 HDMI-In accepts 4K input for auxiliary content. The description refers to a wireless presentation pod, so confirm it is part of your configuration in the quotation.

Can the MTouch Plus be wall-mounted in a meeting room with glass walls?

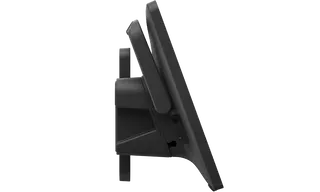

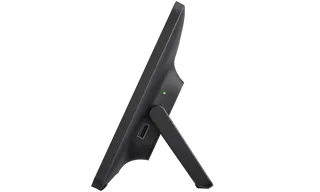

The MTouch Plus can be placed on a desk, fixed to a desk or wall-mounted. Its screen tilts between 30 and 70 degrees, and the support frame adjusts from 50 to 180 degrees. In a glass-walled room in The Pearl or Lusail, cable routes and mounting points need careful planning, so request a free site survey from SmartRooms Qatar before installation. A single CAT5e cable carries data and power between the MCore 4 and MTouch Plus.

Will the room equipment cope with Qatar's summer heat?

The RoomSensor and VCH51 Pro are both rated for operating temperatures of 0 to 40 °C and 10 to 95% humidity. Outdoor temperatures in Qatar can exceed 45 °C in summer, so the system should be installed in an air-conditioned boardroom or training room that stays within that range. The datasheet does not give operating limits for the other components, so confirm the installation environment with the SmartRooms Qatar team before the quotation.

Can a government entity buy the MVC S90 through an LPO or tender?

Yes. SmartRooms Qatar supplies government buyers against purchase orders (LPOs) and government tenders, including those posted on Monaqasat. Quotations are usually issued within one working day, and payment can be made by bank transfer, cheque or purchase order. Delivery covers all eight municipalities of Qatar, and the product is covered by the manufacturer's warranty. Include your tender reference when you request a quote.
