TransForm NSD-430

What the NSD-430 does on a video wall

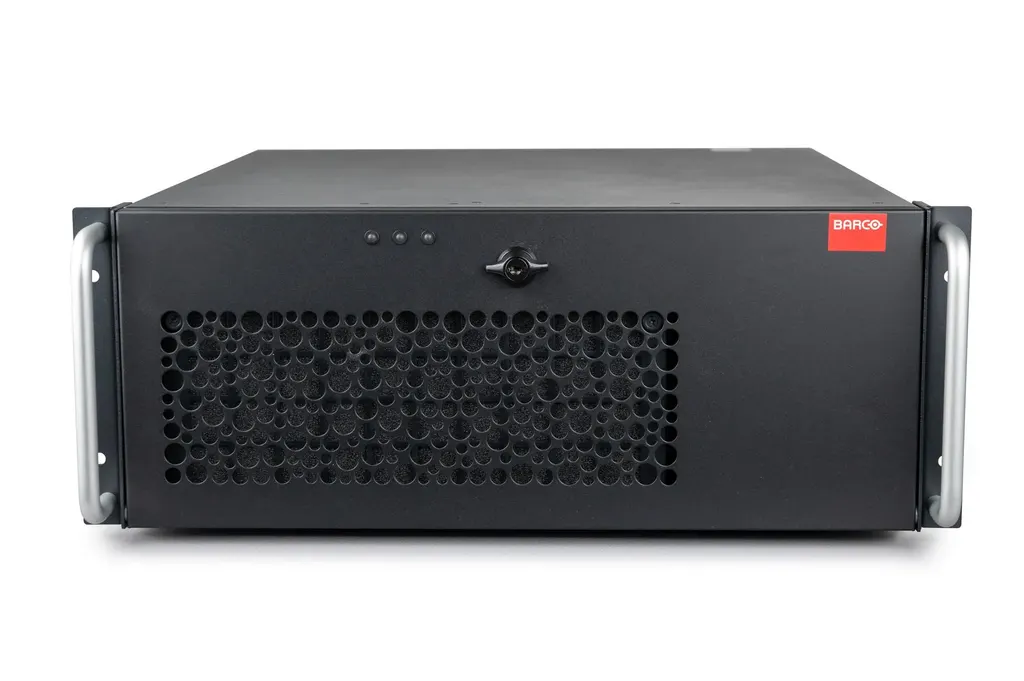

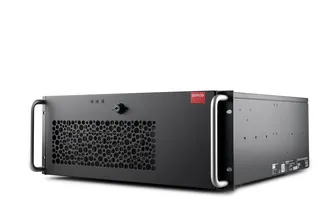

The Barco TransForm NSD-430 is a single display video wall controller packaged in a 4U, 19-inch rackmount housing. It collects video from several sources, including networked feeds and local HDMI and DisplayPort outputs, and places them on the panels of a wall in the layout operators need. Because it handles baseband and networked video in one unit, a control room does not need separate hardware for each source type.

The controller can run on its own, driven by Barco's CMS control room management software, or it can sit inside a networked TransForm N system as a display node. That flexibility lets a team start with one controller and add capacity later as the wall or the number of sources grows.

Inputs, outputs and codec support

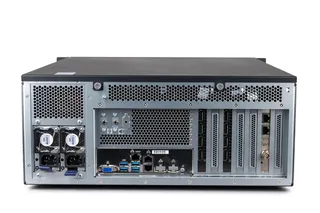

Input capacity depends on the card configuration. The maximum set includes up to five 2-channel DisplayPort 1.2 cards supporting resolutions up to 4096 x 2160 at 60 Hz, up to five 2-channel HDMI 2.0 cards, several 4-channel HDMI 1.4 groups, and single-channel HDMI 2.0 inputs for 4K sources. HDCP support differs between these groups, so match the input mix to your content sources before ordering.

• Output: up to 16 4K-UHD displays, or up to 64 HD displays using Barco loop-through capable displays.
• Streaming formats: H.264, MPEG2/4, MxPEG, MJPEG, V2D, H.263, VNC and ProServer.
• Network: two 1Gb/s LAN ports.

Barco publishes a reference list of supported encoders and a VCORE Check tool that confirms how many sources a given configuration can handle. Use both before fixing your source count.

Processing, memory and storage

The NSD-430 is built around an Intel Xeon Silver 4310 12-core processor running at 2.10 GHz. Memory is available in 32, 64, 128 or 256 GB configurations. Storage uses two solid-state drives in RAID-1, offered as 2 x 480 GB or 2 x 960 GB, with the drives mirroring each other. For walls showing 3D-accelerated content or many simultaneous sources, the memory option should match the complexity of the display.

Where it fits in Qatar

In Doha, a government operations room that needs camera feeds, network sources and laptop content on one wall at the same time is a typical match. In Mesaieed or Ras Laffan, an energy or industrial control room that monitors process screens and remote video around the clock can use the same layout logic. In Education City, a training centre or research team working on a networked visualisation setup can use the TransForm N route as its wall grows.

Planning the installation

At 482 x 177 x 472 mm without handle and 19 to 25 kg without packaging, the unit needs a 19-inch rack with enough depth for cabling behind it, and two people should lift it during installation. The operating range is 0 to 35 °C with 5 to 80 percent non-condensing humidity, and the maximum noise level is 49 dBA at one metre. Summer temperatures in Qatar regularly exceed 45 °C, so the rack should sit in an air-conditioned equipment room or cabinet with airflow that keeps the unit within its rated range. The unit carries CE, CB, UL and FCC Class A marks and is covered by the manufacturer's warranty. A free site survey from SmartRooms Qatar can confirm room conditions before mounting.

Request a quote from SmartRooms Qatar for the TransForm NSD-430, order code R983843000. We will confirm the configuration, memory, storage and input cards that suit your wall, then supply, deliver to any of Qatar's eight municipalities and install it professionally, with quotations usually issued within one working day.
