NVD0105DH-4K

What the NVD0105DH-4K does on a video wall

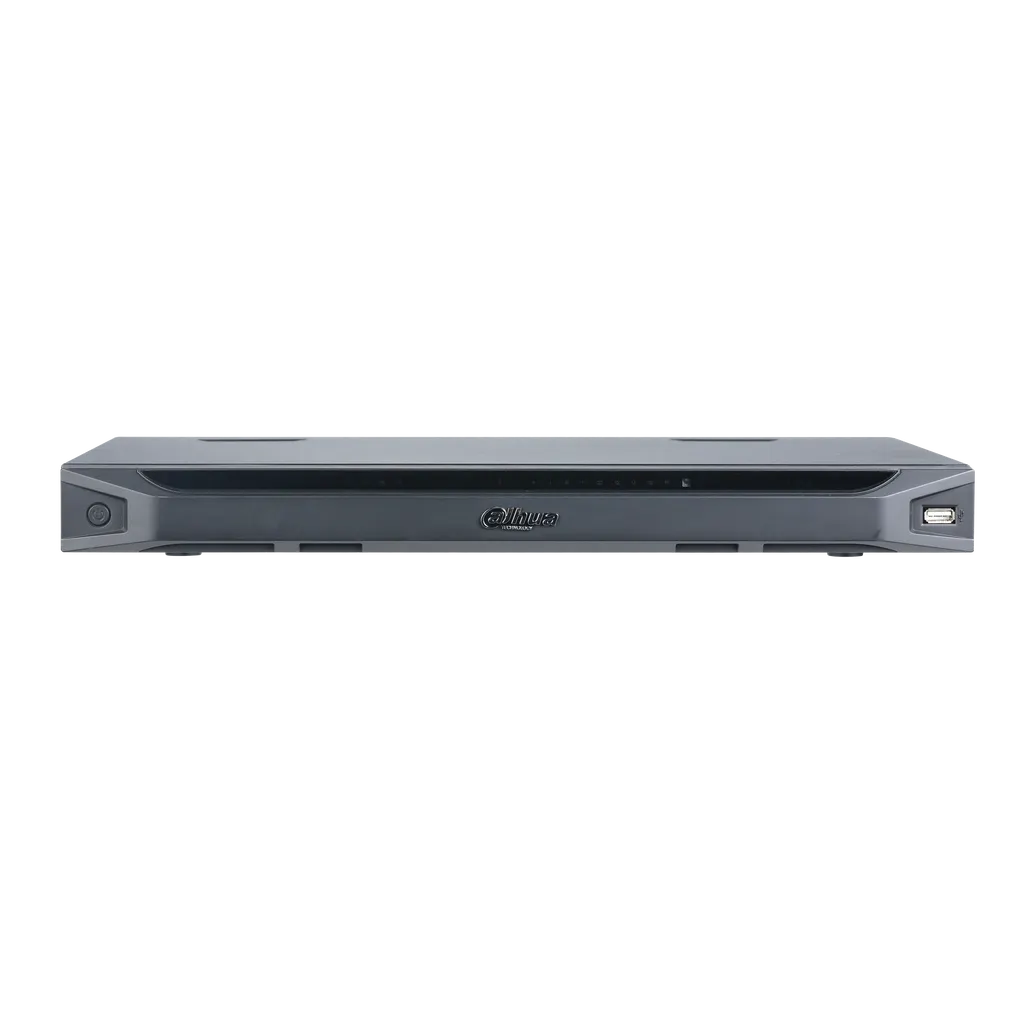

The Dahua NVD0105DH-4K is a network video decoder built for operators who need live camera feeds on a display. It receives streams from IP cameras and encoders over the network and sends the decoded pictures to one screen through HDMI, with VGA as the alternative output. Its published capacity is four channels at 4K, sixteen at 1080P or sixty-four at D1, so a single unit can populate a multi-window view. The product is designed for standalone operator viewers, meaning a dedicated screen at an operator position rather than a general-purpose computer.

Because it is a decoder rather than a recorder or management platform, its job is to turn network streams into a reliable picture. Plan it as one link in the monitoring chain: cameras and encoders produce the streams, the network carries them, and the decoder displays them.

Decoding capacity and display layouts

Decoding limits are stated per channel. One stream can be up to 32MP at 25fps, three can be 12MP at 15fps, and four can be 8MP. For smaller streams the decoder handles sixteen channels at 1080P, thirty-six at 720P or sixty-four at D1. It supports H.265+, H.265, H.264, MPEG4, MPEG2 and MJPEG video, and PCM and G.711 audio.

• Ultra-HD stream: 1 channel at 32MP (25fps)
• Mid-resolution streams: 3 channels at 12MP or 4 channels at 8MP
• Standard streams: 16 channels at 1080P or 36 at 720P
• Legacy streams: 64 channels at D1

Split layouts of 1, 4, 9, 16, 25, 36 and 64 windows let operators arrange the wall to suit the room. On a 4K display the HDMI output runs at 3840×2160 at 30fps, and lower output resolutions include 1920×1080, 1280×1024, 1280×720 and 1024×768.

Control, alarms and connectivity

The unit has one RJ45 network port with 10M, 100M and 1000M self-adaptive speeds. For control it offers one RS232 DB9 port and one RS485 port. Four alarm inputs and four relay outputs, rated 30VDC 1A and 125VAC 0.5A, allow the decoder to be wired into alarm equipment. A single bi-directional talk channel uses RCA in and out at 2Vrms and 10K ohms. Local operation is done through an on-screen GUI that supports direct mouse operation, the unit runs embedded Linux, and it can display intelligent rule lines on the decoded picture.

Where it fits in Qatar

A ministry operations room in Doha might use one decoder per operator position to bring feeds from several sites onto a shared wall, with each viewer set to its own split layout. A hospital command centre could place a unit beside its security desk to show entrance, corridor and car park cameras, with alarm wiring linked to local devices. At an industrial site in Mesaieed or Ras Laffan, a control room can use it for plant camera views, provided the cabinet is ventilated, because the unit is rated from -10°C to +55°C and summer heat in Qatar can be intense.

What to plan before ordering

• Count your streams and their resolutions against the decoding limits above.
• Match each decoder to one display, because there is one video output channel.
• Check switch ports and the IP plan with your IT team before installation.
• Allow 1U of rack space; the unit measures 440×322.8×44 mm and weighs 3.2 kg.
• Confirm the power arrangement, as the source lists DC 12V 3.3A and up to 20W.

SmartRooms Qatar offers a free site survey to check rack position, cable routes and airflow before installation. Quotations are usually issued within one working day, and orders can be placed by LPO for government and corporate buyers. To request a quote for the Dahua NVD0105DH-4K, or to work out how many decoders your video wall needs, contact our team today.
