Hikvision DS-C30S-02HI/4K HDMI Input Board

Name: Hikvision DS-C30S-02HI/4K HDMI Input Board
Brand: Hikvision
SKU: hikvision-ds-c30s-02hi-4k
Availability: InStock

Overview

The Hikvision DS-C30S-02HI/4K is an HDMI input board for C30S Series video wall controllers, fitted into one input slot. It provides two HDMI 2.0 inputs accepting up to 4K signals, along with composite audio input. Custom resolutions are supported. It suits control rooms and command centres in Doha, Lusail and Al Rayyan that feed several sources into one video wall.

What this input board adds to a C30S controller

The Hikvision DS-C30S-02HI/4K is an input board from the C30S Series of video wall controllers. It occupies an input slot in the controller chassis and gives the system two HDMI 2.0 input channels, so two 4K sources can feed the wall through one board. Composite audio input is handled on the same board, which keeps sound from connected sources in the same signal path as the pictures.

Input capability and resolution limits

Each HDMI input accepts signals up to 4K. The fixed formats listed for this board are 1920 × 1080 and 1920 × 1200 at 60 Hz, 3840 × 2160 at 30 Hz and 60 Hz, and 4096 × 2160 at 30 Hz and 60 Hz.

For sources that do not match these formats, custom resolution can be configured. Width ranges from 800 to 8192 pixels and height from 600 to 8192 pixels, with width a multiple of 4 and height a multiple of 2. At 30 Hz the custom range runs from 1920 × 1080 to 4096 × 2160, and at 60 Hz it runs from 800 × 600 to 4096 × 2160.

On the audio side, the board offers two audio input interfaces using HDMI composite audio, with a 48K sampling rate and dual channel audio.

Where it fits in Qatar

Three situations show where this board earns its place:

An operations room in West Bay that needs a live briefing source and a second 4K feed shown side by side on one wall.
A university media centre in Education City that switches between a presenter laptop and a lecture-capture source for events in a large hall.
A logistics control room in the Industrial Area that combines two high-resolution sources with dashboards on a video wall.

In each case the input count and resolution range decide whether the wall can show each source in its native format.

Planning the installation

Because the board takes an input slot, confirm that your controller chassis has a free slot and belongs to the C30S Series before ordering. Map the native output of every source to a supported format, especially custom resolutions, which must meet the width and height rules above. Qatar's summer heat and dust make the room environment important. The source data gives no operating temperature range for this board, so confirm the installation space with the SmartRooms Qatar team during a free site survey. A revised version, DS-C30S-02HI/4K(V2), is listed under the same series, so state which revision you need in your request.

Request a quote from SmartRooms Qatar with your source list, required resolutions and chassis details. Quotations usually arrive within one working day, and the team can confirm compatibility and supply before you commit.

Highlights

Two HDMI 2.0 inputs accepting signals up to 4K
Composite audio input on the same board
Custom resolution support, width 800 to 8192 pixels
Two audio inputs with 48K sampling rate, dual channel
Occupies one input slot in the controller chassis
Part of the C30S Series of video wall controllers

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

9 specifications · Source: manufacturer · checked Oct 2026

Chassis1

Occupied Slot: Input slot

Audio Input4

Audio Input Interfaces: 2
Audio Input Interface Type: HDMI composite audio
Audio Sampling Rate: 48K sampling rate
Audio Channel: Dual channel

Video Input4

Video Input Interface Type: HDMI 2.0
Video Input Interfaces: 2
Max. Video Input Resolution: 4K
Video Input Resolution: 1920 × 1080P@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@30 Hz, 3840 × 2160@60 Hz, 4096 × 2160@30 Hz, 4096 × 2160@60 Hz Custom resolution: width ranges from 800 to 8192, height ranges from 600 to 8192. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz. When configuring 30 Hz frame rate, the resolution ranges from 1920 × 1080 to 4096 × 2160. When configuring 60 Hz frame rate, the resolution ranges from 800 × 600 to 4096 × 2160.

Downloads

6 files from the manufacturer

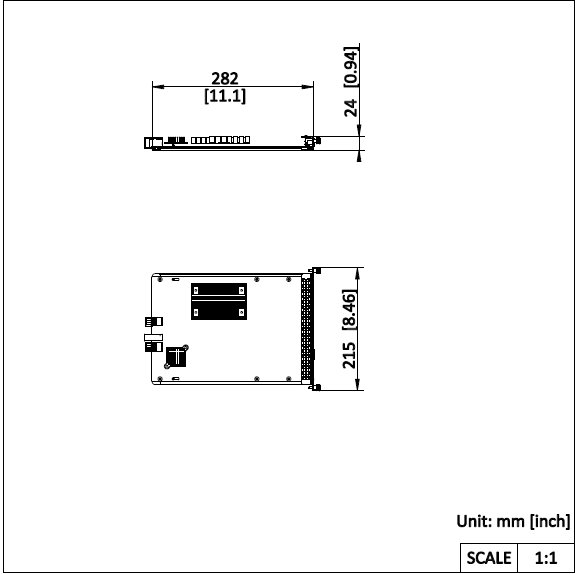

PDF Datasheets DS-C30S-02HI_4K_Datasheet_20250324.pdf 582 KB PDF Manuals & guides Quick Start Guide_ae012d46.pdf 3.2 MB PDF Manuals & guides User Manual_4606da55.pdf 3.1 MB PDF Brochures Brochure_Commercial-Display-Solutions-for-Command-Centers_20240628.pdf 13.3 MB PNG Drawings & CAD DS-C30S-02HI-4K_02.png 17 KB 0_25 Software & firmware · Opens on manufacturer site Firmware_V2.1.0_250108

Questions about DS-C30S-02HI/4K

What is the Hikvision DS-C30S-02HI/4K used for?

It is an HDMI input board for C30S Series video wall controllers. It adds two HDMI 2.0 input channels that accept signals up to 4K, plus composite audio input on the same board. It suits control rooms and operations centres that need several sources shown on one video wall, such as a presenter laptop alongside a live camera feed.

How many 4K inputs does the board provide?

The board provides two HDMI 2.0 video inputs, supporting two channels of 4K HDMI signal input. Each input can take 3840 × 2160 or 4096 × 2160 at 30 Hz or 60 Hz, so a presenter laptop and a second high-resolution source can feed the wall together. Check each source's output format before ordering, because the supported list is specific.

Which standard resolutions are supported?

The listed fixed formats are 1920 × 1080 at 60 Hz, 1920 × 1200 at 60 Hz, 3840 × 2160 at 30 Hz and 60 Hz, and 4096 × 2160 at 30 Hz and 60 Hz. These cover common display and camera outputs used in Qatari meeting rooms and control rooms. If a source outputs a different format, ask the SmartRooms Qatar team to check whether a custom resolution setting can match it.

What are the custom resolution limits?

Custom resolution allows width from 800 to 8192 pixels and height from 600 to 8192 pixels. Width must be a multiple of 4 and height a multiple of 2. At 30 Hz the custom range runs from 1920 × 1080 to 4096 × 2160, and at 60 Hz it runs from 800 × 600 to 4096 × 2160. Give the exact resolution of each source when you request a quote so the settings can be planned in advance.

Does the board carry audio?

Yes. It has two audio input interfaces using HDMI composite audio, with a 48K sampling rate and dual channel audio. In a boardroom or lecture hall this keeps the presenter's sound following the picture onto the wall without a separate audio source. Confirm the audio output of your sources before installation, since the final setup depends on how each device is connected.

Which controllers is it compatible with?

The board belongs to the C30S Series and occupies an input slot in the controller chassis. Before ordering, confirm that your controller is from the same series and has a free input slot. The source data does not list a full set of compatible chassis models, so send your current controller model to the SmartRooms Qatar team to confirm fit before the quotation is issued.

What is the difference between this model and the V2 version?

A revised version, DS-C30S-02HI/4K(V2), is listed under the same series. The manufacturer data available for this page does not set out the differences between the two revisions, so none are claimed here. State the revision you need in your request, and ask the SmartRooms Qatar team to confirm which one suits your existing controller.

Is it suitable for an operations room in West Bay?

It suits an operations room in West Bay that must show two 4K feeds, such as a live briefing source and a second data or playback source, side by side on one video wall. Before installation, map the cabling from each source to the controller and confirm the input formats. A free site survey helps check distances and the position of the controller within the room.

Can a school in Al Wakrah use it?

A school with an auditorium or large lecture theatre can use the board in a video wall that shows a presenter laptop and a camera feed for assemblies and lessons. Schools and government buyers can issue a purchase order (LPO) for the units required. Share the room size, the number of sources and the controller details so the team can confirm the setup before quoting.

How should the board be installed in Qatar's summer heat?

The source data does not give an operating temperature range for this board, so none is stated here. Place the controller in an air-conditioned, dust-controlled equipment space, and avoid positions near windows or open doors. During the free site survey, the SmartRooms Qatar team can review the room conditions with you before the installation is planned.

Does SmartRooms Qatar deliver outside Doha?

Yes. Delivery covers all eight municipalities of Qatar, including Al Khor, Mesaieed and Al Wakrah. Professional installation is available, and free site surveys can be arranged before work begins. Quotations usually come within one working day, and the team can also issue quotations for LPO or government tender processes.

Is the board covered by warranty?

Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. The source data for this board does not give a warranty period or terms, so none is stated here. The SmartRooms Qatar team will confirm the applicable warranty details in your quotation. Please include the full model code, including the revision if needed, when you request a quote.
