Hikvision DS-C66S-02HI/4K · Price in Qatar

Name: Hikvision DS-C66S-02HI/4K 2-Channel HDMI 4K Input Board
Brand: Hikvision
SKU: hikvision-ds-c66s-02hi-4k
Availability: InStock

Overview

The Hikvision DS-C66S-02HI/4K is a two-channel HDMI input board for the C66S Series video wall controller range. It accepts two HDMI 2.0 signals up to 4K at 60 Hz, handles HDR10 and HLG content, and supports HDCP 2.3 with backward compatibility. Dual-channel embedded audio arrives with each input. It suits control rooms, command centres and corporate visualisation rooms in Doha that feed live sources into a video wall.

What the DS-C66S-02HI/4K adds to a video wall

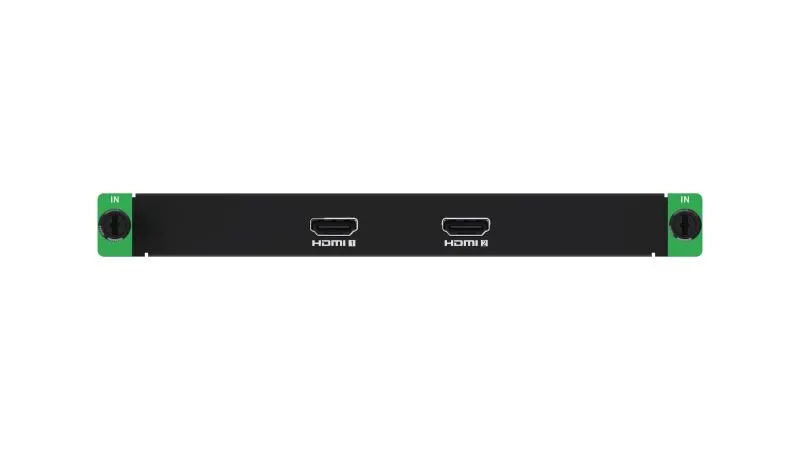

The Hikvision DS-C66S-02HI/4K is an input board rather than a display or a standalone processor. It fits an input slot in the C66S Series video wall controller range and gives that controller two HDMI inputs for live sources such as laptops, media players and cameras. Once a source reaches the controller, the wall can show it across one or several panels, which is why the input stage matters as much as the screens themselves.

Input performance across 4K and lower resolutions

Both HDMI 2.0 inputs accept up to 4096 × 2160 at 60 Hz, with 3840 × 2160 at 60 Hz and 1920 × 1200 at 60 Hz also listed in the input table. Frame rates from 24 Hz to 120 Hz are accepted. At 30 Hz the board covers 1920 × 1080 through 4096 × 2160, while at 60 Hz the range runs from 800 × 600 to 4096 × 2160. That range helps a planner account for mixed sources, such as a 4K workstation alongside an older 1080p player.

HDR, HDCP and embedded audio

HDR10 content is supported in line with SMPTE ST 2084 and SMPTE ST 2086, and HLG is also supported, so both common HDR formats can reach the wall. HDCP 2.3 is supported with backward compatibility to HDCP 2.2, 1.4 and 1.3, which helps when protected sources of different ages share one installation. Each HDMI input carries dual-channel audio at sampling rates of 32, 44.1 and 48 kHz, so sound travels with the picture from the source.

Where it fits in Qatar

Three situations show where this board earns its place.

Operations room in a government authority in Doha: operators switch between two live feeds on a multi-panel wall, with the input board handling a 4K60 workstation source and a second camera or dashboard feed.
Lecture hall or briefing room at a university in Education City: presenters connect laptops and an HDR media player, while the wall shows both sources side by side.
Corporate visualisation room in West Bay or Lusail: a team in Doha reviews a live dashboard from a partner office abroad, with protected content routed through HDCP 2.3.

What to plan before you order

Start with the slot count. Because the board occupies an input slot, add up the live sources you need on the wall and check how many free input slots your controller has. Each board gives two inputs, so four live sources need two boards. Next, check source outputs: 4K at 60 Hz and 4K at 30 Hz have different supported ranges, so confirm what each laptop, player or camera can output. Finally, plan the environment. The source data does not state an operating temperature range for this board, so keep the equipment in a ventilated, air-conditioned room and ask the SmartRooms Qatar team to confirm conditions before installation, especially near windows or in dusty areas. SmartRooms Qatar offers a free site survey, which helps map the cable run between the controller and the panels.

Request a quote

Tell the SmartRooms Qatar team how many inputs you need, the controller chassis you plan to use, the resolution of each panel and the installation location. Quotations are usually issued within one working day, and we supply against purchase orders and government tenders, including Monaqasat. Request a quote for the DS-C66S-02HI/4K and we will confirm the fit with your controller, advise on quantities and arrange delivery to any of Qatar's eight municipalities.

Highlights

Two HDMI 2.0 inputs supporting up to 4096 × 2160 at 60 Hz
Input frame rate range from 24 Hz to 120 Hz
HDR10 and HLG support, compliant with SMPTE ST 2084 and ST 2086
HDCP 2.3 with backward compatibility to HDCP 2.2, 1.4 and 1.3
Dual-channel in-band audio at 32, 44.1 and 48 kHz
Occupies one input slot in the C66S Series controller

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

11 specifications · Source: manufacturer · checked Oct 2026

Processing Performance1

Input Frame Rate: 24 Hz to 120 Hz

Chassis1

Occupied Slot: Input slot

General2

HDR: Supports HDR10, compliant with SMPTE ST 2084/SMPTE ST 2086 standards. Supports HLG.
HDCP: Supports HDCP 2.3, with backward compatibility to HDCP 2.2/HDCP 1.4/HDCP 1.3.

Audio1

Audio Channel: Dual channel

Audio Input2

Audio Input Interface: 2 × in-band audio
Audio Sampling Rate: 32/44.1/48 kHz

Video Input4

Video Input Interface Type: HDMI2.0
Video Input Interfaces: 2
Max. Video Input Resolution: 4K
Video Input Resolution: 4096 × 2160@60 Hz, 4096 × 2160@30 Hz, 3840 × 2160@60 Hz, 3840 × 2160@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080p@60 Width: 800 to 8192, height: 600 to 8192 (width aligned to 4, height aligned to 2), frame rate: 30/60 Hz. At 30 Hz: Resolution range 1920 × 1080 ~ 4096 × 2160. At 60 Hz: Resolution range 800 × 600 ~ 4096 × 2160.

Downloads

6 files from the manufacturer

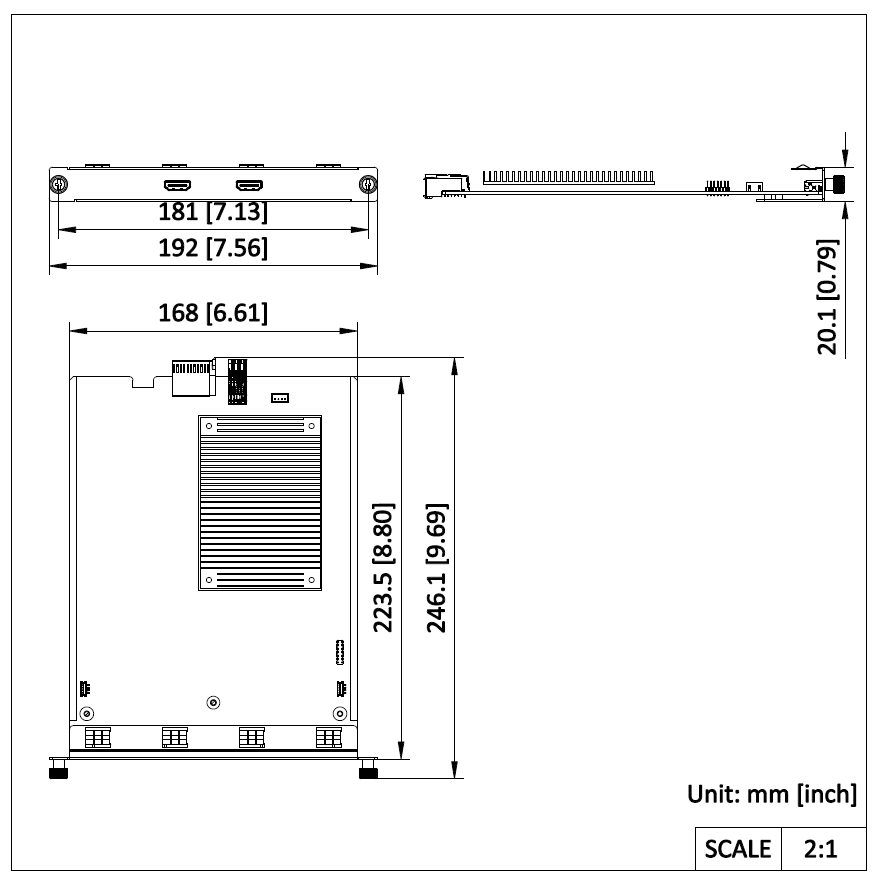

PDF Datasheets · Opens on manufacturer site DS-C66S-02HI_4K_Datasheet_20260625.pdf PDF Manuals & guides Quick Start Guide_8e655fcc.pdf 5.2 MB PDF Manuals & guides User Manual_9465d09a.pdf 6.2 MB PDF Brochures Brochure_Commercial-Display-Solutions-for-Command-Centers_20240628.pdf 13.3 MB PNG Drawings & CAD DS-C66S-02HI-4K_02.png 2.2 MB 1_26 Software & firmware · Opens on manufacturer site Firmware_V1.1.1_260902

Questions about DS-C66S-02HI/4K

What is the Hikvision DS-C66S-02HI/4K used for?

It is a two-channel HDMI input board that fits an input slot in the C66S Series video wall controller range, giving the controller two live 4K-capable sources. A typical use is a control room where operators bring laptops or media players onto the wall. It is an input module rather than a display, so you still need a controller chassis and wall panels to complete the system.

Does it support 4K at 60 Hz?

Yes. Each of its two HDMI 2.0 inputs supports 4096 × 2160 at 60 Hz and 3840 × 2160 at 60 Hz, as well as 1920 × 1200 at 60 Hz. At 30 Hz the supported range runs from 1920 × 1080 up to 4096 × 2160. Confirm that your source devices output the same format before placing an order, because the 30 Hz and 60 Hz ranges differ.

Which HDR formats does the board handle?

The board supports HDR10 in line with SMPTE ST 2084 and SMPTE ST 2086, and it also supports HLG. This matters when a lecture hall or boardroom shows HDR video from newer cameras or media players, because both common HDR formats are covered at the input stage.

Is HDCP copy protection supported?

Yes. The board supports HDCP 2.3 with backward compatibility to HDCP 2.2, HDCP 1.4 and HDCP 1.3. That means protected sources built to different HDCP versions can be connected, such as a licensed media player in a hotel lobby in Doha or a broadcast feed in an operations room.

Does the board carry audio?

Yes. It has two in-band audio inputs with dual-channel audio at sampling rates of 32, 44.1 and 48 kHz. Sound arrives with the HDMI signal from each source, so a school in Al Wakrah showing a video lesson with live teacher commentary does not need a separate audio feed for each input.

How many boards will I need for my wall?

The count depends on the free input slots in the controller chassis you choose, because this board occupies an input slot. Each board gives two inputs, so a wall receiving four live sources needs two boards and two free slots. Ask the SmartRooms Qatar team to confirm the correct chassis before you fix the quantity.

Is it suitable for a government operations room in Doha?

It suits an operations room where staff switch between several live feeds on a multi-panel wall. One board can handle a 4K60 workstation source and a second feed, such as a camera or dashboard. Start the planning with a list of sources and operating scenarios, then request a quote so the configuration matches the room.

Can it be used in a multipurpose hall at a school in Al Wakrah?

Yes, if the hall shows several sources, such as a teacher laptop, a document camera and a media player. Each board provides two inputs and handles resolutions up to 4K at 60 Hz. Before installation, a free site survey helps decide where the controller sits and how cables run to the display panels.

What about installation in hot or dusty areas near windows?

The source data does not give an operating temperature range for this board, so its suitability for high heat or dust cannot be confirmed from the data. Place the controller in an interior, ventilated equipment room away from windows, and ask the SmartRooms Qatar team to confirm the environment before installation.

Does the controller chassis come with it?

This page covers the input board itself. Because it occupies an input slot inside a controller, the chassis and wall panels must be specified in the quotation request. Include the panel resolution and the number of sources so the team can confirm the fit and advise on the quantities required.

How do I order through a purchase order or government tender?

SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and products are covered by the manufacturer's warranty. Send the model, quantities and delivery location to start the quotation.
