Hikvision DS-C66S-04DO 4 Channels DVI Output Board

Name: Hikvision DS-C66S-04DO 4 Channels DVI Output Board
Brand: Hikvision
SKU: hikvision-ds-c66s-04do
Availability: InStock

Overview

The Hikvision DS-C66S-04DO is a 4-channel DVI-D output board that installs in an output slot of a C66S Series video wall controller. It delivers four video outputs at up to 1080P and 60 Hz, with custom resolution support and LED screen output. Control rooms and commercial venues in Qatar that drive several DVI displays from one controller will find it a focused fit. Request a quote from SmartRooms Qatar.

What the DS-C66S-04DO adds to a C66S video wall controller

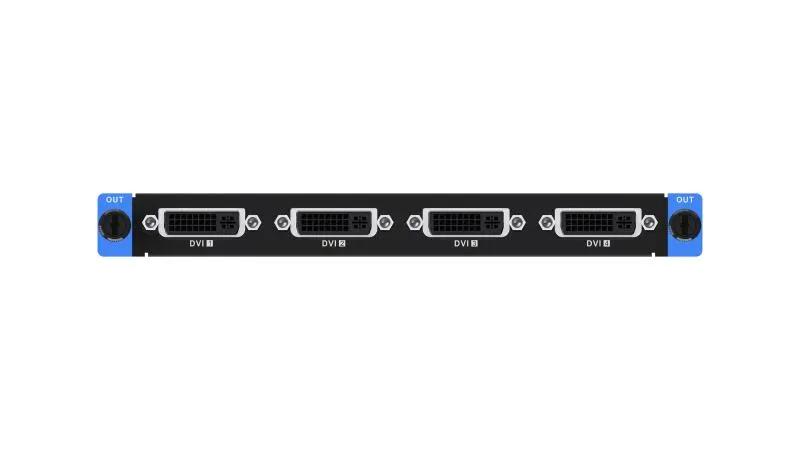

The DS-C66S-04DO is an output board in Hikvision's C66S Series of video wall controllers. It installs in an output slot of the chassis and provides four DVI-D video outputs, so a single board can feed four displays or LED screen sections. Its role is to take processed video from the controller and deliver it to physical screens, which makes the output count, resolution ceiling and loading capacity central to any wall design.

Resolution limits and LED loading

Each output has a maximum resolution of 1080P. The listed standard outputs are 1920 × 1200@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1680 × 1050@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz and 1024 × 768@60 Hz. For LED screens the board supports custom resolution output, with widths from 144 to 3840 pixels and heights from 144 to 2160 pixels, and a single-port load of 2,600,000 pixels at 60 Hz. Any custom LED layout should be checked against those limits before the design is finalised.

Layers for multi-window display

The specification lists 16 layers of 2K or 4K content per port. Layers are separate video windows that the controller can stack and position on one output, so an operator can show several sources on one screen rather than dedicating a display to each. Confirm the layer setup with the SmartRooms Qatar team during the quotation stage so the layout matches your operating procedures.

Where it fits in Qatar

The board suits any site where one controller must drive several DVI screens or an LED display:

Operations rooms in Doha: a government or utility control room in Msheireb or the Industrial Area that tracks several feeds on DVI monitors from one chassis.
Retail and hospitality: a mall management office in West Bay or Lusail that runs an LED display in the atrium from the same controller.
Industrial sites: a plant control room in Mesaieed or Ras Laffan that needs dedicated screens for process monitoring.

What to plan before you order

Confirm that the chassis has a free output slot and that your displays accept DVI-D, since the listed interface is DVI-D and no HDMI or DisplayPort output is specified. The source data does not give an operating temperature range or power requirements for this board. Summer temperatures in Qatar regularly exceed 45°C, so ask SmartRooms Qatar to confirm the environmental requirements for the equipment room and the chassis before ordering. A free site survey is a practical way to map cable runs from each output to its screen.

SmartRooms Qatar supplies the DS-C66S-04DO with delivery to all eight municipalities of Qatar and professional installation. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders, including Monaqasat. The product is covered by the manufacturer's warranty. Send us your display count, target resolutions and chassis details, and request a quote today.

Highlights

Four DVI-D video outputs from a single output board
Installs in an output slot of C66S Series controllers
Maximum output resolution of 1080P at 60 Hz
Custom resolution output for LED screens
16 layers of 2K or 4K content per port
Single-port LED load of 2,600,000 pixels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

7 specifications · Source: manufacturer · checked Oct 2026

Chassis1

Occupied Slot: Output slot

Video Wall1

Layers: 16 layers of 2K/4K per port

Video Output5

Max. Video Output Resolution: 1080P
Video Output Resolution: 1920 × 1200@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1680 × 1050@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz Supports LED screen, custom resolution output, 60 Hz loading output, and 2.6 MP loading with width ranging from 144 to 3840 and height ranging from 144 to 2160.
Video Output Interface Type: DVI-D
Loading Capacity for Video Output to LED: Single port load 2600000, Width 144 - 3840, Height 144 - 2160
Video Output Interfaces: 4

Downloads

6 files from the manufacturer

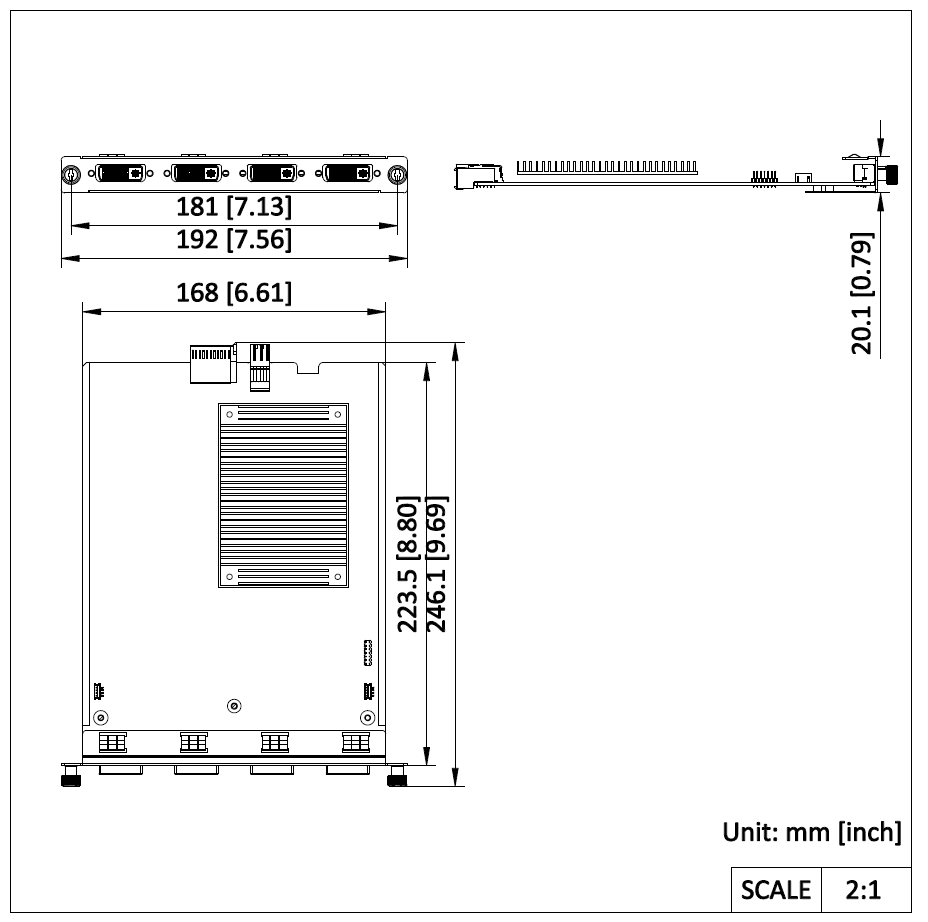

PDF Datasheets · Opens on manufacturer site DS-C66S-04DO_Datasheet_20260625.pdf PDF Manuals & guides Quick Start Guide_8e655fcc.pdf 5.2 MB PDF Manuals & guides User Manual_9465d09a.pdf 6.2 MB PDF Brochures Brochure_Commercial-Display-Solutions-for-Command-Centers_20240628.pdf 13.3 MB PNG Drawings & CAD DS-C66S-04DO_02.png 2.5 MB 1_26 Software & firmware · Opens on manufacturer site Firmware_V1.1.1_260902
