Hikvision DS-C66S-04HI · Price in Qatar

Name: Hikvision DS-C66S-04HI 4-Channel HDMI Input Board for Video Wall Controllers
Brand: Hikvision
SKU: hikvision-ds-c66s-04hi
Availability: InStock

Overview

The Hikvision DS-C66S-04HI is a four-channel HDMI input board for C66S Series video wall controllers. It adds four HDMI 1.4 inputs, accepts frame rates from 24 Hz to 60 Hz, takes HDMI composite audio and supports HDCP access. It suits control rooms, boardrooms and lobby walls across Doha and Lusail that combine several sources on one display wall. Request a quote from SmartRooms Qatar.

What the DS-C66S-04HI adds to a video wall controller

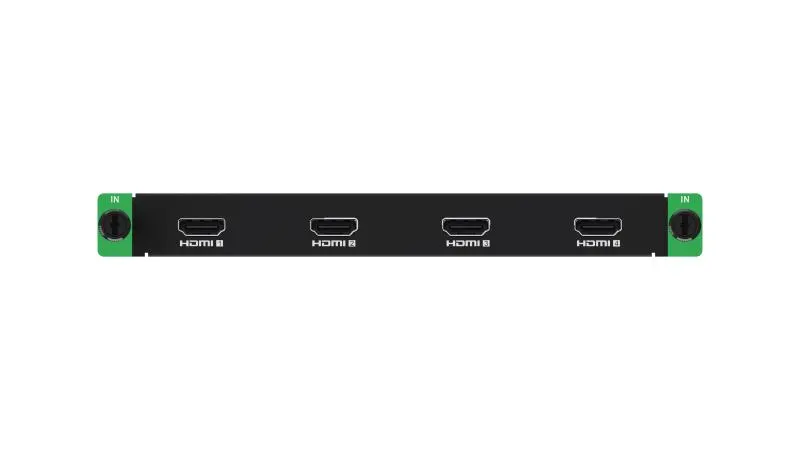

The DS-C66S-04HI is an input board for the C66S Series of Hikvision video wall controllers. It sits in an input slot of the chassis and gives the system four HDMI 1.4 inputs, so one controller can take signals from up to four separate sources, such as a presentation PC, a media player or a second computer. Instead of adding external switching hardware in front of the wall, you connect the sources directly to the controller.

Input specifications to check against your sources

Each input accepts frame rates from 24 Hz to 60 Hz. The manufacturer lists 1080P as the maximum input resolution. Supported fixed formats run from 1024 × 768 at 60 Hz up to 1920 × 1200 at 60 Hz, and include 1280 × 720 and 1920 × 1080 at 25, 30, 50 and 60 Hz. Custom inputs can be set with widths from 800 to 2560 and heights from 600 to 2560, at 30 or 60 Hz, within the ranges the manufacturer lists.

Inputs: four HDMI 1.4 channels
Frame rate: 24 Hz to 60 Hz
Maximum listed resolution: 1080P
Audio: HDMI composite audio at 32, 44.1 and 48 kHz, dual channel

Audio and protected content

Audio travels inside the HDMI signal. The board takes in-band audio on its four inputs and handles it as dual channel, with sampling rates of 32, 44.1 and 48 kHz, so sound from each source can travel with its picture. The board supports HDCP access, using HDCP 1.4 with backward compatibility to HDCP 1.3. Before purchase, confirm that each source you plan to connect, particularly licensed media players, works at that HDCP level.

Where a four-input board fits in Qatar

Four inputs suit a room where a small number of sources must share one display wall. Examples include:

A ministry briefing room in Msheireb where staff switch between a presenter laptop, a playout PC and a second workstation on the same wall.
An operations room at an energy company in Mesaieed that monitors four live feeds on one wall, where the 1080P maximum sets the resolution for each feed.
A learning hub in Education City where students present from up to four devices to one wall, and HDCP support matters for licensed course media.

Planning the install before you order

Confirm that the chassis has a free input slot and is a C66S Series platform.
List every source with its resolution and frame rate, and check that each stays within 1080P and 24 to 60 Hz.
Test licensed or protected sources against HDCP 1.4 and 1.3 before purchase.
Ask for power and environmental ratings before placing the controller in a plant room, since the data does not list operating temperatures for this board.

Our site survey is free and lets us measure cable runs and check the room before the wall is built. Quotations usually come back within one working day, and the board is covered by the manufacturer's warranty. Send your source list and wall layout to SmartRooms Qatar and request a quote for the DS-C66S-04HI.

Highlights

Four HDMI 1.4 video inputs on one input board
Input frame rates from 24 Hz to 60 Hz
Maximum listed input resolution of 1080P
HDMI composite audio input, dual channel, 32/44.1/48 kHz
HDCP 1.4 support with backward compatibility to HDCP 1.3
Fits the input slot of C66S Series video wall controllers

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

10 specifications · Source: manufacturer · checked Oct 2026

Processing Performance1

Input Frame Rate: 24 Hz to 60 Hz

Chassis1

Occupied Slot: Input slot

General1

HDCP: Supports HDCP 1.4 with backward compatibility to HDCP 1.3

Audio1

Audio Channel: Dual channel

Audio Input2

Audio Input Interface: 4 × in-band audio
Audio Sampling Rate: 32/44.1/48 kHz

Video Input4

Video Input Interface Type: HDMI1.4
Video Input Interfaces: 4
Max. Video Input Resolution: 1080P
Video Input Resolution: 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720P@50 Hz, 1280 × 720P@60 Hz, 1920 × 1080P@25 Hz, 1920 × 1080P@30 Hz, 1920 × 1080P@50 Hz, 1920 × 1080P@60 Hz, 1920 × 1200@60 Hz Custom resolution range: Width: 800 to 2560, height: 600 to 2560 (width aligned to 4, height aligned to 2), frame rate: 30/60 Hz. At 30 Hz: Resolution range 1280 × 720 ~ 2048 × 1152. At 60 Hz: Resolution range 800 × 600 ~ 2048 × 1152.

Downloads

6 files from the manufacturer

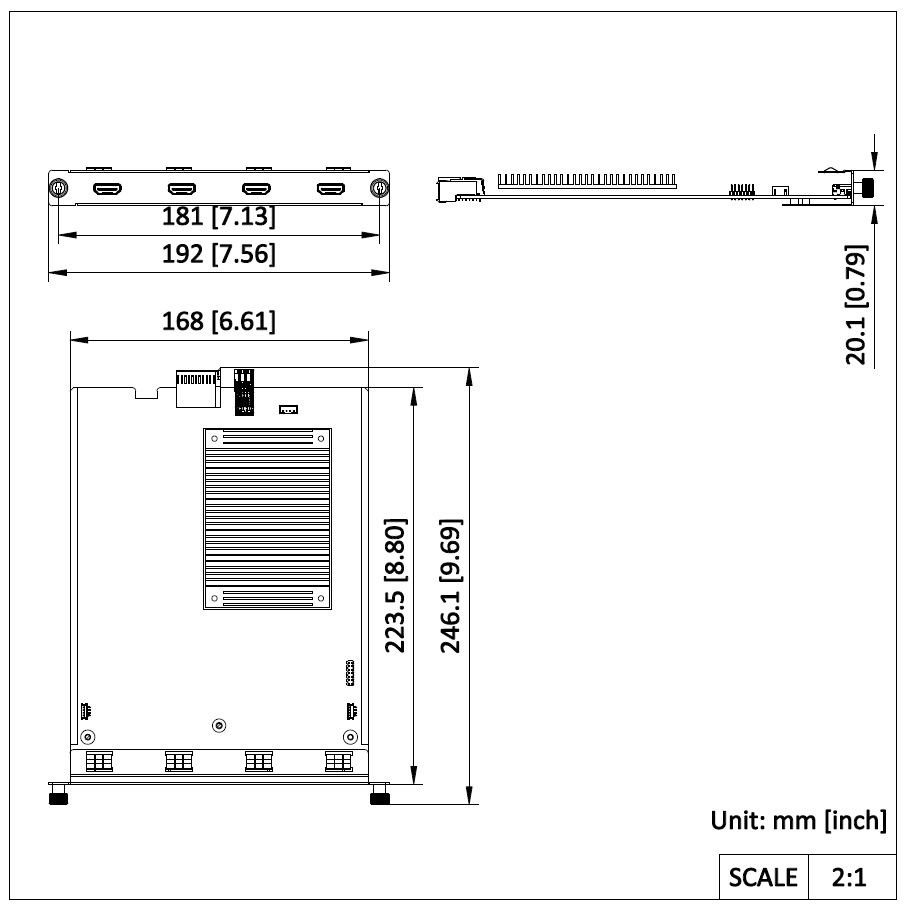

PDF Datasheets · Opens on manufacturer site DS-C66S-04HI_Datasheet_20260625.pdf PDF Manuals & guides Quick Start Guide_8e655fcc.pdf 5.2 MB PDF Manuals & guides User Manual_9465d09a.pdf 6.2 MB PDF Brochures Brochure_Commercial-Display-Solutions-for-Command-Centers_20240628.pdf 13.3 MB PNG Drawings & CAD DS-C66S-04HI_02.png 2.4 MB 1_26 Software & firmware · Opens on manufacturer site Firmware_V1.1.1_260902

Questions about DS-C66S-04HI

What is the DS-C66S-04HI and which controllers does it suit?

The DS-C66S-04HI is a four-channel HDMI input board from Hikvision's C66S Series of video wall controllers. It occupies an input slot in the chassis and provides four HDMI 1.4 inputs. The manufacturer lists it within the C66S Series only, so confirm that your chassis is a compatible C66S platform before ordering. SmartRooms Qatar can check this against your existing equipment while preparing the quotation.

How many video sources can one board take?

One DS-C66S-04HI board accepts four HDMI sources. If your wall needs more feeds than that, ask SmartRooms Qatar to confirm how many input slots your chassis offers before you request a quote. Settling the source count at the start prevents buying the wrong number of boards. A control room in Doha showing a laptop, a playout PC, a camera feed and a dashboard would use all four inputs on a single board.

What is the highest input resolution this board supports?

The manufacturer lists 1080P as the maximum video input resolution. The fixed list runs from 1024 × 768 at 60 Hz up to 1920 × 1200 at 60 Hz, and custom inputs can be set between 800 × 600 and 2048 × 1152 at 60 Hz. The source data does not list 4K support, so do not plan 4K sources through this board without confirming the setup with the SmartRooms Qatar team first.

Can it connect HDCP-protected sources such as licensed media players?

Yes, the board supports HDCP access, using HDCP 1.4 with backward compatibility to HDCP 1.3. Licensed media players and other protected content feeds often require HDCP, so list those sources early in your planning. Test them with the chosen board before committing to a purchase, because the data confirms only the HDCP levels stated above.

Does the board carry audio from each HDMI source?

The board supports HDMI composite audio input, so audio arrives inside each HDMI signal. It takes four in-band audio inputs, handles audio as dual channel, and supports sampling rates of 32, 44.1 and 48 kHz. In a university lecture hall or a hotel conference room where presenters bring their own laptops, this means the sound from each source travels with its picture.

What frame rates can the inputs handle?

Each input accepts signals from 24 Hz to 60 Hz. Among the fixed resolutions the manufacturer lists, 1920 × 1080 is available at 25, 30, 50 and 60 Hz, and 1280 × 720 at 50 and 60 Hz. Check the output rate of each device before purchase, especially imported equipment that may be set to a different frame rate.

Is this a good fit for a ministry meeting room in Msheireb with several presenters?

It can be, if the room needs four or fewer HDMI sources at up to 1080P. A ministry meeting room in Msheireb that switches between a presenter laptop, a playout PC and a second workstation would use three of the four inputs. Ask SmartRooms Qatar for a free site survey to check the layout, cable routes and any protected sources before a purchase order is raised.

Can I install it in a hot equipment room in Mesaieed or Ras Laffan?

The source data does not give an operating temperature range for this board, so its suitability for hot equipment rooms cannot be confirmed. Summer temperatures in Qatar often exceed 45°C, so ask for the environmental rating and plan ventilation or air conditioning for the controller chassis. SmartRooms Qatar can review the room during a free site survey and recommend a suitable location before installation.

How could a school in Al Wakrah use this board in a shared learning hub?

A school in Al Wakrah building a shared learning hub could use the board to bring four sources onto one wall, such as a teacher PC, a student device, a timetable display and a document feed. Because the maximum listed input resolution is 1080P, design the wall around that figure. Audio from each HDMI source travels with its picture, which helps during classroom presentations.

What should we plan for before installing the board?

Confirm that the chassis has a free input slot and is a C66S Series platform. List every source with its resolution and frame rate, and test any protected content against HDCP 1.4 and 1.3. Qatar mains supply is 240 V at 50 Hz, but the data does not list power figures for this board, so request them before finalising the layout. The site survey is free and covers cable runs and room checks.

How do I order, and is the board covered by warranty?

The board is covered by the manufacturer's warranty. Pricing is provided only through a quotation, and SmartRooms Qatar usually issues one within a working day of receiving your source list and layout. Government bodies can order by purchase order (LPO) or through Monaqasat tenders, and payment can be made by bank transfer, cheque or purchase order.
