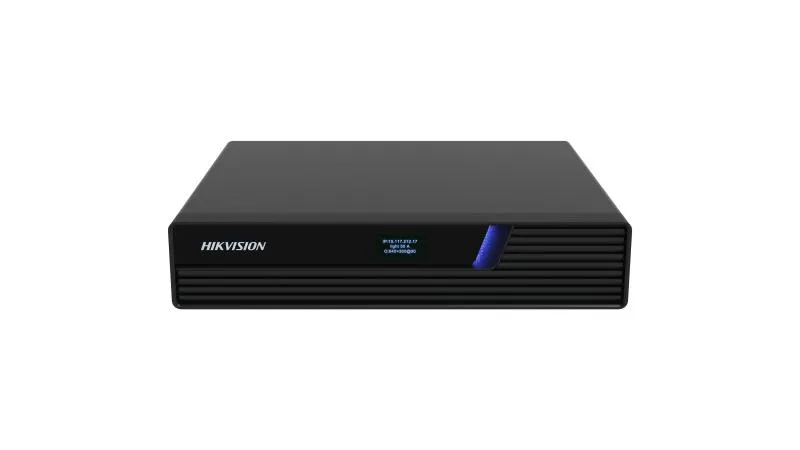

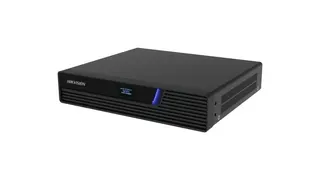

Hikvision DS-C80N-01HO/4K Distributed 4K HDMI Output Node
- Resolution
- 8192 × 4320
The Hikvision DS-C80N-01HO/4K is a half-width output node for distributed video walls. It provides one HDMI 2.0 output up to 4K60, Gigabit SFP and Ethernet ports that back each other up, and 802.3at PoE. Each node runs independently, so one unit failing does not stop the wall. It suits control rooms and campuses in Qatar expanding a wall in stages. Request a quote.
What this output node does in a distributed video wall
The Hikvision DS-C80N-01HO/4K is an output node for distributed video wall systems. Rather than relying on one central server, each node works on its own, so a fault in one unit does not stop the rest of the wall. It drives a single HDMI 2.0 output at up to 4K60 and works alongside centralised controllers, multi-function video centres and decoders, which lets a control room grow in stages without replacing equipment.
Specifications that shape the design
Each unit has one Gigabit SFP optical port and one Gigabit Ethernet port, and the two can act as hot backup for each other. It accepts 802.3at PoE, and when an external power supply is added it can run on a dual power arrangement. Power draw is rated at no more than 30 W, and the supply accepts 110 to 240 VAC. The unit measures 210 × 42 × 180 mm and is half-width, so two nodes fit the width of one rack.
Image handling is built around YUV 444 sampling, with frame synchronisation so that all outputs in a splice play in step. Audio is available on the HDMI output together with a separate 3.5 mm output, at 24-bit and 48 kHz.
Decoding and window control
Beyond driving a display, the node decodes network camera and NVR streams in H.264, H.265, Smart 264 and Smart 265. Its decoding capacity is listed as 16 channels of 1080p, or mixed combinations such as eight channels of 4 MP. A wall can hold up to 17 open windows, 1,024 scenes and 256 plans for scheduled changes, and the node supports ONVIF access and PTZ control of conference and monitoring cameras.
Where it fits in Qatar
- Ministry or authority command room: a Doha operations centre in Msheireb linking a main wall with camera feeds from several sites.
- Multi-building campus: a university in Education City or Lusail routing lecture-hall sources to a central display wall over the existing network.
- Energy or industrial monitoring: a wall at a site in Mesaieed or the Industrial Area, where the 0 to 50 °C operating range suits a climate-controlled room.
What to plan before ordering
Confirm the network before ordering. The node relies on Gigabit links, and PoE draw and any extra power units need to be included in the switch and cabinet plan. The 50 °C upper limit applies to the unit itself, and in a summer rack in Qatar, where ambient air can exceed 45 °C, cabinet ventilation and airflow should be checked with the SmartRooms Qatar team. Because each node is half-width and ships with a mounting bracket and a connecting bracket, plan rack or wall positions in pairs. A free site survey helps confirm cable routes and cabinet space.
Request a quote from SmartRooms Qatar with your wall size, number of outputs and number of sources, and we will recommend the right node quantity and accessories.
Highlights
- One HDMI 2.0 output, up to 4K60 resolution
- Gigabit SFP and Ethernet ports with hot backup between them
- 802.3at PoE, with optional external power supply
- Decodes H.265 and Smart 265 network camera streams
- Half-width design: two nodes fit one rack width
- No central server; each node operates independently
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Device Feature3
- Device Type
- Output node
- KVM Function
- No
- Dual Device Hot Backup
- Supported, customized

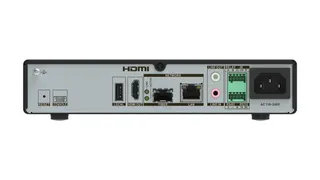

Interface12
- Optical Interface
- 1 channel of 1000 Mbps SFP port
- Electrical Interface
- 1 channel of 1000 Mbps Ethernet port
- USB Interface
- 1 × USB 2.0 port
- Screen Type
- OLED 128 × 64 dot-matrix screen
- Other Interfaces
- 1 × Console port for debugging
- RS-232 Interface
- 1 channel, Phoenix terminal
- RS-485 Interface
- 1 channel, Phoenix terminal
- IO/IR IN Interface
- 1 channel, Phoenix terminal, customized by software
- IO/IR OUT Interface
- 1 channel, Phoenix terminal, customized by software
- IR POWER Interface
- 1 channel, 3.3 V, Phoenix terminal
- RELAY Interface
- 1 channel, Phoenix terminal
- RESET Interface
- 1 channel
Video Wall20
- Video Walls
- 32 (If the video wall quantity exceeds this limit, the custom evaluation is required.)
- Video Wall Scale
- One video wall supports up to 320 output nodes. (If the video wall scale exceeds this limit, the custom evaluation is required.)
- Open Windows
- 17, including 8 local signal sources, 8 network signal sources, and 1 alarm pop-up window
- Input Source Copy Capability
- The signal from a single input node can be copied into multiple signals and output to multiple output ports.
- Layers Per Screen
- 17, including 8 local signal sources, 8 network signal sources, and 1 alarm pop-up window
- Layers per Device
- 1024
- Scenes
- 1024
- Scene Auto-Switch Delay
- 400 ms
- Plans
- 256
- UHD Fusions
- 16
- Background Image
- Up to 4 background images. The maximum size of the background image that can be stored locally is 16 M. Each video wall can display only 1 background image.
- Background Resolution
- 8192 × 4320
- Background Format
- JPG/JPEG
- Subtitles
- 4
- Output Logo Overlay
- Not supported
- Output OSD
- Not supported
- Local Signal Source Decoding Delay
- 50 ms (2K60 signal source), 90 ms (4K60 signal source);
- Network Signal Source Decoding Delay
- 300 ms
- Signal Source Live View
- Supported on the client.
- Window Division
- 1, 4, 9, 16
General10
- Working Temperature
- 0 °C to 50 °C
- Working Humidity
- 0% to 95%
- Indicator
- 1 × single double base color light indicator, 1 × optical port indicator, 1 × network port indicator
- Net Weight
- 1.09 kg (2.40 lb.)
- Gross Weight
- 1.52 kg (3.35 lb.)

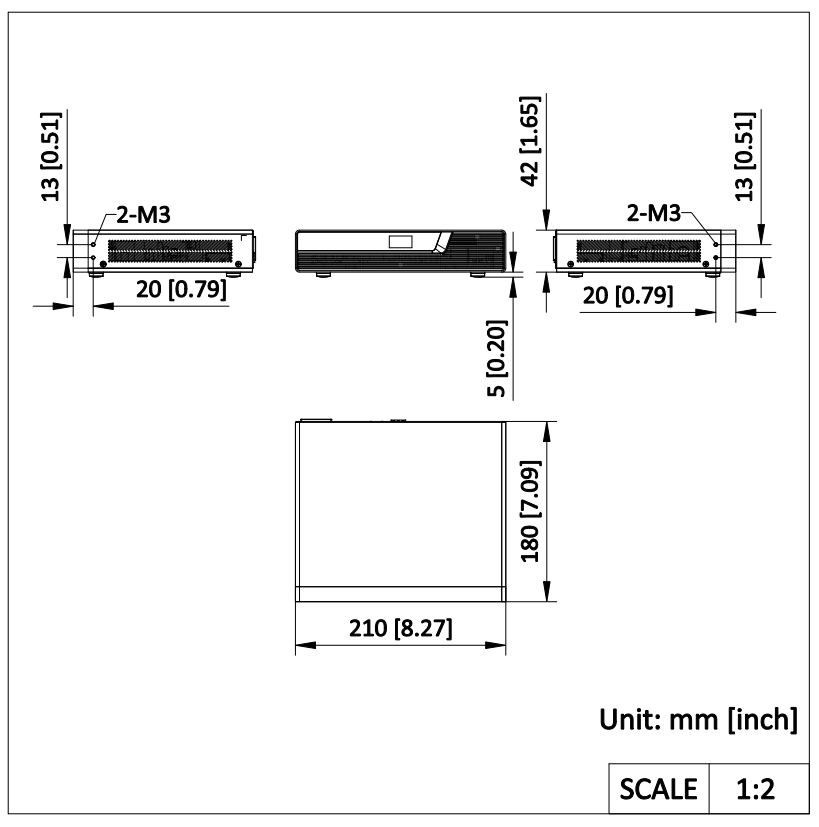

- Dimensions (W × H × D)
- 210 mm × 42 mm × 180 mm ( 8.27 inch × 1.65 inch × 7.09 inch)
- Installation Method
- Magnetic installation (optional), planar arrangement, rack installation
- Packing List
- 1 × DS-C80N-01HO/4K, 1 × regulatory compliance and safety information manual, 1 × power cord, 1 × mounting bracket, 1 × connecting bracket
- Power Consumption
- ≤ 30 W
- Power Supply
- Power supply: 110 VAC to 240 VAC, 0.7 A POE: 802.3at protocol
Video5
- Video Output Interface Type
- HDMI 2.0
- Video Output Interfaces
- 1
- Max. Video Output Resolution
- 4K60
- Loading Capacity for Video Output to LED
- Single port load 8800000, Width 288 - 8192, Height 288 - 4320;
- Video Output Resolution
- 4096 × 2160@60 Hz, 4096 × 2160@30 Hz, 3840 × 2160@60 Hz, 3840 × 2160@30 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, UXGA (1600 × 1200@60 Hz), WUXGA (1920 × 1200@60 Hz), SXGA3 (1400 × 1050@60 Hz), WSXGA (1680 × 1050@60 Hz), XGA (1024 × 768@60 Hz), SXGA (1280 × 1024@60 Hz), 1280 × 720@60 Hz, 1280 × 720@50 Hz
Audio7
- Audio Input Interfaces
- 1
- Audio Input Interface Type
- 3.5 mm coaxial audio jack
- Audio Channel
- Dual audio channel
- Audio Output Interfaces
- 1
- Audio Output Interface Type
- 3.5 mm coaxial audio jack
- Audio Talk
- Use the audio input port and audio output port
- Audio Sampling Rate
- 24 bit, 48 KHz
Video Decoding3
- Video Decoding Format
- H.264, H.265, Smart 264, Smart 265
- Video Decoding Channels
- 16
- Video Decoding Capability
- 1 channel of 32 MP, 2 channels of 16 MP, 4 channels of 8 MP, 5 channels of 6 MP or 5 MP, 8 channels of 4 MP, 16 channel of 1080p
Audio Decoding2
- Audio Decoding Format
- G711A, G711U, G722, G722.1, AAC_LC
- Audio Decoding Channels
- 1
