Panasonic TH-49SQ1 (Discontinued) · Replacements in Qatar

Name: Panasonic TH-49SQ1 49-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-49sq1
Availability: Discontinued

Overview

The Panasonic TH-49SQ1 is a 49-inch 4K UHD LCD display from Panasonic's SQ1 Series, designed for stores, meeting rooms and public signage. Panasonic has discontinued this model. It offers 3840 x 2160 resolution, 500 cd/m² typical brightness, HDR support, a built-in USB media player and an Intel SDM slot. Organisations in Qatar that already own one, or need a comparable display, can request a quote for a current equivalent or compatible replacement.

A 49-inch 4K display for stores, meeting rooms and signage

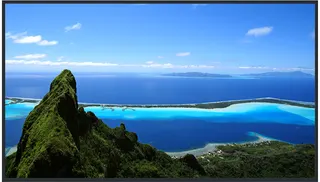

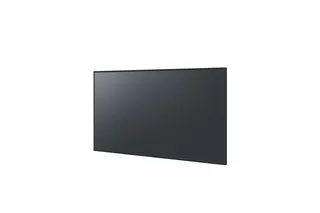

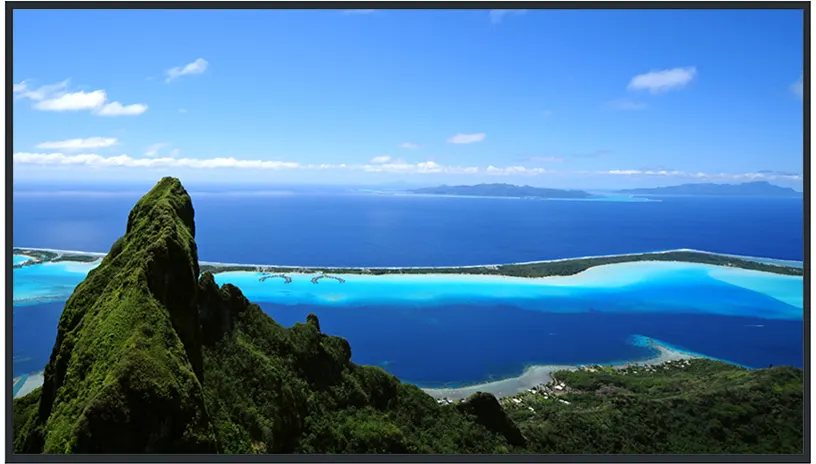

The Panasonic TH-49SQ1 is a 49-inch class 4K UHD LCD display from the SQ1 Series. Its 3840 x 2160 panel carries roughly four times the pixels of a Full HD screen, so fine text and detailed graphics stay sharp at close viewing distance. Panasonic has discontinued this model. This page is written for organisations that already run one, buyers comparing it with newer displays, and anyone who needs a replacement.

Picture, colour and screen features that matter on site

Brightness and contrast: 500 cd/m² typical brightness and 1100:1 typical contrast ratio.
HDR and colour control: HDR in PQ and HLG formats, a BT.2020 emulation mode and 12-axis colour management for individual images.
Anti-glare surface: treatment with 28% haze, useful in rooms that face windows.
Response and viewing angle: 8 ms (G to G) response time and 178-degree viewing angles.

The bezel measures 12.4 mm at the top, 16.0 mm at the bottom and 12.9 mm at the sides, so the image stays the focus when several screens sit in one room.

Connections and control for mixed-use rooms

The TH-49SQ1 offers two HDMI inputs with HDCP 2.2, a DisplayPort input and output for daisy-chaining 4K screens, a DVI-D input and a mini D-sub PC input. DIGITAL LINK carries video, audio and control over one CAT5e or higher STP cable, with a stated reach of 50 m for 4K. A built-in USB media player plays content from a memory stick without a computer. LAN and RS232C serial ports with PJLink support let a facilities team switch and monitor the display remotely. An Intel SDM slot accepts compatible interface boards sold separately, and Panasonic cannot guarantee third-party boards.

Where a 49-inch panel fits in Qatar

In a private school in Al Wakrah, a 49-inch panel suits a corridor display or a smaller classroom where the teacher stands close to the screen. In a corporate reception in Msheireb, it can show wayfinding and visitor information on a screen that stays on through the working day. In a control room at an industrial site in Ras Laffan, the 24-hour rating supports a live monitoring view, provided moving content is rotated to limit image retention.

What to plan before installation

The panel measures 1105 x 637 x 74 mm including handles and weighs approximately 21 kg.
Use the 400 x 400 mm VESA pattern and confirm that the wall or frame can carry the load.
Operating range is 0 to 40 °C and 20 to 80% humidity, non-condensing, so install it in an air-conditioned room, since Qatar's summer heat can exceed 45 °C outdoors.
Power is 110 to 240 V AC at 50/60 Hz, with 285 W consumption in use.
Tilt is 0 to 45 degrees in landscape or portrait.

Because this model is discontinued, ask SmartRooms Qatar for a quote on a current equivalent or compatible replacement. Our team offers a free site survey before wall-mounting, and schools and government buyers can submit one purchase order (LPO) covering several units. Request a quote with your room sizes, mounting wall and connection needs.

Highlights

49-inch class with 3840 x 2160 4K UHD resolution
500 cd/m² typical brightness and 1100:1 contrast
HDR in PQ and HLG with BT.2020 emulation mode
Built-in USB media player for 4K content without a PC
DIGITAL LINK over a single CAT5e or higher STP cable
Discontinued by Panasonic; request a quote for a replacement

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

37 specifications · Source: manufacturer · checked Oct 2026

Display Panel9

Screen size (diagonal): 49-inch (48.5" / 1232.0 mm)
Aspect ratio: 16:9
Effective display area (W x H): 1073 x 604 mm (42.2" x 23.7")
Resolution: 3840 x 2160
Brightness (typ.): 500 cd/m²
Contrast ratio (typ.): 1100:1
Response time: 8 ms (G to G)
Viewing angle [(T/B)/(L/R)]: 178°/178° (CR≥10)
Panel Surface Treatment: Anti-Grare Type (Haze 28%)

Terminals12

HDMI In: HDMI TYPE-A Connector x 2 (Compatible with HDCP 2.2)
DVI-D In / Audio In (L/R): DVI-D 24-pin x 1 (HDCP 1.1) / Stereo Mini Jack (M3) x 2 (Shared with PC In)
PC In / Audio In (L/R): Mini D-sub 15-pin x 1 / Stereo Mini Jack (M3) x 2 (Shared with DVI-D In)
DisplayPort In: DisplayPort x 1 (HDCP2.2)* 1
DisplayPort Out: DisplayPort x 1 (HDCP1.4)* 1
USB: USB Connector (TYPE-A) x 2, DC 5 V/2 A, DC 5V/1A (USB 3.0 Supported)
Serial: D-sub 9-pin x 1, RS232C Compatible
LAN: RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™
DIGITAL LINK: RJ45 x 1, 100 BASE-TX, Compatible with long reach mode and PJLink™
IR In/Out: Stereo Mini Jack (M3) x 1 / x 1
Audio Out: Stereo Mini Jack (M3) x 1 0.5 V [rms],　Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,　10 kΩ Load)
SLOT: Intel® SDM specification Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A

Audio2

Built-in speaker: 20 W [10 W + 10 W]
External speaker out: 30 W [15 W + 15 W]　10 % THD

Electrical4

Power requirements: 110–240 V AC,　50 Hz/60 Hz
Power consumption: 285 W
Power off condition: Approx. 0.3 W
Stand-by condition: Approx. 0.5 W

Mechanical4

Dimensions (W x H x D): 1105 x 637 x 74 mm (43.5" x 25.1" x 2.9") Including handles
Weight: Approx. 21 kg (46.3 lbs.)
Bezel width: 12.4 mm (0.49") (T), 16.0 mm (0.63") (B), 12.9 mm (0.51") (L/R)
Wall-hanging pitch: 400 x 400 mm (15.75" x 15.75") VESA Compliant

Installation Environment3

Orientation: Landscape/Portrait* 2
Tilting Angle: Landscape setting: 0 - 45 degrees forward/backward Portrait setting: 0 - 45 degrees forward/backward
Operating time* 3: 24 h/day

Environment3

Operating environment: Temperature : 0 °C to 40 °C / Humidity: 20% to 80% (Non-condensation)
Applicable software: Multi Monitoring & Control Software, Content Management Software, Video Wall Manager
Regional Spec Sheets: Global: TH-49SQ1W

Downloads

7 files from the manufacturer

PDF Datasheets TH-49SQ1_Spec_Sheet_Global.pdf 1.2 MB PDF Datasheets sq1_screen_transfer_leaflet_en.pdf 141 KB PDF Manuals & guides sq1w_manual_en.pdf 12.2 MB PDF Manuals & guides sq1w_qsg_ar.pdf 6.1 MB PDF Manuals & guides sq1w_qsg_en.pdf 7.1 MB PDF Brochures SQ1_series_g.pdf 2.2 MB URL Drawings & CAD · Opens on manufacturer site #sq1

Questions about TH-49SQ1

Is the Panasonic TH-49SQ1 still sold by Panasonic?

No. Panasonic has discontinued the TH-49SQ1 and no longer lists it as a current model. SmartRooms Qatar can prepare a quote for a current equivalent or a compatible replacement, matched to your room size, connections and mounting method. If your organisation already owns one, we can also compare it with newer models before you decide what to keep and what to replace.

Who is the TH-49SQ1 suited to?

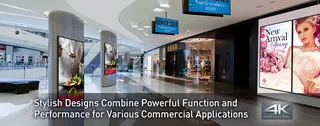

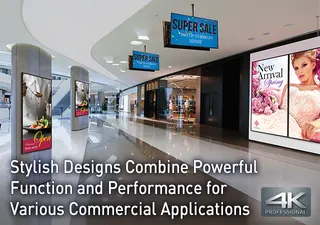

It suits stores, meeting rooms, reception areas and public signage where a 49-inch panel fits the viewing distance. Its 24-hour operating rating and 4K picture make it a practical choice for a corporate lobby in Msheireb or a retail unit in a Doha shopping centre that runs promotions through the working day. It is also a good match for small meeting rooms where a few people sit close to the screen.

What resolution, brightness and screen treatment does it have?

It has a 3840 x 2160 4K UHD panel with 500 cd/m² typical brightness and a 1100:1 typical contrast ratio. The panel uses an anti-glare surface treatment with 28% haze, which helps in rooms with windows, such as a West Bay office where afternoon sun falls across the screen. The viewing angle is 178 degrees, so content remains readable from the side of a room.

Can it run continuously in a control room or public area?

Yes. The data rates it for 24 hours a day operation and names control rooms, train stations, airports and shopping malls as suitable locations. Panasonic recommends displaying moving content over long periods, because a still picture held for a long time can leave image retention that gradually fades when motion is shown. A control room at an industrial site in Ras Laffan could keep a live monitoring view on screen by rotating moving content.

Which inputs are available for connecting a laptop, PC or media player?

It has two HDMI inputs with HDCP 2.2, one DisplayPort input, a DVI-D input, a mini D-sub 15-pin PC input and a DisplayPort output for daisy-chaining 4K screens. The stereo audio jacks are shared with the PC and DVI-D inputs. In a classroom, the two HDMI inputs let a teacher's laptop and a second source, such as a document camera, stay connected without swapping cables each lesson.

Can I show content from a USB stick without a PC?

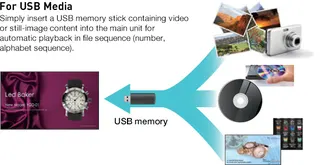

Yes. The built-in USB media player starts playback when a memory stick containing content is inserted, and it supports 4K. Still images in JPG, JPEG, JPE or BMP format and motion files such as MP4, MOV, MKV, AVI and others are supported. Some files may not play even when they are in a supported format, so check the operation manual for file limits before rolling out content across a site.

Does it support HDR and colour accuracy for branded content?

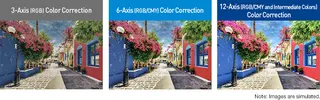

It supports HDR in PQ and HLG formats and includes a BT.2020 emulation mode for the wide colour gamut of that standard. Its 12-axis colour management lets you adjust colour temperature, shade and brightness for individual images across red, green, blue and their complementary colours. This helps a corporate brand keep logos and product colours consistent across several screens in a showroom or lobby.

How far can I run a DIGITAL LINK cable?

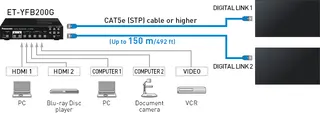

DIGITAL LINK carries video, audio and control over a single CAT5e or higher STP cable. The data gives 150 m for Full HD video and 50 m for 4K video. The 150 m distance applies only with the ET-YFB200G DIGITAL LINK Switcher for signals up to 1080/60p in long reach mode, and the ET-YFB100G does not support 4K. Plan your cable routes and confirm the optional switcher before ordering.

How do I manage several displays across classrooms or offices?

The TH-49SQ1 is compatible with Screen Transfer, which shows a PC screen on up to 64 displays over wired LAN using the free Screen Transfer software. Free Content Management Software schedules playlists and power on and off. The Cloning function copies settings from one unit to others of the same series and screen size over USB or LAN. A school in Al Wakrah could send an urgent message to every classroom, and a company in Doha could sync schedules across its branches.

What wall space and mounting do I need?

Mount it on a 400 x 400 mm VESA pattern. The panel measures 1105 x 637 x 74 mm including handles and weighs approximately 21 kg, so the wall or frame must carry that load. It tilts 0 to 45 degrees forward or backward in landscape or portrait. SmartRooms Qatar offers a free site survey before installation, and schools or government buyers can issue one LPO that covers several units.

Will it work with Qatar's power supply and summer heat?

Its power requirement is 110 to 240 V AC at 50/60 Hz, which covers the 240 V, 50 Hz mains used in Qatar, and it draws 285 W in operation. Its operating range is 0 to 40 °C with 20 to 80% humidity, non-condensing. Because Qatar's summer temperatures can exceed 45 °C outdoors, install it in an air-conditioned room and confirm the environment with the SmartRooms Qatar team before placing it near a window or in a semi-enclosed space.

Can I add a built-in PC or interface board?

The Intel SDM slot accepts compatible SDM-S or SDM-L interface boards and supplies power to them, and it is designed for 4K signals. The data states that the signal to the slot must be sent by HDMI. Interface boards are sold separately, and Panasonic cannot guarantee operation of third-party devices, so check compatibility with the SmartRooms Qatar team before buying a board for this model.
