Clevertouch Trolleys and Mounts

Name: Clevertouch Trolleys and Mounts for Interactive Displays
Brand: Clevertouch
SKU: clevertouch-trolleys-and-mounts
Availability: InStock

Overview

This range covers the trolleys, electric wall lifts, fixed wall mounts, a wall bracket and whiteboard wing frames Clevertouch offers for its interactive displays. Options run from an electric 500mm lift on a mobile trolley to a fixed bracket rated for 160kg, so schools, offices and boardrooms in Qatar can match the mount to the room. Request a quote to match the right model to your room.

What the Clevertouch mount range covers

Clevertouch supplies a set of trolleys, electric lifts, fixed wall mounts, a wall bracket and whiteboard wing frames for its interactive displays. Each item has its own screen size, load rating and dimensions, so the right choice depends on whether the panel must move between rooms, change height during the day or stay fixed to one wall.

Choosing between mobile, electric and fixed mounting

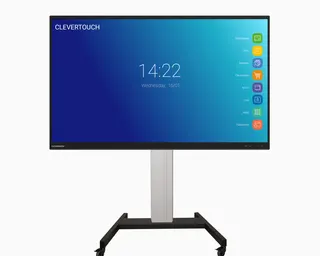

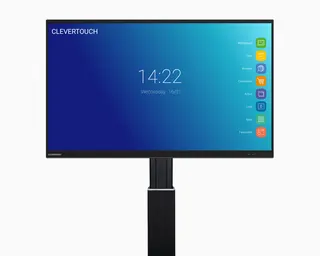

Trolley Lift LIGHT: mobile trolley for screens up to 86 inches, with four heavy-duty castors (two with brakes), a wired remote, and 500mm electric travel from 1175mm to 1675mm to the centre of the screen. Maximum load is about 150kg.

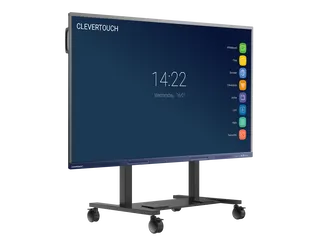

CleverAscent Trolley FP: for 55 to 86-inch displays, with foot pedal and hand height adjustment from 918mm to 1418mm, app control and a 100kg maximum load excluding shelf and arms. It stops and backs up if the screen touches something while moving.
Wall Lift LIGHT: motorised wall mount for panels up to 86 inches, with 500mm vertical travel from 1049mm to 1549mm, a maximum load of about 125kg and pull-and-release locking brackets. It ships flat-packed.
Wall Lift Low Access: electric column with 500mm travel from 805mm to 1305mm, a 70mm default wall clearance, four levelling feet and a maximum load of about 150kg.

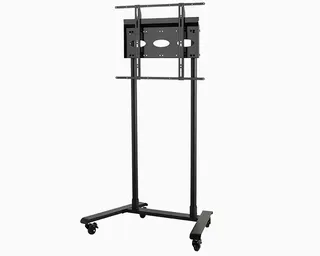

Heavy Duty Wall Mount and CMS Trolley V2: hook-on fitting, locking screws against unauthorised removal, lateral adjustment and integrated cable management. Both are rated to 86 inches and 100kg.

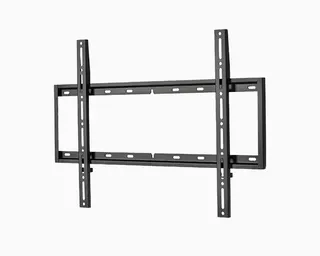

Clevertouch Wall Bracket 55-98 inch: fixed bracket for 55 to 98-inch displays with a 160kg maximum load and a 46mm distance from the wall.

Modular and whiteboard options

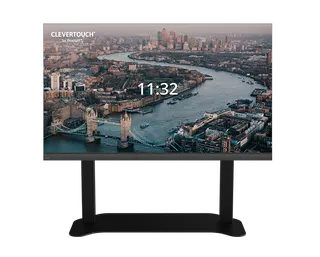

The CleverAscent Mounting Solutions kit is modular, so one set of parts can be configured as a wall mount, a floor stand or a mobile trolley. It supports 55 to 86-inch screens, carries up to 120kg, offers a 950mm stroke and matches VESA 800 x 600mm. The CleverAscent 2.0 Whiteboard Wing Frames add writing surfaces beside a display: they adapt to 86 and 75-inch panels, accept VESA 400 x 200 to 800 x 600mm, carry up to 120kg and are listed with a 5-year warranty period.

Where these mounts fit in Qatar

A primary school in Al Wakrah moving one panel between classrooms would suit the Trolley Lift LIGHT or CleverAscent Trolley FP, with brakes engaged during lessons. A university lecture hall in Education City that needs the panel raised for standing presenters and lowered for seated users could use the Wall Lift Low Access, which runs from 805mm to 1305mm. A meeting room in Lusail or Msheireb that uses one panel and a whiteboard suits wing frames beside a display, while a shared room in Al Rayyan benefits from the locking screws on the Heavy Duty Wall Mount.

What to plan before ordering

Start with the panel weight and VESA pattern, then check that the mount's maximum load and screen range cover them. Heavy panels fixed to walls need a site survey, which SmartRooms Qatar offers free of charge, to confirm wall construction, clearances and cable routes. The wing frames list an operating range of 0 to 40 degrees Celsius, while Qatar summers pass 45 degrees, so keep these mounts and their displays in air-conditioned rooms. Electric units need power planned at the mounting point, and the quotation will confirm the requirements for your site.

Request a quote with your panel size, room and wall type. SmartRooms Qatar will recommend the mount and confirm availability for Qatar, with quotations usually issued within one working day.

Highlights

Trolley Lift LIGHT: mobile trolley with 500mm electric lift for screens up to 86 inches
CleverAscent Trolley FP: Dynamic Pressure Response stops and reverses on contact
Wall Lift LIGHT: motorised wall mount, about 125kg maximum load, ships flat-packed
Wall Bracket 55-98 inch: 160kg maximum load, 46mm distance from the wall
Heavy Duty Wall Mount and CMS Trolley V2: locking screws and hook-on fitting
CleverAscent 2.0 Wing Frames: adapt to 86 and 75 inch panels, 5-year warranty period

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

Source: manufacturer · checked Oct 2026

The full specification and datasheet for this model are available on request; we send them with your quotation.

Downloads

1 file from the manufacturer

PDF Datasheets 16008 Trolleys & Mounts Brochure_A4_ENGLISH_07.pdf 6.2 MB

Questions about Trolleys and Mounts

Which mount suits a primary school in Al Wakrah that moves one panel between classrooms?

For a panel that moves between rooms, the Trolley Lift LIGHT or CleverAscent Trolley FP is the practical choice, since both are mobile and carry an electric 500mm lift. The Trolley Lift LIGHT has four heavy-duty castors, two with brakes, so it stays put during lessons. If the panel stays on one wall, a fixed option such as the Heavy Duty Wall Mount keeps the setup simpler. Confirm the screen size and weight before choosing, and request a quote for the model that matches your classrooms.

I need a mount for a 98-inch panel in a Doha boardroom. Which one should I choose?

Only the Clevertouch Wall Bracket 55-98 inch is listed for screens up to 98 inches, with a recommended maximum of 98 inches and a 160kg maximum load. It sits 46mm from the wall and is designed as a fixed installation. The other mounts in the range are listed for screens up to 86 inches. Before ordering for a boardroom in West Bay or Msheireb, confirm the panel's weight and VESA pattern, and request a quote so the team can check compatibility.

How does the CleverAscent Trolley FP protect the screen when it moves?

Its Dynamic Pressure Response stops the trolley and backs it up if the screen touches something during movement, and it also has collision detection. The foot pedal adjusts height between 918mm and 1418mm to the centre of the screen, with hand adjustment as standard. It suits 55 to 86-inch displays and carries up to 100kg, excluding shelf and arms. Height can also be controlled through app control, which helps when a staff member moves the panel in a busy corridor.

How much height adjustment do the electric wall lifts provide?

Both the Wall Lift LIGHT and the Wall Lift Low Access offer 500mm of electric height travel. The Wall Lift LIGHT runs from 1049mm to 1549mm to the centre of the screen, while the Wall Lift Low Access runs from 805mm to 1305mm, which suits a lower setting for seated users. Both are listed for screens up to 86 inches and include collision detection. Ask for a quote to confirm which range fits your room layout.

Can the Wall Lift LIGHT hold an 86-inch panel in an Education City lecture hall?

The Wall Lift LIGHT is a motorised wall mount designed for interactive flat panels up to 86 inches, with a maximum load of about 125kg. Before ordering for a lecture hall, have the wall structure and the panel weight checked, because the screen and its fixings must sit within that limit. SmartRooms Qatar offers a free site survey to confirm this, and the unit ships flat-packed, which makes transport and installation easier.

What wall clearance and space does the Wall Lift Low Access need at a training centre in Doha?

The Wall Lift Low Access has a default wall clearance of 70mm and comes with four levelling feet for stability. Its 500mm electric column requires a compatible wall, so the surface should be inspected before ordering. The unit supports screens up to 86 inches with a load of about 150kg. During the site survey, check cable routes and the power point position, then confirm the final layout in the quotation.

Do these mounts fit the VESA pattern of my display?

Check your panel's VESA pattern against the mount before ordering. The Heavy Duty Wall Mount, Wall Lift LIGHT and CleverAscent Mounting Solutions cover VESA up to 800 x 600mm. The CMS Trolley V2, Trolley Lift LIGHT and Wall Lift Low Access cover 200 x 200mm up to 800 x 600mm. The Wall Bracket 55-98 inch entry does not list a VESA range, so SmartRooms Qatar will confirm compatibility during the quotation process.

Do the wing frames suit a meeting room in Lusail that needs a whiteboard beside the display?

The CleverAscent 2.0 Whiteboard Wing Frames are listed for 86 and 75-inch adaptation, VESA 400 x 200 to 800 x 600mm and a 120kg maximum load. They use screw fixation, measure 2109 x 1193.5 x 211.5mm overall and weigh 16kg net. The manufacturer lists a 5-year warranty period for this item. Check the wall width against the overall dimensions before ordering for your Lusail meeting room.

Will these mounts cope with the heat in a Doha lobby during summer?

The wing frames list an operating temperature of 0 to 40 degrees Celsius and an operating humidity of 10 to 90 percent. Qatar summers regularly exceed 45 degrees, so mounts and displays should stay in air-conditioned rooms, not in unconditioned corridors, sheds or sun-exposed lobbies. If your planned location faces windows or is semi-outdoor, confirm the environment with the SmartRooms Qatar team before the quotation is finalised.

How do I stop a shared classroom panel in Al Rayyan being removed without permission?

The Heavy Duty Wall Mount and the CMS Trolley V2 both use security locking screws to help prevent unauthorised removal of the screen. Both offer hook-on installation, lateral adjustment along the length of the mount and integrated cable management. Both are rated for screens up to 86 inches and 100kg. For a shared room in a school or training centre, request a quote that lists the mounting hardware and confirm the layout during the site survey.

Can SmartRooms Qatar supply and install these mounts across Qatar?

Yes. SmartRooms Qatar supplies these mounts, delivers to all 8 municipalities of Qatar and offers professional installation, with free site surveys before fitting. Quotations are usually issued within one working day. Government bodies and schools can order against a purchase order or LPO, or through a tender, and payment is by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty, and the quotation confirms which models can be supplied to Qatar.
