Dahua PKC-MS0C · Price in Qatar

Name: Dahua PKC-MS0C Smart Interactive Whiteboard Mobile Stand
Brand: Dahua
SKU: dahua-pkc-ms0c
Availability: InStock

Overview

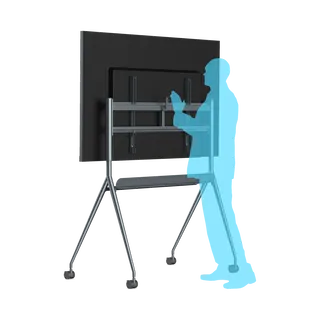

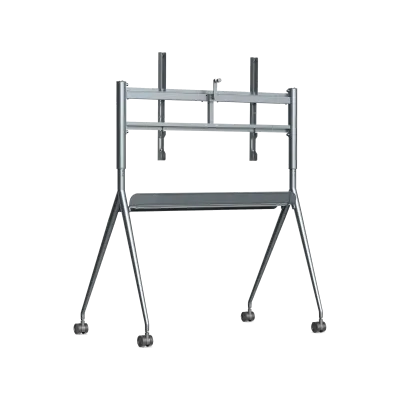

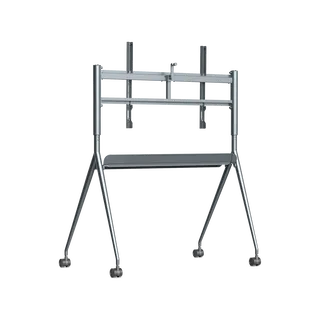

The Dahua PKC-MS0C is a mobile floor stand built for Dahua smart interactive whiteboards sized 55 to 75 inches. It carries up to 85 kg and offers manual height adjustment across a 250 mm stroke, so each user can set a comfortable height. Assembled at 1160 mm by 688 mm by 1560 mm in titanium silver, it suits classrooms, meeting rooms and training rooms across Qatar.

What this stand is for

The Dahua PKC-MS0C is a mobile floor stand made for the Dahua smart interactive whiteboard. It is rated for boards from 55 to 75 inches, which covers the common classroom and meeting room sizes without a separate wall-mounting project. Because the stand is mobile, the same board can move between a teaching room, a training suite and a breakout space as timetables change. That suits institutions that share a small number of boards across several rooms.

Load, height and footprint to check before ordering

The stand has a maximum load-bearing of 85 kg. Before ordering, add up the weight of your panel and any accessories fixed to it, and confirm the total stays within that limit. Height is adjusted manually across a 0 to 250 mm stroke, so staff can set the board by hand for seated or standing users. Once assembled, the stand measures 1160 mm by 688 mm by 1560 mm, so measure the floor space and doorway widths before delivery.

Load limit: 85 kg maximum load-bearing
Height stroke: 0 to 250 mm, adjusted manually
Assembled size: 1160 mm × 688 mm × 1560 mm
Weight: 23.5 kg net, 26.0 kg gross

Where it fits in Qatar

A private school in Al Wakrah fitting out new Arabic and English classrooms could use the stand to share a 65-inch board between a homeroom and a language room, moving it during the school day instead of fixing brackets to every wall. A consultancy in West Bay that holds client meetings with teams in Doha and abroad may prefer a freestanding setup placed beside the table and moved aside when not in use. A training centre in Msheireb running short courses across several rooms can keep one height setting per group and reposition the board for each session.

The stand is rated for operating temperatures from -5 °C to +45 °C and humidity from 40% to 95%. Summer temperatures in Qatar can exceed 45 °C, so keep the stand in an air-conditioned room away from direct sunlight, open entrances and loading areas. If a planned position is close to a window or an open lobby, ask the SmartRooms Qatar team to review it before installation.

Planning delivery and assembly

The packing carton measures 1240 mm by 800 mm by 150 mm and weighs 26.0 kg gross, so check that the lift, corridors and doors on the delivery route can take a box of that size. The dimensions are given for the finished stand after assembly, so allow time for assembly on arrival. SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar, arranges professional installation, and offers a free site survey to confirm floor space and access before you order. Schools and government bodies ordering several units can raise one purchase order against one quotation.

Request a quote from SmartRooms Qatar and include the board model, its weight and the number of stands you need. We will confirm the specification, availability and the scope of supply and installation within the quotation.

Highlights

Designed for 55 to 75-inch smart interactive whiteboards
Maximum load-bearing of 85 kg
Manual height adjustment over a 0-250 mm stroke
Assembled size 1160 × 688 × 1560 mm
Operating temperature range of -5 °C to +45 °C
Modular titanium silver structure

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

10 specifications · Source: manufacturer · checked Oct 2026

Structure4

Color: Titanium silver
Applicable Model Size: 55"–75"
Maximum Load-bearing: 85 kg (187.40 lb)
Height Adjustment Stroke: 0-250 mm (0-9.84")

Dimensions2

Dimensions of Finished Products after Assembly (L × W × H): 1160 mm × 688 mm × 1560 mm (45.67" × 27.09" × 61.42")
Packing Dimensions (L × W × H): 1240 mm × 800 mm × 150 mm (48.82" × 31.50" × 5.91")

Weight2

Gross Weight: 26.0 kg (57.32 lb)
Net Weight: 23.5 kg (51.81 lb)

Environment2

Temperature: –5 °C to +45 °C (+23 °F to +113 °F)
Humidity: 40%–95%

Downloads

3 files from the manufacturer

PDF Datasheets PKC-MS0C_datasheet_20230504.pdf 245 KB PDF Manuals & guides Mobile Stand_User Manual_20260820_Eng.pdf 190 KB PDF Drawings & CAD PKC-MS0C_DIMENSIONS.pdf 47 KB

Questions about PKC-MS0C

What is the Dahua PKC-MS0C used for?

The Dahua PKC-MS0C is a mobile floor stand designed for the Dahua smart interactive whiteboard in the 55 to 75-inch range. It lets a board move between rooms instead of being fixed to a wall, and its height is set manually. It suits schools, universities, training centres and meeting rooms in Qatar that need a flexible position for one interactive board.

Which screen sizes does the stand support?

The stand's applicable model size is 55 to 75 inches, which covers 65-inch and 75-inch boards. Before ordering, confirm the exact panel model and its weight with the SmartRooms Qatar team. Size alone does not confirm a fit, so check the panel against the stand's specifications and the 85 kg maximum load.

What is the maximum load the stand can carry?

The maximum load-bearing is 85 kg. Add the weight of the interactive panel and any accessories you plan to fix to it, then compare the total with this figure before ordering. Leave a margin for accessories added later, because loading the stand beyond its rated capacity is not a safe option in a busy school or office.

How is the height adjusted?

Height is adjusted manually across a stroke of 0 to 250 mm. A teacher can lower the board for younger pupils, and a presenter of a different height can raise it in the same room. Agree the height you need with the SmartRooms Qatar team before the stand is installed, so the setting suits your most common users.

Can it stand in Qatar's summer heat or near a window?

The stated operating temperature range is -5 °C to +45 °C, with humidity from 40% to 95%. Summer temperatures in Qatar can exceed 45 °C, so avoid placing the stand in direct sunlight, near open entrances or in an unconditioned space. If the planned position is close to a window or an open lobby, ask SmartRooms Qatar to review it first.

Will the assembled stand fit through a standard door?

The assembled size is 1160 mm by 688 mm by 1560 mm, so measure the doorway width and height and the corridor route before delivery. The packing carton measures 1240 mm by 800 mm by 150 mm and weighs 26.0 kg gross. SmartRooms Qatar can arrange a free site survey to check the route, lift and floor space before you place an order.

Is the stand designed only for Dahua whiteboards?

The product is described as specially built for use with the Dahua smart interactive whiteboard. If you have a panel from another brand, do not assume it will fit based on screen size alone. Send the panel model and its weight to the SmartRooms Qatar team, who will advise whether the stand is suitable before you request a quote.

How could a school in Al Wakrah use one stand across several classrooms?

A private school in Al Wakrah with a 75-inch board in one classroom could move the same stand between a science room and a maths room during the day. Because the stand is mobile and its height is set by hand, teachers can reset the height for each class. Check the 85 kg load limit, the 688 mm footprint width and the doorway widths along the route.

Is it suitable for a West Bay meeting room that runs video calls?

A consultancy in West Bay holding client meetings with teams in Doha and abroad may place an interactive board beside the table for presentations and use a separate video conferencing setup elsewhere in the room. A freestanding stand suits that layout because it can be positioned and moved without wall works. Measure the room and confirm the 1160 mm by 688 mm footprint fits beside the table.

How could a training centre in Msheireb use the stand for short courses?

A training centre in Msheireb running several short sessions a day can reposition the board for each group without fixing it to a wall. The trainer sets the height by hand for that group, and the stand should stay in an air-conditioned room within its -5 °C to +45 °C operating range. For several training rooms, request one quotation covering every unit.

Does SmartRooms Qatar deliver to my municipality?

SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar. When you request a quote, give the delivery address, the floor and the room, so the delivery plan matches the building and its access route. The quotation can cover delivery and professional installation together, depending on what you need.

Can we order several stands through an LPO or a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supports government tenders, including those run through Monaqasat. A school or government body ordering several units can raise one purchase order against one quotation. Payment can be made by bank transfer, cheque or purchase order. State the quantity and board sizes so the quotation covers each stand accurately.
