Dahua PKC-MS1A · Price in Qatar

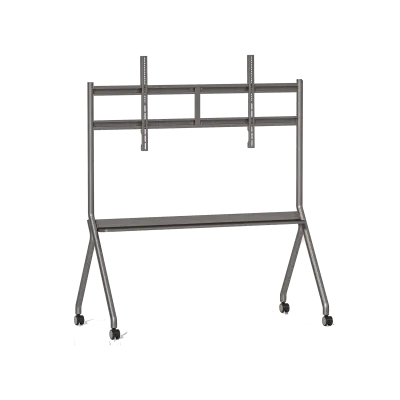

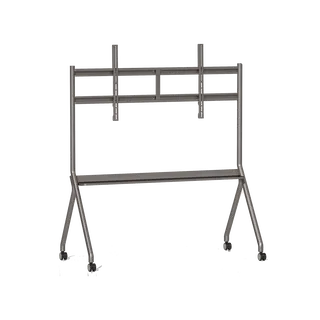

Name: Dahua PKC-MS1A Smart Interactive Whiteboard Mobile Stand
Brand: Dahua
SKU: dahua-pkc-ms1a
Availability: InStock

Overview

The Dahua PKC-MS1A is a mobile stand built for the Dahua smart interactive whiteboard in the 86 to 98-inch range. It carries up to 200 kg, has a titanium silver modular frame, and measures 1610 mm by 750 mm by 1711 mm once assembled. It suits schools, training rooms and meeting spaces in Doha and beyond that need a board that can be moved between rooms. Request a quote from SmartRooms Qatar.

What the Dahua PKC-MS1A stand is built to do

The Dahua PKC-MS1A is a mobile floor stand designed specifically for use with the Dahua smart interactive whiteboard. It is specified for models from 86 to 98 inches and has a maximum load-bearing capacity of 200 kg. Its frame is finished in titanium silver and uses a modular construction, so the stand stays visually light in a classroom or meeting room while remaining sturdy enough for the board it supports.

The figures to check before you order

Buyers planning a room should work from the assembled dimensions: 1610 mm long, 750 mm wide and 1711 mm high. Height is the first figure to check, because it sets the clearance needed under ceiling beams, light fittings and any fixtures above the board. The net weight of the stand is 28.4 kg and the gross weight with packaging is 35.5 kg, so plan for two people to move it through doorways and lifts. The packed carton measures 1832 mm × 850 mm × 194 mm, which matters for delivery routes to upper floors.

The 200 kg maximum is the number to match against your panel. The product data does not list the weight of each individual 86 to 98-inch board, so confirm the panel weight with the SmartRooms Qatar team before ordering rather than assuming the rating leaves spare capacity.

Where it fits in Qatar

A private school in Al Wakrah fitting out secondary classrooms. A teacher needs the board at the front of the room, and a freestanding stand lets the same display move between two classrooms on one floor without fixing anything to the wall.

A training centre in Msheireb running staff induction sessions. Trainers often need a large board in a room whose layout changes from day to day. The stand's 750 mm width keeps the footprint compact in rooms with tight floor plans, and the board can be repositioned as the session format changes.

A government office in West Bay holding meetings with teams abroad. Shared meeting rooms are where a mobile stand earns its place. The display can be moved to the side of the room that suits the video conference camera and the seating arrangement for each meeting.

Environment and site planning checklist

Use the stand in an air-conditioned room, since its operating range tops out at +45 °C and Qatar summers can exceed that.
Keep it away from windows and external doors that let in heat and dust.
Keep the operating environment within the stated 40% to 95% humidity range.
Check ceiling clearance against the 1711 mm assembled height.
Confirm the floor is level and firm enough to carry the stand and board together.

Getting a quote from SmartRooms Qatar

SmartRooms Qatar supplies the Dahua PKC-MS1A to organisations across Qatar, with delivery to all eight municipalities and professional installation available. We offer free site surveys, which are particularly useful for a stand of this height because they confirm room clearance, floor condition and the route from the delivery door. Quotations are usually issued within one working day. We accept purchase orders (LPOs) and government tenders, with payment by bank transfer, cheque or purchase order. Request a quote today and tell us your board model and room details so we can confirm the right stand for your installation.

Highlights

Designed for Dahua smart interactive whiteboards from 86 to 98 inches
Maximum load-bearing capacity of 200 kg
Titanium silver modular design
Assembled footprint of 1610 mm by 750 mm
Operating range of -5 °C to +45 °C, humidity 40% to 95%

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

9 specifications · Source: manufacturer · checked Oct 2026

Structure3

Color: Titanium silver
Applicable Model Size: 86"–98"
Maximum Load-bearing: 200 kg (440.92 lb)

Dimensions2

Dimensions of Finished Products after Assembly (L × W × H): 1610 mm × 750 mm × 1711 mm (63.39" × 29.53" × 67.36")
Packing Dimensions (L × W × H): 1832 mm × 850 mm × 194 mm (72.13" × 33.46" × 7.64")

Weight2

Gross Weight: 35.5 kg (78.27 lb)
Net Weight: 28.4 kg (62.61 lb)

Environment2

Temperature: –5 °C to +45 °C (+23 °F to +113 °F)
Humidity: 40%–95%

Downloads

3 files from the manufacturer

PDF Datasheets PKC-MS1A_datasheet_20230504.pdf 239 KB PDF Manuals & guides DHI-PKC-MS1A_user Mannual_20250611_Eng.pdf 219 KB PDF Drawings & CAD PKC-MS1A_DIMENSIONS.pdf 50 KB

Questions about PKC-MS1A

What is the Dahua PKC-MS1A?

The PKC-MS1A is a mobile stand made for the Dahua smart interactive whiteboard, specified for models from 86 to 98 inches. It is finished in titanium silver, carries a maximum load of 200 kg and measures 1610 mm by 750 mm by 1711 mm once assembled. It suits schools, training rooms and meeting spaces where a board needs to move between rooms rather than stay fixed to a wall. Request a quote from SmartRooms Qatar to confirm the right fit for your board.

Which board sizes does the PKC-MS1A support?

The stand is specified for applicable model sizes from 86 inches to 98 inches. If your board falls outside that range, or you are unsure of your model code, send it to the SmartRooms Qatar team before ordering. Checking the model at this stage means the quotation matches the correct stand, which avoids delays when a school or office is preparing a classroom or meeting room for a term start.

What is the maximum load the stand can carry?

The maximum load-bearing figure is 200 kg (440.92 lb). Before ordering, check the weight of your specific interactive whiteboard, because the 200 kg rating is the stand's limit. The product data does not list individual panel weights, so the SmartRooms Qatar team can help you compare your board's weight against this figure as part of the quotation process.

How tall is the stand once assembled, and will it fit under my ceiling?

Once assembled, the stand measures 1711 mm high (67.36 inches), 1610 mm long and 750 mm wide. Measure the clear height of the room where the stand will sit, and allow for ceiling services, fans and light fittings above the board. A free site survey from SmartRooms Qatar can check this before delivery, which is useful in older buildings where ceiling heights and fixtures vary from room to room.

Can I use it in a classroom in Al Wakrah during the summer?

Yes, provided the classroom is air-conditioned. The operating temperature range is -5 °C to +45 °C, and Qatar summers can climb above 45 °C. A stand left in a hot room, beside a sun-facing window or in an unconditioned corridor would be outside its stated range. Keep the operating humidity between 40% and 95%, and ask SmartRooms Qatar to confirm the room conditions during the site survey.

Can it be placed in a hotel lobby in West Bay near the entrance?

Not without careful planning. The stated operating range is -5 °C to +45 °C and 40% to 95% humidity, and a lobby near the entrance is exposed to heat, humidity changes and the dust that comes through open doors during dust storms. A better location is an interior, air-conditioned area away from the doors. Describe the lobby layout to SmartRooms Qatar so the site can be assessed before you order.

What is the difference between the net and gross weight?

Net weight is 28.4 kg (62.61 lb) for the stand itself. Gross weight is 35.5 kg (78.27 lb), which includes the packaging. The packed carton measures 1832 mm × 850 mm × 194 mm. Plan for at least two people to move the stand through doorways, lifts and corridors, and check that the delivery route can accommodate a carton of that length before the day of delivery.

Does the stand work with smart interactive whiteboards from other brands?

The PKC-MS1A is specially built for use with the Dahua smart interactive whiteboard, and the product data does not list compatibility with other manufacturers. Do not assume a fit with another brand's panel. Send your board's model code to SmartRooms Qatar and the team can check whether it falls within the 86 to 98-inch range and suits the stand before a quotation is issued.

Can one stand serve several rooms at a training centre?

Yes, that is one of its intended uses, because it is a mobile stand rather than a wall-mounted fixture. A training centre in Msheireb running induction sessions can move the same board between rooms as the schedule changes. Plan the route first: the 1610 mm length and 750 mm width determine doorway and corridor clearance, and the stand's 28.4 kg net weight is before the board is added.

Is a site survey worth requesting before ordering?

For a freestanding stand that is 1711 mm tall and carries boards up to 86 to 98 inches, a site survey is worth requesting. SmartRooms Qatar offers free site surveys, which check ceiling clearance against the assembled height, the floor surface, the delivery route and the room environment. This is especially valuable for a government office or school where access and timing need to be planned in advance.

Which purchase options are available for schools and government offices?

SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. A school ordering several PKC-MS1A stands for different classrooms can submit a single LPO listing the quantity and board models. Quotations are usually issued within one working day, and the SmartRooms Qatar team can align the order with your tender requirements.

Is the stand covered by a warranty?

Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. The warranty terms are set by Dahua and are not repeated on this page, so ask the SmartRooms Qatar team for the warranty information that applies to the PKC-MS1A when you request your quotation. Keeping the warranty details with your purchase order records helps facilities managers when the stand is later moved or reassigned.
