Dahua PKC-MS0A · Price in Qatar

Name: Dahua PKC-MS0A Smart Interactive Whiteboard Mobile Stand
Brand: Dahua
SKU: dahua-pkc-ms0a
Availability: InStock

Overview

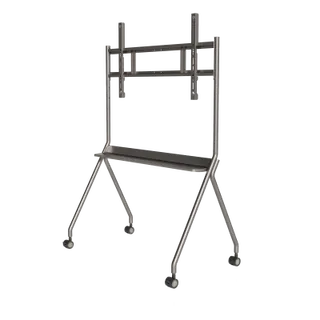

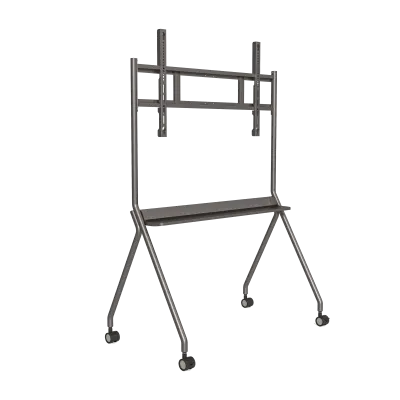

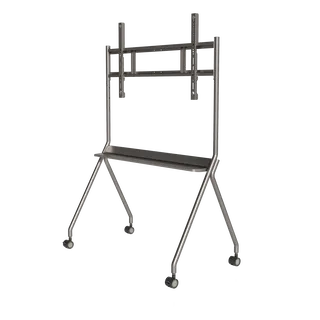

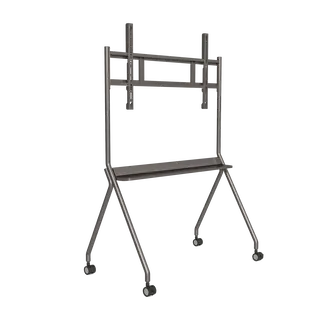

The Dahua PKC-MS0A is a mobile stand built for Dahua smart interactive whiteboards sized 55 to 75 inches. It carries up to 125 kg, measures 1160 mm by 688 mm by 1561 mm once assembled, and comes in titanium silver. Schools, meeting rooms and training centres in Doha, Lusail and Al Wakrah can use it to move a board between rooms without fixing brackets to every wall. Request a quote from SmartRooms Qatar.

What the PKC-MS0A stand is built to hold

The PKC-MS0A is a floor stand made for Dahua smart interactive whiteboards in the 55-inch to 75-inch range. Its rated maximum load is 125 kg, which defines the upper limit for the board and anything fitted to it. The frame is finished in titanium silver, so it sits neatly beside light walls or inside a glass-fronted meeting room. Because the stand is listed for this specific size band, confirm your exact board model with the SmartRooms Qatar team before ordering.

Dimensions and weight to plan for

Once assembled, the stand measures 1160 mm long, 688 mm wide and 1561 mm high. Shipped in its carton, the package measures 1547 mm by 729 mm by 174 mm and weighs 23.5 kg gross, while the stand itself is 15.0 kg net. Those carton figures matter more than the assembled size when you plan delivery through doors and lifts.

Add the board's weight and any attached accessories, then confirm the total stays within 125 kg.
Check the 1561 mm height against ceiling clearance and any wall-mounted fittings above the board.
Reserve floor space of 1160 mm by 688 mm where the stand will be parked.

Where it fits in Qatar

A private school in Al Wakrah with a few shared science labs could buy one stand per board and reposition the boards during timetable changes, rather than drilling into each classroom wall. A training centre in Education City can move a display between cohorts across the week. In a government meeting room in Msheireb, the stand lets the team switch the room layout for a review session without new wall fixings.

Environment and placement in the room

The manufacturer lists an operating temperature range of –5 °C to +45 °C and humidity from 40% to 95%. Qatar summer temperatures can climb above 45 °C, so keep the stand in air-conditioned indoor rooms, away from direct sunlight through windows and from open loading bays. Dust from storms can settle on the frame, so a regular wipe-down keeps the finish looking tidy. Request a quote from SmartRooms Qatar for the PKC-MS0A, and we will confirm fit with your board, delivery across all eight municipalities of Qatar and professional installation if you need it.

Highlights

Built for Dahua smart interactive whiteboards sized 55 to 75 inches
Maximum load-bearing capacity of 125 kg
Assembled size 1160 mm × 688 mm × 1561 mm
Titanium silver finish
Net weight 15.0 kg, gross weight 23.5 kg
Operating range –5 °C to +45 °C, humidity 40% to 95%

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

9 specifications · Source: manufacturer · checked Oct 2026

Structure3

Color: Titanium silver
Applicable Model Size: 55"–75"
Maximum Load-bearing: 125 kg (275.58 lb)

Dimensions2

Dimensions of Finished Products after Assembly (L × W × H): 1160 mm × 688 mm × 1561 mm (45.67" × 27.09" × 61.46")
Packing Dimensions (L × W × H): 1547 mm × 729 mm × 174 mm (60.91" × 28.70" × 6.85")

Weight2

Gross Weight: 23.5 kg (51.81 lb)
Net Weight: 15.0 kg (33.07 lb)

Environment2

Temperature: –5 °C to +45 °C (+23 °F to +113 °F)
Humidity: 40%–95%

Downloads

3 files from the manufacturer

PDF Datasheets PKC-MS0A_datasheet_20230504.pdf 243 KB PDF Manuals & guides Mobile Stand_User Manual_20260820_Eng.pdf 187 KB PDF Drawings & CAD PKC-MS0A_DIMENSIONS.pdf 74 KB

Questions about PKC-MS0A

What is the Dahua PKC-MS0A used for?

The PKC-MS0A is a mobile floor stand made for Dahua smart interactive whiteboards that measure 55 to 75 inches. It lets a school, office or training room move the board between spaces instead of fixing it to a wall. It suits teams that share one display across several rooms, such as a training department in Education City or a corporate office in West Bay.

Which board sizes does the PKC-MS0A support?

The listed applicable model size is 55 inches to 75 inches. A board within that band is covered by this specification, while an 86-inch panel falls outside it. Before ordering, send your exact Dahua board model to the SmartRooms Qatar team so we can confirm the fit against the manufacturer's source specification.

How much weight can the stand carry?

The maximum load-bearing figure is 125 kg (275.58 lb). The stand itself weighs 15.0 kg net. Add the board's weight and any accessories you fit to it, then confirm the total stays within 125 kg before you move the stand between rooms.

What floor space and height does it need?

Assembled, the stand measures 1160 mm long, 688 mm wide and 1561 mm high, which is 45.67 by 27.09 by 61.46 inches. Plan the floor footprint, and check ceiling height, light fittings and any wall-mounted equipment above the board's position before you choose where the stand will stand.

Will it fit through standard doorways and lifts?

The shipping carton measures 1547 mm by 729 mm by 174 mm and weighs 23.5 kg gross. Measure doorways, lift cars and corridor turns against those carton dimensions, not the assembled size, because the stand may need to pass through in its box. Two people can handle the carton more safely at this weight.

Can the stand be used in a hot room or outdoors in Qatar?

The operating range is –5 °C to +45 °C with humidity from 40% to 95%. Qatar summer temperatures can climb above 45 °C, so keep the stand in air-conditioned indoor rooms and out of direct sun through windows. Avoid open courtyards, loading bays and outdoor event spaces, including stadium or venue areas during summer events.

How would a school use this stand across its classrooms?

A private school in Al Wakrah with a few shared labs could use one stand per board and reposition the boards during timetable changes. This avoids drilling into several walls. Count the rooms and boards that need the stand before you request a quote, so the quotation lists the right number of units.

Is it suitable for a government meeting room in Msheireb?

It is suitable where the board in the room falls within 55 to 75 inches and the room is air-conditioned. A ministry meeting room in Msheireb could use the stand to reconfigure the space for a review session without new brackets on the wall. The titanium silver finish suits a formal interior. Send the room plan and board model to SmartRooms Qatar before the quotation.

Is the stand compatible with other interactive displays?

The product information describes it as built for Dahua smart interactive whiteboards within the 55 to 75 inch size band. It is not presented as a stand for other brands. If you own a display from another manufacturer, send its model and dimensions to our team so we can check whether it matches before you order.

Is the PKC-MS0A covered by warranty?

Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. The source data for this stand does not list a warranty duration, so ask our team for the terms that apply to the PKC-MS0A when you request your quotation. Keep the delivery note and purchase order together for your asset records.

Can a government body or school buy it through an LPO or tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Include the number of stands and the matching Dahua board sizes in your LPO or tender request, so the quotation lists each unit clearly.

Do we need a site survey before the stand is delivered?

A site survey is free and is worth doing when several stands are planned for one building. The team checks the delivery route to the room, the floor space needed for the 1160 mm by 688 mm footprint and the 1561 mm height clearance. Quotations usually come back within one working day once the survey details are confirmed.
