LPH86-ST430
Dahua LPH86-ST430 86-inch Smart Interactive Whiteboard
- Screen size
- 86 inch
- Resolution
- 3840 (H) × 2160 (V)
- Touch
- Infrared
- System
- Android 14
The Dahua LPH86-ST430 is an 86-inch interactive whiteboard for classrooms, lecture halls and boardrooms. It runs Android 14 with 8 GB RAM and 128 GB storage. Its infrared touch layer registers up to 40 points on Windows and 32 on Android, and the 4K panel is rated at 400 cd/m². Two 20 W speakers suit teaching and meeting spaces in Doha. Request a quote from SmartRooms Qatar.
What the LPH86-ST430 does in a room

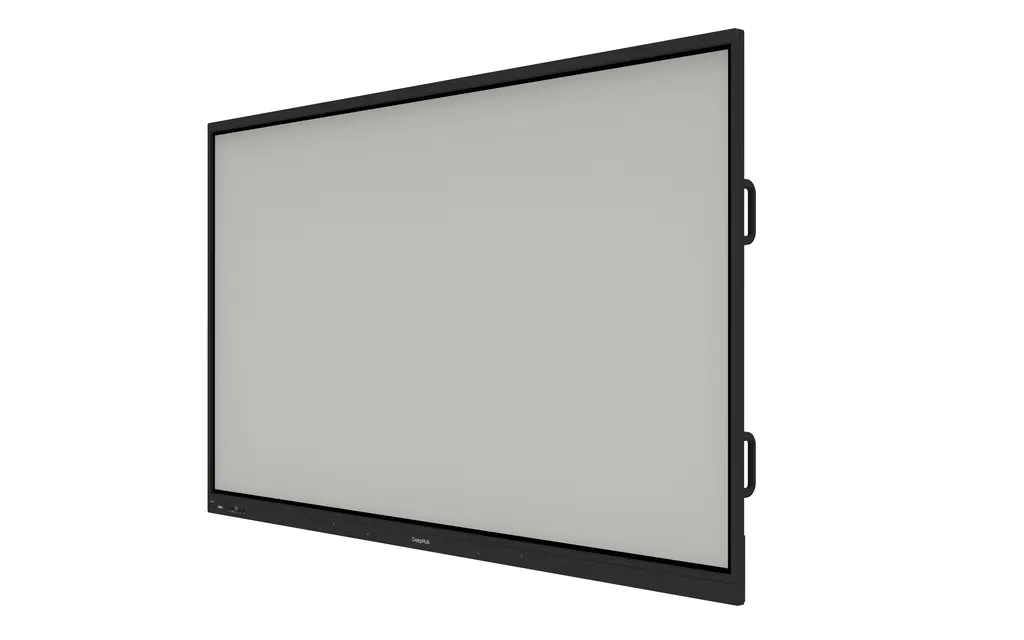

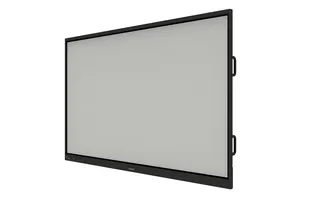

The Dahua LPH86-ST430 is an 86-inch interactive whiteboard from the ST430 Series. It combines a 4K LCD panel, infrared touch, an Android 14 system and two built-in speakers in one black metal casing, so a presenter can run a lesson or meeting without a separate computer.
Display, touch and processing
The 16:9 screen uses DLED backlighting, a typical brightness of 400 cd/m² and a 178° viewing angle horizontally and vertically. The 4 mm anti-glare tempered glass front, rated at 9H surface hardness, helps limit reflections from windows and ceiling lights. Touch is infrared with a zero air gap attachment and ±1.5 mm accuracy, registering up to 40 points on Windows and 32 on Android. Writing works with a finger or the magnetic stylus supplied.

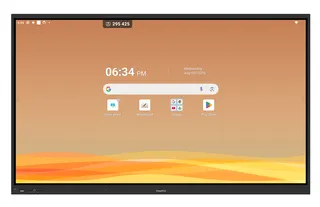

A quad-core Cortex-A73 processor at 1.5 GHz, with 8 GB RAM and 128 GB storage, runs Android 14. Chrome, YouTube and the Google Play Store come pre-installed, and the system carries Google EDLA certification. The two 20 W speakers form a 2.0 channel system covering 140 Hz to 20 kHz.
Connectivity for teaching and meeting rooms
The ports allow several sources to feed the panel:
- Three HDMI IN inputs, one at the front and two at the rear, each supporting 4K at 60 Hz
- An OPS slot for a plug-in computing module, plus a rear USB 3.2 Gen1 Type-A port
- A front USB-C port for data transmission with 5 V 1 A charging
- Two USB Touch Type-B ports, so touch input can be passed back to a connected computer
- A wired RJ-45 port at 10/100 Mbps, RS-232 for control, and Wi-Fi 802.11 a/b/g/n/ac/ax with Bluetooth 5.4
Where it fits across Qatar
A private school in Al Rayyan fitting out a new secondary classroom could use the 86-inch format for whole-class teaching, running lesson apps on Android and connecting a teacher laptop to the front HDMI input. A training room in Education City could pair the panel with the OPS module and the wired network port for hands-on sessions. In a West Bay boardroom, the rear HDMI inputs and wireless connectivity let a laptop share content during calls with teams abroad.
Environment matters in Qatar. The operating range is 0 °C to +40 °C, with storage between –10 °C and +50 °C and humidity of 10% to 90%. Summer temperatures can exceed 45 °C, so the panel belongs in an air-conditioned room, away from direct sunlight and from lobby doors where dust storms can enter. Power is rated at 100–240 VAC, 50/60 Hz, which covers Qatar's 240 V supply. Typical consumption is 237 W, rising to 370 W at maximum, with standby draw of 0.5 W or less.
What to plan before installation
- Net weight 59 kg and gross weight 73 kg, so plan for two people or a lift
- Mounting holes spaced 800 mm by 400 mm for the wall bracket, with a mobile bracket as an alternative installation method
- Product size 1,953.2 mm by 116.7 mm by 1,179.8 mm, with packaging of 2,044 mm by 200 mm by 1,280 mm
A free site survey from SmartRooms Qatar checks wall strength, power points and cable routes before mounting. Quotations are usually issued within one working day, and we accept purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty. Request a quote from SmartRooms Qatar to plan your room.
Highlights
- 86-inch 4K display (3840 × 2160) at 400 cd/m² typical brightness
- Android 14 with 8 GB RAM and 128 GB storage
- Infrared touch: 40 points on Windows, 32 on Android
- Two 20 W speakers in a 2.0 sound channel
- OPS slot, 802.11ax Wi-Fi and Bluetooth 5.4
- Certified CE, EDLA and Energy Star
Classroom fit
At 86″ the farthest student should sit within about 6.4 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Built-in System6
- Operating System
- Android 14
- CPU
- Quad core Cortex-A73
- CPU Frequency
- 1.5 GHz
- GPU
- Mali G52MC1
- RAM
- 8 GB
- ROM
- 128 GB
General19
- Operating System of External Module
- Windows 7/8/10/11
- Power Supply
- 100–240 VAC, 50/60 Hz
- Power Consumption
- 237 W (basic), 370 W (max)
- Standby Power Consumption
- ≤0.5 W
- Operating Temperature
- 0 °C to +40 °C (+32 °F to +104 °F)
- Storage Temperature
- –10 °C to +50 °C (+14 °F to +122 °F)
- Operating Humidity
- 10%–90%, 101 kPa
- Storage Humidity
- 10%–90%, 101 kPa
- Product Material
- Metal casing
- Glass
- 4 mm anti-glare tempered glass
- Casing Color (Frame/Rear)
- Black
- Product Dimensions
- 1,953.2 mm × 116.7 mm × 1,179.8 mm (76.90" × 4.59" × 46.45")
- Frame Size
- Top frame: 28.7 mm (1.13"); Left and right frame: 17.9 mm (0.71"); Bottom frame: 61.6 mm (2.43")
- Packaging Dimensions
- 2,044 mm × 200.0 mm × 1,280 mm (80.47" × 7.87" × 50.39") (L × W × H)
- Net Weight
- 59 kg (13.07 lb)
- Gross Weight
- 73 kg (160.94 lb)
- Holes Distance
- 800 mm × 400 mm (31.50" × 15.75")
- Installation
- Wall mount or mobile bracket
- Packing List
- 1 × Smart Interactive Whiteboard 1 × Power Cord 2 × Stylus Pen 1 × Quick Start Guide 1 × Wall Mount Bracket 1 × Remote Control 1 × Legal and Regulatory Information 1 × Wall-mount Screw Pack 2 × Aerial Rod
LCD Panel11
- Screen Size
- 86 inch
- Backlight
- DLED
- Aspect Ratio
- 16:9
- Brightness
- 400 cd/m² (typ.)
- Static Contrast Ratio
- VA: 4000: 1 (typ.); IPS: 1200: 1 (typ.)
- Resolution
- 3840 (H) × 2160 (V)
- Viewing Angle
- 178° (H)/178° (V)
- Lifespan
- ≥50,000 hrs
- Display Color
- 72% NTSC
- Response Time
- ≤ 8 ms
- Refresh Rate
- 60 Hz
Device Ports13
- Light Sensor
- 1
- Front Button
- 1 button: Power supply
- Front Ports
- 1 × USB Touch Type-B 2.0 port 1 × HDMI IN (4K@60 Hz) port 2 × USB 2.0 Type A (switchable) port 1 × TYPE-C (USB data transmission，5 V 1 A charge) port
- Rear Port
- 1 × RS-232 port 1 × USB Touch Type-B 2.0 port 2 × HDMI IN (4K@60 Hz) port 1 × RJ-45 IN (10/100 Mbps) port 1 × USB 2.0 Type A (switchable) port 1 × USB 3.2 Gen1 Type-A port 1 × MIC IN port 1 × LINE OUT port 1 × OPTICAL port
- Others
- 1 × OPS port
- Wi-Fi
- Yes
- Wi-Fi Standard
- 802.11 a/b/g/n/ac/ax
- Wi-Fi Frequency Range
- 2400–2483.5 MHz 5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5850 MHz
- MAX Power Transmission (Wi-Fi)
- ≤20 dBm@2400–2483.5 MHz ≤23 dBm@5150–5250 MHz ≤20 dBm@5250–5350 MHz ≤27 dBm@5470–5725 MHz ≤14 dBm@5725–5850 MHz
- Bluetooth
- Yes
- Bluetooth Standard
- BR/EDR/BLE, BT5.4
- Bluetooth Frequency Range
- 2400–2483.5 MHz
- MAX Power Transmission (Bluetooth)
- ≤20 dBm@2400–2483.5 MHz
Function1
- IR Receiver
- 1
Touchscreen12
- Touch Technology
- Infrared
- Attachment Method
- Zero Air Gap
- Response Time
- ≤5 ms
- Touch Points
- Windows: 40 points Android: 32 points
- Touch Accuracy
- ±1.5 mm
- Valid Touch
- 2 mm (0.08") (covers 90% of the area)
- Touch Height
- ≤2 mm
- Writing Mode
- Finger and stylus pen (magnetic)
- Communication Mode
- USB + UART
- Anti-light Interference
- Anti-glare tempered glass
- Surface Hardness
- ≥9H
- Touch Resolution
- 32767 × 32767
Speaker3
- Built-in Speaker
- 2 full-range speakers; The power of a single speaker is not less than 20 W
- Power
- 2.0 sound channel, front-end: 2 × 20 W
- Frequency
- 140 Hz–20 kHz
Certification1
- Certifications
- CE; EDLA; Energy Star
