PKC-WM1A

A tabletop microphone for conference calls

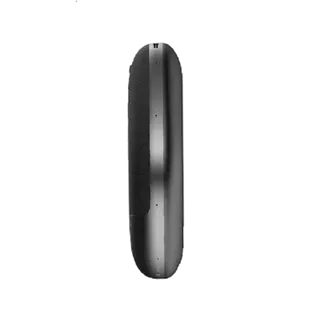

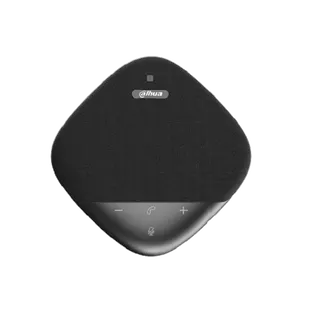

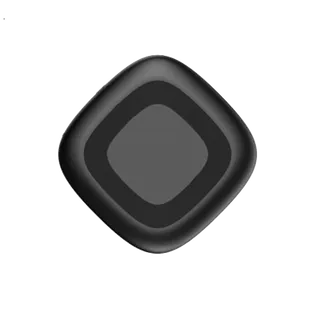

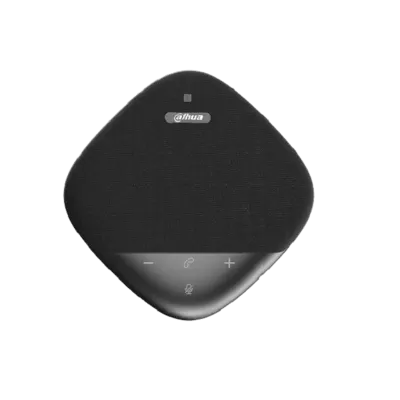

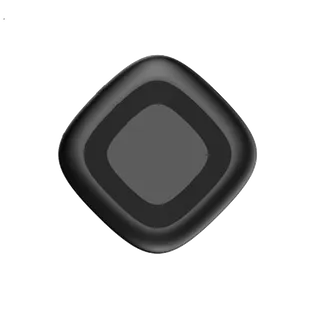

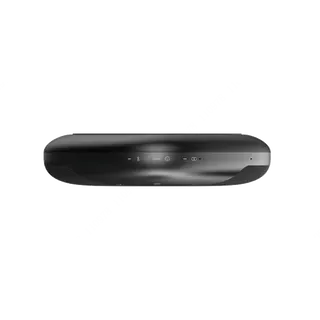

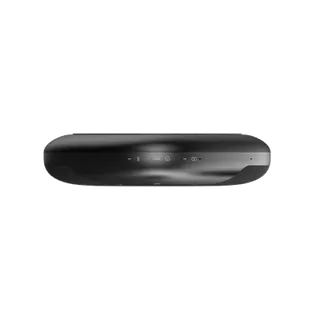

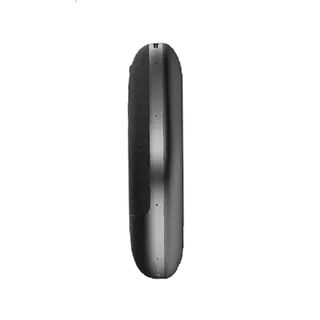

The PKC-WM1A is a compact omnidirectional digital microphone that sits on a table and picks up speech from every direction. Its eight-element array, a 126 mm by 126 mm footprint and a height of 34 mm make it easy to place between participants, and at 0.4 kg it can be moved from room to room. It suits spaces where a fixed ceiling or wall microphone is not practical, such as a huddle space or a meeting room that changes layout through the week.

Pickup and audio quality in practice

Pickup distance is rated at 6 m (19.69 ft), and the 360° HD audio pickup mode covers voices around the full circle of the device. The manufacturer specifies a frequency response of 75 Hz to 20 kHz, a signal-to-noise ratio of 65 dBA and a sensitivity of –24 dBFS. Automatic gain technology is built in to help keep levels consistent when people speak from different seats and distances.

Connecting by cable, Bluetooth or a second unit

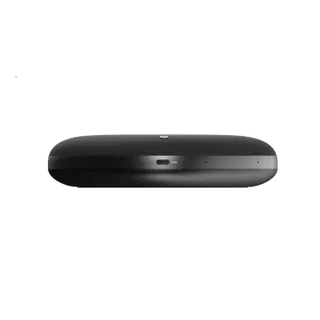

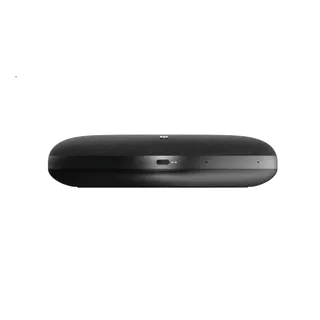

A Type-C port carries audio in and out and also charges the device, so one cable can serve both jobs during a long session. For wireless use, the Bluetooth 5.3 module (BR/EDR/BLE) pairs with the USB Bluetooth receiver in the box, and the manufacturer lists an operating distance of 10 m. Two units can be cascaded wirelessly, which suits a long boardroom table that may exceed the coverage of a single unit.

Battery, controls and charging

The 3.7 V, 4,400 mAh lithium battery gives about 8 hours of use on a full charge at maximum call volume. Charging is rated at 5 V and 2 A through the Type-C port. Seven buttons handle power, answering or ignoring calls, mute, Bluetooth, volume up and down, and cascading, and indicator lights show battery, volume and button status. The device can also run from a power supply through the same Type-C port, so a fixed charger at the table is an option for daily use.

Where it fits in Qatar

In a boardroom in West Bay, a senior team calling partners in Europe can place one unit mid-table and keep the call clear without a ceiling installation. In Education City, a training centre running hybrid sessions can use the microphone in a seminar room where the presenter moves between the front and the audience. A private school in Al Wakrah might use a unit in a staff meeting room for remote meetings with parents or inspectors. In Msheireb, a government office holding bilingual meetings in Arabic and English can use it in a small conference room where a wired ceiling system is not justified.

Summer conditions need planning. The operating range is 0 °C to +40 °C with 10% to 90% humidity, and Qatar summer temperatures can exceed 45 °C. Keep the microphone in an air-conditioned room on a table, away from windows, sun-exposed ledges and unconditioned halls, and confirm the room conditions with the SmartRooms Qatar team before ordering.

What to plan before you order

• The box contains the microphone, a 1 m USB Type-C cable, a USB Bluetooth receiver and a user manual.
• No mounting bracket is listed, so plan a table position within reach of the 1 m cable or the Bluetooth receiver.
• Net weight is 0.4 kg; the packaging measures 156 mm by 156 mm by 64 mm.
• The storage range is –20 °C to +60 °C, separate from the operating range.

Send us the number of rooms, the table layout and the conferencing equipment you use, and the SmartRooms Qatar team will reply with a quotation, usually within one working day. We deliver to all eight municipalities of Qatar, and a free site survey can confirm placement before you buy. Request a quote for the PKC-WM1A today.
