SP-PI5C72IS(Win 11 Pro Activated)

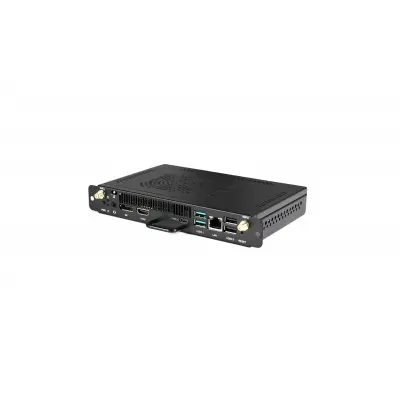

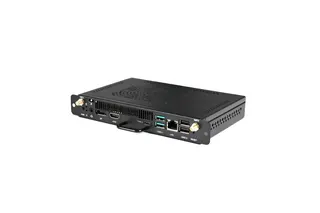

Dahua SP-PI5C72IS(Win 11 Pro Activated) OPS Computer Module
- System
- Supports Windows 11 Pro or…
- Memory
- 16 GB
The Dahua SP-PI5C72IS is an OPS-format computer module with an Intel i5-12450H processor, 16 GB of DDR4 memory and a 256 GB SSD. It provides HDMI 1.4, DisplayPort 1.2, gigabit Ethernet, Wi-Fi 802.11ax and Bluetooth 5.2, and its model name indicates Windows 11 Pro activation. It suits boardrooms and classrooms in Qatar that need a PC built into the display. Request a quote.
What the SP-PI5C72IS is and how it is built
The Dahua SP-PI5C72IS is a compact computer module in the Open Pluggable Specification (OPS) format, sold as an accessory for compatible interactive flat panels. Its board carries an Intel i5-12450H processor rated at 4.40 GHz, with eight cores and twelve threads, alongside 16 GB of DDR4 memory at 3200 MHz and a 256 GB NVMe/SATA SSD. The black SGCC steel casing measures 119 mm × 180 mm × 30 mm and weighs 0.75 kg.
Ports and display outputs that matter in a meeting room
The module offers one HDMI 1.4 output rated at 4K/30 Hz and one DisplayPort 1.2 output rated at 4K/60 Hz, so the right choice depends on the frame rate your content needs. Four USB ports (two USB 3.1 and two USB 2.0) and a USB 3.1 Type-C port handle keyboards, cameras and presentation devices. A gigabit RJ-45 port (10/100/1000 Mbps) connects the module to a wired network, and a combined line-out and microphone input covers basic audio.
Wireless connectivity and power planning
Wireless is built in: the module supports 802.11a/b/g/n/ac/ax Wi-Fi and Bluetooth 5.2, with two antennas included. The listed Wi-Fi bands run from 2400-2483.5 MHz up to 5730-5835 MHz, and CE EIRP limits are published for each band, so your IT team should check them against the network plan. The module runs from a 12–19 VDC input, draws a typical 53 W and a maximum of 58.8 W, and uses 0.8 W in standby. The accessory list does not include a power adapter, so the DC supply must be specified in the quotation.
Where it fits in Qatar
Boardroom in West Bay or Lusail: A company meeting room with an interactive display can run its meeting software from inside the module, avoiding a separate PC on the table. Presenters working in Arabic and English can share from the same screen, connecting personal devices through the USB 3.1 Type-C port.
Classrooms in Al Wakrah or Al Rayyan: A school refitting its classrooms can fit one module per panel. Because the computer sits inside the display, cable runs stay short and tidy across each room.
Hotel conference floor or lobby in Msheireb or Doha: The module can drive an information or room-booking display on a single screen. Because the air-conditioned environment matters for this model, the site should be climate-controlled.
Heat, space and installation planning
- The operating range is –5 °C to +45 °C with 10% to 90% non-condensing humidity. Qatari summer temperatures can exceed 45 °C, so install in an air-conditioned room and avoid sealed, unventilated cabinets or sun-exposed positions.
- The storage range is –20 °C to +70 °C, which covers transport and warehouse handling.
- Confirm that the 80-pin extension port matches the host display before ordering.
- Allow for the 30 mm depth, the 0.75 kg weight and the two antennas when planning enclosures and cable routes.
- Specify a 12–19 VDC power supply in your quotation, as none is listed among the accessories.
SmartRooms Qatar offers free site surveys before installation and delivers to all eight municipalities of Qatar. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders, including Monaqasat. Request a quote and send us your host display model and room layout so we can price the right configuration.
Highlights
- Intel i5-12450H processor with eight cores and twelve threads
- 16 GB DDR4 3200 MHz memory and 256 GB NVMe/SATA SSD
- HDMI 1.4 (4K/30 Hz) and DisplayPort 1.2 (4K/60 Hz) outputs
- Gigabit RJ-45, Wi-Fi 802.11ax and Bluetooth 5.2 connectivity
- Typical 53 W draw on a 12–19 VDC input
- Operating range –5 °C to +45 °C, 10%–90% non-condensing humidity
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Function9
- Processor
- Intel® Alder lake-H i5-12450H, 4.40 GHz
- Chip
- SOC
- BIOS
- AMI UEFI BIOS
- Integrated Graphics Card
- Intel® UHD Graphics for 12th Gen Intel® Processors
- Sound Card
- Realtek ALC897
- Memory
- 16 GB
- Disk
- 256 GB
- Button
- Front, 1 × power button, 1 × resetting button (recessed socket)
- Operating System
- Supports Windows 11 Pro or without any operating system.
function3
- Number of Cores
- 8
- Number of Threads
- 12
- Level 3 Cache
- 12 MB
Device Ports16
- Power
- 1 × DC IN
- Network Port
- 1 × RJ-45 (10/100/1000 Mbps)
- USB
- 2 × USB 3.1, 2 × USB 2.0
- Type-C Port
- 1 × USB 3.1 Type-C
- DP
- 1 × DP1.2 out, Max.4K/60 Hz
- HDMI
- 1 × HDMI 1.4 out, Max.4K/30 Hz
- Audio Port
- 1 × Line-out and MIC-In, 2-in-1 Connector
- Wi-Fi
- Yes
- Wi-Fi Standard
- 802.11a/b/g/n/ac/ax
- Extension Interface
- 1 × 80 pin JAE port
- Wi-Fi Frequency Range
- 2400-2483.5 MHz, 5170-5330 MHz, 5490-5730 MHz, 5730-5835 MHz
- MAX Power Transmission (Wi-Fi)
- CE EIRP: ≤20 dBm@2400; ≤23 dBm@5150-5250 MHz; ≤23 dBm@5250-5350 MHz; ≤23 dBm@5470-5650 MHz; ≤23 dBm@5650-5725 MHz; ≤14 dBm@5725-5850 MHz
- Bluetooth
- Yes
- Bluetooth Standard
- BRIEF Bluetooth5.2
- Bluetooth Frequency Range
- 2400–2483.5 MHz
- MAX Power Transmission (Bluetooth)
- CE EIRP: ≤20 dBm@2400–2483.5 MHz;
Power3
- Operating Voltage
- 12–19 VDC
- Standby Power Consumption
- 0.8 W
- Power Consumption
- Typ: 53 W; Max: 58.8 W
Environment4
- Operating Temperature
- –5 °C to +45 °C (+23 °F to +113 °F)
- Operating Humidity
- 10%–90%, non-condensing
- Storage Temperature
- –20 °C to +70 °C (–4 °F to +158 °F)
- Storage Humidity
- 10%–90%, non-condensing
Structure7
- Casing Material
- SGCC
- Product Dimensions
- 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
- Packaging Dimensions
- 254 mm × 196 mm × 77 mm (10.00" × 7.72" × 3.03") (L × W × H)
- Net Weight
- 0.75 kg (1.65 lb)
- Gross Weight
- 0.95 kg (2.09 lb)
- Casing Color
- Black
- Accessory
- 2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user's manual
Certifications1
- Certifications
- CE
