SP-PI7C72IS(Win 11 Pro Activated)

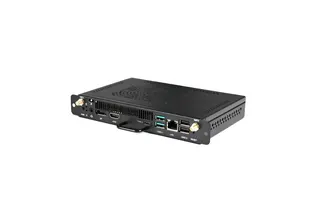

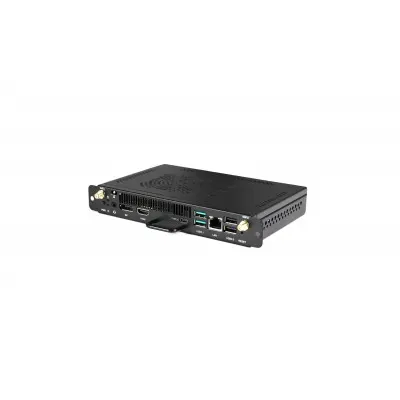

Dahua SP-PI7C72IS(Win 11 Pro Activated) OPS Computer Module
- System
- Supports Windows 11 Pro or…
- Memory
- 16 GB
The Dahua SP-PI7C72IS is an OPS computer module that fits inside a compatible interactive panel and gives it its own Intel i7-12650H processor, 16 GB DDR4 memory and a 256 GB SSD. Its model listing specifies Windows 11 Pro activated. Ports include HDMI 1.4, DisplayPort 1.2, USB-C and gigabit Ethernet. It suits Doha schools and offices that want to run applications directly on the screen without a separate desktop PC.
What this OPS computer module does
The Dahua SP-PI7C72IS is an Open Pluggable Specification (OPS) computer module. OPS is a standard that lets a compact PC sit inside a matching interactive panel, so the display runs its own operating system, applications and browser without an external computer on the desk. This model pairs an Intel i7-12650H processor with 16 GB of DDR4 memory and a 256 GB SSD, and its model name specifies Windows 11 Pro activated.
Processing, memory and storage
The processor is an Intel Alder Lake-H i7-12650H with 10 cores, 16 threads, 24 MB of Level 3 cache and a top frequency of 4.70 GHz. Graphics come from Intel UHD Graphics for 12th Gen Intel processors. Memory is one 16 GB DDR4 module running at 3200 MHz. Storage is a 256 GB 2280 SSD that supports NVMe or SATA. The module uses AMI UEFI BIOS.
Ports and connectivity for classrooms and meeting rooms
- HDMI 1.4 output, up to 4K at 30 Hz
- DisplayPort 1.2 output, up to 4K at 60 Hz
- Two USB 3.1 and two USB 2.0 ports
- One USB 3.1 Type-C port
- One RJ-45 port for 10/100/1000 Mbps Ethernet
- Wi-Fi and Bluetooth through a 2230 module with two antennas
- Combined line-out and microphone-in connector
If your panel needs a 4K signal at 60 Hz, plan the DisplayPort route, because the HDMI output is rated to 30 Hz at 4K.
Where it fits in Qatar
A private school in Al Wakrah fitting out new classrooms can have teachers open lesson apps, web resources and school platforms directly on each screen, rather than moving a laptop between rooms. A corporate boardroom in West Bay can run its meeting software and presentations locally on the panel, with the USB-C and USB ports available for cameras, microphones and storage. A training centre in Education City can use the wired gigabit port where Wi-Fi coverage is weak, or the built-in Wi-Fi where cabling is difficult.
What to plan before ordering
Confirm that your interactive panel has an OPS slot compatible with this module before ordering. The module has an 80-pin JAE extension interface and takes a DC input of 12 to 19 VDC. Typical power consumption is 53 W, with a maximum of 58.8 W and 0.8 W in standby. The data does not list a separate power adapter, so confirm the power supply with your panel vendor. The operating range is -5 °C to +45 °C with 10% to 90% non-condensing humidity. Qatar summers can exceed 45 °C, so check the air temperature around the panel during a site survey and keep the panel's rear ventilation clear. The module measures 119 mm x 180 mm x 30 mm and weighs 0.75 kg net. SmartRooms Qatar offers free site surveys and professional installation.
To confirm compatibility with your panel and receive a quotation, request a quote from SmartRooms Qatar. Quotations are usually issued within one working day.
Highlights
- Intel i7-12650H processor with 10 cores at 4.70 GHz
- 16 GB DDR4 memory running at 3200 MHz
- 256 GB 2280 SSD supporting NVMe and SATA
- HDMI 1.4 and DisplayPort 1.2 outputs for displays
- Windows 11 Pro activated, as stated in the model name
- Operating range of -5 °C to +45 °C
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Function10
- Processor
- Intel® Alder lake-H i7-12650H, 4.70 GHz
- Chip
- SOC
- BIOS
- AMI UEFI BIOS
- Integrated Graphics Card
- Intel® UHD Graphics for 12th Gen Intel® Processors
- Sound Card
- Realtek ALC897
- Memory
- 16 GB
- Disk
- 256 GB
- Wireless
- 1 × 2230 CNVI AX101, Wi-Fi/BT Module
- Button
- Front, 1 × power button, 1 × resetting button (recessed socket)
- Operating System
- Supports Windows 11 Pro or without any operating system.
function3
- Number of Cores
- 10
- Number of Threads
- 16
- Level 3 Cache
- 24 MB
Device Ports8
- Power
- 1 × DC IN
- Network Port
- 1 × RJ-45 (10/100/1000 Mbps)
- USB
- 2 × USB 3.1, 2 × USB 2.0
- Type-C Port
- 1 × USB 3.1 Type-C
- DP
- 1 × DP1.2 out, Max.4K/60 Hz
- HDMI
- 1 × HDMI 1.4 out, Max.4K/30 Hz
- Audio Port
- 1 × Line-out and MIC-In, 2-in-1 Connector
- Extension Interface
- 1 × 80 pin JAE port
Power3
- Operating Voltage
- 12–19 VDC
- Standby Power Consumption
- 0.8 W
- Power Consumption
- Typ: 53 W; Max: 58.8 W
Environment4
- Operating Temperature
- –5 °C to +45 °C (+23 °F to +113 °F)
- Operating Humidity
- 10%–90%, non-condensing
- Storage Temperature
- –20 °C to +70 °C (–4 °F to +158 °F)
- Storage Humidity
- 10%–90%, non-condensing
Structure7
- Casing Material
- SGCC
- Product Dimensions
- 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
- Packaging Dimensions
- 254 mm × 196 mm × 77mm (10.00" × 7.72" × 3.03")
- Net Weight
- 0.75 kg (1.65 lb)
- Gross Weight
- 0.95 kg (2.09 lb)
- Casing Color
- Black
- Accessory
- 2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user's manual
Certifications1
- Certifications
- CE
