SP-PI7C75IS(Win 11 Pro Activated)

What this module does inside a panel

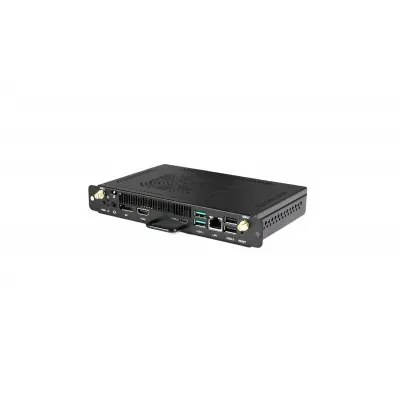

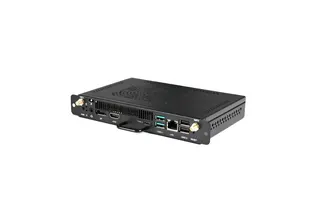

The Dahua SP-PI7C75IS is an OPS computer module, a compact PC designed to sit inside an interactive flat panel rather than beside it. Once fitted, it runs presentation, whiteboard and conferencing software directly on the display, so staff do not need to bring a laptop to every session. On the front sit a power button and a recessed reset button, which allow the module to be restarted without opening the panel.

Processor, memory and storage

The processor is an Intel i7-12650H from the Alder Lake-H family, clocked at 4.70 GHz, with 10 cores, 16 threads and 24 MB of Level 3 cache. Graphics come from Intel UHD Graphics for 12th Gen Intel Processors. The module includes one 16GB DDR4 3200 MHz memory module and one 512GB 2280 SSD that supports both NVMe and SATA. Audio is handled by a Realtek ALC897 sound card, and the BIOS is AMI UEFI.

Ports and display outputs

• 1 × DP 1.2 output, up to 4K at 60 Hz
• 1 × HDMI 1.4 output, up to 4K at 30 Hz
• 2 × USB 3.1 and 2 × USB 2.0
• 1 × USB 3.1 Type-C
• 1 × RJ-45 network port, 10/100/1000 Mbps
• 1 × combined line-out and mic-in connector
• 1 × 80-pin JAE extension interface

Wireless connectivity comes from a 2230 CNVI AX101 Wi-Fi and Bluetooth module, with two antennas included in the box.

Power, temperature and planning for Qatar

The module runs from a 12–19 VDC input and draws a typical 53 W, with a maximum of 58.8 W and 0.8 W in standby. Its rated operating range is –5 °C to +45 °C, with 10% to 90% non-condensing humidity. Summer air inside a sun-exposed lobby or a closed cabinet can run warmer than the room, so confirm ventilation and the actual ambient temperature with the SmartRooms Qatar team before installation.

Where it fits in Qatar

• A private school in Al Wakrah equipping classrooms so teachers do not carry laptops between lessons.
• A government office in Msheireb setting up a meeting room where the panel runs its own software and joins video calls with colleagues abroad.
• A training centre in Education City installing several modules across training rooms under a single purchase order.

What to plan before ordering

Confirm first that the panel has a compatible OPS slot and a matching 80-pin JAE connection, because fit depends on the panel design. The module measures 119 mm × 180 mm × 30 mm and weighs 0.75 kg net. It carries CE and Energy Star certifications and has a black SGCC casing. SmartRooms Qatar supplies the module, delivers it to all eight municipalities of Qatar, arranges professional installation and offers a free site survey beforehand. Send your panel model and request a quote; a quotation usually follows within one working day.
