SP-PI7C75IS(without system)

What the SP-PI7C75IS adds to an interactive panel

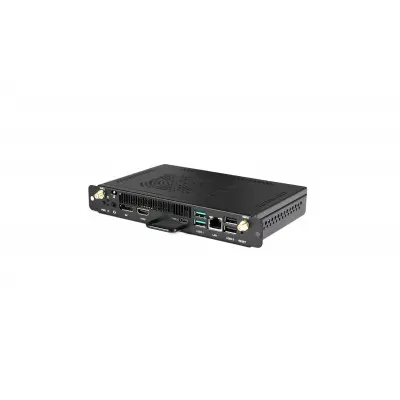

The Dahua SP-PI7C75IS is an OPS computer module, the plug-in format that lets a display carry its own computer rather than depending on a separate PC in the room. This version is supplied without an operating system, so your IT team installs the Windows environment it has chosen. Windows 11 Pro is the supported edition. The processor is an Intel Alder Lake-H i7-12650H running at up to 4.70 GHz with 10 cores, 16 threads and 24 MB of Level 3 cache, a configuration suited to running annotation software, video calls and a browser side by side.

Processing, ports and connections on the module

Memory is 16 GB of DDR4 running at 3200 MHz. Storage is a 512 GB 2280 SSD listed as NVMe/SATA. Display output comes from Intel UHD Graphics for 12th Gen Intel Processors, and audio is handled by a Realtek ALC897 sound chip with a combined line-out and microphone-in connector. Wireless is provided by a 2230 CNVI AX101 Wi-Fi and Bluetooth module, supplied with two antennas.

• DisplayPort 1.2 out: maximum 4K at 60 Hz, the output to use when a full-resolution 4K signal matters
• HDMI 1.4 out: maximum 4K at 30 Hz, suited to lower-frame-rate presentation
• USB: 2 x USB 3.1 and 2 x USB 2.0 for keyboards, pens and storage
• USB 3.1 Type-C: one additional Type-C port
• RJ-45: wired network at 10/100/1000 Mbps
• 80-pin JAE port: the extension interface on the module

Check how the host panel routes its external ports before ordering, so the connections your room needs are within reach.

Power, heat and dust in a Qatar installation

The module accepts 12–19 VDC, with typical consumption of 53 W, a maximum of 58.8 W and 0.8 W in standby. Its operating range is –5 °C to +45 °C with 10% to 90% non-condensing humidity, and storage is rated from –20 °C to +70 °C. Qatar summers regularly push past 45 °C, so the module must sit inside an air-conditioned room with the host panel's ventilation, not in a hot corridor, a sunlit lobby or an unventilated cabinet. Dust is also a concern in the Industrial Area and at Ras Laffan, so keep the casing clean and confirm enclosure protection with SmartRooms Qatar.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can give each room a complete computer inside the panel, which saves a desk and keeps cables off the floor. A government ministry in West Bay replacing an ageing PC behind a boardroom screen can use the compact 119 x 180 x 30 mm casing, which weighs 0.75 kg, in a tight space. A hotel in Lusail equipping meeting rooms can standardise on one configuration and order several units under a single purchase order.

What to plan before you order

• Confirm the host panel has an OPS slot that matches this module.
• Check that the panel supplies the 12–19 VDC input range.
• Decide on the Windows edition and licence your organisation will install.
• Plan the room's temperature, ventilation and network drop.
• Book a free site survey before installing heavy panels in the room.

Send your room list, host panel model and quantity to SmartRooms Qatar and request a quote. Quotations are usually issued within one working day. We deliver to all eight municipalities of Qatar, provide professional installation, and accept purchase orders, bank transfer or cheque.
