DS-D5ABKY2-M

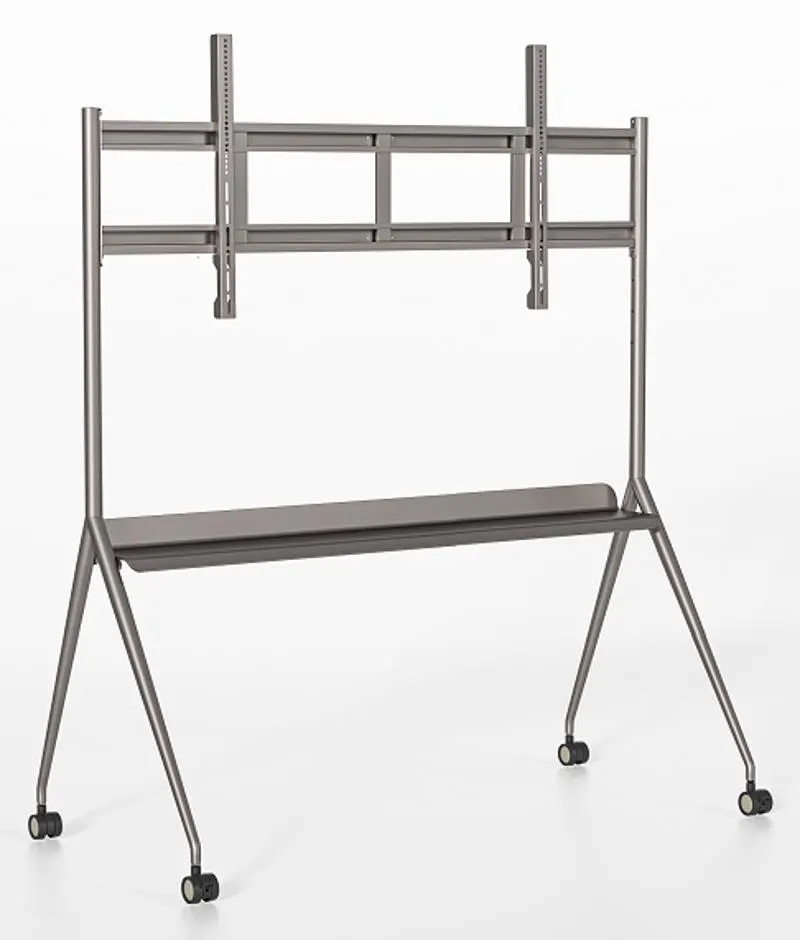

What this bracket is built for

The Hikvision DS-D5ABKY2-M is a conference flat panel bracket for installations using 75-inch or 86-inch panels. Its listed available size is 75/86 inch, so it suits a room that has standardised on one of those two sizes. If the panel in your room is a different size, this accessory is not the right match, so confirm the screen size before you request a quote.

Materials, finish and load rating

The frame is made from SPCC high quality steel plate and finished in silver gray with a sheet metal spraying treatment. That neutral finish sits well alongside the wall colours and furniture found in most meeting rooms and boardrooms. The listed capacity is 100 kg. Add the weight of the panel, any accessories fixed to it and the cabling, then compare the total with that figure. The source data does not include panel weights, so check the panel's own specification sheet.

• Available for 75-inch and 86-inch panels
• Material: SPCC high quality steel plate
• Finish: silver gray, sheet metal spraying
• Listed capacity: 100 kg

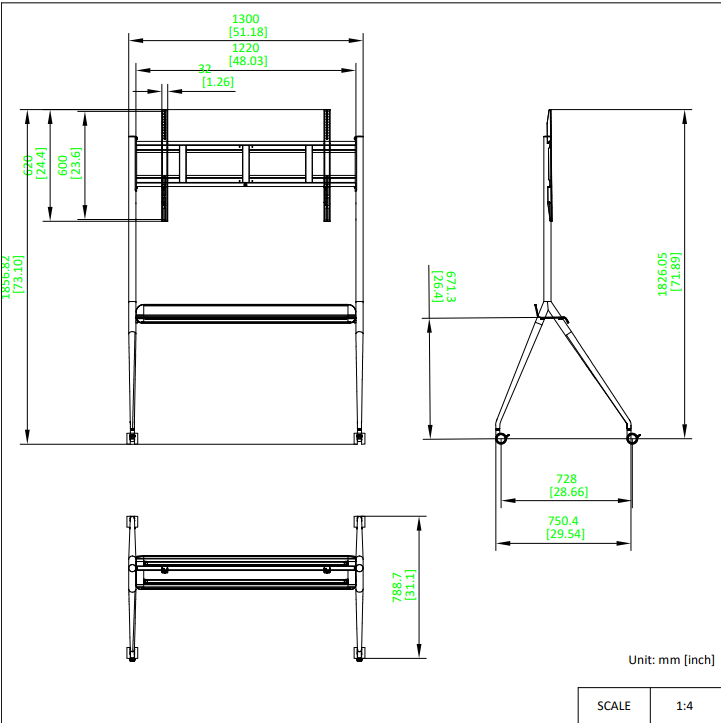

• Shelf size listed as 1300 × 750 × 1710 mm

Planning delivery and installation in Qatar

The package measures 1650 mm wide, 780 mm high and 150 mm deep, with a net weight of 21.2 kg and a gross weight of 24.5 kg. A box of this size needs a clear route from the loading bay, through the lift and along the corridor to the room. This matters most in multi-storey government offices, schools and hospitals in Doha, where lifts and corridors are shared. Allow two people for handling and check doorway and lift car dimensions before delivery.

Before you order, compare the wall or floor space where the panel will sit with the listed shelf size. The source data does not describe the mounting method, so ask the SmartRooms Qatar team how the bracket is fixed for your room. A site survey is worth doing before a large panel is mounted, because it lets the team check wall construction, fixing points and cable routes. The source data also gives no operating temperature range for this bracket, so note any window-facing or sun-exposed position in your request.

Where it fits in Qatar

A private school in Al Wakrah fitting out several new classrooms with 75-inch panels would need one bracket per room. Confirming each room's panel size before ordering avoids mismatched hardware across the school. A boardroom in West Bay or Lusail with an 86-inch panel is a different case: the weight, the view from the seats and the cable route to the table matter as much as the bracket itself. A ministry in Msheireb buying through a purchase order can state the model DS-D5ABKY2-M and the panel size on the order so the bracket matches the equipment delivered.

Ordering from SmartRooms Qatar

SmartRooms Qatar supplies this bracket to all eight municipalities of Qatar and can arrange professional installation. Quotations are usually issued within one working day. Purchase orders and government tenders, including Monaqasat, are accepted, and payment can be made by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty. Lead times are estimates confirmed with your quotation, based on stock.

Send your panel model, room size and mounting location with your request, and ask for a quote for the DS-D5ABKY2-M.
