IdeaHub ES3

A 4K meeting display built around its camera and microphone array

The Huawei IdeaHub ES3 is an interactive meeting display that combines a touchscreen with a built-in dual-lens camera, a 24-microphone array and a speaker system rated at 70 W in total. It is offered in three screen sizes: the IHE3-65SA at 65 inches, the IHE3-75SA at 75 inches and the IHE3-86SA at 86 inches. Each model runs HarmonyOS as standard, and Windows is available when an OPS module is fitted.

Camera, microphones and tracking that keep everyone in view

The camera captures 4K video at 30 fps through a wide-angle lens with an 80 degree field of view and a telephoto lens with a 65 degree field of view, giving 5x zoom. Speakers at the far end of a long table can be brought forward on screen. The microphone array has a 180 degree pickup angle and a 15 m pickup distance, and its AI noise removal filters more than 300 types of background noise, which keeps speech clear when ventilation or nearby activity is present.

• Speaker tracking follows the active speaker through the room.

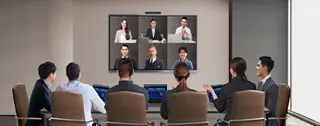

• Participant panes split the video of attendees into six panes.
• Auto-framing adjusts the shot so all participants stay in a panoramic view.

Meeting modes for on-premises, cloud and personal devices

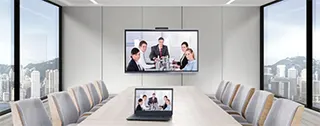

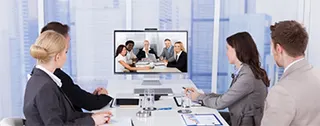

On-premises meetings run at 1080p 30 fps video with 1080p 30 fps or 4K 8 fps content sharing. A performance enhancement license raises video and content sharing to 4K 30 fps, and the same license is required for the AI vision engine and stylus-based instant writing. Huawei Cloud Meeting SmartRooms runs at 1080p 30 fps video. The unit supports the ITU-T H.323 and IETF SIP protocols, so it can join existing conferencing systems, and Zoom and Microsoft Teams are listed among supported cloud meeting apps. A laptop or phone can also send a call to the large screen, with the display's camera, microphone and speakers handling the audio and video.

Choosing between 65, 75 and 86 inches

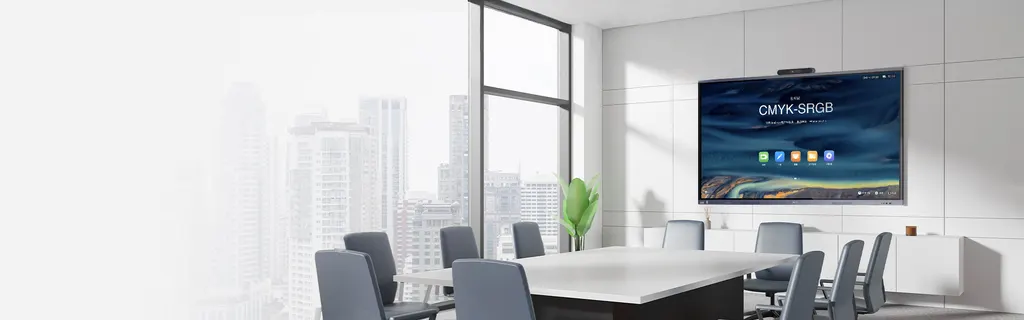

The 65-inch IHE3-65SA measures 935.5 x 1484.5 x 91.6 mm and weighs 37.0 kg net. The 75-inch IHE3-75SA measures 1059.9 x 1705.7 x 91.8 mm and weighs 49.5 kg net. The 86-inch IHE3-86SA measures 1200.0 x 1953.0 x 91.8 mm and weighs 64.4 kg net. The 65-inch model suits a huddle room or small meeting room where people sit close to the screen. The 75-inch fits a standard meeting room, while the 86-inch suits a boardroom or lecture space where the back row must read content clearly.

Planning the installation in Qatar

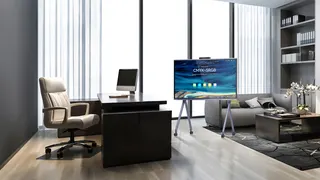

• Mounting: a rolling stand and a wall-mounted bracket are optional. VESA holes use M8 x 25 mm screws, at 600 x 400 mm for the 65-inch and 800 x 400 mm for the 75-inch and 86-inch.
• Connectivity: two HDMI inputs, one HDMI output, USB 3.0 ports, a Type-C port with fast charging and a 10/100/1000 Mbit/s RJ45 port.
• Environment: the source data does not state an operating temperature range, so confirm room conditions with the SmartRooms Qatar team before placing the unit in a room with direct sun, a glass wall or limited air-conditioning.

A ministry boardroom in Msheireb might choose the 86-inch model for a long table, with a site survey before wall-mounting. An engineering firm in the Industrial Area that holds weekly calls with teams in Europe could use the 75-inch model with a laptop connected through HDMI and a wired network connection. A university seminar room in Education City could pair the 86-inch model with the microphone array to capture questions from the back of the room.

Request a quote from SmartRooms Qatar with your room dimensions, mounting preference and the meeting platforms you use, and the team will confirm the configuration for your order.
