75-inch InfinityBoard 2.1 QL
NEC 75-inch InfinityBoard 2.1 QL All-in-One Collaboration Display
- Screen size
- 75 / 189
- Resolution
- 3840 x 2160
- Touch
- InGlass™
- System
- Microsoft Windows 10 Professional
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The NEC 75-inch InfinityBoard 2.1 QL is an all-in-one collaboration display the manufacturer has discontinued. It pairs a 4K IPS touch screen with 20-point InGlass touch, an integrated Huddly IQ camera, 40 W conference speakers and a slot-in Intel Core i7 PC running Windows 10 Professional. It suits meeting rooms in Doha and Lusail that already own this model or need a current replacement. Request a quote for an equivalent.
What this 75-inch InfinityBoard 2.1 QL is
The NEC 75-inch InfinityBoard 2.1 QL is an all-in-one collaboration display built around a 75-inch IPS panel with a native resolution of 3840 x 2160. It combines a touch screen, a camera, conference speakers and a Windows computer in one unit, so a meeting room needs fewer separate devices. The manufacturer has discontinued this model. This page serves organisations that already run it, buyers comparing it with newer collaboration displays, and anyone who needs a replacement for the same room.
Display and touch built for shared writing
The panel is rated at 500 cd/m², with a shipment setting of 350 cd/m², a typical contrast ratio of 1200:1 and 10-bit colour depth. The InGlass touch layer tracks up to 20 touches at once with a response time of 15 ms or less, and accepts finger, glove and stylus input, with styluses of 2 mm or more. Windows Ink supports handwriting. The 3 mm toughened, anti-glare glass transmits 88 percent of light, which helps in rooms with large windows.
- Finger, glove and stylus input on a 75-inch screen
- Up to 20 simultaneous touches
- Landscape and portrait use, with on-screen rotation for portrait
Camera, speakers and the slot-in PC
The integrated Huddly IQ camera outputs 1080p at 30 fps with a 150-degree diagonal field of view and 3x lossless digital zoom. It has no microphone, so audio pickup for remote participants must be planned separately. The conference speakers accept up to 40 W. The OPS slot-in PC uses an Intel Core i7 with 16 GB of DDR4 RAM, a 256 GB SSD, Windows 10 Professional, 802.11ac Wi-Fi and Bluetooth 4.2. The OPS slot is rated for up to 75 W and 4.7 A.
Connections, control and power for IT teams
Inputs include three HDMI and two DisplayPort connections, both with HDCP, plus a DisplayPort output that loops through to the slot-in PC. Control runs over 100 Mbit LAN and RS232, with listed support for AMX NetLinx, Crestron Connected Support, PJLink and SNMP. The unit is also listed as compatible with Cisco Webex Kit. Four USB 3.0 hub ports and a remote control complete the layout. Power draw is 167 W when shipping and under 0.5 W in power-saving mode.
Where it fits in Qatar
- A government authority in West Bay running cross-department reviews, with some attendees joining from abroad through the camera and Quicklaunch one-touch sessions.
- A training centre in Education City running workshops where participants annotate and share their work onto one large screen.
- A hotel meeting room in Msheireb hosting client presentations without a separate computer on the table.
What to plan before ordering
The operating range is 0 to +35 °C with 20 to 80 percent humidity. The room must stay air-conditioned, and the unit should not sit in an unconditioned lobby or in direct sunlight from a window, where Qatar summer temperatures can exceed 45 °C. The unit weighs 80.3 kg without its stand and measures 1944.6 x 1003 x 86 mm. It supports 400 x 400 mm and 600 x 400 mm VESA patterns with M8 holes, so check the wall or trolley plan against the building structure. Our free site survey covers this before installation. The manufacturer's warranty is three years including the backlight, with optional fourth and fifth year extensions.
Because this model is discontinued, the practical route is a quote for a current equivalent or a compatible replacement that matches your room size, mounting and software needs. Request a quote from SmartRooms Qatar and we will confirm which option suits your room.
Highlights
- 75-inch IPS panel with 3840 x 2160 native resolution
- InGlass touch with up to 20 simultaneous touches
- Integrated Huddly IQ camera with 1080p at 30 fps
- 40 W conference speakers and Intel Core i7 slot-in PC
- Three HDMI and two DisplayPort inputs with HDCP
- Operating range 0 to +35 °C; discontinued by manufacturer
Classroom fit
At 75″ the farthest student should sit within about 5.6 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
91 specifications · Source: manufacturer · checked Oct 2026
Product Information3
- Product Name
- NEC 75″ InfinityBoard® 2.1 QL
- Product Group
- LCD 75" All-in-One Collaboration Solution
- Order Code
- 40001444
Display10
- Panel Technology
- IPS with Edge LED backlights
- Active Screen Area (W x H) [mm]
- 1,649.7 x 927.9
- Screen Size [inch/cm]
- 75 / 189
- Brightness [cd/m²]
- 500, 350 (shipment setting)
- Contrast Ratio (typ.)
- 1200:1
- Viewing Angle [°]
- 178 / 178 (at contrast ratio > 10:1)
- Colour Depth [bn]
- 1.073 (10bit)
- Response Time (typ.) [ms]
- 8 (grey-to-grey)
- Haze Level [%]
- Pro (28)
- Supported Orientation
- Face Up 1; Landscape; Portrait
Touch9
- Touch Technology
- InGlass™
- Number of Touches
- Real multi-touch up to 20 touches
- Response Time [ms]
- ≤ 15
- Touch Method
- Finger; Gloves; Stylus (≥ 2 mm)
- Supported Operating System
- Native Multi-Touch: Windows 7-11, Linux, Android; Default Mouse: Windows XP and Vista, Mac OS
- Data Interface
- USB-HID
- Accuracy [mm]
- < 1
- Windows Ink
- Yes
- Palm Rejection
- No
Protective Glass3
- Type
- Premium toughened glass, anti-glare coating
- Thickness [mm]
- 3
- Light Transmission [%]
- 88 (+/- 1 %)
Resolution2
- Native Resolution
- 3840 x 2160
- Supported Resolutions
- 1920 x 1080; 1920 x 2160; 3840 x 2160; 4096 x 2160
Synchronisation Rate2
- Horizontal Frequency [kHz]
- 31.5 - 91.1
- Vertical Frequency [Hz]
- 24 - 85
Connectivity9
- Input Video Digital
- 2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
- Input Audio Analogue
- 1 x 3,5 mm jack
- Input Audio Digital
- 2 x DisplayPort; 3 x HDMI
- Input Control
- 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
- Input Data
- 1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
- Output Video Digital
- 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
- Output Audio Analogue
- 1 x 3,5 mm jack
- Output Control
- 1 x LAN 100Mbit
- USB Hub
- 4x USB 3.0
Open Modular Intelligence3
- OPS Slot
- Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
- OPS Max. Current / Power Consumption [A / W]
- 4.7 / 75
- Compute Module Slot
- Slot Technology: Compute Module 3 Slot (NEC proprietary standard)
Sensors2
- Human Sensor
- Optional, external, 4-5m range, triggered actions programmable
- Temperature Sensor
- Integrated, 3 sensors, triggered actions programmable
Electrical3
- Power Consumption [W]
- 167 shipping
- Power Savings Mode [W]
- < 0.5; < 2 (Networked Standby)
- Power Management
- VESA DPMS
Environmental Conditions2
- Operating Temperature [°C]
- +0 to +35
- Operating Humidity [%]
- 20 to 80
Mechanical7
- Dimensions (W x H x D) [mm]
- Without stand: 1,944.6 x 1,003 x 86
- Weight [kg]
- 80.3
- Bezel Width [mm]
- 18.8 (left/right); 18.8 (top/bottom)
- VESA Mounting [mm]
- 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
- Ingress Protection
- IP5x (front); IP2x (back)
- Packaging Dimensions (W x H x D) [mm]
- Box 1: 1,830 x 280 x 1,190; Box 2: 1,400 x 250 x 250
- Packaging Weight [kg]
- Box 1: 84.5; Box 2: 9.6
MediaPlayer4
- Supported File Storage / File System
- MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
- Supported Image Formats
- JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
- Supported Video Formats
- MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
- Supported Audio Formats
- MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Video Conference Camera8
- Camera Model
- Huddly IQ (no microphone)
- Viewing Angle [°]
- 150 diagonal / 120 horizontal / 90 vertical
- Resolution
- Output HD 1080p 30fps
- Aspect Ratio
- 16:9
- Optical Capabilities
- Digital Pan / Tilt / Zoom with 3x lossless digital zoom
- Driver
- Plug&Play, driverless install
- Connectivity
- SuperSpeed USB
- Software Specification
- 3D noise reduction; 3DNR sensor-model-based visual noise reduction; Flicker elimination; Genius Framing; High-quality video scaling and dewarping; Huddly InSights analytics API; Optical aberration correction; Robust automatic white balance; Spatio-temporal noise filtering
Conference Speakers4
- Input (max.) [W]
- 40
- Rated Speaker Impedance [Ω]
- 8
- Frequency Response Rate [Hz-kHz]
- 70 to 15
- Sound Pressure Level [dB]
- 82.1 (2.83 V)
OPS Slot-In PC10
- CPU
- Intel® Core i7; 8M Cache 4x3 GHz
- Graphics
- Intel® HD Graphics 630
- SSD
- SATA SSD (Msata) 2 Gb/s (MLC); 256 GB
- RAM
- 16 GB (DDR4), dual channel mode
- Operating System
- Microsoft Windows 10 Professional
- Interfaces Frontside
- 1 x Micro Sim Card; 1 x USB 2.0; 1 x USB 3.1 Gen1 Type C; 2 x Antenna for WiFi; 2 x DisplayPort 1.2 ++; 2 x USB 3.0; RJ45 10 / 100 / 1000 Mbps
- Interfaces Backside
- Internal HDMI 1.4 or DisplayPort 1.2; Internal OPS interface to OPS slot-in PC (JAE 80-pin connector)
- Wi-Fi
- Intel Dual Band Wireless-AC 8260 802.11ac, dual band; Wi-Fi and bluetooth 4.2 adapter
- Security
- TPM (Trusted Platform Module)
- EDID/DDC Support
- Internal OPS Interface DisplayPort up to 4096 x 2160 at 60 Hz
Available Software2
- Free Software Included
- Mosaic Connect
- Software
- FlatFrog Board (single user license); Hoylu (single user license); Quicklaunch Ultimate Edition (incl. 3 years maintenance and support); Windows 10 Professional
Available Options2
- Accessories
- Trolley (PD02MHM, PD02MHA, PD03MHA); Wall mount (BalanceBox 400 HEAVY, PDW T XL-2)
- Compute Module Slot
- NEC Compute Module; Raspberry Pi Compute Module 1 and 3
Regulatory1
- Safety and Ergonomics
- CE; EAC; EMC Class B; FCC; RCM; REACH; RoHS; UL/C-UL
Green Features1
- Energy Efficiency
- Carbon Savings Meter; ECOMode; Local Dimming
Additional Features4
- Special Characteristics
- 12-bit Look Up table; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2 - free download; OmniColor Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Scheduler; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log
- Shipping Content
- 1x 10 cm USB Cable; 2 x Stylus; 2x 300 cm USB Cable; Cable Clamps; CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Huddly Camera; OPS Slot-in PC; Power Cable; Remote Control; Side-mounted Speakers
- Warranty
- 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 2
- Operating Hours
- 24/7
Downloads
10 files from the manufacturer
PDF
NEC 75-inch InfinityBoard 2.1 QL datasheets (PDF, 351 KB)
PDF
NEC 75-inch InfinityBoard 2.1 QL manuals & guides (PDF, 3.6 MB)
PDF
NEC 75-inch InfinityBoard 2.1 QL manuals & guides (PDF, 455 KB)
PDF
NEC 75-inch InfinityBoard 2.1 QL brochures (PDF, 1.0 MB)
PDF
NEC 75-inch InfinityBoard 2.1 QL brochures (PDF)
PDF
NEC 75-inch InfinityBoard 2.1 QL drawings & cad (PDF, 821 KB)
PDF
NEC 75-inch InfinityBoard 2.1 QL drawings & cad (PDF, 82 KB)
PDF
NEC 75-inch InfinityBoard 2.1 QL certificates & compliance (PDF, 242 KB)
PDF
NEC 75-inch InfinityBoard 2.1 QL certificates & compliance (PDF, 580 KB)
PDF
NEC 75-inch InfinityBoard 2.1 QL certificates & compliance (PDF, 159 KB)
Questions about 75-inch InfinityBoard 2.1 QL
Is the 75-inch InfinityBoard 2.1 QL suitable for a mid-sized boardroom in Al Sadd?
It suits a mid-sized boardroom where the group works from one shared surface. The 75-inch screen gives everyone a large area for annotation, while the built-in camera and speakers cover remote attendees. Before ordering, confirm the room's air conditioning, wall space and the video platform your team uses, because the camera has no microphone and audio pickup must be planned separately.
Is this model still sold by NEC, and what should I buy instead?
NEC has discontinued the 75-inch InfinityBoard 2.1 QL, so new units may not be available from the manufacturer. SmartRooms Qatar can quote a current equivalent or a compatible replacement that matches the 75-inch size, touch function and built-in conferencing features you need. If you already own this unit, send us its model and your current setup, and our team will advise on compatible options for your room.
What are the main display specifications?
The panel is a 75-inch IPS screen with a 3840 x 2160 native resolution and edge LED backlights. It is rated at 500 cd/m² brightness, with a shipment setting of 350 cd/m², a typical contrast ratio of 1200:1, 10-bit colour depth and 8 ms grey-to-grey response. The active screen area measures 1649.7 x 927.9 mm, and the panel also supports 1920 x 1080 and 4096 x 2160 inputs.
How does the touch screen handle fingers, gloves and pens?
The InGlass touch layer accepts finger, glove and stylus input, with styluses of 2 mm or more. It supports up to 20 simultaneous touches with a response time of 15 ms or less and an accuracy below 1 mm. Windows Ink is supported for handwriting. Two passive styluses are included. Native multi-touch is listed for Windows 7 to 11, Linux and Android, so confirm your operating system before rollout.
Can the built-in camera and speakers handle a video call with overseas teams?
The Huddly IQ camera outputs 1080p at 30 fps with a 150-degree diagonal view, 3x lossless digital zoom and driverless installation. The conference speakers accept up to 40 W and cover the room. The camera has no microphone, so you will need a separate audio solution for remote attendees to hear everyone clearly. Check call platform compatibility with your IT team before ordering.
Can I change the built-in computer or use another OPS module?
The OPS slot follows the open pluggable specification (NEC and Intel OPS standard) and is rated for up to 4.7 A and 75 W. The included slot-in PC is an Intel Core i7 with 16 GB RAM, a 256 GB SSD and Windows 10 Professional. The slot may accept other OPS modules within those limits. Confirm the module's power draw and interface with SmartRooms Qatar before ordering.
What connections and control options does it have?
Inputs include three HDMI and two DisplayPort connections, all with HDCP, plus a DisplayPort output that loops through to the slot-in PC. Control is available over 100 Mbit LAN and RS232, with listed support for AMX NetLinx, Crestron Connected Support, PJLink, SNMP and ASCII commands. Four USB 3.0 hub ports, a 3.5 mm audio jack and a remote control complete the connectivity, which helps building teams integrate it with room systems.
Can it sit in a lobby or a room with direct sun during a Doha summer?
No, not without climate control. The operating temperature range is 0 to +35 °C with 20 to 80 percent humidity, while Qatar summer temperatures can exceed 45 °C. Place it in an air-conditioned room away from direct sunlight and windows, and make sure your cooling can hold the room within the stated range throughout the day, including after hours when the building cools down.
Can a 75-inch unit be wall-mounted in a school hall in Al Rayyan?
It can be, but plan the install first. The unit weighs 80.3 kg without its stand and measures 1944.6 x 1003 x 86 mm. It supports 400 x 400 mm and 600 x 400 mm VESA patterns with M8 holes, and the manufacturer lists wall mounts including the BalanceBox 400 HEAVY and PDW T XL-2. Our free site survey checks wall structure, sightlines and access before installation.
Is it a good fit for a training centre in Education City running mixed-language workshops?
The hardware suits workshops where trainers annotate slides and participants share content from their own devices. The touch layer accepts pen and finger input, and the slot-in PC runs Windows 10 Professional with Windows Ink. Language support depends on the applications you install rather than the display itself, so test your Arabic and English materials on the PC before a training schedule begins.

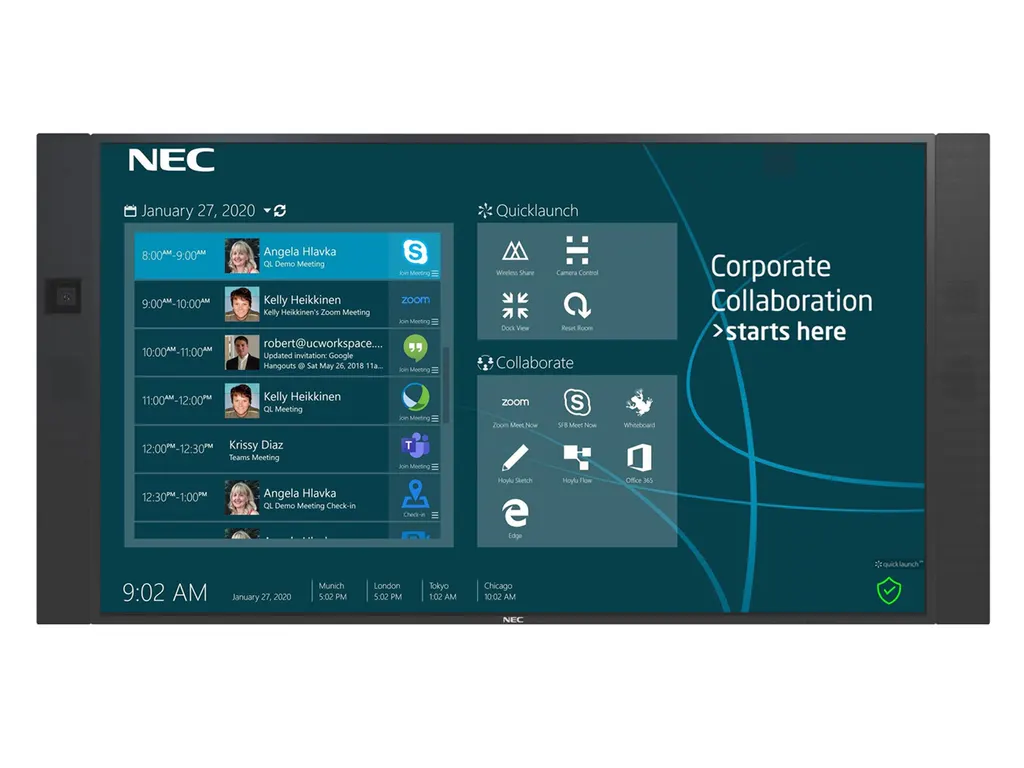

How does Quicklaunch help a government meeting room in West Bay with overseas teams?
Quicklaunch is a meeting room interface with multi-platform integration that lets staff start a meeting from one tap. The Quicklaunch Ultimate Edition is listed with three years of maintenance and support. Combined with the Huddly camera and speakers, it helps teams join calls faster. The manufacturer also lists FlatFrog Board and Hoylu, each with a single-user licence, and Mosaic Connect as free software.
What warranty and purchase options apply?
The manufacturer lists a three-year warranty that includes the backlight, with optional fourth and fifth year extensions. SmartRooms Qatar offers supply, delivery across Qatar and professional installation. Government and school buyers can order against a purchase order or LPO, and payment can be made by bank transfer, cheque or purchase order. Request a quote and we will confirm which warranty extension is available for your order.
