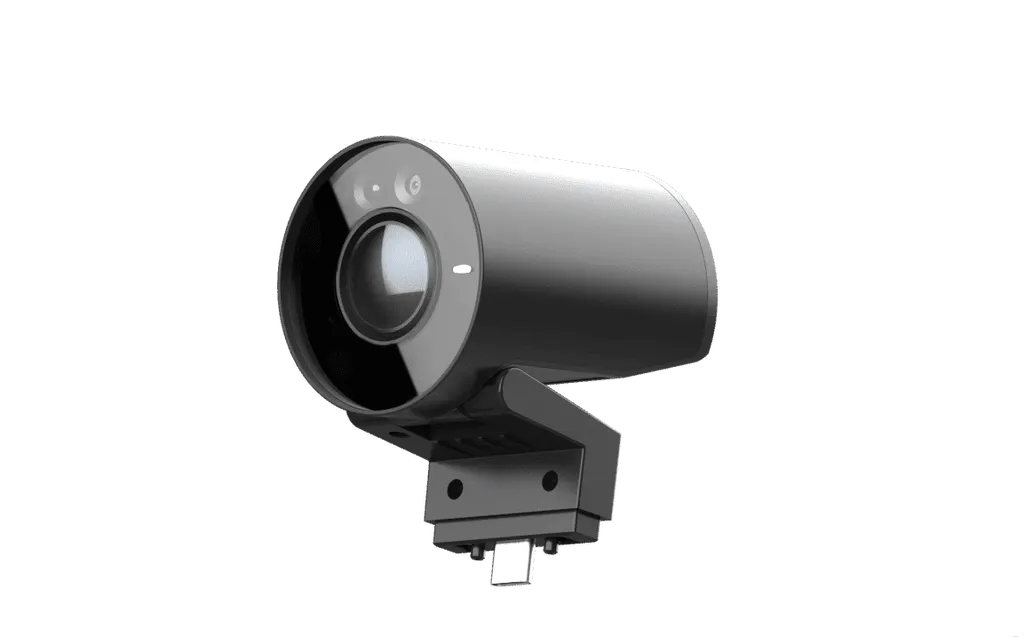

Newline 4K AI Camera
Newline 4K AI Camera – 4K USB Videoconferencing Camera for Newline Displays
The Newline 4K AI Camera is a 4K videoconferencing camera sold as an accessory for Newline Series displays. It records 3840×2160 video at 30 fps, uses AutoFocus and AI auto-framing to keep presenters in shot, and includes two microphones with a 3 m pick-up range. Connected over USB, it suits classrooms, boardrooms and meeting rooms across Qatar that hold calls with teams abroad.
What the Newline 4K AI Camera adds to a Newline display
The Newline 4K AI Camera is a USB videoconferencing camera sold as an accessory for Newline Series displays. Fitting one turns the screen into the camera end of a video meeting, so people in the room can take part in calls on Zoom, Google Meet, Microsoft Teams or Webex. It connects by plug-and-play USB, and its settings are changed with the infrared remote controller and an on-screen menu.
Image quality, framing and field of view
The camera uses a Sony 4K CMOS sensor of 1/2.8-inch type. It outputs 3840×2160 video at 30 fps in MJPG, and also 1920×1080 and 1280×720 at 30 fps, so the resolution can be matched to the meeting platform or the connection. The field of view is 120° diagonal, 108° horizontal and 72° vertical. AI auto-framing and AutoFocus keep the speaker in frame, while auto exposure, white balance and anti-flicker at 50/60 Hz handle lighting changes.
- Mechanical tilt from -10° to +90°
- 3.75x digital zoom and e-PTZ control
- Depth of field from 0.8 m to infinity
- Mirror image and brightness, contrast and saturation settings
Audio pickup for rooms of different sizes
Two electret microphones capture sound with a 3 m pick-up range, a signal-to-noise ratio of 74 dB and a microphone sensitivity of -30±2 dB. Automatic noise suppression and automatic gain control help balance voices at different distances, and full duplex audio allows two-way conversation. Speakers should sit within the 3 m pick-up range, and rooms larger than that should be assessed for extra microphones during the site survey.
Where it fits in Qatar
Three realistic setups show where the camera makes the most difference:
- A private school in Al Wakrah fitting out a classroom where teachers instruct students who are learning from home, with the Newline display as the teaching screen.
- A university lecture room in Education City where a lecturer runs a session for students who join from another campus.
- A boardroom in West Bay where a Doha team holds weekly calls with colleagues abroad during the Sunday to Thursday working week.
Planning the installation
The camera measures 73×61×35 mm (2.87×2.4×1.38 inch), so it needs little space, but its position matters more than its size. Check the mounting point, the USB cable route and the distance to the seating area before ordering. Keep the camera out of direct sunlight and away from hot cabinets: the operating range is 0 to 50°C, and Qatar summer heat can push a sun-facing spot or a poorly ventilated enclosure past that limit. Confirm the room conditions with the SmartRooms Qatar team. A free site survey is available before wall-mounting or cabling work, and quotations are usually provided within one working day. Schools and offices buying several units can order against a single LPO.
Confirm your Newline display model and room layout, then request a quote from SmartRooms Qatar. The product is covered by the manufacturer's warranty, and our team can answer warranty questions before you order.
Highlights
- 4K UHD video at 3840×2160 and 30 fps
- 120° diagonal field of view with AI auto-framing
- Two electret microphones with 3 m pick-up range
- Mechanical tilt from -10° to +90°
- USB plug-and-play with infrared remote controller
- Operating range 0 to 50°C; body 73×61×35 mm
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
