Remote Control Kit - KT-RC3
Sharp Remote Control Kit KT-RC3 for Large Format Displays

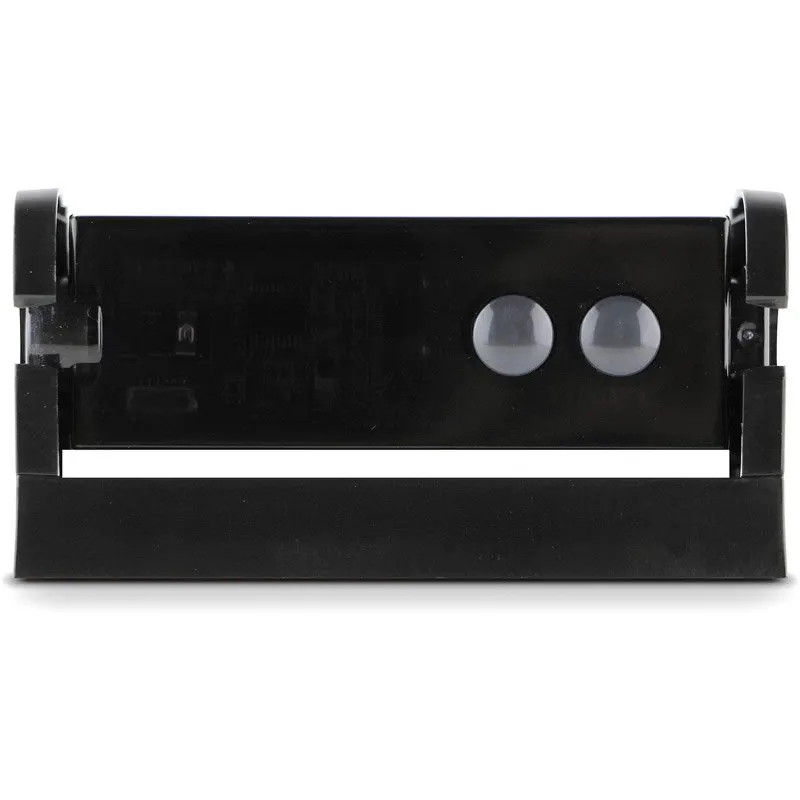

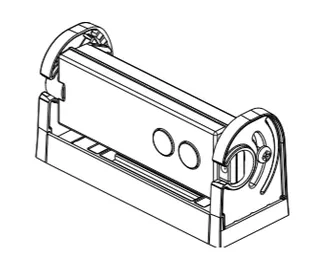

The Sharp KT-RC3 is a remote control kit that adds an infrared receiver, ambient light sensor and human sensing to compatible Sharp large format displays, including the PN-LM431 and PN-LM551. Its sensing area spans 70 degrees horizontally and vertically, with a detection distance of 4 m. It suits video wall rooms in Qatar. Request a quote to confirm compatibility before ordering.
What the KT-RC3 adds to a compatible Sharp display
The KT-RC3 is an accessory kit from Sharp's Accessories range, with order code L50KT-RC3. It brings three sensing functions to dedicated Sharp large format displays: remote control reception through an infrared (IR) sensor, an ambient light sensor, and human sensing. The manufacturer lists it as compatible with the PN-LM431 and PN-LM551, so it is an add-on for those two models rather than a general remote for any screen.
Sensing figures that decide where it mounts
The sensing area is 70 degrees horizontally and 70 degrees vertically, and the stated sensing distance is 4 m. Those two figures decide placement. A person standing inside that angle and range can be detected, while someone well outside the angle will not be. Position the kit so the usual operator spot falls inside the 70-degree area and within 4 m of the sensor.
- Tilt: 50 degrees upward and 50 degrees downward.
- Extra tilt: a further 50 degrees is available with the spacer.
- Voltage: DC 3.3 V.
- Order code: L50KT-RC3.
Where it fits in Qatar
In a lecture hall at Education City, a lecturer often moves around the front of the room while a video wall shows slides, recorded video and live sessions. A sensor placed to cover the teaching area lets the presenter work the display from there rather than walking to the panel each time.
In a government meeting room in Msheireb, or a boardroom in West Bay, the chair or presenter can operate the screen from a seat or from a standing spot inside the sensing area. The seating plan should place that position within 4 m. The ambient light sensor is listed among the kit's functions, but the data does not describe how it behaves, so ask the SmartRooms Qatar team about its behaviour before relying on it in a project.
Event spaces in West Bay and Lusail often change layouts from one booking to the next. Plan the sensor position around the most common operator position rather than every possible stage setup.
What to plan before ordering
Confirm the display model first, because the kit is listed only for the PN-LM431 and PN-LM551. Next, plan the mounting height and angle around the tilt range. SmartRooms Qatar offers free site surveys, which is useful for a video wall where the operator's position depends on where the sensor sits. The kit runs on DC 3.3 V, so confirm the power arrangement and cabling with the installer during the survey. The source data gives no operating temperature range for this kit, so for spaces exposed to strong sun or high heat, ask the SmartRooms Qatar team to confirm the environment before installation.
Request a quote
Send your display model, room layout and proposed mounting position to SmartRooms Qatar and request a quote for the KT-RC3. Quotations are usually issued within one working day, and we supply and install the kit on a purchase order (LPO) or against a government tender.
Highlights
- 70 degrees horizontal and vertical sensing area
- 4 m sensing distance
- 50 degrees up and down tilt, plus 50 degrees with spacer
- Compatible with PN-LM431 and PN-LM551 displays
- IR receiver, ambient light sensor and human sensing in one kit
- DC 3.3 V current voltage
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Specifications4
- Sensing Area
- 70° horizontal and vertical
- Sensing Distance
- 4 m
- Tilt
- 50° upper and lower; additional 50° with spacer
- Current Voltage
- DC 3.3 V
