MB-FS-Lift

What the MB-FS-Lift does for a shared display

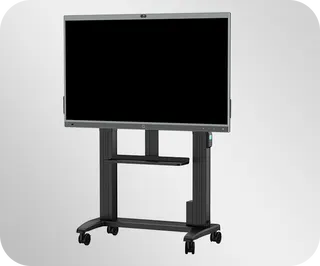

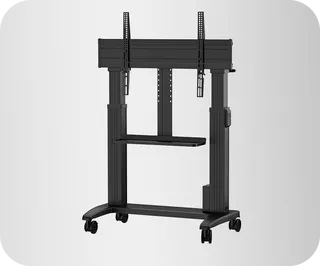

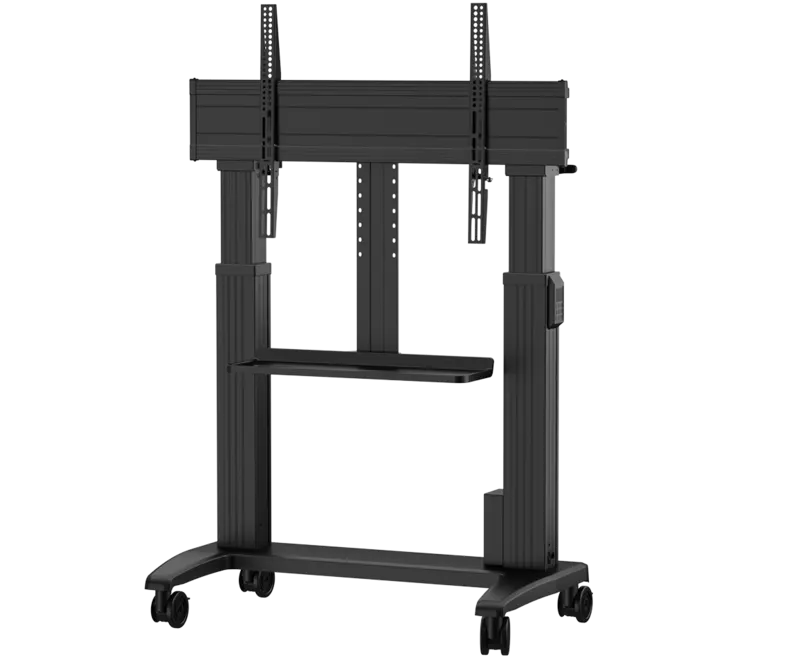

The Yealink MB-FS-Lift is a mobile floorstand built for Yealink display devices. It carries the panel on a column that moves electrically, so one screen can serve a seated meeting in the morning and a standing presentation in the afternoon without moving furniture or fixing anything to the wall. For organisations that want to relocate a display between rooms, it avoids a permanent installation.

Height control, memory and the control panel

The column lifts by up to 500mm at 15mm/s, with the overall height adjustable between 1100mm and 1600mm. The height memory function stores the positions you use most often, so a teacher or presenter can return to a saved height without adjusting it every time. The control panel shows the current lifting height and includes a memory button, a setting button, an initialization function, a light effect switch and a child lock, which is useful where pupils may reach the controls.

Power, weight and mounting planning

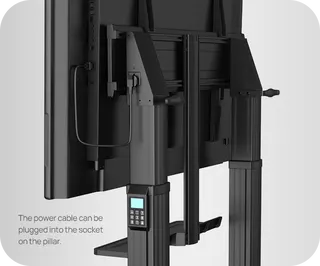

The column includes a universal socket, so the display connects to the floorstand instead of a separate wall outlet, which reduces cable clutter on the floor. The unit also has an AC power input and an AC power output, rated 100-240V at 5A, which covers the 240V mains supply used across Qatar. Power draw is 880 to 990 W during lifting with an 85kg load, 220 to 330 W with no load, and 22 W on standby.

Check the display weight and mounting pattern before ordering. The floorstand has a maximum capacity of 87kg and the tray takes up to 10kg. The supported VESA hole pattern range is 400 x 400mm to 1000 x 600mm. The base measures 1100 x 600mm and weighs 34kg net, so confirm the footprint and access route in the room. SmartRooms Qatar can arrange a free site survey before you commit to a layout.

Where it fits in Qatar

• Training rooms in Education City: one display that moves between breakout groups, raised for seated sessions and lowered for demonstrations at a standing workstation.
• Meeting rooms in West Bay or Msheireb: a height that suits delegates seated at a conference table, with the tray holding a presenter's laptop or a small device.
• Teaching and briefing spaces in hospitals and clinics: a mobile display that can be repositioned for staff sessions, as long as the room is air-conditioned.

Climate and environment

The operating temperature range is 0 to 40°C at 20% to 90% humidity, and storage is rated from -30 to 70°C. Qatar summers regularly pass 45°C, so the MB-FS-Lift should be used only in air-conditioned indoor rooms, not in open courtyards, sun-exposed lobbies or areas where dust storms can reach the equipment. Confirm the room conditions with the SmartRooms Qatar team before installation.

SmartRooms Qatar supplies this floorstand to organisations by quotation, delivers to all eight municipalities of Qatar and offers professional installation. Products carry the manufacturer's warranty. Request a quote today with your room size, display model and number of units, and we will confirm the details and delivery estimate in your quotation.
