75SOA25PT

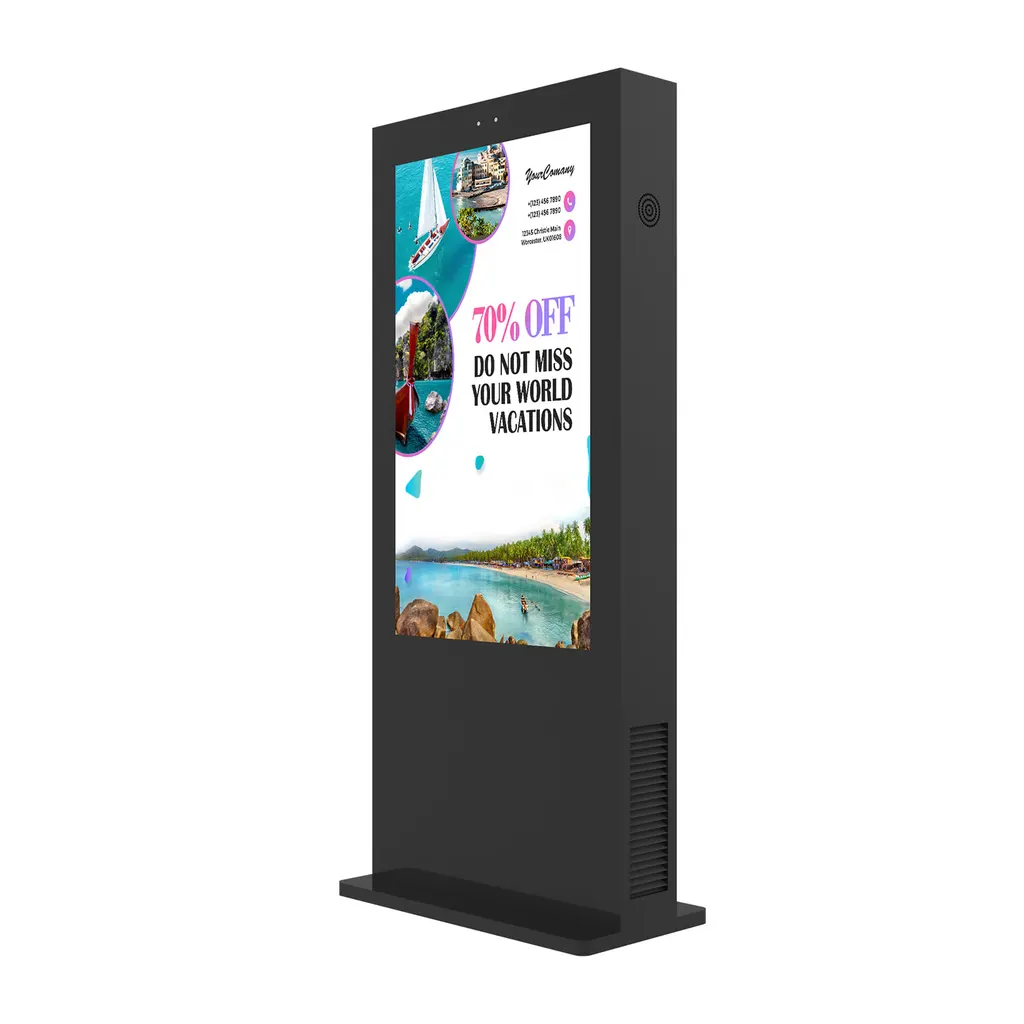

Hisense 75SOA25PT 75-inch Air-Conditioned All-Weather Outdoor Display
- Screen size
- 75”
- Resolution
- UHD (3840 x 2160)
- Brightness
- 2500nits
- Touch
- Touch foil
The Hisense 75SOA25PT is a 75-inch outdoor display in portrait orientation, with a 2500 nit screen, an IP65 air-conditioned enclosure and rated operation from -40°C to 55°C. Hisense has discontinued this model. SmartRooms Qatar can quote a current equivalent or compatible replacement for outdoor wayfinding, retail and entrance signage across Doha and the rest of Qatar.
What the Hisense 75SOA25PT is built to do
The Hisense 75SOA25PT is a 75-inch display designed for outdoor and semi-exposed locations, in the outdoor kiosk and totem format. Its screen is UHD (3840 x 2160) with a 16:9 aspect ratio and an active area of 1650 x 928 mm. Hisense lists this model as discontinued, so this page is written for organisations that already run one, buyers comparing it with newer outdoor models, and anyone who needs a like-for-like replacement.
Brightness, glass and viewing in daylight
The 2500 nit panel is the specification that matters most for an exposed site. A 1200:1 contrast ratio and 178-degree horizontal and vertical viewing angles keep content readable as people approach from the side. The 6.8 mm glass is tempered and laminated with an anti-reflective coating, and the manufacturer describes it as anti-vandal. A light sensor adjusts brightness automatically as surrounding light changes, so the screen does not stay at one fixed level through the day.
Cooling, sealing and running around the clock
The IP65 enclosure protects against dust and water projected from any direction, and a built-in air conditioner with overheating protection manages the temperature inside. The rated ambient operating range is -40°C to 55°C at 5% to 95% humidity. The display is specified for 24/7 operation, with a backlight life of 50,000 hours. The enclosure needs no filter maintenance, which removes a recurring task at dusty sites.
Where it fits in Qatar
- Shopping centre entrances: a mall in Al Rayyan or West Bay showing store directories and promotions day and night, with brightness following ambient light.
- Industrial and logistics gates: a visitor point or site gate in the Industrial Area or Mesaieed, where dust and summer heat are the main threats to equipment.
- Hotel and serviced apartment forecourts: a welcome and wayfinding display in Lusail or The Pearl, visible from a glazed frontage in daylight.
- Campus information points: an outdoor map or event board at a university site in Education City.
Planning the installation

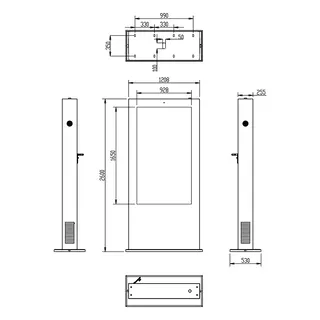

At 325 kg net, 2600 mm tall and 1208 mm wide, with packing measuring 2750 x 1408 x 520 mm, this is a heavy and large unit. A free site survey before ordering will confirm the base or supporting structure, the access route, doorway clearances and the lifting equipment needed. The source lists a power input of AC 110/220V at 50/60Hz with a maximum consumption of 1450W. Qatar mains is 240V at 50Hz, so the electrical specification should be confirmed with SmartRooms Qatar before any cabling is installed. The display runs Android 7.1 with Chinese and English language options, and Arabic is not listed, so confirm your bilingual content needs at the quotation stage.
Requesting a quote for a current replacement
Because this model is discontinued, the most useful next step is a quotation for a current equivalent or a compatible replacement. Send your site location, the existing model if you have one, and the content sources you need to feed. SmartRooms Qatar provides supply, delivery to all 8 municipalities, professional installation, and quotations usually within one working day. Request a quote from SmartRooms Qatar and our team will explain the options for your site.
Highlights
- 2500 nit screen for readability in bright daylight
- IP65 enclosure with built-in air conditioner
- Rated operation from -40°C to 55°C ambient
- 75-inch UHD (3840 x 2160) portrait display for 24/7 use
- Optional 10-point touch foil on Android 7.1
- Two HDMI inputs, LAN, RS232 and built-in speaker
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
General11
- Screen Size
- 75”
- Screen Active Area (mm)
- 1650 × 928
- Resolution
- UHD (3840 x 2160)
- Aspect Rati
- o 16:9
- Brightness (nit)
- 2500nits
- Contrast Ratio
- 1200:1
- Viewing Angle (H/V)
- 178°/178°
- Backlight Life Cycle
- 50,000 Hrs
- Operation Hours
- 24/7
- Response Time
- 8ms
- Screen Orientation
- Portrait
Touchscreen (Option)3
- Touch Type
- Touch foil
- Touch Point
- 10-points
- Response Time
- ≤10ms
System6
- OS
- Android 7.1
- CPU
- Amlogic Quad-core Cortex-A53,1.5GHz
- GPU
- Mali-450
- DDR
- 2G DDR4
- ROM
- 16G EMMC (support expanded memory card up to 128G)
- Language
- Chinese/English
Connectivity2
- Input
- x2 HDMI IN/ x1 USB2.0/ x1 LAN x1 TF card slot/ x1 RS232
- Output
- x1 HDMI OUT/ x1 AV OUT
Network connection1
- Wifi or LAN
- Yes 3G/4G Connection: Optional
Speaker1
- Build in Speaker
- Yes
Thermal management2
- Build in air conditioner
- Air conditioner
- Overheating Protection
- Yes
Physical7
- IP Rating
- IP65
- Glass
- 6.8 mm (AR, Tempered & Laminated Glass)
- Metal
- Galvanized steel with powder coated
- Standard Color
- Black
- Dimensions
- 2600(H) x 1208(W) x 255(D) mm
- Net Weight
- 325kg
- Packing Dimensions
- 2750(L) x 1408(H) x 520(D) mm
Operation4
- Working Environment
- Full outdoor
- Auto Brightness Control
- Light sensor
- Operation Temperature (ambient temp.)
- -40℃ to 55℃
- Operation Humidity
- 5% to 95%
Power3
- Power Supply
- AC 110 /220V,50/60Hz
- Power Type
- Built-In Power
- Power Consumption
- 1450W(Max.)
