DC20

What the DC20 is and how it connects

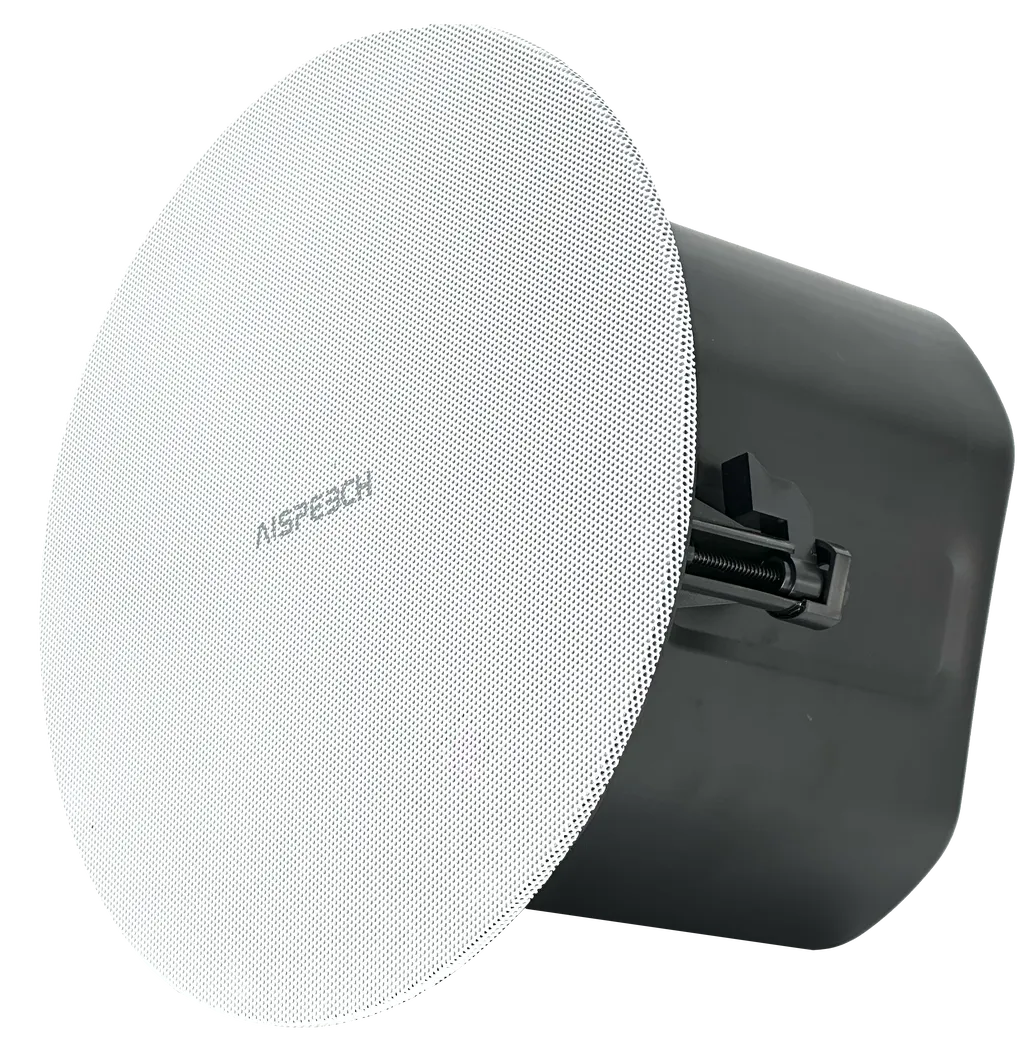

The DC20 is a full-range coaxial ceiling speaker built for Dante audio-over-IP networks. Each unit carries its own power amplifier and digital signal processing module, so a room does not need a separate amplifier rack. Audio arrives on a single RJ45 input, and the same Ethernet cable can supply power because the DC20 is compatible with PoE standards 802.3af, 802.3at and 802.3bt.

Driver design and coverage

A 6.5-inch polypropylene composite cone woofer handles the low and mid range, while a 1-inch silk dome tweeter with a neodymium magnet covers the top end. Both drivers sit within one coaxial housing. The tweeter rotates through 360 degrees, so an installer can point high frequencies toward the seating area. Rated coverage is 120 degrees horizontally and 120 degrees vertically, measured at 1 kHz at the -6 dB point. Frequency response is 65 Hz to 20 kHz within ±3 dB.

Power ratings and what to plan for

• Rated output: 30 W RMS, with 60 W peak handling
• Sensitivity: 89 dB at 1 m for 1 W input
• Maximum SPL: 111 dB
• Impedance: 8 Ω nominal
• Weight: 3.3 kg per unit
• Cut-out: 246 mm circular, with a 197 mm mounting depth

Before ordering, confirm the ceiling void depth and the cut-out with your installer, because the 197 mm mounting depth must clear the ceiling structure. The datasheet lists flush-mount and suspended options, so the mounting method can be chosen to suit the ceiling. Check that your PoE switch can supply the power budget for the number of units on each switch. The package includes a safety cable.

Where the DC20 fits in Qatar

In a boardroom in West Bay or Lusail, ceiling speakers keep the table free of cables and give remote participants a clear voice, which matters when meetings connect Doha with teams abroad. In a school in Al Wakrah or a training centre in Education City, several DC20 units on one Dante network can cover a multipurpose hall or long corridor from a single managed audio source. A meeting room in a hotel or serviced apartment in The Pearl or Msheireb can use the units for announcements and background audio, with the tweeter aimed at the audience.

Environment and site planning

The source data does not state an operating temperature range or an ingress protection rating. Do not assume outdoor use, and do not install near windows or open façades without first confirming conditions. Summer temperatures in Qatar regularly pass 45°C and dust storms can reach lobbies, so ask the SmartRooms Qatar team to confirm the environment before fixing units in those areas.

SmartRooms Qatar delivers the DC20 to all eight municipalities of Qatar, with professional installation and free site surveys to check ceiling depth and cable routes. Request a quote for your room and we will usually reply within one working day. We accept purchase orders (LPOs) and payment by bank transfer, cheque or purchase order.
