Desono C-IC6LP

A low-profile ceiling speaker for speech-focused conference rooms

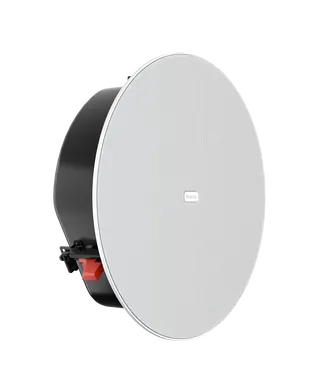

The Desono C-IC6LP-W is a 6.5-inch, two-way ceiling loudspeaker with a white grille that blends into light ceilings. It is designed for rooms where speech clarity matters most, such as boardrooms, training rooms, huddle spaces and seminar rooms. Its 101 mm (3.96-inch) depth is the main reason to choose it, because it fits shallow ceiling voids where many deeper units will not sit.

Driver design, coverage and output

The loudspeaker uses a coaxial arrangement. A 165 mm treated paper cone handles the low frequencies, and a 25 mm treated soft dome driver with a waveguide handles the highs, with the crossover set at 2.5 kHz. Biamp rates the nominal beamwidth at 140 degrees, conical, and the operating range (-10 dB) at 63 Hz to 20 kHz. This wide, even dispersion keeps the speech level similar for someone at the head of the table and someone near the back wall.

Sensitivity is 87 dB at 1 W and 8 ohms. The nominal maximum SPL is 109 dB peak and 103 dB continuous. The passive rating is 60 W at 8 ohms, and the recommended amplifier range is 60 W to 120 W into 8 ohms, corresponding to 22 V to 31 V.

Installation planning before you order

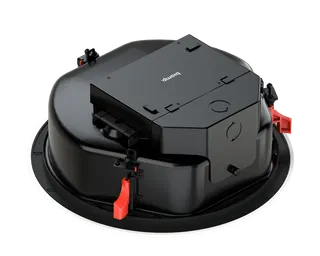

Mounting uses three SpringLock clamps with a 33 mm (1.3-inch) grip range. The bezel measures 341 mm across and the cut-out is 310 mm, so check the cut-out size against your ceiling tiles and grid. The package includes a C-ring supporting plate, tile support bridge rails, grilles, paint masks, a cut-out template and wire strain-relief fittings. The input cover includes conduit knock-outs suited to Chicago plenum air space rules, and the product is listed as suitable for air handling spaces under NFPA 70 and NFPA 90.

Two requirements need planning. The loudspeaker needs a 65 Hz, 18 dB/octave high-pass filter and a DSP preset for ALC or Tesira. You also need an amplifier in the 60 W to 120 W passive range, or the Tesira AMP-450BP four-channel PoE+ backpack amplifier, which is sold separately and reduces wiring and installation time.

Where it fits in Qatar

• Corporate boardroom in West Bay or Msheireb: a shallow ceiling above a glass-walled room, where the speakers must stay discreet while delivering clear speech for hybrid meetings.
• University seminar room in Education City: a teaching room where lecturers connect to teams abroad and students at the back still need intelligible audio.
• Government meeting room in Doha: a Sunday to Thursday working week with sessions run in Arabic and English, where the room needs dependable speech without visible hardware.

Choosing the white version and planning the order

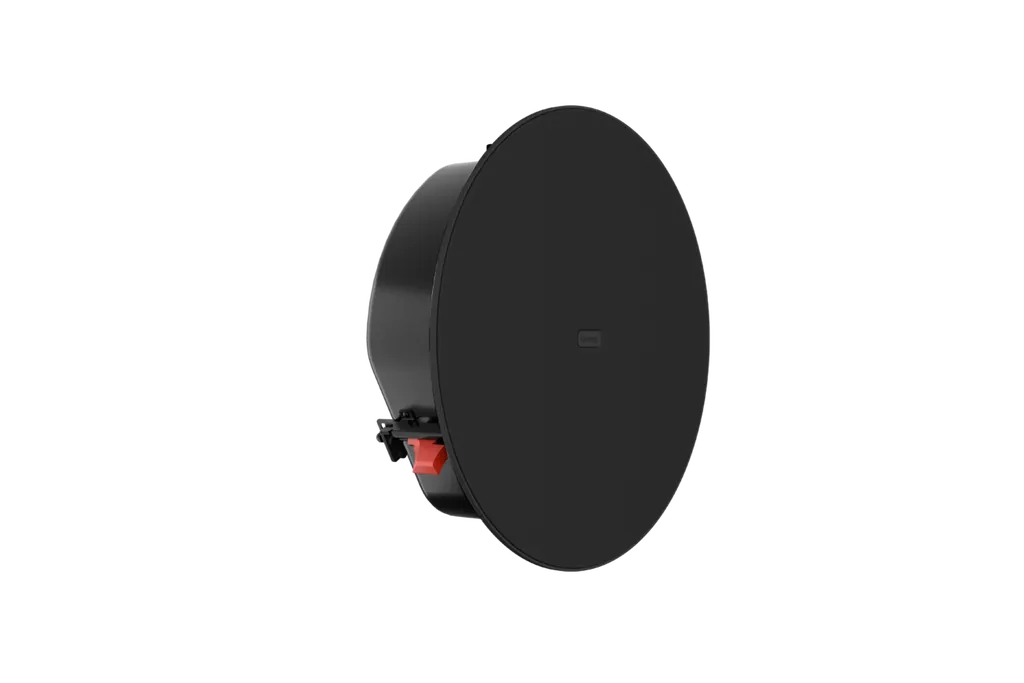

The white grille (RAL 9016) suits offices and classrooms with white ceilings. The black version, C-IC6LP-B, is a separate model, so tell the SmartRooms Qatar team which finish you need when you request a quote. Optional accessories include new construction brackets (SPA-NC500), high humidity grilles (SPA-GHH500), black grilles (SPA-GRB510) and 48-inch tile rails (SPA-RAIL48). The manufacturer provides a 5-year warranty on this loudspeaker.

SmartRooms Qatar supplies the Desono C-IC6LP-W across Qatar and offers free site surveys to check ceiling depth, grid layout and cable routes before installation. Request a quote, and our team will usually respond within one working day with a configuration that matches your room.
