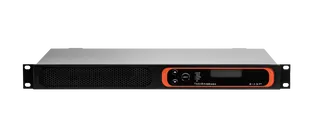

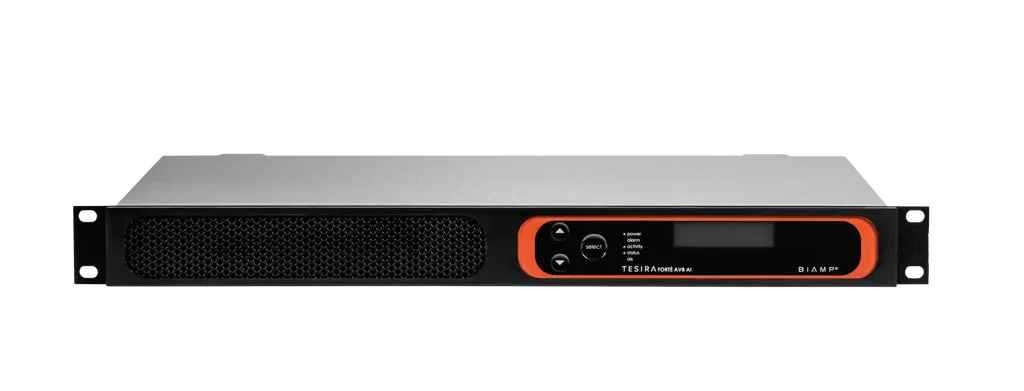

Biamp TesiraFORTÉ AVB AI Conferencing DSP

Name: Biamp TesiraFORTÉ AVB AI Conferencing DSP
Brand: Biamp
SKU: biamp-tesiraforte-avb-ai
Availability: InStock

Overview

The Biamp TesiraFORTÉ AVB AI is a fixed I/O digital signal processor for conferencing and sound reinforcement. It offers 12 analog inputs, 8 analog outputs and up to 8 channels of USB audio, with AVB networking of up to 128 x 128 channels. It suits meeting rooms, boardrooms and multi-room installations in Qatar that need networked audio and integration with control systems. Request a quote for supply and installation.

What the TesiraFORTÉ AVB AI does in a conference system

The TesiraFORTÉ AVB AI is a fixed I/O digital signal processor from Biamp's Tesira range. It sits between microphones, room sources and loudspeakers, handling gain, mixing, equalisation and routing for a meeting or conference room. Its fixed layout of 12 analog inputs and 8 analog outputs, plus up to 8 channels of configurable USB audio, covers the connections a typical boardroom or training room needs without adding expansion cards.

Networking, control and monitoring

Audio transport runs over AVB with support for up to 128 x 128 channels, so the unit can act as one node in a larger networked audio system spanning several rooms. Gigabit Ethernet carries configuration and networked audio, while RS-232 and GPIO ports let it interface with third-party control systems, automation platforms and room peripherals. A two-line OLED display with capacitive touch navigation shows system status and allows on-site adjustments without a laptop.

Specifications that matter for planning

Dimensions: 1.75 in (44 mm) high, 19.0 in (483 mm) wide, 10.5 in (267 mm) deep, weighing 8 lbs (3.63 kg)
Power: 100-240 VAC, 50/60 Hz, under 35 W with an internal universal power supply
Analog performance: 24-bit converters at 48 kHz, dynamic range above 108 dB, maximum input +24 dBu, input gain 0 to 66 dB in 6 dB steps
Operating environment: 0 to 40°C (32 to 104°F), 0 to 98% humidity non-condensing, up to 2,000 m altitude
Compliance: TAA compliant; FCC Part 15B, CE, UL and C-UL, RCM and RoHS

Where it fits in Qatar

In a boardroom in West Bay or Msheireb, a DSP of this size can handle ceiling microphones, the audio feed from a video conferencing codec and the room loudspeakers, so calls with teams abroad stay clear. In a lecture room at Education City or a training centre, the USB channels let a laptop send presentation or recorded audio into the system. For a hotel conference centre in Lusail with several meeting rooms, AVB networking lets rooms share audio over the same Ethernet infrastructure, and the Workplace platform supports cloud-based monitoring of the device.

What to plan before installation

Reserve rack or enclosure space for the 1.75 in height and confirm that the room air conditioning keeps temperatures within 0 to 40°C. Qatar summers regularly exceed 45°C, so the unit should not sit in an unventilated cabinet or near direct sunlight. Check that your Ethernet switches support AVB traffic before building the networked audio layout.

SmartRooms Qatar supplies the TesiraFORTÉ AVB AI across all eight municipalities of Qatar, offers professional installation and carries out a free site survey before work begins. Schools and government buyers can receive quotations against a purchase order or a tender reference. Request a quote and the SmartRooms Qatar team will confirm the configuration and estimated lead time for your room.

Highlights

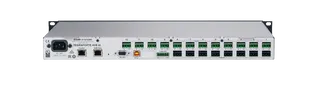

12 analog inputs and 8 analog outputs in a fixed I/O design
AVB audio networking of up to 128 x 128 channels
Gigabit Ethernet, RS-232 and GPIO for third-party control
Two-line OLED display with capacitive touch navigation
Internal universal power supply rated 100-240 VAC
TAA compliant with a 5-year manufacturer warranty

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

26 specifications · Source: manufacturer · checked Oct 2026

GENERAL4

Height: 1.75 inches (44 mm)
Width: 19.0 inches (483 mm)
Depth: 10.5 inches (267 mm)
Weight: 8 lbs (3.63 kg)

POWER2

Power: Power Consumption: 100-240VAC 50/60Hz: < 35W
Phantom Power: +48VDC (7mA/input)

CERTIFIED SOLUTIONS2

TAA Compliant: TAA Compliant
Certified Solutions: TAA Compliant

COMPLIANCE1

Certifications: FCC Part 15B (USA) CE marked (Europe) UL und C-UL listed (USA and Canada) RCM (Australia) RoHS Directive (Europe)

ENVIRONMENTAL3

Ambient Operating Temperature Range: 32-104° F (0–40° C)
Humidity: 0–98%, non-condensing
Altitude: 0-6,600 feet (0–2000 Meters) MSL

AUDIO14

Audio: 12 analog inputs and 8 analog outputs and includes up to 8 channels of configurable USB audio.
Input Type: USB: Bit Depth: 16- or 24-bit Number of Channels: up to 8 Sample Rate: 48kHz
Impedance: (balanced): 8kΩ
Input Gain Range: (6dB steps): 0-66dB
Maximum Input: +24dBu
Output Impedance: (balanced): 207Ω
Maximum Output: (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
THD+N: (22Hz to 22kHz): 0dB gain, +4dBu input: < 0.006% 54dB gain, -50dBu input: < 0.040%
Frequency Response: 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
EIN: (no weighting, 22Hz to 22kHz): < -125dBu
Dynamic Range: (in presence of signal): 22Hz to 22kHz, 0dB gain: > 108dB
Crosstalk: channel to channel, 1 kHz: 0dB gain, +4dBu input: < -85dB 54dB gain, -50dBu input: < -75dB
Sampling Rate: 48kHz
A/D Converters: A/D - D/A Converters: 24-bit

Downloads

6 files from the manufacturer

PDF Datasheets biamp_data_sheet_tesiraforte_avb_ai_oct20.pdf 700 KB PDF Brochures Biamp_Tesira_Product_Catalog_Aug25.pdf 35.2 MB RFA Drawings & CAD · Opens on manufacturer site biamp_revit_tesira_tesiraforte_avb-ai_feb23_4292.rfa TFA2 Software & firmware · Opens on manufacturer site TesiraFirmware_v5.1.0.12_13369.tfa2 ZIP Software & firmware · Opens on manufacturer site tesiraforte_default_configurations_8938.zip PDF Other documents universa_insurance.pdf 255 KB

Questions about TesiraFORTÉ AVB AI

What is the Biamp TesiraFORTÉ AVB AI used for?

It is a conferencing digital signal processor that manages microphones, room sources and loudspeakers in meeting rooms, boardrooms and sound reinforcement systems. In a Doha boardroom it can handle ceiling microphones and the feed from a video codec, with gain, mixing, equalisation and routing all set from one unit. It suits integrators and IT managers who want the audio layer of a room run from a single networked device.

How many inputs and outputs does it have?

The fixed I/O layout provides 12 analog inputs and 8 analog outputs, plus up to 8 channels of configurable USB audio. The analog inputs offer gain from 0 to 66 dB in 6 dB steps, and the maximum input level is +24 dBu. The 12 inputs can take microphones, line sources and conferencing endpoints, enough for a boardroom with a ceiling array and several program sources, while the 8 outputs can feed separate loudspeaker zones.

Can it connect to a laptop or conferencing PC over USB?

Yes. It includes up to 8 channels of configurable USB audio at a 48 kHz sample rate, with 16-bit or 24-bit depth. A lecturer in an Education City lecture room can connect a laptop over USB to send presentation audio or lecture recordings into the system without running separate analog cables from the desk. Confirm the USB channel count you need with the SmartRooms Qatar team during the quotation so the design matches your sources.

What does 128 x 128 AVB channels mean for a multi-room project?

It means the unit can carry up to 128 x 128 channels of AVB audio over the network, so a single DSP can serve as the hub of a larger distributed system. A hotel conference centre in Lusail with several meeting rooms, for example, can route audio between rooms over Ethernet rather than running dedicated analog cable between each space. The channels actually used depend on the design, so confirm the layout before ordering.

Which control systems can it work with?

The unit has Gigabit Ethernet, RS-232 and GPIO ports, which allow integration with third-party control systems, automation platforms and connected room devices. An integrator in a Msheireb boardroom might use the RS-232 and GPIO ports to link room peripherals to a touch panel or automation controller, while the Ethernet port handles configuration and networked audio. Check the command set and protocol your control system needs before ordering, since the final setup depends on the platform you choose.

Does it work with Qatar's 240 V mains supply?

Its internal universal power supply is rated for 100-240 VAC at 50 or 60 Hz, so Qatar's 240 V, 50 Hz mains falls within the stated input range. Power consumption is under 35 W. Ask your SmartRooms Qatar team to confirm the socket and cabling arrangement for your room during the site survey.

Can it be installed in a hot cabinet or outdoors?

Its stated operating range is 0 to 40°C (32 to 104°F), with 0 to 98% humidity non-condensing and altitude up to 2,000 m. Summer temperatures in Qatar regularly exceed 45°C, so install it in an air-conditioned room or a ventilated rack that keeps it within that range, not in an unventilated cabinet or an outdoor enclosure. Discuss the rack location during the free site survey before installation.

How is it configured and monitored?

Configuration, routing and processing are handled in Tesira software, which gives control over EQ, dynamics, filtering, mixing, delay and signal flow. On the unit, a two-line OLED display with capacitive touch navigation shows system information and diagnostics for quick on-site adjustments. The device is Biamp Workplace Ready, so it can be monitored and managed through the cloud-based Workplace platform.

Is it TAA compliant and which certifications does it hold?

Yes, it is TAA compliant, which matters for government and public-sector tenders where procurement teams must confirm compliance. The listed certifications include FCC Part 15B, CE marking, UL and C-UL listing for the USA and Canada, RCM for Australia and RoHS. A ministry procurement team can request the compliance details within the quotation so the specification matches the tender requirements.

What warranty comes with the TesiraFORTÉ AVB AI?

The TesiraFORTÉ AVB AI is backed by a 5-year warranty. Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. For a school or ministry planning a multi-year deployment, this is useful when budgeting for the system. Ask for the full warranty terms with your quotation.

How much rack space does it need?

The unit measures 1.75 inches (44 mm) high, 19.0 inches (483 mm) wide and 10.5 inches (267 mm) deep, and weighs 8 lbs (3.63 kg). Its height and width correspond to a single rack unit in a standard 19-inch rack. Allow at least 10.5 inches of depth plus room for cabling at the rear.

Can a school or government office buy it through an LPO or tender?

Yes. SmartRooms Qatar issues quotations for the TesiraFORTÉ AVB AI against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A school in Education City fitting out a lecture room, for example, can request one quotation covering the DSP, cabling and installation. Quotations are usually issued within one working day.
