TesiraFORTÉ X 1600

What the TesiraFORTÉ X 1600 does in a meeting room

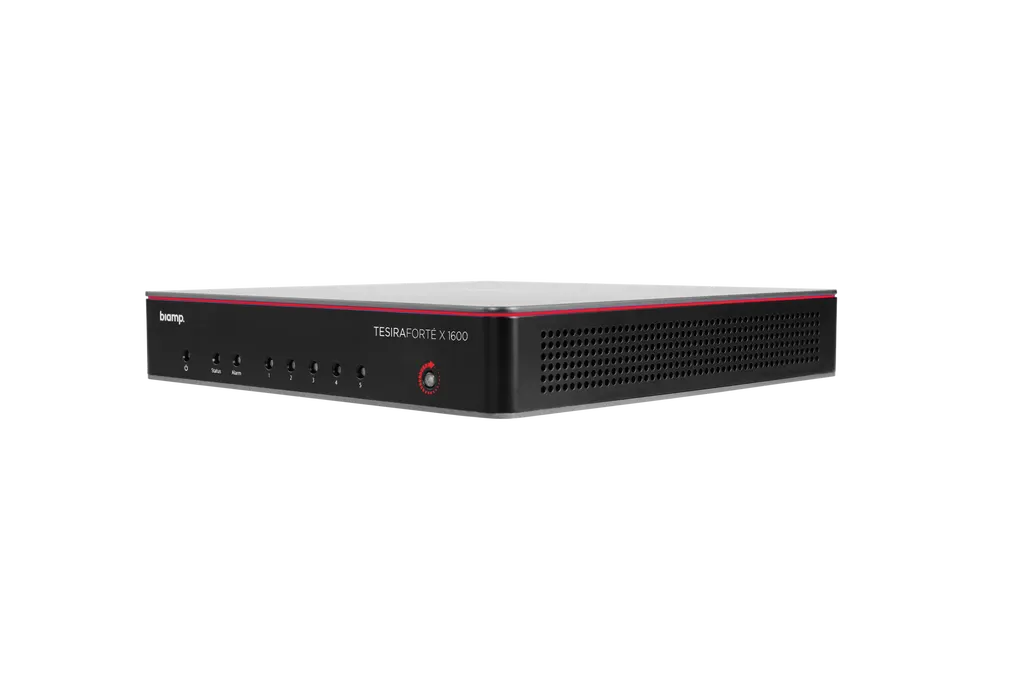

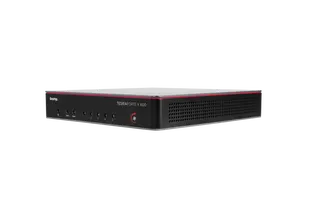

The Biamp TesiraFORTÉ X 1600 is a digital signal processor for conference rooms that handles analog and networked audio in one unit. It takes microphone and line signals, applies echo cancellation and mixing, and sends audio to your conferencing platform, so a room can be run from a single device instead of several separate processors. At 206 mm wide and deep and 37.3 mm high, it is compact enough for a wall-side or rack installation.

Networking, audio formats and interoperability

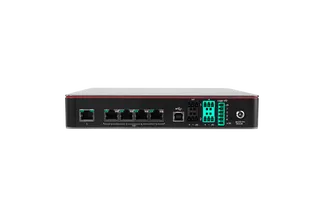

The unit has five Gigabit Ethernet ports. Four of them are PoE+ (IEEE 802.3at Class 4), so microphones, control panels and conferencing peripherals can take their power from the same cable that carries their signal. For networked audio it supports up to 128x128 AVB channels, 32x32 Dante channels and AES67 interoperability. Analog connectivity is 2x2 I/O, and a built-in SIP interface links the DSP to standards-based telephony over Gigabit Ethernet.

Echo cancellation and USB conferencing

Sixteen AEC channels can be assigned to any analog or digital input. This matters in rooms where participants sit at different distances from the table or move around during a session, because each microphone path can be treated independently. The USB audio interface offers mono or stereo at 48 kHz with 16-bit or 24-bit depth and HID synchronisation, so the DSP can act as the room audio device for Teams Rooms, Zoom or BYOM hardware. IEEE 802.1X port authentication is also supported for networks that require it.

Setup, tuning and control

Biamp Launch measures room acoustics and applies processing with a single button press. That reduces the variation between rooms fitted by different installers, which is useful for a school or ministry with many similar rooms. Installers who need more control can use Tesira software for routing, mixing, equalisation, dynamics, filtering, delay and diagnostics. Workplace Control is built into the platform to manage Tesira blocks, third-party devices and Apprimo touch interfaces, and the unit is compatible with the Parlé Presenter Lift for presentation audio without handheld microphones.

Where it fits in Qatar

• Boardroom in West Bay or Msheireb: one DSP feeds a Teams Rooms system with ceiling microphones, while the PoE+ ports power table microphones and a control panel over Ethernet.
• Seminar room at Education City: Zoom sessions with a lecturer who moves around the room, using the Parlé Presenter Lift for clear presentation audio without a handheld microphone.
• Multi-room rollout for a ministry or school: Biamp Launch gives each room a consistent starting point, and the TAA compliance and five-year warranty are useful details for a tender file.

What to plan for before ordering

Check the environment first. The operating range is 0 to 40 °C with 0 to 98% humidity, non-condensing, up to 2,000 m altitude. Qatar summers regularly exceed 45 °C outdoors, so the DSP should sit in an air-conditioned room or a cooled equipment cabinet, not in a hot cupboard or a rooftop space. Power is rated 100 to 240 VAC at 50/60 Hz and draws under 150 W, which covers Qatar's 240 V, 50 Hz supply. Optional accessories include pre-terminated plenum CAT5e cables in 10 ft and 25 ft lengths, the RMX 100 universal rack shelf, a 12x12 plenum box and a 50 ft power extension. Phantom power is +48VDC at 7 mA per input.

SmartRooms Qatar offers free site surveys, which help confirm cable routes and mounting positions before you order. Send us your room layout, microphone count and conferencing platform, and we will return a quotation, usually within one working day. Request a quote for the TesiraFORTÉ X 1600 and we will size the system for your room.
