MAXHUB Voice Lift System Hands-Free Audio Solution
The MAXHUB Voice Lift System is a hands-free, far-field audio solution for rooms where speakers should not have to carry a microphone. An array microphone picks up voices across a 4m dynamic range through eight built-in pickup units, while an intelligent DSP with integrated noise filtering and Dante support feeds 50W ceiling speakers. It suits large classrooms, academic lecture halls and corporate training rooms across Qatar. Request a quote.
What the MAXHUB Voice Lift System does

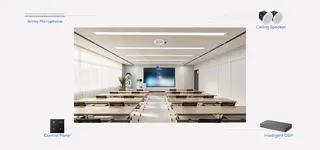

The MAXHUB Voice Lift System is a hands-free audio solution for rooms where presenters and teachers need to be heard without holding or clipping on a microphone. It combines a ceiling-mounted array microphone, an intelligent digital signal processor (DSP) and ceiling speakers, so speech is captured across the room and played back evenly.
Microphone pickup and room coverage

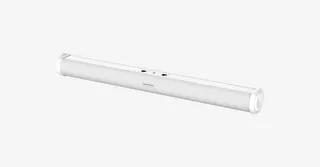

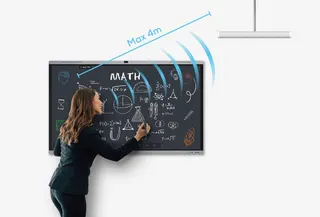

The array microphone has a 4m dynamic pickup range and eight built-in pickup units. A 180° virtual audio boundary defines the listening zone the array uses, which helps the system focus on people inside the area it covers. In a lecture hall, this means a lecturer can walk across the front of the room and keep speaking naturally.
Audio processing and network integration

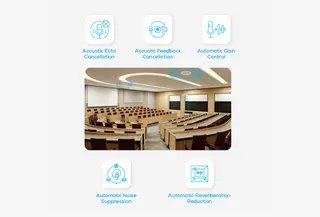

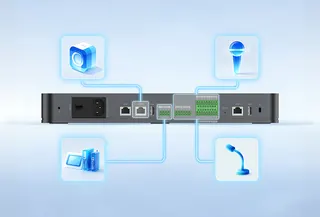

The intelligent DSP provides multi-channel analog and digital audio input and output, and supports network audio communication through Dante protocol compatibility. Its full-band sound reinforcement runs at 48kHz output, and the integrated ANS filtering is designed to filter out over 300 types of noise. The DSP is also compatible with IoT central control systems, so it can be linked into a building's wider control setup.
Ceiling speakers and the control panel

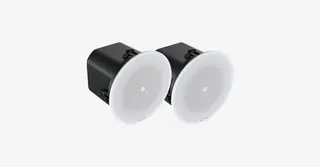

The ceiling speaker is rated at 50W and uses separate tweeter and woofer drivers for layered audio, which suits larger rooms. It supports Dante for network audio transmission. A one-key on/off and volume control panel gives room users a simple way to start the system and adjust volume without technical training.
Where it fits in Qatar

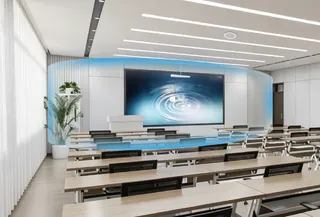

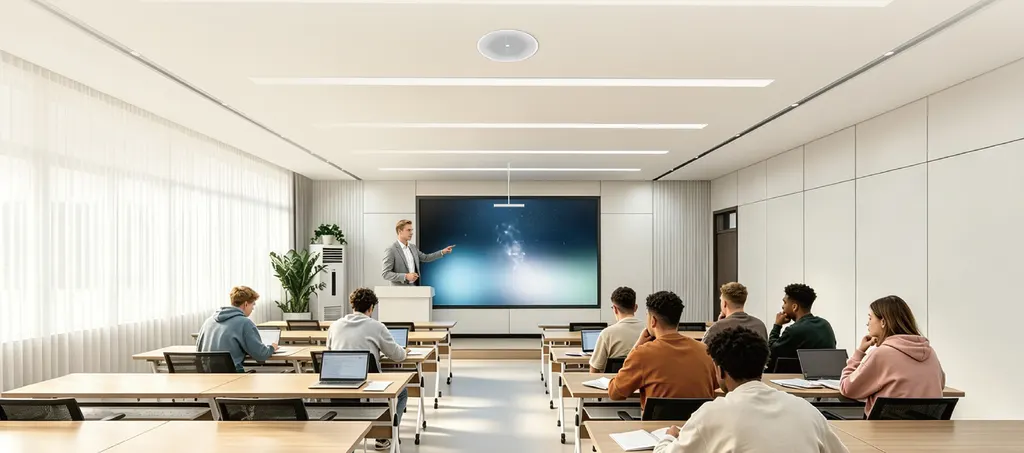

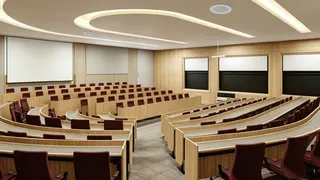

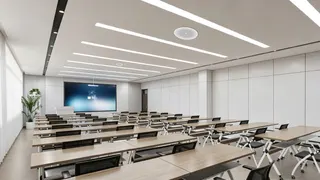

In a large classroom at a private school in Al Rayyan, the system lets teachers speak at a normal volume while students at the back hear clearly. An academic lecture hall at a university in Education City can use the array microphone for lecturers who move around the stage. A corporate training room in West Bay or The Pearl can run sessions without passing a handheld microphone between speakers.
What to plan before installation
- Ceiling type and height, and secure fixing points for the speakers and array.
- Network design if Dante audio will travel across the building network.
- Links to existing lecture capture, IoT or control systems.
- Room acoustics, including hard surfaces and background noise sources.
- Operating temperature and environmental limits, which are not covered on this page, so confirm the mounting location with the SmartRooms Qatar team.
SmartRooms Qatar offers free site surveys before installation, so the team can check the room and confirm the layout. Quotations are usually issued within one working day, and purchase orders (LPOs) and government tenders, including Monaqasat, are accepted. Request a quote to plan a Voice Lift System for your classrooms, lecture halls or training rooms.
Highlights
- Array microphone with 4m dynamic pickup range
- Eight built-in pickup units and 180° virtual audio boundary
- Intelligent DSP with integrated filtering of over 300 noise types
- Dante protocol support for network audio transmission
- 50W ceiling speaker with separate tweeter and woofer
- One-key on/off and volume control panel
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
