N70(04H12H)
Dahua N70(04H12H) 3U Video Matrix Platform Video Wall Decoder
The Dahua N70(04H12H) is a 3U rack-mounted video matrix platform that decodes camera streams and drives a video wall. It accepts two 4K or two 1080p inputs, outputs six 4K and six 1080p HDMI channels, and splices across up to 12 screens. It decodes up to 144 channels of 1080p at 25 fps with redundant power support. Suited to control rooms in Doha and industrial sites in Mesaieed. Request a quote.
What the N70 does in a video wall system

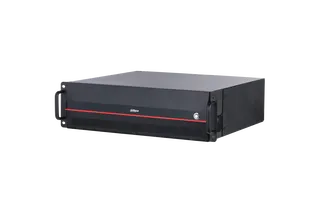

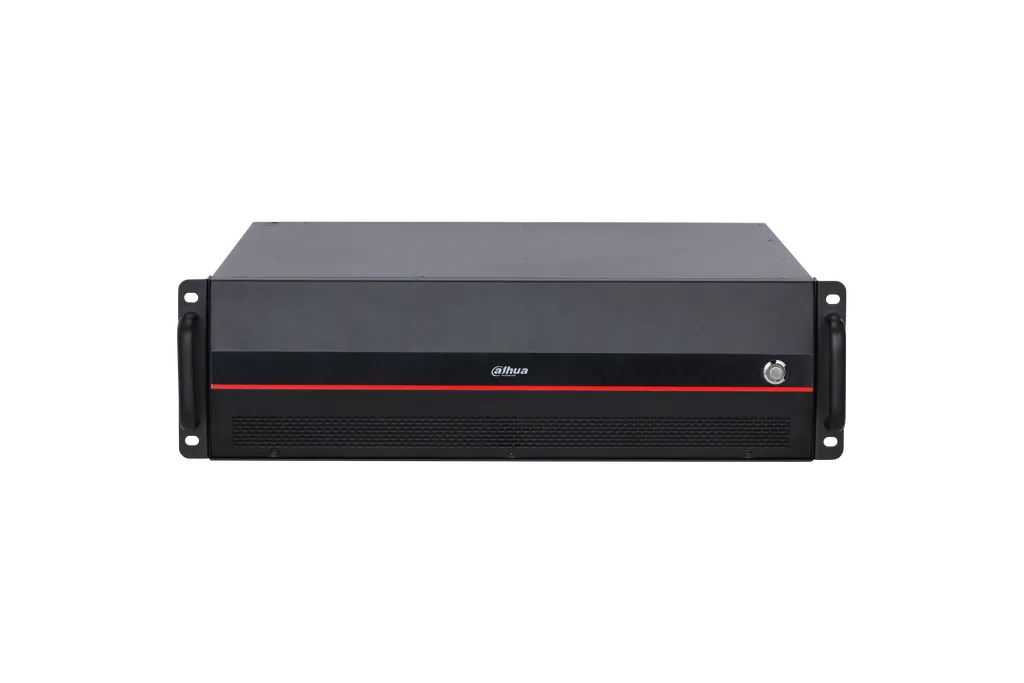

The Dahua N70(04H12H) is a 3U video matrix platform built as a standard 19-inch rack server. It receives video, decodes it and routes each window to the correct screen of a wall. Its eight slots take audio and video cards, so the unit can be configured for the job and expanded by inserting cards rather than replacing the chassis.
Inputs, outputs and screen splicing
The platform takes up to two channels of 4K at 60 Hz for UHD encoding, or two channels of 1080p at 60 Hz for HD encoding. On the output side it has twelve HDMI ports, six HDMI 2.0 and six HDMI 1.3, which can carry up to six 4K and six 1080p channels. A full configuration splices one image across 12 screens, and layouts can be divided into 1, 4, 6, 8, 9, 16, 25 or 36 windows, or a custom M × N grid.
Decoding capacity and supported formats
The decoder works with H.265, H.264, SVAC, MPEG4 and MJPEG streams and can access up to 1,024 network channels. Its headline capacity is up to 144 channels of 1080p at 25 fps. Figures for other resolutions, such as 12 channels of 32 MP at 25 fps (H.265 only), are measured under set conditions, including no window crossing between screens and 1080p output, so confirm your scene design before fixing the camera count. Protocol support covers ONVIF, RTSP and the Dahua and Hikvision private protocols.
Control, presets and connectivity

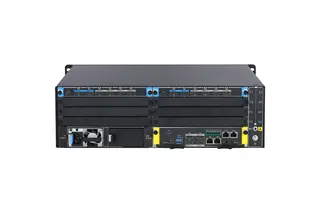

Operators can manage the platform from a web page, a desktop client, a mobile client or a network keyboard, and local GUI operation is available. Up to 128 scene presets store custom layouts, and you can set the wall background colour, add subtitles and switch screens on or off as needed. Connections include two Gigabit Ethernet ports, two USB 3.0 ports, two RS-232 ports, one RS-485 port, two alarm inputs, one alarm output, a Type-C port and a 3.5 mm audio output.
Where it fits in Qatar
- Security control room in Doha: a monitoring room in West Bay or Msheireb showing camera feeds on a fixed wall, with operators switching preset layouts during each shift.
- Industrial site: a plant or logistics yard in the Industrial Area or Mesaieed, where the unit sits in a machine room and drives a wall in the control office.
- Campus or hospital: a central operations room at a university in Education City or a hospital in Al Sadd, routing feeds from several buildings to one display.
Planning power, space and cooling
The chassis measures 484.0 mm by 477.7 mm by 132.0 mm and weighs 13.49 kg net or 15.7 kg gross. It accepts 100–240 VAC at 50–60 Hz, a range that covers Qatar's 240 V, 50 Hz supply. One power supply is included and a redundant second supply is optional; both are hot swappable, and power consumption is up to 140 W. The rated operating range is -10 °C to +50 °C at 10–90% relative humidity, non-condensing. Summer temperatures in Qatar can exceed 45 °C, so keep the rack in an air-conditioned room with clear airflow, and ask us to check the room during a free site survey.
Tell us your camera count, screen layout and power needs, and SmartRooms Qatar will prepare a quotation, usually within one working day. Delivery covers all eight municipalities of Qatar. Request a quote for the N70(04H12H) and we will confirm configuration, delivery and installation with you.
Highlights
- 3U rack server with 8 slots for audio and video cards
- Decodes up to 144 channels of 1080p at 25 fps
- Six 4K and six 1080p HDMI outputs, splicing across 12 screens
- Redundant power supply option; single supply included
- Supports H.265, H.264, SVAC, MPEG4 and MJPEG streams
- Operating range -10 °C to +50 °C, non-condensing humidity
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
System4
- Main Processor
- 64-bit high-performance octa-core processor
- Operating System
- Embedded Linux operating system
- Bus
- Dual bus for the network and serial ports
- Cabinet
- Standard sized cabinet with a dual power supply and intelligent temperature control fan.
Port9
- USB
- 2 × USB 3.0 ports
- Network Port
- 2 × RJ–45 10/100/1,000 Mbps self-adaptive Ethernet ports
- RS-232
- 2
- RS-485
- 1
- HDMI
- 4 input ports, including 2 HDMI 2.0 ports and 2 HDMI 1.3 ports. 12 output ports, including 6 HDMI 2.0 ports and 6 HDMI 1.3 ports.
- Alarm Input Port
- 2 alarm input ports.
- Alarm Output Port
- 1 alarm output port.
- Audio Output Port
- One 3.5 mm jack port
- Type-C Port
- 1 Type C port
Function10
- Interoperability
- ONVIF; RTSP; Dahua Private; Hikvision Private
- Transmission Protocol
- TCP; UDP; RTP; RTSP; RTCP
- Max System Configuration
- Supports up to 300 decoding channels, including 12-ch 32 MP@25 fps (only H265), 18-ch 24 MP@25 fps (only H265), 27-ch 12 MP@25 fps, 36-ch 8 MP@25 fps, 45-ch 6 MP@25 fps, 54-ch 5 MP@25 fps, 72-ch 4 MP@25fps, 93-ch 3 MP@25 fps, 144-ch 1080p@25 fps, 240-ch 720p@25 fps, and 300-ch D1@25 fps HD video decoding capability (window does not cross screens, AI rule display is not enabled, output resolution is 1080p, and scene performance data does not exceed network bandwidth limits). Supports 2-ch 4K@60 fps and 2-ch 1080p@60fps input. Supports 6-ch 4K@60 fps and 6-ch 1080p@60 fps output. Output supports
- Network Signal Access
- Supports accessing up to 1,024 network channels.
- Screen Splicing
- Full configuration supports splicing up to 12 screens.
- Spliced Screen Function
- Features splicing, scaling, video integration, roaming, window opening, and layering.
- Equipment Management
- Supports local and network signals, and custom signal groups.
- SDK
- Supports secondary development, and provides platform SDK.
- Control Mode
- Supports local GUI operations and connecting to the webpage, PC client, mobile client, and network keyboard.
- Multi-screen Display
- Supports 1, 4, 6, 8, 9, 16, 25, and 36 splits, and M × N custom split.
General13
- Power Supply
- 100–240 VAC; 50–60 Hz; 8 A; hot swapping
- Power Redundancy
- Supports redundant dual power supplies. Included: Single power supply Optional: Dual power supply
- Power Consumption
- ≤ 140 W
- Operating Temperature
- -10 °C to +50 °C (+14 °F to +122 °F)
- Operating Humidity
- 10%–90% (RH), non-condensing
- Storage Temperature
- -10 °C to +50 °C (+14 °F to +122 °F)
- Storage Humidity
- 10%–90% (RH), non-condensing
- Product Dimensions
- 484.0 mm × 477.7 mm × 132.0 mm (19.06" × 18.81" × 5.20") (L × W × H)
- Packaging Dimensions
- 580.0 mm × 560.0 mm × 267.0 mm (22.83" × 22.05" × 10.51") (L × W × H)
- Gross Weight
- 15.7 kg (34.61 lb)
- Net Weight
- 13.49 kg (29.74 lb)
- Series
- N70
- Type
- Server
