NEB0105HI-4K

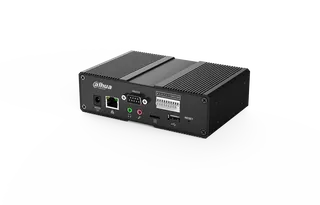

Dahua NEB0105HI-4K 1 Channel 4K Distributed AVoIP Encoding Box
The Dahua NEB0105HI-4K is a single-channel AVoIP encoder that takes one HDMI 1.4 input and one DisplayPort input, encodes video up to 4K in H.265 or H.264, and streams it over Ethernet. It provides an HDMI 2.0 output with an HDMI loop-through and accepts power from PoE or 12 VDC with redundant input. It suits control rooms, lecture theatres and boardrooms in Doha and Education City that need 4K signals distributed across a building. Request a quote.
What the NEB0105HI-4K does in an AV over IP system
The NEB0105HI-4K is a single-channel distributed encoder for AV over IP installations. It takes one video source from either an HDMI 1.4 or a DisplayPort input, encodes that signal inside the unit and places the stream on the network, where a compatible receiver can show it in another room of the building. Each encoder carries one channel, so a project can grow one source at a time rather than replacing a central matrix.
Inputs, encoding and output quality

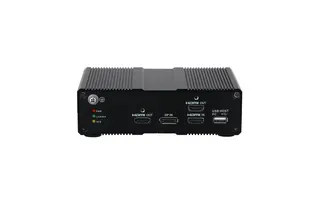

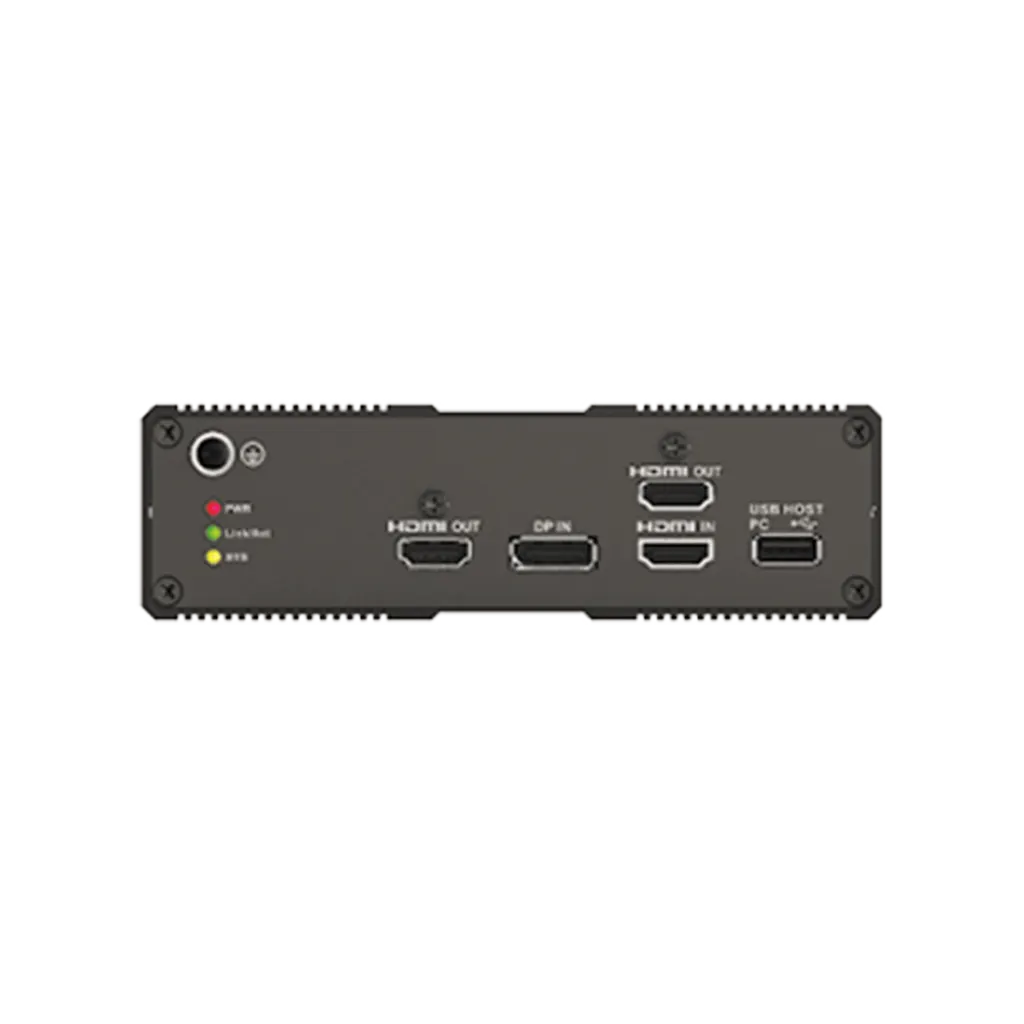

The HDMI and DisplayPort inputs are separate collection interfaces, so the box can take a signal from an HDMI device or a DisplayPort workstation. A DVI source can be used through a convertor on the HDMI input. Video is encoded as H.265 or H.264, with H.264 selected by default, and audio is encoded as G.711a. The encoder accepts resolutions from 1024×768 up to 4096×2160.
Frame rate depends on resolution. Full HD at 1920×1080 and 2560×1440 run at up to 60 fps, 3840×2160 runs at up to 30 fps and 4096×2160 runs at up to 24 fps. For slides and dashboards these are practical limits. For fast-moving video, test the chosen resolution on your own network before rollout.
Network, control and integration

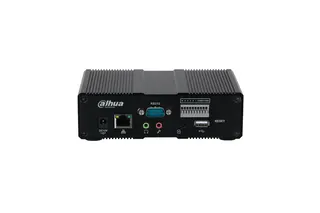

A 10/100/1000M self-adaptive RJ45 port connects the unit to the network, and the firmware supports TCP/IP, RTP, RTSP, HTTP, UDP, DHCP and NTP. Streams use RTSP or the manufacturer's private protocol. Remote reboot, firmware upgrade and reset to default settings can all be carried out over the network, which saves IT staff a trip to a comms room.
For control integration the unit includes an RS232 DB9 port, an RS485 port, two alarm inputs, two alarm outputs and a USB 2.0 port. Dahua supplies an SDK, demo software and a development manual, which suits system integrators writing custom control logic for corporate or government systems.
Where it fits in Qatar
- Control rooms in Msheireb or West Bay: send a 4K operator workstation to a wall of displays in a separate room while the source computer stays in a back office.
- Lecture theatres in Education City: feed a lectern PC at up to 4K onto the campus network so a presentation can be shown in rooms in nearby buildings.
- Hotel conference centres in Lusail or The Pearl: distribute a presentation from one meeting room to foyer screens and overflow rooms over the building network.
Planning power, space and environment
The unit can be powered from PoE or a 12 VDC supply, and two power inputs can be connected for redundancy. Power consumption is no more than 10 W. Dimensions are 45 mm high, 153.8 mm deep and 100 mm wide, and the unit weighs 0.65 kg. The source data does not list mounting accessories, so confirm the mounting method with the SmartRooms Qatar team before ordering.
The rated operating range is -10°C to +55°C with 10% to 90% humidity. Summer temperatures in Qatar can exceed 45°C, so a unit inside an enclosed rack or ceiling void needs airflow and a check of the room temperature. SmartRooms Qatar can review the location during a free site survey.
Plan the network before the hardware: confirm the switch port, the PoE budget if PoE is used, and whether addresses will come from DHCP or be fixed. For projects with several encoders, purchase orders (LPOs) are accepted, and SmartRooms Qatar delivers to all eight municipalities of Qatar with professional installation available.
Send your source list, room count and network layout to SmartRooms Qatar and request a quote. Quotations are usually issued within one working day.
Highlights
- One HDMI 1.4 input and one DisplayPort input
- H.265 or H.264 video encoding, H.264 by default
- Encodes up to 4096×2160 at 24 fps
- HDMI 2.0 output plus HDMI loop output
- PoE or 12 VDC power with redundant input
- Operating temperature range of -10°C to +55°C
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Model1
- Model
- NEB0105HI-4K
System Parameter1
- System Processor
- High-performance industrial embedded micro processor Embedded LINUX
Interface9
- Video Input
- 1 HDMI1.4 (support DVI with convertor), 1 DP
- Video Output
- 1 HDMI2.0 and 1 HDMI loop output
- Audio Input
- 1 HDMI and DP (embedded), 1 3.5mm jack
- Intercom
- 1 3.5mm jack earphone ( reserved ) 1 3.5mm jack microphone ( reserved )
- Alarm In/Out
- 2/2 （30VDC 1A,125VAC 0.5A linkage out）
- Network Port
- 1 RJ45 10/100/1000M self-adaptive ethernet interface
- RS232
- 1 RS232(DB9)
- USB
- 1 USB 2.0, 1 USB （ reserved ）
- RS485
- 1 RS485
Performance7
- Encoding Capacity
- Access Resolution HDMI/DP ： 4096x2160/3840x2160/2560x1440/1920x1080/1280x1024/1280x960/1280x720/1024x768
- Encoding Capacity (2)
- Video Frame Rate 1~60fps, 4096×2160 max supports 24fps, 3840×2160 max supports 30fps
- Encoding Capacity (3)
- 4096×2160@24fps,3840×2160@30fps,2560×1440@60fps,1920×1080@60fps,1280×1024@60fps,1280×960@60fps,1280×720@60fps,1024×768@60fps
- Video Encoding Format
- H.265/H.264 （default H.264 ）
- Audio Encoding Format
- G.711a
- Stream Type
- Composite stream, video stream
- Protocol
- RTSP;Private
Others6
- Working Environment
- Operating temperature -10 ℃ ~+55 ℃
- Humidity
- 10%~90%, 86kpa~106kpa
- Consumption
- ≤10W
- Dimension
- 45mm×153.8mm×100mm(1.77× 6.06× 3.93 inch), (H*D*W)
- Power
- DC12V,2.0A;POE
- Weight
- 0.65kg (1.43 Ib)
