Name: Dahua NVD0200FX-A01 2-Channel UHD Network Video Decoder
Brand: Dahua
SKU: dahua-nvd0200fx-a01
Availability: InStock

Overview

The Dahua NVD0200FX-A01 is a two-channel UHD network video decoder for AVoIP video walls. It decodes H.264 and H.265 streams, drives two HDMI outputs at up to 1920 × 1080 at 60 Hz, and can splice up to 20 screens together. Control rooms, security operations and campuses running Dahua or ONVIF cameras can use it to put live feeds onto a wall. Request a quote today.

What the NVD0200FX-A01 does on a video wall

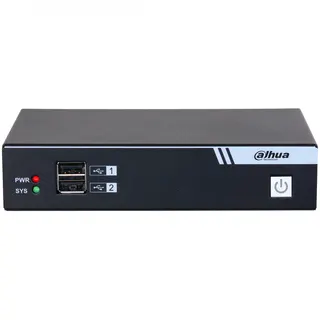

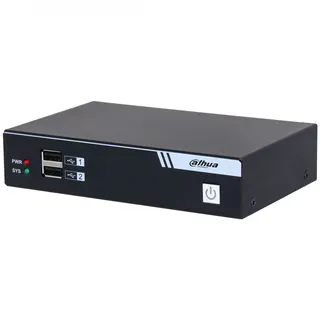

The NVD0200FX-A01 is a two-channel UHD network video decoder from Dahua's AVoIP Series. It receives network video streams from IP cameras and encoders and sends them to displays through two HDMI outputs. One compact unit, measuring 150.0 mm × 92.0 mm × 32.8 mm, can therefore feed two screens or two sections of a larger wall.

Decoding capacity and output resolution

The decoder supports H.264 and H.265 streams in pixel formats from QCIF up to 8MP. The manufacturer lists these simultaneous decoding limits, which are the figures to check against your camera list:

2 channels at 8MP, 25 fps
3 channels at 6MP, 25 fps
5 channels at 5MP, 25 fps
5 channels at 4MP, 25 fps
7 channels at 3MP, 25 fps
10 channels at 1080p, 30 fps
32 channels at D1, 30 fps

Each HDMI output runs at 1920 × 1080, 1280 × 1024, 1280 × 720 or 1024 × 768 at 60 Hz, with 1920 × 1080 as the default. Custom outputs below 1920 × 1080 at 60 Hz can also be set, which helps when a wall's panels do not match a standard mode.

Windowing, splicing and scheme tours

Video can be split into 1, 4, 6, 8, 9, 16 or 25 windows, with custom M × N layouts where M × N is 25 or fewer. Up to 25 channels can be placed in movable windows, and up to 20 screens can be spliced together. Operators can save display schemes, run scheduled schemes and set the interval between tours. On-screen labels such as location text can be added with a chosen font size, and the wall's background image and default background colour can be configured.

Connectivity and integration

Network access uses one RJ-45 port that auto-negotiates 10M, 100M or 1000M Ethernet. A separate RJ-45 port provides RS-232, and three USB ports are fitted. Audio leaves the unit through a 3.5 mm jack and two HDMI ports, using PCM compression. Camera streams can be accepted via ONVIF, RTSP, and the Hikvision and Dahua private protocols, and the decoder is listed as compatible with DSS PRO.

What to plan for before installation in Qatar

The power input is 100–240 VAC at 50/60 Hz, drawing 24 W or less, so it covers Qatar's 240 V supply. The rated operating range is -10 °C to +55 °C at 10% to 95% relative humidity, non-condensing. Summer heat inside a closed cabinet can exceed room temperature, so plan ventilation and confirm the mounting location with a site survey. The data does not cover outdoor use, so check the location with the SmartRooms Qatar team before installing it anywhere other than an indoor equipment area.

Typical Qatar scenarios

A security operations room in the Industrial Area watching perimeter gate cameras on a two-screen wall.
A campus control point in Education City cycling lecture-hall and entrance feeds on a timed schedule.
A clinic in Al Sadd monitoring entrances and corridors from a compact wall, with the decoder in a ventilated cabinet.

Request a quote for your decoder

SmartRooms Qatar supplies the NVD0200FX-A01 across all eight municipalities of Qatar, with professional installation, free site surveys and quotations usually within one working day. Government buyers can issue an LPO or work through Monaqasat tenders, and payment is accepted by bank transfer, cheque or purchase order. Send your camera count, resolutions and display layout, and request a quote.

Highlights

Decodes H.264 and H.265 streams up to 8MP resolution
Two HDMI outputs up to 1920 × 1080 at 60 Hz
Splices up to 20 screens and places up to 25 channels in windows
Supports ONVIF, RTSP, Hikvision and Dahua private protocols
Compatible with the DSS PRO platform
Accepts 100–240 VAC; rated -10 °C to +55 °C operation

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

30 specifications · Source: manufacturer · checked Oct 2026

System2

Main Processor: High-performance embedded processor
Operating System: Embedded Linux

Function15

Number of Video Output Channels: 2 × HDMI
Interoperability: ONVIF; General; Dahua Private; Hikvision Private
Video Compression: H.265;H.264
Audio Compression: PCM
Decoding Capability: Decodes maximum 2-ch 8MP@25 fps videos, 3-ch 6MP@25 fps videos, 5-ch 5MP@25 fps videos, 5-ch 4MP@25 fps videos, 7-ch 3MP@25 fps videos, 10-ch 1080p@30 fps videos and 32-ch D1@30 fps at the same time.
Decoding Pixel: QCIF; CIF; 2CIF; HD1; D1; 720p; 1080p; 3 MP; 4 MP; 5 MP; 6 MP; 8 MP
Output Resolution: 1024 × 768@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, and 1920 × 1080@60 Hz. It is 1920 × 1080 by default.
Bit Rate Type: Composite stream; video stream
Multi-screen Display: 1/4/6/8/9/16/25 split. Supports M × N custom split, and M × N ≤ 25
Screen Splicing: Up to 20 screens can be spliced together.
Window & Roam: Supports customized windowing and roaming. Up to 25 channels with windowing.
Scheme Tour: Supports saving schemes, scheme tour, scheduled scheme, and customizing tour intervals.
Fine Pixel Pitch LED: Supports customized resolutions and connecting to small-pitch LEDs.
Background Image Color: Displays HD background images, and supports configuring the default background color for the video wall.
Virtual LED: Displays customized OSD text, such as the location and font size.

Port5

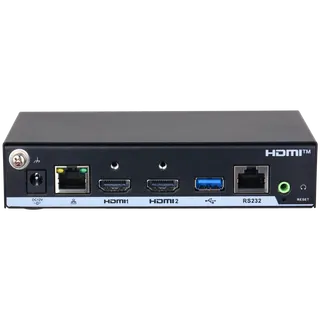

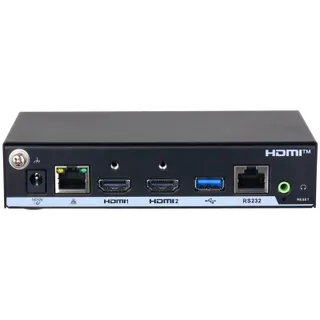

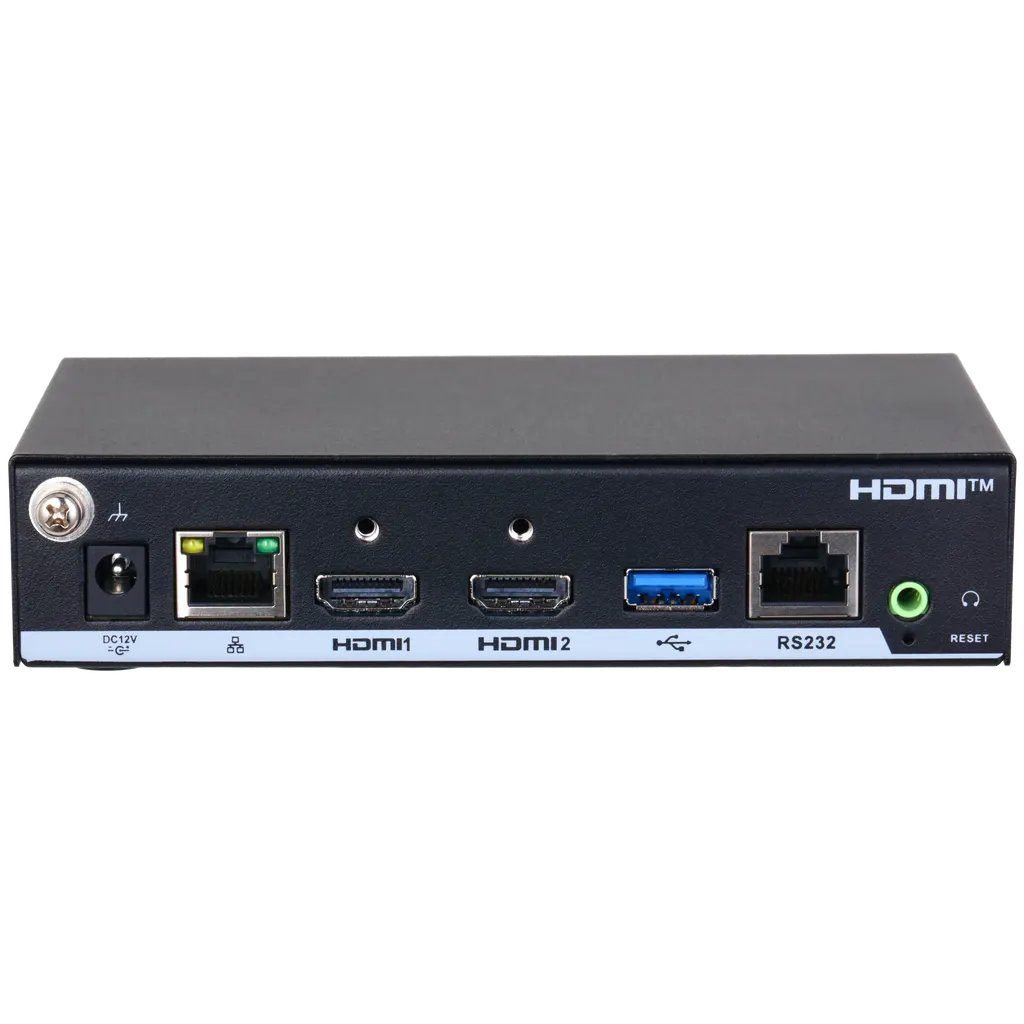

Video Output: 2 × HDMI
Audio Output: 2 × HDMI, 1 × 3.5 mm
Network Port: 1 × RJ–45 10 M/100 M/1000 M self-adaptive Ethernet port
RS-232: 1 × RJ-45
USB: 3 × USB

General8

Power Supply: 100–240 VAC, 50;60 Hz
Power Consumption: ≤24 W
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 10%–95% (RH), non-condensing (86 kPa–106 kPa)
Product Dimensions: 150.0 mm × 92.0 mm × 32.8 mm (5.91” × 3.62" × 1.29”) (L × W × H)
Packaging Dimensions: 297.0 mm × 163.0 mm × 71.0 mm (11.69” × 6.42" × 2.80”) (L × W × H)
Gross Weight: 0.5 kg (1.10 lb)
Net Weight: 0.3 kg (0.66 lb)

Downloads

7 files from the manufacturer

PDF Datasheets NVD0200FX-A01_datasheet_20231208.pdf 2.5 MB PDF Manuals & guides 2-Channel Splicing Unit_Quick Start Guide_V1.0.0.pdf 830 KB PDF Manuals & guides 2-Channel Splicing Unit_User's Manual_V1.0.0.pdf 3.1 MB PDF Manuals & guides NVD0200FX-A01_INSTALLATION_METHOD_EN.pdf 215 KB PDF Drawings & CAD NVD0200FX-A01_DIMENSIONS.pdf 51 KB 2601 Software & firmware · Opens on manufacturer site General_NVD0200FX-A01_Eng_SDA_V1.000.0000000.0.R.260120 DOCX Other documents NVD0200FX-A01_A&E_20260901200747.docx 31 KB

Questions about NVD0200FX-A01

What is the Dahua NVD0200FX-A01 used for?

It is a two-channel UHD network video decoder that takes IP camera and encoder streams and outputs them to displays, mainly for video walls. It suits control rooms, security operations and campuses that already run ONVIF or Dahua cameras and want live feeds on screens. Each unit has two HDMI outputs, so one device can drive two screens or two sections of a wall. SmartRooms Qatar can quote it with the displays you plan to use.

How many video channels can it decode at the same time?

The stated simultaneous limits are 2 channels at 8MP at 25 fps, 3 at 6MP at 25 fps, 5 at 5MP at 25 fps, 5 at 4MP at 25 fps, 7 at 3MP at 25 fps, 10 at 1080p at 30 fps, or 32 at D1 at 30 fps. Because these are simultaneous figures, compare your full camera mix against them before choosing the number of units. A site survey of the camera list gives an accurate count.

Which output resolutions and video formats does it support?

Each HDMI output can run at 1920 × 1080, 1280 × 1024, 1280 × 720 or 1024 × 768 at 60 Hz, with 1920 × 1080 as the default. Custom outputs below 1920 × 1080 at 60 Hz can be configured. Input streams use H.264 or H.265, with decoding up to 8MP, so it accepts modern high-resolution cameras as well as older D1 feeds. Confirm your display's native resolution with the SmartRooms Qatar team before ordering.

Can one decoder build a multi-screen video wall?

The unit splits its output into 1, 4, 6, 8, 9, 16 or 25 windows and supports custom M × N layouts where M × N is 25 or fewer. It can splice up to 20 screens together, and up to 25 channels can be placed in windows that can be moved around the wall. For a 2 × 2 wall in a Doha control room, two units provide the four HDMI outputs needed, and the exact layout is confirmed during planning.

Which camera and video management protocols does it support?

It accepts streams using ONVIF, RTSP, and the Hikvision and Dahua private protocols. The manufacturer data lists it as compatible with DSS PRO, Dahua's management platform. If your site runs a different video management system, confirm the integration before buying, because these listed protocols are the only compatibility points stated in the manufacturer data.

Does it work with Qatar's 240 V mains supply?

Yes. The power input is rated 100–240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply, and power consumption is 24 W or less. The manufacturer data does not list a plug type, so confirm the power connection and any adapter with the SmartRooms Qatar team when you request a quote for installation in your building.

Can it sit in a hot equipment cabinet during Qatar summers?

Its rated operating temperature is -10 °C to +55 °C, with 10% to 95% relative humidity, non-condensing. An air-conditioned server room may keep it inside that range, but a closed cabinet can run hotter than the room. Plan for airflow or ventilation inside the cabinet, and have a site survey check the temperature where the unit will sit before installation begins.

How many decoders does a 16-camera control room in Doha need?

It depends on each camera's resolution and frame rate. At 1080p and 30 fps, one unit handles up to 10 simultaneous channels, so 16 such cameras need two units. Cameras at 4MP or 5MP reduce the count per unit, because those figures are lower. A site survey of the camera list and wall layout gives an accurate number, and SmartRooms Qatar can quote once that list is confirmed.

Can the wall rotate through different camera views on a schedule?

Yes. The unit can save display schemes, run scheme tours and launch scheduled schemes, with custom intervals between tours. On-screen text such as a location label can be added with a chosen font size. At a campus entrance or a Lusail mall management office, this lets one wall cycle through zones at set times while labels show which area is on screen.

What audio and connection ports are available?

Audio output runs through one 3.5 mm port and two HDMI ports, using PCM compression. The network port is one RJ-45 that auto-negotiates 10M, 100M or 1000M Ethernet. There is also one RJ-45 RS-232 port and three USB ports. Check whether your displays take audio over HDMI or the 3.5 mm jack before you specify cabling.

How do I request a quote and what happens next?

Send the camera count, camera resolutions, display sizes and the planned wall location. SmartRooms Qatar usually issues quotations within one working day. The product is delivered to all eight municipalities of Qatar, with professional installation and free site surveys available. LPOs, government tenders through Monaqasat, and payment by bank transfer, cheque or purchase order are accepted, and the product is covered by the manufacturer's warranty.
