LG 32SM5KC (Discontinued) · Replacements in Qatar

Name: LG 32SM5KC 32-inch Commercial Signage Display
Brand: LG
SKU: lg-32sm5kc
Availability: Discontinued

Overview

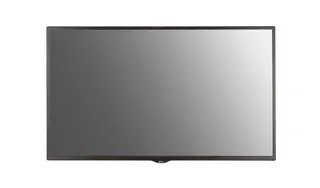

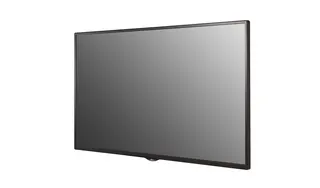

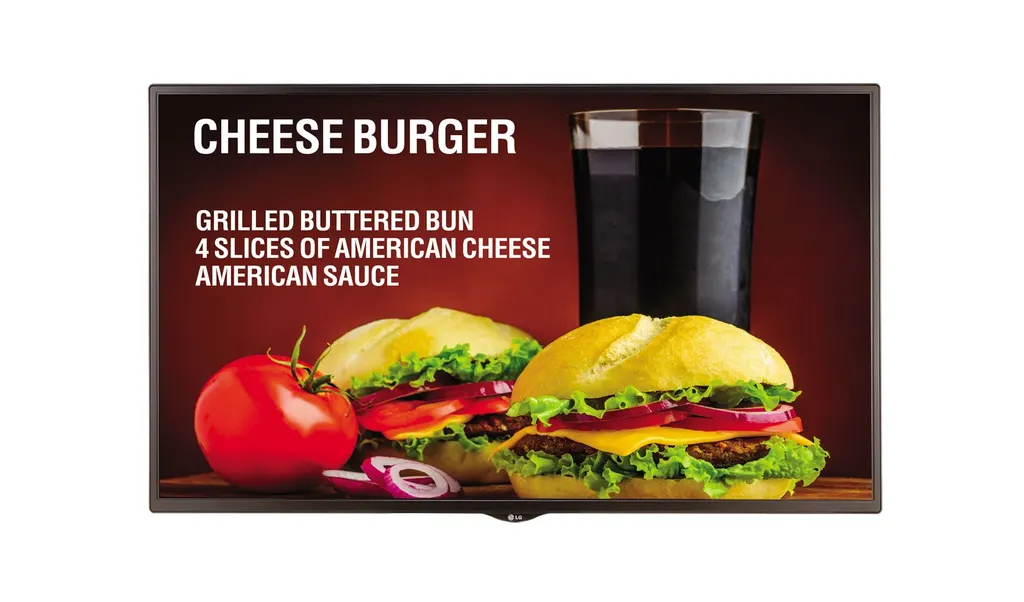

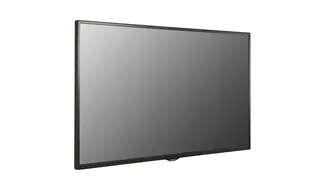

The LG 32SM5KC is a 32-inch full HD commercial signage display that LG has discontinued. It delivers 1,920 x 1,080 resolution, rated brightness of 400 and portrait or landscape orientation, with OPS compatibility for a plug-in media player. Suited to reception areas, corridors and meeting rooms across Qatar, it is a practical choice for owners expanding an existing fleet. Request a quote for a current equivalent or compatible replacement.

What the LG 32SM5KC is and why it is still sought after

The LG 32SM5KC is a 32-inch full HD commercial display from LG's SM5K series. LG has discontinued this model, so it is mainly sought by organisations that already run it, by buyers comparing it with newer displays, and by anyone needing a like-for-like replacement for a failed or retired screen. SmartRooms Qatar can quote a current equivalent or a compatible replacement, and we will check the mounting, power and software details of your existing installation before you commit.

Panel and connectivity facts that matter

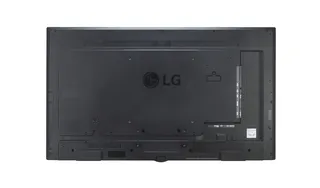

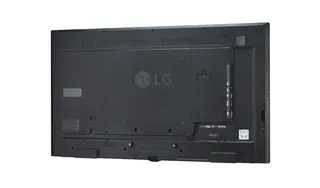

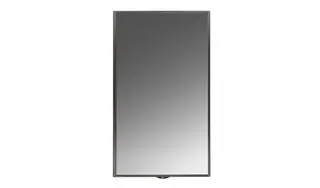

The panel resolves 1,920 x 1,080 pixels and carries a rated brightness of 400. It can be mounted in portrait or landscape, so one model can serve vertical menu-style boards and wide information panels. Inputs cover HDMI, DisplayPort, DVI-D, RGB, audio and an SD card slot, while the outputs are DisplayPort and audio. For control, the unit provides RS232C in and out, an RJ input, an IR receiver, a pixel sensor connection, USB 3.0 and an SD card slot.

Bezel: 13 mm on the top, left and right, and 18 mm at the bottom, so side-by-side arrays show visible seams.

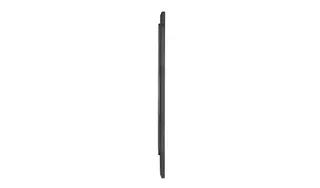

Dimensions: 729.4 x 428.9 x 55.5 mm, with a head weight of 5.2 kg.
Mount: 200 x 200 mm VESA pattern.
Audio: 20 W internal speakers (10 W x 2, 6 ohm).

Where it fits in Qatar

A clinic waiting area in Al Sadd could run queue numbers and health advice in portrait on a single 32-inch screen beside the reception desk. A school corridor in Al Rayyan could use the same display for timetables and event notices, mounted at eye level in an air-conditioned building. An office in the Industrial Area or Msheireb could show safety notices and visitor directions beside a lift lobby. In each case the screen loops content from a connected PC or media source.

Heat, power and planning before installation

The rated operating range is 0°C to 40°C with 10% to 80% humidity. Summer temperatures in Doha exceed 45°C, so this screen should sit in an air-conditioned space, away from direct sun through glazing. If a location is unshaded or not air-conditioned, confirm the environment with the SmartRooms Qatar team before ordering.

The built-in power supply accepts 100 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V, 50 Hz mains. The unit has no power switch, so plan a switched outlet or wall isolator for each screen. Typical consumption is 60 W, falling to 45 W in Smart Energy Saving mode, and the model is listed as Energy Star 6.0.

Mounting needs a wall that can carry 5.2 kg plus the bracket, and the 200 x 200 mm VESA pattern must match the bracket you choose. SmartRooms Qatar offers free site surveys, which are worth booking before drilling into a corridor or lobby wall. We can also supply the optional wall bracket (LSW230B) or stand (ST-322T) where a fixed mount is not practical.

Accessories and software

The box includes a remote controller with two batteries, a power cord, a quick start guide, an RGB cable, a regulation book, a phone-to-RS232C gender adapter and a memory cover. Optional items include the SP-5000 speaker, ST-322T stand, KT-SP0 pixel sensor, LSW230B wall bracket, KT-OPSA OPS kit and EB-B100 HDBaseT unit. The screen is listed as compatible with SuperSign-w lite and SuperSign-c.

Because this model is discontinued, request a quote for a current equivalent or a compatible replacement. Send us your existing mounting and software details so our team can check them before quoting. Quotations usually arrive within one working day.

Highlights

32-inch full HD panel with 1,920 x 1,080 resolution
Portrait and landscape orientation supported
OPS type compatible; SuperSign-w lite and SuperSign-c listed
Rated operating range 0°C to 40°C
Built-in power supply, 100-240V, 50/60Hz, typical 60 W
Discontinued by LG; request a quote for a replacement

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

28 specifications · Source: manufacturer · checked Oct 2026

PANEL4

Screen Size: 32"
Resolution: 1,920 x 1,080 (FHD)
Brightness: 400
Orientation: Portrait & Landscape

CONNECTIVITY3

Input: HDMI, DP, DVI-D, RGB, Audio, SD card
Output: DP, Audio
External Control: RS232C in/out, RJ in, IR Receiver, Pixel Sensor, USB 3.0, SD Card

PHYSICAL SPECIFICATION4

Bezel Width: 13 mm (T/R/L), 18 mm (B)
Monitor Dimension (W x H x D): 729.4 x 428.9 x 55.5 mm
Weight (Head): 5.2kg
VESA™ Standard Mount Interface: 200 x 200 mm

ENVIRONMENT CONDITIONS2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

POWER3

Power Supply: 100-240V~, 50/60Hz
Power Type: Built-In Power
Power Switch: No

POWER CONSUMPTION2

Typ.: 60 W
Smart Energy Saving: 45 W

STANDARD(CERTIFICATION)4

Safety: UL / cUL / CB / TUV / KC
EMC: FCC Class "A" / CE / KCC
ErP / Energy Star: N/A / Yes (Energy Star 6.0)
Audio Power: 20 W (10 W x 2) for Internal Speaker (6 ohm)

MEDIA PLAYER COMPATIBILITY2

OPS Type Compatible: Yes
External Media player Attatchable: No

SOFTWARE COMPATIBILITY2

SuperSign-w lite: Yes
SuperSign-c: Yes

ACCESSORY2

Basic: Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
Optional: Speaker (SP-5000), Stand (ST-322T), Pixel sensor (KT-SP0), Wall bracket (LSW230B), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Downloads

6 files from the manufacturer

PDF Manuals & guides English(US).pdf 6.3 MB PDF Manuals & guides WW_ESG.pdf 5.7 MB PDF Manuals & guides webOS 3.0_UG_ENG.pdf 5.7 MB URL Manuals & guides · Opens on manufacturer site Owner's Manual (global) URL Manuals & guides · Opens on manufacturer site User Guide URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 32SM5KC

Is the LG 32SM5KC still available from LG?

LG has discontinued the 32SM5KC, so new units may not be available from the manufacturer. If you are replacing a failed screen or expanding an existing fleet, SmartRooms Qatar can quote a current equivalent or a compatible replacement. Before ordering, send us the mounting details, power arrangement and software you already use, so we can confirm the replacement suits your installation. Quotations usually arrive within one working day.

Would this screen suit a clinic waiting area in Al Sadd?

Yes, provided it sits indoors in an air-conditioned waiting room. Its portrait or landscape orientation lets reception show queue numbers, opening hours or health advice on one 32-inch panel. The 1,920 x 1,080 resolution suits text-based content, and the internal 20 W speakers can support short announcements in a smaller room. For a larger waiting area, ask the SmartRooms Qatar team whether the optional SP-5000 speaker is needed.

What resolution and orientation does the LG 32SM5KC offer?

It is a full HD panel with a 1,920 x 1,080 resolution and a rated brightness of 400. The screen can be used in portrait or landscape, so one model can serve vertical menu-style signs and horizontal information displays. Prepare content in the correct aspect ratio for the orientation you plan to use before installation, so that images are not cropped or stretched on the day the screen goes live.

Which inputs and outputs are included?

Inputs are HDMI, DisplayPort, DVI-D, RGB, audio and an SD card slot. The only outputs are DisplayPort and audio, so check the ports on your source device before ordering. Control connections include RS232C in and out, an RJ input, an IR receiver, a pixel sensor connection and USB 3.0. Your IT manager should confirm cable types against the source PC or media player before installation.

Can I attach a media player to the screen?

The model is OPS type compatible, so an OPS-type player can be used with the optional OPS Kit (KT-OPSA). The data does not list an option for attaching a separate external media player to the unit. If your content runs from a PC, connect it over HDMI or DisplayPort instead. Because the OPS kit is an optional accessory and is not in the basic package, add it to your quotation request if you need it.

Which software works with this display?

The display is listed as compatible with SuperSign-w lite and SuperSign-c. Tell us which content management platform your team already uses, and SmartRooms Qatar will confirm the setup of the screen, player and software together before issuing the quotation. Checking compatibility before the hardware arrives reduces the chance of a mismatch once units are installed on site.

Can it operate in a hot lobby facing the sun in Doha?

Only if the space is air-conditioned and shielded from direct sunlight. The rated operating range is 0°C to 40°C with humidity between 10% and 80%. Summer temperatures in Doha can exceed 45°C, so a glass-fronted lobby or an unshaded corridor needs an environment check first. Ask the SmartRooms Qatar team to review the location before you order, and keep air vents clear around the screen during installation.

Does it work on Qatar's 240 V mains supply?

Yes, the built-in power supply accepts 100 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V, 50 Hz supply. The unit has no power switch, so plan a switched socket or wall isolator for each screen during installation. Check the supplied power cord against the BS 1363 sockets used in Qatar before fitting, and arrange an adapter if the plug does not match the outlet.

How much power does the screen draw?

Typical consumption is 60 W, falling to 45 W in Smart Energy Saving mode. The model is listed as Energy Star 6.0 and carries UL, cUL, CB, TUV and KC safety approvals, along with FCC Class A, CE and KCC EMC approvals. For a school or ministry fitting out many screens, these figures help estimate the electrical load per room and the number of switched circuits required.

How do I mount it on a school corridor wall?

The screen uses a 200 x 200 mm VESA pattern and its head weighs 5.2 kg without a stand or bracket. Use a wall bracket designed for that load, check the wall construction, and leave room for the power outlet behind the screen. The optional LSW230B wall bracket and ST-322T stand are available if needed. Book a free site survey before drilling, especially in a corridor in Al Rayyan where several screens may go up at once.

Can the screen be controlled from a central room system?

Yes, the screen offers RS232C in and out, an RJ input, an IR receiver and USB 3.0 for control, and a phone-to-RS232C gender adapter is included. The source data does not list the command protocol, so your systems integrator should confirm it before you buy a control system. This matters for a boardroom in Lusail that is run from a central control point.

Does it have speakers, and will I need an external one?

The screen has internal speakers rated at 20 W (10 W x 2) with a 6 ohm load, which is adequate for short announcements in a reception area or a small room. For a larger space such as a school hall or event foyer, the optional SP-5000 speaker is available. Ask the SmartRooms Qatar team to confirm the audio level you need for your room before ordering.
