LG 65UV5N-EP (Discontinued) · Replacements in Qatar

Name: LG 65UV5N-EP 65-inch UHD Digital Signage Display
Brand: LG
SKU: lg-65uv5n-ep
Availability: Discontinued

Overview

The LG 65UV5N-EP is a 65-inch UHD signage display that LG has discontinued. It offers 3840 x 2160 resolution, 500 nit typical brightness, 24/7 operation and built-in webOS 6.0 with Wi-Fi, suiting lobbies, corridors and meeting areas. Owners, buyers comparing models and anyone seeking a replacement can request a quote for a current equivalent or compatible replacement.

What the LG 65UV5N-EP is and why it matters now

The LG 65UV5N-EP is a 65-inch standard UHD signage display from LG's UV5N series, designed for continuous operation in lobbies, corridors and meeting areas. LG has discontinued this model, so this page is written for organisations that already run one, buyers comparing it with newer displays, and anyone who needs a replacement for an existing unit. SmartRooms Qatar can quote a current equivalent or a compatible replacement.

Panel, connections and software

The 65-inch IPS panel has a native resolution of 3840 x 2160 and a 16:9 aspect ratio. Typical brightness is 500 nit, with a 1,100:1 typical contrast ratio and an edge-lit backlight. The 10-bit colour depth supports 1.07 billion colours, and the panel covers 95% of the BT709 colour gamut. A 178 x 178 viewing angle keeps text legible when people stand off to the side, and the screen works in landscape or portrait orientation.

Response time of 8ms rise and 10ms fall at 60Hz
Surface haze of 28% and a rated life of 50,000 hours minimum
Rated for 24/7 operation

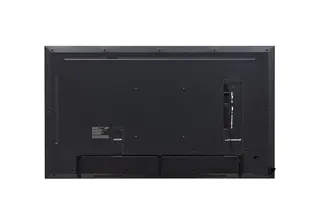

The rear panel offers three HDMI inputs and one DisplayPort input, each at 3840 x 2160 and 60Hz, plus an HDMI output rated at 3840 x 2160 and 30Hz. Control options include RS232C in and out, an RJ45 LAN port, an IR input and a USB 2.0 Type A port. Built-in Wi-Fi and Bluetooth, 16GB of internal storage and webOS 6.0 let the display store and play scheduled content on its own.

Software support includes SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS and Connected Care, plus Crestron Connected and SNMP support. Tile mode can span up to 15 x 15 panels, and the screen can show up to four picture-by-picture windows.

Where it fits in Qatar

A ministry or authority reception in West Bay or Msheireb, showing visitor directions and service information during the Sunday to Thursday working week.
A private school in Al Wakrah fitting out its corridors, using scheduled announcements and USB plug and play for content updates.
A hotel or clinic in Lusail that needs a 24/7 display with an auto brightness sensor adjusting to the light in the room.

Planning heat, power and mounting

The operating range is 0°C to 40°C at 10% to 80% humidity, while Qatar's summer temperatures often exceed 45°C. Install it only in an air-conditioned room and confirm the space with the SmartRooms Qatar team before ordering. The unit is rated IP5X for dust, and the data gives no water-protection rating, so it is not specified for outdoor, sunlit or window-facing sites.

Power is built in, with an AC 100-240V, 50/60Hz input, typical consumption of 145W and a maximum of 200W. The monitor measures 1450.3 x 830.3 x 29.7 mm without IR and weighs 24.2 kg, with a 300 x 300 VESA interface. Optional mounts include the WB21LMA/B slim wall mount, the OLW480A/B wall mount and the AM-B330S adapter, and the panel can tilt face down up to 30 degrees within its 40°C limit. Book a free site survey to confirm the wall can carry the weight before anything is drilled.

Ordering with SmartRooms Qatar

Send your room list, mounting positions and, if you are replacing a unit, the existing model, so SmartRooms Qatar can check connections and mounting before preparing your quotation. We deliver to all eight municipalities of Qatar, accept purchase orders (LPOs) and government tenders including Monaqasat, and quotations are usually issued within one working day. Request a quote now.

Highlights

65-inch IPS panel with 3840 x 2160 native resolution
500 nit typical brightness and 1,100:1 typical contrast
Rated for 24/7 operation across 0°C to 40°C
Built-in webOS 6.0, Wi-Fi, Bluetooth and 16GB storage
Three HDMI and one DisplayPort input, plus HDMI output
Discontinued by LG; quotes for compatible replacements

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

107 specifications · Source: manufacturer · checked Oct 2026

Info3

Product: Standard (UHD)
Year: Y24
Month: M09

Panel17

Screen Size (Inch): 65"
Panel Technology: IPS
Back Light Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness (Typ.): 500nit (Typ.)
Contrast Ratio: 1,100:1
Dynamic CR: 1,000,000:1
Color gamut: BT709 95%
Viewing Angle(H x V): 178 X 178
Color Depth (Number of Colors): 10bit(D), 1.07Billion colors
Response Time: Tr : 8ms / Tf :10ms
Surface Treatment(Haze): 28%
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portait / Landscape: Yes / Yes

Connectivity (Jack Interface)11

HDMI IN: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN: Yes (1), 4pin Phone-jack
RJ45(LAN) IN: Yes (1)
IR IN: Yes (1)
USB IN: USB2.0 Type A(1)
HDMI Out: Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
Audio Out: Yes (1)
RS232C Out: Yes (1), 4pin Phone-jack
IR Out: No (Support IR daisy chain via RS232C IN/OUT)
Daisy Chain: Yes(Input HDMI, DP / Output HDMI)

Mechanical7

Bezel Color: Black
Bezel Width: T/R/L: 8.9mm, B: 12.9mm
Weight (Head): 24.2 kg
Packed Weight: 30.4 kg
Monitor Dimensions (W x H x D): 1450.3 x 830.3 x 29.7mm (Without IR)
Carton Dimensions (W x H x D): 1600.0 x 970.0 x 172.0mm
VESA<sup>TM</sup> Standard Mount Interface: 300 x 300

HW Feature6

Internal Memory (eMMC): 16GB
Wi-Fi/BT (Built-in): Yes
Temperature Sensor: Yes
Auto Brightness sensor: Yes(IR)
Acceleration(Gyro) Sensor: Yes
Local Key Operation: Yes

SW Feature34

OS Ver. (webOS): webOS6.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Max. 15x15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Crestron Connected: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Network Ready: Yes
Beacon: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

Environment Conditions2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

Power2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

Power Consumption6

Typ.: 145W
Max.: 200W
BTU (British Thermal Unit): 495 BTU/Hr(Typ.), 682 BTU/Hr(Max)
Smart Enegy Saving (70%): 101.5W
DPM: 0.5W
Power off: 0.5W

Sound1

Speaker (Built-in): Yes (10W X 2)

Certification6

Safety: NTRL
EMC: FCC Class "B"
ErP / Energy Star: N/A / Yes
ePEAT(US only): Yes
BS476 Part7: Class 1 (case top / back cover)
EN13501-1: Class A1 (case top) / Class A2 (back cover)

Software Compatibility6

SuperSign CMS: Yes
SuperSign Control+: Yes / Yes
SuperSign WB: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish, Arabic

Accessory2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
Optional: Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

Special Feature3

Tilt (Face Down): Yes(Max 30º degree, 40ºC temperature)
IP Rating: IP5X
Conformal Coating (Power Board): Yes

Downloads

1 file from the manufacturer

PDF Datasheets · Opens on manufacturer site UV5N-E_Datasheet(low)_LG UHD Signage_250210_20250213_102810_.pdf 1.2 MB

Questions about 65UV5N-EP

Has LG discontinued the 65UV5N-EP?

Yes. LG has discontinued the 65UV5N-EP, the 65-inch model in its UV5N UHD signage series. If your site needs the same job done, SmartRooms Qatar can quote a current equivalent or a compatible replacement. Send us the existing model, the number of units and the mounting positions, and the team will check connections, power and fixings before issuing the quotation.

Is this display suitable for a West Bay office lobby?

It suits a lobby that needs a 24/7 display for directions, visitor information and announcements. The 3840 x 2160 panel with 500 nit typical brightness gives clear text at reception distance, and the built-in webOS 6.0 can run scheduled content without a separate PC. Because it is rated for air-conditioned indoor use, confirm the lobby's glazing and sun exposure before choosing a position.

Can I install it outdoors or near a sunlit window in Doha?

Not as a specified installation. The data gives an operating range of 0°C to 40°C and an IP5X dust rating, with no water-protection rating listed. Qatar's summer heat and dust storms make an exposed site risky for this model. For a window-facing lobby, discuss glare and room cooling with the SmartRooms Qatar team before ordering.

How does this display handle Qatar's summer heat?

Its operating range is 0°C to 40°C at 10% to 80% humidity, and Qatar's summer temperatures often exceed 45°C. Install it only in a room with reliable air conditioning, and keep the air space around the housing clear. The unit has a temperature sensor, but that does not extend its operating range. Confirm your room conditions with SmartRooms Qatar before you order.

Does it run on Qatar's 240 V supply?

The built-in power supply is rated AC 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 145W and the maximum is 200W, so plan circuits carefully when fitting several units. A power cord is included. Confirm that the supplied plug suits the BS 1363 sockets in your building before installation.

Which inputs and control connections does it have?

The rear panel has three HDMI inputs and one DisplayPort input, each at 3840 x 2160 and 60Hz, plus an HDMI output. Control connections include RS232C in and out, an RJ45 LAN port, an IR input and a USB 2.0 Type A port. There is no IR output; IR daisy chaining works through RS232C in and out. An audio output is also provided.

Can I chain several screens from one source?

Yes, through the daisy-chain function. Video from an HDMI or DisplayPort input can pass to the HDMI output, which is rated for 3840 x 2160 at 30Hz rather than 60Hz. A hotel in Msheireb might use this to show the same feed on two adjacent panels. For a full video wall, tile mode can be set up to 15 x 15 in software, so confirm the signal path with the team first.

Which content management software works with it?

The data lists SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS and Connected Care, plus Crestron Connected and SNMP support. A hotel group in Lusail with lobby screens across several buildings could manage schedules from one system, while a smaller office might use local scheduling on a single screen. Choose the package that fits your network with the team before the quotation.

Does the on-screen menu support Arabic?

Yes. The on-screen display language list includes Arabic alongside English, French and other languages. This helps bilingual offices in Al Sadd or Doha that work in Arabic and English side by side, because staff can set up the display in their working language. Arabic content on screen still depends on your content software and fonts, so test a sample file before rollout.

How large is the panel, and what wall mount do I need?

The monitor measures 1450.3 x 830.3 x 29.7 mm without IR and weighs 24.2 kg, or 30.4 kg packed. It uses a 300 x 300 VESA interface. Optional mounts are the WB21LMA/B slim wall mount, the OLW480A/B wall mount and the AM-B330S wall mount adapter. A free site survey lets the team confirm wall strength and clearance before anything is drilled.

Can a school in Al Wakrah buy several units through an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. For a school fitting out several corridors, send the number of units, the mounting plan and your LPO reference, and the team will prepare one quotation for the batch. Quotations are usually issued within one working day.
