LG 98LS95D (Discontinued) · Replacements in Qatar

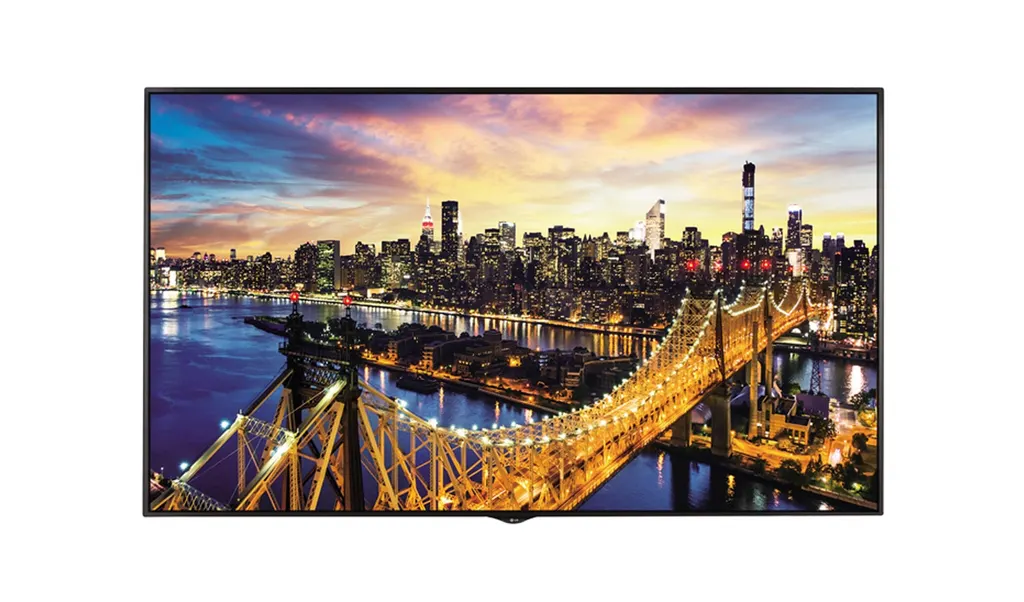

Name: LG 98LS95D 98-inch Ultra HD Digital Signage Display (Discontinued)
Brand: LG
SKU: lg-98ls95d
Availability: Discontinued

Overview

The LG 98LS95D is a discontinued 98-inch signage display with a 3840 x 2160 native panel and 500 cd/m² typical brightness. Picture-by-picture and picture-in-picture modes show up to four windows in landscape or portrait, and its 14.9 mm even bezel suits tiled layouts. Organisations in Qatar that already run this model, or need a large lobby or boardroom screen, can request a quote for a current equivalent.

What the LG 98LS95D is and where it fits

The LG 98LS95D is a 98-inch class commercial display from the LS95 series, built for digital signage rather than desktop use. Its panel measures 97.52 inches (2476.95 mm) on the diagonal and has a 3840 x 2160 native resolution. The manufacturer has discontinued this model, so this page is written for organisations that already operate it, buyers comparing it with newer large-format displays, and anyone who needs a current equivalent.

Specifications that shape the installation

Typical brightness is rated at 500 cd/m². The even bezel measures 14.9 mm, which keeps the gaps between panels narrow when several units sit side by side. The cabinet measures 2191.8 mm wide, 1246.8 mm high and 69.4 mm deep, and the head weighs 88 kg. It uses an 800 x 400 VESA mounting pattern, so the wall bracket and the structure behind it must be checked against that weight before installation.

Inputs: three HDMI, one DisplayPort, one DVI-D, one USB 3.0 port and an SD card slot.
Control: RS-232C in and out, an RJ45 port, an IR receiver and a pixel sensor.
Audio: an audio output and left and right speaker outputs. The SP-2200 external speaker is listed as an optional accessory.

Multi-window layouts and up-scaling

Picture-by-picture and picture-in-picture modes let one screen show up to four divided windows in either landscape or portrait orientation. A lobby can show a news feed beside wayfinding and a promotion, while a meeting room can show a presentation next to the day's agenda. Full HD sources are scaled toward near-UHD quality by the built-in up-scaling and super-resolution processing, which helps existing Full HD content look sharper on a large panel.

Qatar scenarios

A hotel lobby in West Bay or The Pearl running a portrait layout beside the reception desk, where the narrow footprint matters more than the total width.
A government authority in Msheireb running a landscape display in a public waiting area, with split windows for queue numbers and service announcements.
A clinic or hospital in Al Sadd or Doha using a large panel in a visitor area, where information must be readable from across the room.

What to plan before ordering

Because this model is discontinued, check current equivalents before fixing the layout. The SmartRooms Qatar team confirms availability and lead times with each quotation. Plan the wall for the 88 kg head, the 800 x 400 mounting pattern and the 69.4 mm depth. The source does not give an operating temperature range, so confirm the environment with the SmartRooms Qatar team before placing the unit near windows, outdoors or in dusty areas. Free site surveys, delivery to all eight municipalities of Qatar and professional installation are available, and quotations are usually returned within one working day. Purchase orders (LPOs) and government tenders are accepted.

Request a quote for this model or a compatible current replacement, and include the wall size, the number of units and the content sources you plan to use.

Highlights

97.52-inch diagonal with a 3840 x 2160 native UHD panel
500 cd/m² typical brightness
Picture-by-picture and picture-in-picture for up to four windows
Landscape or portrait installation
14.9 mm even bezel for tiled arrangements
Three HDMI, DisplayPort, DVI-D and USB 3.0 inputs

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

29 specifications · Source: manufacturer · checked Oct 2026

PANEL3

Screen Size: 97.52 inches(2476.95 mm) diagonal
Native Resolution: 3840 x 2160 (UHD)
Brightness(Typ.,cd/m²): 500

CONNECTIVITY - INTPUT12

HDMI: Yes(3)
DP: Yes (1)
DVI-D: Yes (1)
Analog (RGB): No
Audio In: Yes(1), DVI
External Control (RS232C IN): Yes (1)
External Control (RJ45): Yes (1)
External Control (IR receiver): Yes (1)
External Control (Pixel Sensor): Yes
USB (USB3.0): Yes (1)
SD Card (SDHC/Full Size): Yes (1)
HDTV Formats: HDMI : 720p, 1080i, 1080p, 2160p

CONNECTIVITY - OUTPUT4

Digital (w/ HDCP): Yes(1) w/ HDCP: DP, w/o HDCP: HDMI3/DVI/OPS
Audio Out: Yes (1)
Externel Speaker Out: Yes (1, L/R)
External Control (RS232C OUT): Yes (1)

PHYSICAL SPECIFICATION4

Bezel Width: Even bezel : 14.9mm
Monitor Dimension (W x H x D): 2191.8mm x 1246.8mm x 69.4mm
Weight (Head): 88kg
VESA™ Standard Mount Interface: 800x400

MEDIA PLAYER COMPATIBILITY2

OPS Type Compatible: No
External Media Player Attatchable: Yes (MP500/MP700)

SOFTWARE COMPATIBILITY2

SuperSign-w lite: Yes
SuperSign-c: Yes

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, IR/Light sensor receiver, CD(Owner's Manual, SuperSign Program / Manual), HDMI2.0 Cable,DP cable, RS-232C, WIFI Dongle, EYE-BOLT
Optional: SP-2200(External Speaker)

Downloads

5 files from the manufacturer

PDF Manuals & guides MFL69711504_01_191219.pdf 5.4 MB PDF Manuals & guides MFL69726111_03_W.pdf 4.3 MB PDF Manuals & guides · Opens on manufacturer site English.pdf 9.5 MB URL Manuals & guides · Opens on manufacturer site Owner's Manual (global) URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 98LS95D

What is the LG 98LS95D and who is it for?

The LG 98LS95D is a 98-inch class commercial display from the LS95 series, designed for digital signage in lobbies, reception areas, meeting spaces and public waiting areas. It has a 97.52-inch diagonal panel at 3840 x 2160 resolution and 500 cd/m² typical brightness. It suits facilities and IT teams that need a single large screen rather than several smaller displays.

Is the LG 98LS95D still available from the manufacturer?

No. The manufacturer has discontinued the LG 98LS95D. SmartRooms Qatar can still quote for a current equivalent or a compatible replacement, and will check mounting dimensions, weight and input requirements against your existing installation. If you already own this model, the team can also advise on compatible accessories, subject to availability.

What resolution and brightness does the 98LS95D offer?

The panel has a native resolution of 3840 x 2160, which is UHD, and a typical brightness of 500 cd/m². The source data lists the diagonal as 97.52 inches (2476.95 mm). The 500 cd/m² figure is a typical value, so ask for a quotation if your room has strong daylight and you need to confirm the viewing conditions before ordering.

Can the screen show more than one source at the same time?

Yes. Picture-by-picture and picture-in-picture modes let the display compose up to four divided windows. A hotel lobby, for example, can show a live feed, wayfinding and a promotion together. These modes work in landscape or portrait orientation, so one screen can carry several messages without extra panels.

Can the 98LS95D be installed in portrait orientation?

Yes, the display can be installed both vertically and horizontally. Portrait mounting suits narrow corridors, lift lobbies and spaces beside a reception desk where wide screens do not fit. Before mounting in portrait, check the 800 x 400 VESA pattern and the 88 kg head weight, and confirm that the wall and bracket are rated for the load.

Does the 98LS95D accept an OPS media player?

No. The source data states that the model is not OPS-type compatible. Instead, it lists support for external media players MP500 and MP700. A buyer who plans to run content from a dedicated player should confirm which of those models fits the project before ordering, and SmartRooms Qatar can include the chosen player in the quotation.

Which inputs and outputs does the model have?

Inputs include three HDMI ports, one DisplayPort, one DVI-D, one USB 3.0 port and an SD card slot. Outputs include a DisplayPort digital output, audio out, left and right speaker outputs and RS-232C out. Control options include RS-232C in, RJ45, an IR receiver and a pixel sensor. Check these against your video sources and control system before ordering.

Which software and accessories come with the display?

The source lists compatibility with SuperSign-w lite and SuperSign-c. The package includes a remote controller with two batteries, a power cord, an IR and light sensor receiver, a CD with the owner's manual and SuperSign program, an HDMI 2.0 cable, a DP cable, an RS-232C cable, a Wi-Fi dongle and an eye-bolt. The SP-2200 external speaker is an optional accessory.

How heavy is the display and what should the wall be able to take?

The head weighs 88 kg and the cabinet measures 2191.8 mm by 1246.8 mm by 69.4 mm. The VESA mounting pattern is 800 x 400. A wall in a Doha office or a hotel lobby should be checked by a structural engineer before installation. SmartRooms Qatar offers a free site survey to confirm wall type, bracket choice and access routes.

Is this display suitable for a hot, dusty or window-facing location in Qatar?

The source data does not give an operating temperature range or an ingress rating, so this page cannot confirm suitability for locations above 45°C, outdoors or in dust storms. For a window-facing lobby or an exposed entrance, ask the SmartRooms Qatar team to confirm the environment and the enclosure requirements before you request a quotation.

How could a school or university in Qatar use a 98-inch display like this?

A school in Al Rayyan or Education City could install the display in a central corridor or foyer to show timetables, event schedules and announcements. A split layout can show two languages side by side for bilingual students and parents. Because the model is discontinued, the team can quote for a current equivalent that matches the same wall size and input layout.

Can a bank or government office in Doha run its public display with this model?

A bank branch in Doha could use the display in a customer waiting area for queue numbers, product information and service updates, with split windows. A government office can run similar content in a public area. The 500 cd/m² brightness and 3840 x 2160 resolution suit well-lit interiors, and the team will confirm the fit during the site survey.

Can we order this through an LPO or a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment is by bank transfer, cheque or purchase order. For a discontinued model, state in the purchase order whether you want the original 98LS95D or a current equivalent, so the quotation and the LPO refer to the same product and wall requirements.
