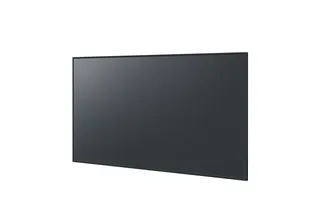

Name: Panasonic TH-65SQ1 65-inch 4K Digital Signage Display (Discontinued)
Brand: Panasonic
SKU: panasonic-th-65sq1
Availability: Discontinued

Overview

The Panasonic TH-65SQ1 is a 65-inch class 4K UHD LCD display from the SQ1 Series, built for digital signage, meeting rooms and public information points. It offers 3840 x 2160 resolution, 500 cd/m² typical brightness, HDR support with PQ and HLG, and a USB media player that runs content without a PC. Panasonic has discontinued this model, so SmartRooms Qatar can quote a current equivalent or a compatible replacement.

What the Panasonic TH-65SQ1 is and who it suits

The Panasonic TH-65SQ1 is a 65-inch class LCD display from the SQ1 Series, a range of 4K UHD panels designed for digital signage, meeting rooms and public information displays. Panasonic has discontinued this model. This page is written for organisations that already operate one, for buyers comparing it with newer displays, and for anyone who needs a dependable replacement.

Specifications that matter when you compare

Panel: 64.5-inch diagonal (1638.9 mm), 16:9 aspect ratio, 3840 x 2160 resolution, 500 cd/m² typical brightness and 1100:1 typical contrast.
Response and viewing: 8 ms (G to G) response time, 178° viewing angles and an anti-glare panel surface with 28% haze.
Connections: two HDMI inputs with HDCP 2.2, a DVI-D input, a PC input, DisplayPort in and out, two USB Type-A ports, an RS232C serial port and a LAN port compatible with PJLink.
Power and size: 110–240 V AC at 50/60 Hz, 320 W power consumption, 1458 x 836 x 77 mm including handles and approximately 36 kg.

Picture and playback features

The SQ1 Series supports HDR using PQ and HLG, so dark and bright areas of the picture keep more detail. A BT.2020 emulation mode helps the panel show wide colour gamut content. Colour temperature, shade and brightness can be adjusted separately for red, green, blue and their complementary colours, which helps fine colour detail look natural.

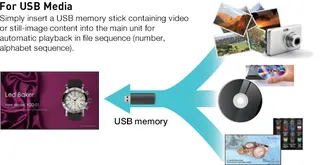

Content can run without a computer. Insert a USB memory stick holding JPG, BMP, MP4, MKV or other supported files and playback starts automatically, with 4K files supported. Two inputs can be shown side by side, and DisplayPort daisy chaining supports 4K images across linked units. The panel can be installed in landscape or portrait orientation and tilted up to 45 degrees.

Where it fits in Qatar

Meeting room in a ministry or corporate office in West Bay or Msheireb: a 65-inch screen suits a mid-size room where presenters connect a laptop over HDMI and attendees sit a few metres from the display.
Classroom or training room in Al Wakrah or Education City: the Screen Transfer function, which needs free Screen Transfer software, can send messages to up to 64 displays over wired LAN.

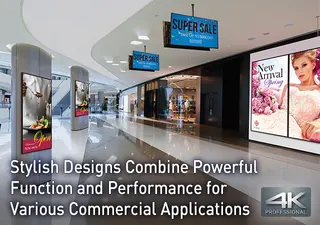

Retail unit or lobby in The Pearl or Al Sadd: a USB stick loaded with promotions can loop without a media PC, and portrait mounting suits narrow shopfronts.

What to plan before you order

Summer temperatures in Qatar regularly exceed 45°C, but this panel is rated for operation from 0°C to 40°C at 20% to 80% humidity, non-condensing. Plan for an air-conditioned room and confirm the installation environment with the SmartRooms Qatar team before the quotation is finalised.

At about 36 kg, the TH-65SQ1 needs a wall or bracket rated for its weight and a 400 x 400 mm VESA pattern. SmartRooms Qatar offers a free site survey to check wall construction, cable routes and power points. The DIGITAL LINK port carries video, audio and control over a single CAT5e or higher STP cable, up to 50 m for 4K signals, which is worth planning for in large rooms. The stated operating time is 24 hours a day, but showing moving content helps avoid image retention from a still picture left on screen.

Request a quote from SmartRooms Qatar for the TH-65SQ1 or for a current equivalent or compatible replacement. Quotations are usually issued within one working day, and we accept purchase orders, government tenders and payment by bank transfer, cheque or purchase order.

Highlights

65-inch class 4K UHD panel at 3840 x 2160 resolution
500 cd/m² typical brightness and 1100:1 typical contrast
HDR support with PQ and HLG signal formats
USB memory playback of 4K content without a PC
Operating range 0°C to 40°C, 20% to 80% humidity
Discontinued by Panasonic; quotes available for current replacements

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

37 specifications · Source: manufacturer · checked Oct 2026

Display Panel9

Screen size (diagonal): 65-inch (64.5" / 1638.9 mm)
Aspect ratio: 16:9
Effective display area (W x H): 1428 x 803 mm (56.2" x 31.6")
Resolution: 3840 x 2160
Brightness (typ.): 500 cd/m²
Contrast ratio (typ.): 1100:1
Response time: 8 ms (G to G)
Viewing angle [(T/B)/(L/R)]: 178°/178° (CR≥10)
Panel Surface Treatment: Anti-Grare Type (Haze 28%)

Terminals12

HDMI In: HDMI TYPE-A Connector x 2 (Compatible with HDCP 2.2)
DVI-D In / Audio In (L/R): DVI-D 24-pin x 1 (HDCP 1.1) / Stereo Mini Jack (M3) x 2 (Shared with PC In)
PC In / Audio In (L/R): Mini D-sub 15-pin x 1 / Stereo Mini Jack (M3) x 2 (Shared with DVI-D In)
DisplayPort In: DisplayPort x 1 (HDCP2.2)* 1
DisplayPort Out: DisplayPort x 1 (HDCP1.4)* 1
USB: USB Connector (TYPE-A) x 2, DC 5 V/2 A, DC 5V/1A (USB 3.0 Supported)
Serial: D-sub 9-pin x 1, RS232C Compatible
LAN: RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™

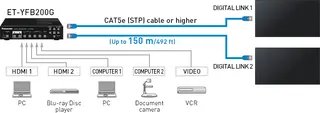

DIGITAL LINK: RJ45 x 1, 100 BASE-TX, Compatible with long reach mode and PJLink™
IR In/Out: Stereo Mini Jack (M3) x 1 / x 1
Audio Out: Stereo Mini Jack (M3) x 1 0.5 V [rms],　Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,　10 kΩ Load)
SLOT: Intel® SDM specification Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A

Audio2

Built-in speaker: 20 W [10 W + 10 W]
External speaker out: 30 W [15 W + 15 W]　10 % THD

Electrical4

Power requirements: 110–240 V AC,　50 Hz/60 Hz
Power consumption: 320 W
Power off condition: Approx. 0.3 W
Stand-by condition: Approx. 0.5 W

Mechanical4

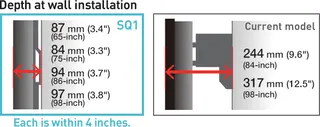

Dimensions (W x H x D): 1458 x 836 x 77 mm (57.4" x 32.9" x 3.1") Including handles
Weight: Approx. 36 kg (79.4 lbs.)

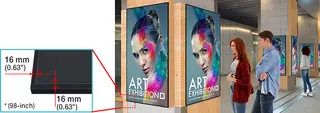

Bezel width: 11.7 mm (0.46") (T), 15.3 mm (0.60") (B), 12.2 mm (0.48") (L/R)
Wall-hanging pitch: 400 x 400 mm (15.75" x 15.75") VESA Compliant

Installation Environment3

Orientation: Landscape/Portrait* 2
Tilting Angle: Landscape setting: 0 - 45 degrees forward/backward Portrait setting: 0 - 45 degrees forward/backward
Operating time* 3: 24 h/day

Environment3

Operating environment: Temperature : 0 °C to 40 °C / Humidity: 20% to 80% (Non-condensation)
Applicable software: Multi Monitoring & Control Software, Content Management Software, Video Wall Manager
Regional Spec Sheets: Global: TH-65SQ1W

Downloads

7 files from the manufacturer

PDF Datasheets TH-65SQ1_Spec_Sheet_Global.pdf 1.5 MB PDF Datasheets sq1_screen_transfer_leaflet_en.pdf 141 KB PDF Manuals & guides sq1w_manual_en.pdf 12.2 MB PDF Manuals & guides sq1w_qsg_ar.pdf 6.1 MB PDF Manuals & guides sq1w_qsg_en.pdf 7.1 MB PDF Brochures SQ1_series_g.pdf 2.2 MB URL Drawings & CAD · Opens on manufacturer site #sq1

Questions about TH-65SQ1

Has Panasonic discontinued the TH-65SQ1?

Yes, Panasonic has discontinued the TH-65SQ1. If your organisation already runs one, or needs a replacement that matches an existing installation, SmartRooms Qatar can quote a current equivalent or a compatible replacement. Send the room size, mounting type and the inputs you use, so the quotation matches your site.

Is the TH-65SQ1 suitable for a meeting room in Doha?

Yes, a 65-inch panel suits a mid-size meeting room in West Bay or Msheireb where people sit within a few metres of the screen. Its 3840 x 2160 resolution keeps spreadsheets and floor plans sharp at close range, and two HDMI inputs let a laptop and a second source share the room without constantly swapping cables.

How does it compare with the 75-inch or 86-inch SQ1 models?

The SQ1 Series also includes 75-inch and 86-inch models, which are listed with 1200:1 typical contrast, against 1100:1 for this 65-inch panel. The 65-inch size fits smaller rooms and classrooms, while the larger sizes suit lecture halls and boardrooms. This model supports tilt up to 45 degrees, as do the 55-inch and 49-inch models.

Can it play digital signage without a computer?

Yes. Insert a USB memory stick with saved content and playback starts automatically, with no PC or set-top box needed. Still images in JPG, JPEG, JPE and BMP are supported, along with motion files such as MP4, MKV, MOV and AVI. A retail unit in The Pearl or a school reception in Al Wakrah can run promotions or announcements this way, but test your files first because some may not play.

Which inputs and connections does it have?

It has two HDMI inputs with HDCP 2.2, one DVI-D input, a mini D-sub 15-pin PC input, DisplayPort in and out, two USB Type-A ports, an RS232C serial port, a LAN port compatible with PJLink, a DIGITAL LINK RJ45 port and an Intel SDM slot. The SDM slot accepts third-party boards sold separately, and Panasonic cannot guarantee their operation.

Will it run on Qatar mains power?

The TH-65SQ1 is rated for 110–240 V AC at 50/60 Hz, a range that includes Qatar's 240 V, 50 Hz supply. Power consumption is listed at 320 W, with about 0.5 W in standby and 0.3 W when powered off. Before ordering, ask SmartRooms Qatar to confirm that the supplied power cord and plug suit the socket at your site.

Can it go in a lobby that is not air-conditioned?

Not with confidence. The operating range is 0°C to 40°C with 20% to 80% humidity, non-condensing, while Qatar summer temperatures often exceed 45°C. Plan for an air-conditioned lobby or a controlled space. If you have a site in mind, such as an entrance in Al Khor or Mesaieed, send the details and the SmartRooms Qatar team will confirm the environment before quoting.

How heavy is it and what does the wall need?

The panel weighs approximately 36 kg and measures 1458 x 836 x 77 mm including handles. It uses a 400 x 400 mm VESA wall pattern. The wall or bracket must carry that load, so SmartRooms Qatar offers a free site survey to check wall construction, cable routes and power points, particularly on drywall partitions in offices and schools.

Can we set up several identical units for a school or a retail chain?

Yes. The Cloning function copies settings from a parent display to others using USB or LAN, which shortens setup time. It works only between displays of the same series and screen size, and date and time, network settings, LAN settings and display ID are not copied. Content Management Software for PC is free and can schedule playlists, while Screen Transfer with its free software supports up to 64 displays over wired LAN.

Can it be mounted in portrait orientation?

Yes, the panel supports both landscape and portrait orientation. For the 65-inch model, tilting from 0 to 45 degrees forward or backward is available in either setting. Portrait mounting suits vertical menu boards, corridor signs and narrow shopfronts. Confirm the orientation with your installer before fixing the bracket so cable routes and display settings match the final layout.

Is it suitable for a 24-hour control room or public information display?

The stated operating time is 24 hours a day, and the SQ1 Series is designed for constant use in public spaces and control rooms. Failover switching moves to backup signals when the main video or audio is interrupted, although the usable combinations are limited. Show moving content where possible, because a still picture left on screen for a long time can cause image retention.

Can we buy it through a purchase order or a government tender?

Yes. SmartRooms Qatar supplies organisations by purchase order (LPO) and government tender, including Monaqasat, and delivers to all eight municipalities of Qatar. Payment can be made by bank transfer, cheque or purchase order, and quotations are usually issued within one working day. Because this model is discontinued, quote the tender reference so the quotation covers the current equivalent you approve.
