PKC-MS1C

What the PKC-MS1C is and what it does

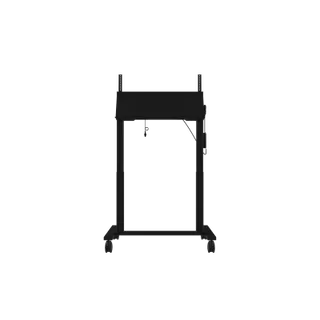

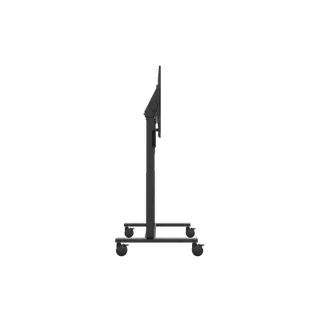

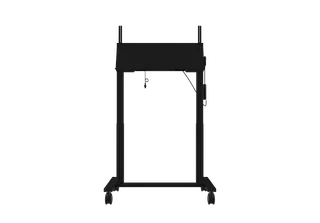

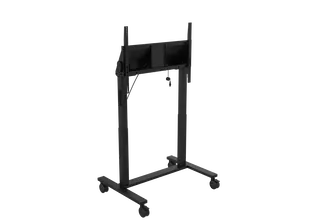

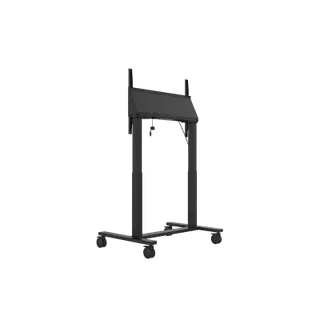

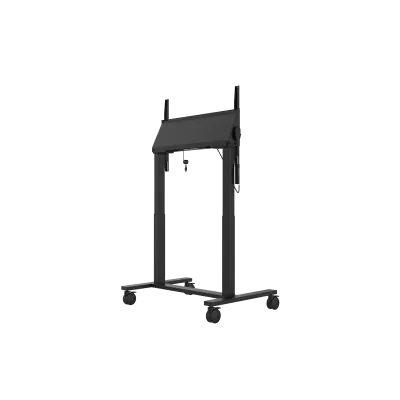

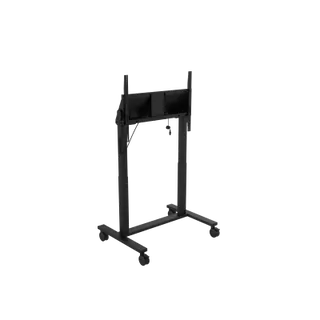

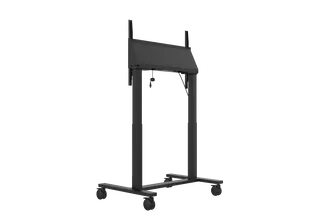

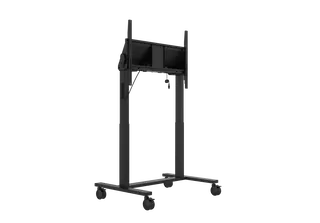

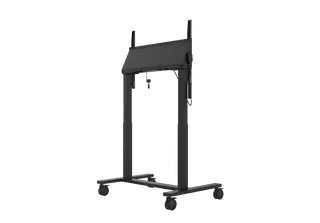

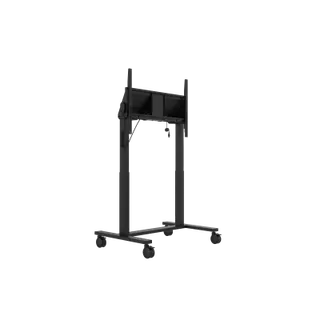

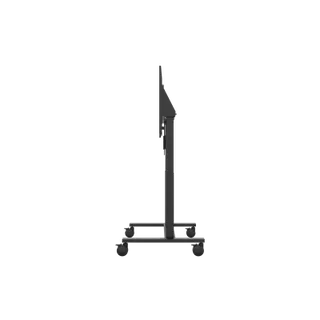

The Dahua PKC-MS1C is a motorised mobile stand designed to carry a large interactive panel on four castors, so it can be moved between classrooms, meeting rooms and training areas. Instead of fixing a heavy display to one wall, a school or office can wheel it to where it is needed and raise it to a comfortable height. The stand is built for the 55-inch, 65-inch, 75-inch and 86-inch sizes in the Dahua range.

Lifting is handled by a double motor, which raises or lowers the mounted panel across a 500 mm travel range. An anti-collision function is included to help avoid the panel striking objects or people during movement. Height can be adjusted from the control panel, a control pad, a wired hand controller or software, so the operator is not limited to one location.

Load, dimensions and mounting figures to check

• Largest bearing: 100.0 kg
• VESA pattern: 800 mm × 600 mm
• Assembled size: 1036 mm × 738 mm × 1231–1731 mm (length × width × height)
• Lifting distance and speed: 500 mm at 25 mm/s
• Net weight: 31.4 kg including wall mounts; gross weight 35.5 kg
• Castors: four 4-inch mute castors, colour black

Check the panel's rear VESA pattern and weight against these figures before ordering. The bracket system is intended to attach the display to the stand, and the 100.0 kg rating should be compared with the panel plus any attached accessories.

Where it fits in Qatar

A private school in Al Wakrah that wants one interactive panel to serve several classrooms in turn can use the stand to move it between rooms without fixing a new wall bracket in each. In Msheireb or West Bay, a company training room that hosts different teams each week can keep one 75-inch or 86-inch display in a shared room and reposition it for each session. In a university department in Education City, a lecture room can be reconfigured for workshops by moving the panel to the front of another space.

Planning the room before you order

The stand's operating temperature range is 0 °C to 40 °C, with humidity between 10% and 90% RH. Qatar summers regularly exceed 45 °C, so keep it in air-conditioned rooms rather than corridors, outdoor areas or spaces without cooling. Its input range of 100–240 VAC covers Qatar's 240 V supply, and the AC power cable is supplied already fitted. Because the stand weighs 31.4 kg before the panel is attached, confirm the floor is level and the route through doors and lifts is clear. SmartRooms Qatar offers free site surveys, so the route and room layout can be checked before delivery. Public schools and government bodies can order on a purchase order (LPO) or through a tender, and several units can be included in one quotation.

Request a quote from SmartRooms Qatar and we will confirm in the quotation how the stand matches your panel size and room layout. Quotations are usually issued within one working day.
