SP-PI5C75IS(Win 11 Pro Activated)

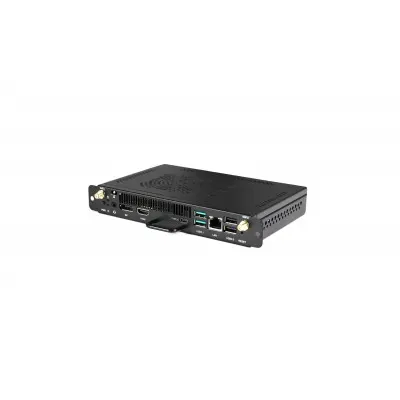

Dahua SP-PI5C75IS OPS Computer Module with Windows 11 Pro
- System
- Supports Windows 11 Pro or…
- Memory
- 16 GB
The Dahua SP-PI5C75IS is an OPS computer module that plugs into a compatible interactive display, so the screen runs meeting software without a separate PC. It carries an Intel i5-12450H processor, 16 GB of memory, a 512 GB SSD and Wi-Fi 802.11ax with Bluetooth 5.2. Its model name indicates Windows 11 Pro activation. It suits Qatari boardrooms, classrooms and training rooms that want a clean, single-unit setup. Request a quote.
What the SP-PI5C75IS is and how it works
The Dahua SP-PI5C75IS is an OPS (Open Pluggable Specification) computer module. Instead of sitting beside the display as a separate desktop, it fits into the OPS slot of a compatible interactive panel and runs the room's software from the screen itself. The model name indicates a unit supplied with Windows 11 Pro activated. The platform also supports operation without any operating system, which suits IT teams that want to install their own standard image.
Processing, memory and storage for daily meeting work
The module uses an Intel Alder Lake-H i5-12450H processor rated at up to 4.40 GHz, with 8 cores, 12 threads and 12 MB of Level 3 cache. Graphics are handled by integrated Intel UHD Graphics. Memory is 16 GB of DDR4 at 3200 MHz, and storage is a 512 GB 2280 SSD that supports both NVMe and SATA. Check these figures against the video conferencing client, collaboration whiteboard and screen-sharing tools you plan to run, so the room performs as expected from the first meeting.
Ports, display outputs and wireless connectivity
- Video: 1 x HDMI 1.4 output (up to 4K at 30 Hz) and 1 x DisplayPort 1.2 output (up to 4K at 60 Hz)
- USB: 2 x USB 3.1, 2 x USB 2.0 and 1 x USB 3.1 Type-C
- Network: 1 x RJ-45 at 10/100/1000 Mbps for wired connections
- Audio: 1 x combined line-out and microphone-in connector
- Wireless: 802.11a/b/g/n/ac/ax Wi-Fi with two antennas supplied, plus Bluetooth 5.2
For a room that needs smooth 4K motion, the DisplayPort output is the better choice, because the HDMI output is limited to 4K at 30 Hz. Confirm which input your panel uses before the cabling is planned.
Where it fits in Qatar
In a West Bay boardroom, the module lets executives join calls with teams in Europe and Asia from a single screen, with no PC sitting on the table. In a private school in Al Wakrah, a classroom fitting out with a new panel can run lessons, video and browser-based tools without a dedicated teacher computer. In a Lusail hotel meeting room, staff can reset the unit quickly between events using the recessed reset button on the front. In an Education City training centre, a shared display can serve several sessions a day from one configured unit.
What to plan for before installation
- Confirm the host panel has a free OPS slot and supports the 80-pin JAE interface used by this module.
- Operating voltage is 12 to 19 VDC. Typical power use is 53 W, maximum 58.8 W, and standby draw is 0.8 W.
- The stated operating temperature range is -5 °C to +45 °C, with 10% to 90% non-condensing humidity. Qatar summers can exceed 45 °C, so review ventilation and placement, especially near windows or in unshaded lobbies.
- Dimensions are 119 x 180 x 30 mm, net weight 0.75 kg, in a black SGCC casing.
- The box includes two antennas, two M3 screws, one desiccant pack and a user's manual.
SmartRooms Qatar supplies the module, delivers it to all eight municipalities of Qatar and arranges professional installation. A free site survey lets our team check the panel, the room and the environment before anything is fixed in place. Products are covered by the manufacturer's warranty. Request a quote with your panel model and room layout, and the SmartRooms Qatar team will confirm compatibility and send a quotation, usually within one working day.
Highlights
- Intel i5-12450H processor, up to 4.40 GHz
- 16 GB DDR4 3200 MHz memory and 512 GB SSD
- HDMI 1.4 (4K at 30 Hz) and DisplayPort 1.2 (4K at 60 Hz)
- 802.11ax Wi-Fi and Bluetooth 5.2 built in
- Operating range -5 °C to +45 °C, non-condensing humidity
- Supports Windows 11 Pro or no operating system
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Function9
- Processor
- Intel® Alder lake-H i5-12450H, 4.40 GHz
- Chip
- SOC
- BIOS
- AMI UEFI BIOS
- Integrated Graphics Card
- Intel® UHD Graphics for 12th Gen Intel® Processors
- Sound Card
- Realtek ALC897
- Memory
- 16 GB
- Disk
- 512 GB
- Button
- Front, 1 × power button, 1 × resetting button (recessed socket)
- Operating System
- Supports Windows 11 Pro or without any operating system.
function3
- Number of Cores
- 8
- Number of Threads
- 12
- Level 3 Cache
- 12 MB
Device Ports16
- Power
- 1 × DC IN
- Network Port
- 1 × RJ-45 (10/100/1000 Mbps)
- USB
- 2 × USB 3.1, 2 × USB 2.0
- Type-C Port
- 1 × USB 3.1 Type-C
- DP
- 1 × DP1.2 out, Max.4K/60 Hz
- HDMI
- 1 × HDMI 1.4 out, Max.4K/30 Hz
- Audio Port
- 1 × Line-out and MIC-In, 2-in-1 Connector
- Wi-Fi
- Yes
- Extension Interface
- 1 × 80 pin JAE port
- Wi-Fi Standard
- 802.11a/b/g/n/ac/ax
- Wi-Fi Frequency Range
- 2400-2483.5 MHz, 5170-5330 MHz, 5490-5730 MHz, 5730-5835 MHz
- MAX Power Transmission (Wi-Fi)
- CE EIRP: ≤20 dBm@2400; ≤23 dBm@5150-5250 MHz; ≤23 dBm@5250-5350 MHz; ≤23 dBm@5470-5650 MHz; ≤23 dBm@5650-5725 MHz; ≤14 dBm@5725-5850 MHz
- Bluetooth
- Yes
- Bluetooth Standard
- BRIEF Bluetooth5.2
- Bluetooth Frequency Range
- 2400–2483.5 MHz
- MAX Power Transmission (Bluetooth)
- CE EIRP: ≤20 dBm@2400–2483.5 MHz;
Power3
- Operating Voltage
- 12–19 VDC
- Standby Power Consumption
- 0.8 W
- Power Consumption
- Typ: 53 W; Max: 58.8 W
Environment4
- Operating Temperature
- –5 °C to +45 °C (+23 °F to +113 °F)
- Operating Humidity
- 10%–90%, non-condensing
- Storage Temperature
- –20 °C to +70 °C (–4 °F to +158 °F)
- Storage Humidity
- 10%–90%, non-condensing
Structure7
- Casing Material
- SGCC
- Product Dimensions
- 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
- Packaging Dimensions
- 254 mm × 196 mm × 77 mm (10.00" × 7.72" × 3.03") (L × W × H)
- Net Weight
- 0.75 kg (1.65 lb)
- Gross Weight
- 0.95 kg (2.09 lb)
- Casing Color
- Black
- Accessory
- 2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user's manual
Certifications1
- Certifications
- CE, Energy Star
