SP-PI5C82IS(Win 11 Pro Activated)
Dahua SP-PI5C82IS(Win 11 Pro Activated) OPS Computer Module
- System
- Supports Windows 11 Pro or…
- Memory
- 8 GB
The Dahua SP-PI5C82IS is an Open Pluggable Specification computer module that fits a compatible interactive flat panel and gives it its own Intel i5-12450H processor, 8 GB of DDR4 memory and a 256 GB SSD. It offers 4K DisplayPort output, gigabit Ethernet, Wi-Fi and Bluetooth 5.2. It suits schools, ministries and boardrooms in Doha and Lusail that want applications running on the panel itself. Request a quote.
An OPS computer that sits inside the panel

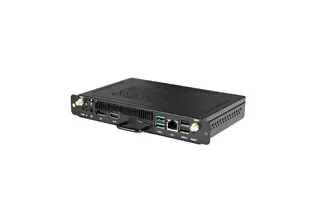

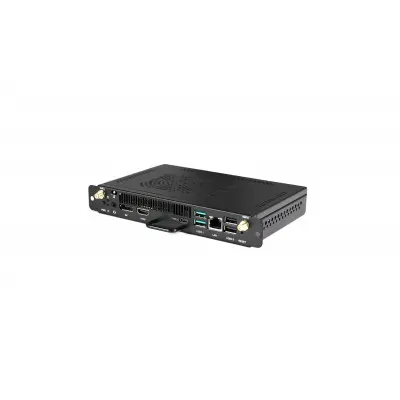

The Dahua SP-PI5C82IS is an Open Pluggable Specification (OPS) computer module. It slides into a matching slot on a compatible interactive flat panel, so the display runs its own software without a separate desktop PC, extra cabling across the room or a box to hide. The model code reads Win 11 Pro Activated, and the manufacturer states support for Windows 11 Pro or for use with no operating system at all. Confirm which operating system your order includes before you buy.
Processing, memory and storage
The module uses an Intel i5-12450H processor from the Alder Lake-H family, rated up to 4.40 GHz, with 8 cores, 12 threads and 12 MB of Level 3 cache. Integrated Intel UHD Graphics for 12th Gen processors handle the picture. Memory is 8 GB of DDR4 running at 3200 MHz, and storage is a 256 GB 2280 SSD that accepts NVMe or SATA. That is enough for presentation files, whiteboard sessions and approved meeting applications, but not for large local video libraries.
Video, networking and ports
Video leaves the module through one DisplayPort 1.2 output, rated for 4K at 60 Hz, and one HDMI 1.4 output, rated for 4K at 30 Hz. Use DisplayPort where a second screen needs the smoother 60 Hz signal. Wired networking runs through one RJ-45 port at 10/100/1000 Mbps. Wireless covers 802.11a/b/g/n/ac/ax and Bluetooth 5.2, with two antennas included. Peripherals connect through two USB 3.1 ports, two USB 2.0 ports and one USB 3.1 Type-C port. Audio uses a combined line-out and microphone-in connector driven by a Realtek ALC897 sound card. A single 80-pin JAE extension port is also fitted, so check its mating with your panel model before ordering.
Where it fits in Qatar
A private school in Al Wakrah fitting out new Arabic and English classrooms can give each panel its own PC functions, so teachers do not rely on a shared computer at the back of the room. In a ministry boardroom in West Bay, the wired RJ-45 port can carry the panel's network connection while guests use Wi-Fi on the same panel. A training centre in Education City running a series of workshops can keep the same configuration in every room, which simplifies support.
Planning power, cooling and installation
- Operating voltage is 12–19 VDC, with typical draw of 53 W and a maximum of 58.8 W.
- Standby consumption is 0.8 W.
- Rated operating temperature is –5 °C to +45 °C, with 10%–90% non-condensing humidity. In Qatar summers, confirm that the room is air-conditioned and that the panel is not exposed to direct sun or dust from a window.
- The module measures 119 mm × 180 mm × 30 mm and weighs 0.75 kg net.
Because the module runs on a DC supply within 12–19 V, confirm with the SmartRooms Qatar team how your panel provides that power before ordering. A free site survey lets us check the panel's slot and the room conditions before installation. The module carries CE and Energy Star certifications. Send your panel model and room details and request a quote for the SP-PI5C82IS. Quotations are usually returned within one working day.
Highlights
- Intel i5-12450H processor, rated up to 4.40 GHz
- 8 GB DDR4 3200 MHz memory and 256 GB SSD storage
- 4K/60 Hz DisplayPort 1.2 and 4K/30 Hz HDMI 1.4 outputs
- Wi-Fi 802.11ax and Bluetooth 5.2 connectivity
- Operating range –5 °C to +45 °C, 10%–90% humidity
- CE and Energy Star certified with black SGCC casing
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Function9
- Processor
- Intel® Alder lake-H i5-12450H, 4.40 GHz
- Chip
- SOC
- BIOS
- AMI UEFI BIOS
- Integrated Graphics Card
- Intel® UHD Graphics for 12th Gen Intel® Processors
- Sound Card
- Realtek ALC897
- Memory
- 8 GB
- Disk
- 256 GB
- Button
- Front, 1 × power button, 1 × resetting button (recessed socket)
- Operating System
- Supports Windows 11 Pro or without any operating system.
function3
- Number of Cores
- 8
- Number of Threads
- 12
- Level 3 Cache
- 12 MB
Device Ports16
- Power
- 1 × DC IN
- Network Port
- 1 × RJ-45 (10/100/1000 Mbps)
- USB
- 2 × USB 3.1, 2 × USB 2.0
- Type-C Port
- 1 × USB 3.1 Type-C
- DP
- 1 × DP1.2 out, Max.4K/60 Hz
- HDMI
- 1 × HDMI 1.4 out, Max.4K/30 Hz
- Audio Port
- 1 × Line-out and MIC-In, 2-in-1 Connector
- Wi-Fi
- Yes
- Extension Interface
- 1 × 80 pin JAE port
- Wi-Fi Standard
- 802.11a/b/g/n/ac/ax
- Wi-Fi Frequency Range
- 2400-2483.5 MHz, 5170-5330 MHz, 5490-5730 MHz, 5730-5835 MHz
- MAX Power Transmission (Wi-Fi)
- CE EIRP: ≤20 dBm@2400; ≤23 dBm@5150-5250 MHz; ≤23 dBm@5250-5350 MHz; ≤23 dBm@5470-5650 MHz; ≤23 dBm@5650-5725 MHz; ≤14 dBm@5725-5850 MHz
- Bluetooth
- Yes
- Bluetooth Standard
- BRIEF Bluetooth5.2
- Bluetooth Frequency Range
- 2400-2483.5 MHz 2400–2483.5 MHz
- MAX Power Transmission (Bluetooth)
- CE EIRP: ≤20 dBm@2400–2483.5 MHz;
Power3
- Operating Voltage
- 12–19 VDC
- Standby Power Consumption
- 0.8 W
- Power Consumption
- Typ: 53 W; Max: 58.8 W
Environment4
- Operating Temperature
- –5 °C to +45 °C (+23 °F to +113 °F)
- Operating Humidity
- 10%–90%, non-condensing
- Storage Temperature
- –20 °C to +70 °C (–4 °F to +158 °F)
- Storage Humidity
- 10%–90%, non-condensing
Structure7
- Casing Material
- SGCC
- Product Dimensions
- 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
- Packaging Dimensions
- 254 mm × 196 mm × 77 mm (10.00" × 7.72" × 3.03") (L × W × H)
- Net Weight
- 0.75 kg (1.65 lb)
- Gross Weight
- 0.95 kg (2.09 lb)
- Casing Color
- Black
- Accessory
- 2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user's manual
Certifications1
- Certifications
- CE, Energy Star
