S02EMS5CA21B

A built-in computer for compatible Hisense panels

The Hisense S02EMS5CA21B is an OPS on-board computer: a compact PC module that plugs into the OPS slot of a compatible Hisense interactive display. Once fitted, the panel runs its own Windows 11 Pro environment, so presenters and teachers do not need a separate desktop or laptop cabled to the screen. Hisense has discontinued this model. It remains relevant to organisations that already own it and to buyers who need a matching module for an existing panel. For new purchases, request a quote for a current equivalent.

Specifications that matter for planning

The module is built around a 12th generation Intel Core i5-12450H processor and ships with 16GB of RAM and a 256GB SSD. The source data lists support for M.2 SATA and NVMe storage, TPM encryption and memory expansion up to 32GB. Wireless connectivity is WiFi 6 and Bluetooth 5.2, and an integrated 10/100/1000M network port handles wired connections.

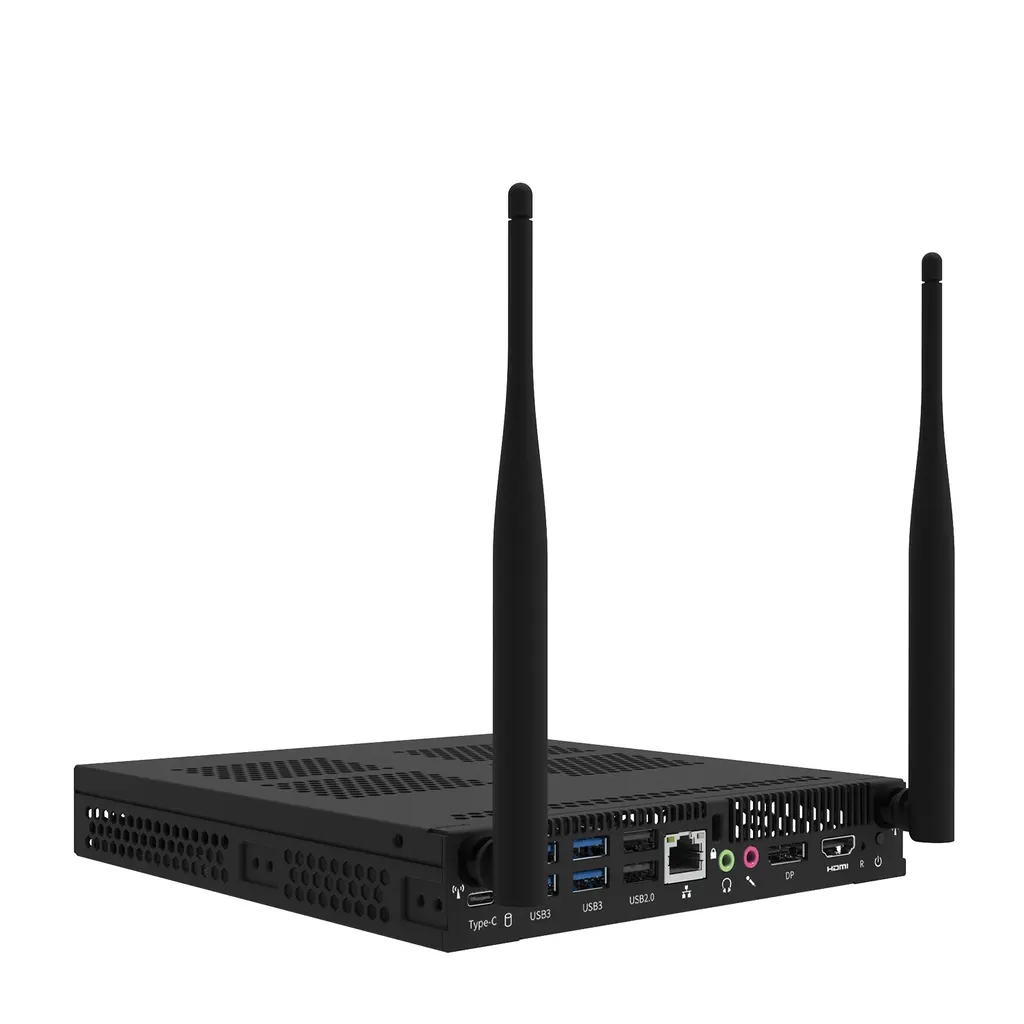

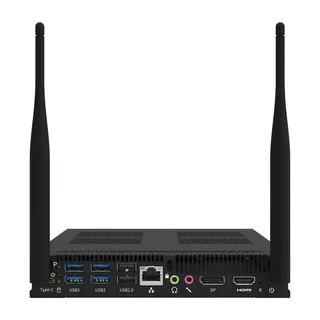

On the connection side, the module provides:

• Four USB 3.0 ports and two USB 2.0 ports
• One HDMI output (version 2.0) and one DisplayPort output (version 1.2)
• One microphone input and one line output

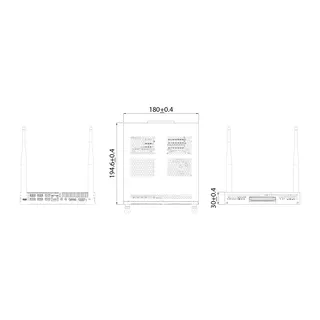

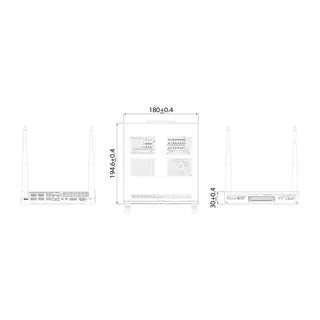

The unit measures 180 x 195 x 30 mm and weighs 1.4 kg. Its power input is listed as 12V to 19V DC, with a maximum draw of 90W and a standby draw of 0.5W. It is black.

Environmental limits and what they mean in Qatar

The operating range is 0°C to 40°C with 10% to 90% humidity, and storage is rated from -20°C to 60°C. Outdoor summer temperatures in Qatar regularly pass 45°C, so the room housing the panel needs dependable air conditioning and the module needs clear airflow. Confirm the installation environment before ordering; the SmartRooms Qatar team can check the room during a free site survey.

Where it fits in Qatar

A private school in Al Wakrah refitting its science and computing rooms could fit one module to each compatible panel, so each lesson starts from the screen instead of a shared laptop trolley. A consultancy in West Bay that holds hybrid meetings with colleagues in Riyadh and London could place the module in a boardroom panel and run video calls and shared files on the display itself. A hotel or retail venue in Lusail using a large display as a wayfinding screen could manage content locally, provided its software runs on Windows 11 Pro.

What to plan before you order

• Panel match: the source lists compatible models 65MR6DE, 75MR6DE, 86MR6DE, 65MR6DE-E, 75MR6DE-E, 86MR6DEE, 65MR61DE-E, 75MR61DE-E, 86MR61DE-E and 86X1EE. Check your panel's model number against this list.
• Ports: confirm you need the single HDMI and single DisplayPort output for a second screen or signage feed.
• Power and heat: plan for up to 90W and keep the module inside its 0°C to 40°C range.
• Software: check that your management, security and teaching applications run on Windows 11 Pro before deployment.

Because this model is discontinued, ask for a quote that compares it with a current compatible replacement. Quotations usually arrive within one working day. Orders can be placed by purchase order or LPO, including government tenders through Monaqasat, and paid by bank transfer or cheque. Request a quote from SmartRooms Qatar and we will confirm which option suits your panel and site.
