S02EMS7CA51B

What the Hisense S02EMS7CA51B is

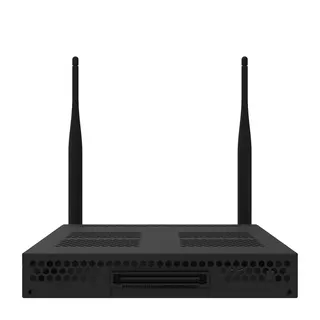

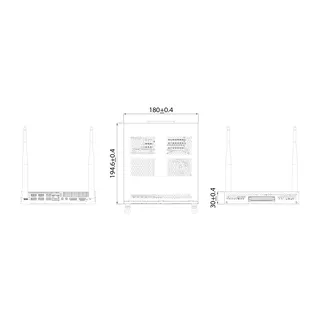

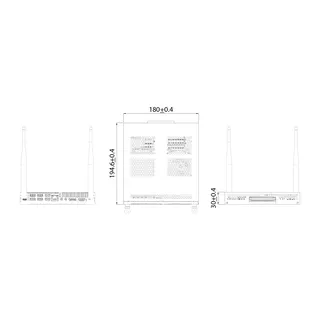

The Hisense S02EMS7CA51B is an OPS on-board computer, a compute module that slides into the Open Pluggable Specification slot of compatible Hisense interactive displays. Once fitted, the panel runs its own Windows computer, so teachers and presenters do not need a separate PC on the desk. This version is built around an Intel Core i7-12650H processor and ships with 16GB of RAM, a 512GB SSD and Windows 11 Pro. At 180 x 195 x 30 mm and 1.4 kg, the module is a compact unit.

This model is discontinued. Hisense has discontinued the S02EMS7CA51B. This page serves organisations that already run it, buyers comparing it with other OPS modules, and anyone who needs a replacement. Request a quote and the SmartRooms Qatar team will recommend a current equivalent or a compatible replacement for your display.

Processing, memory, ports and connectivity

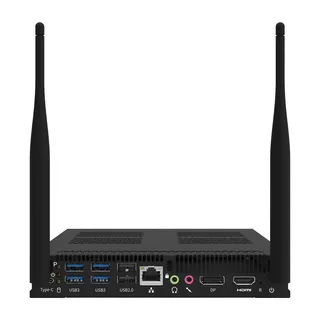

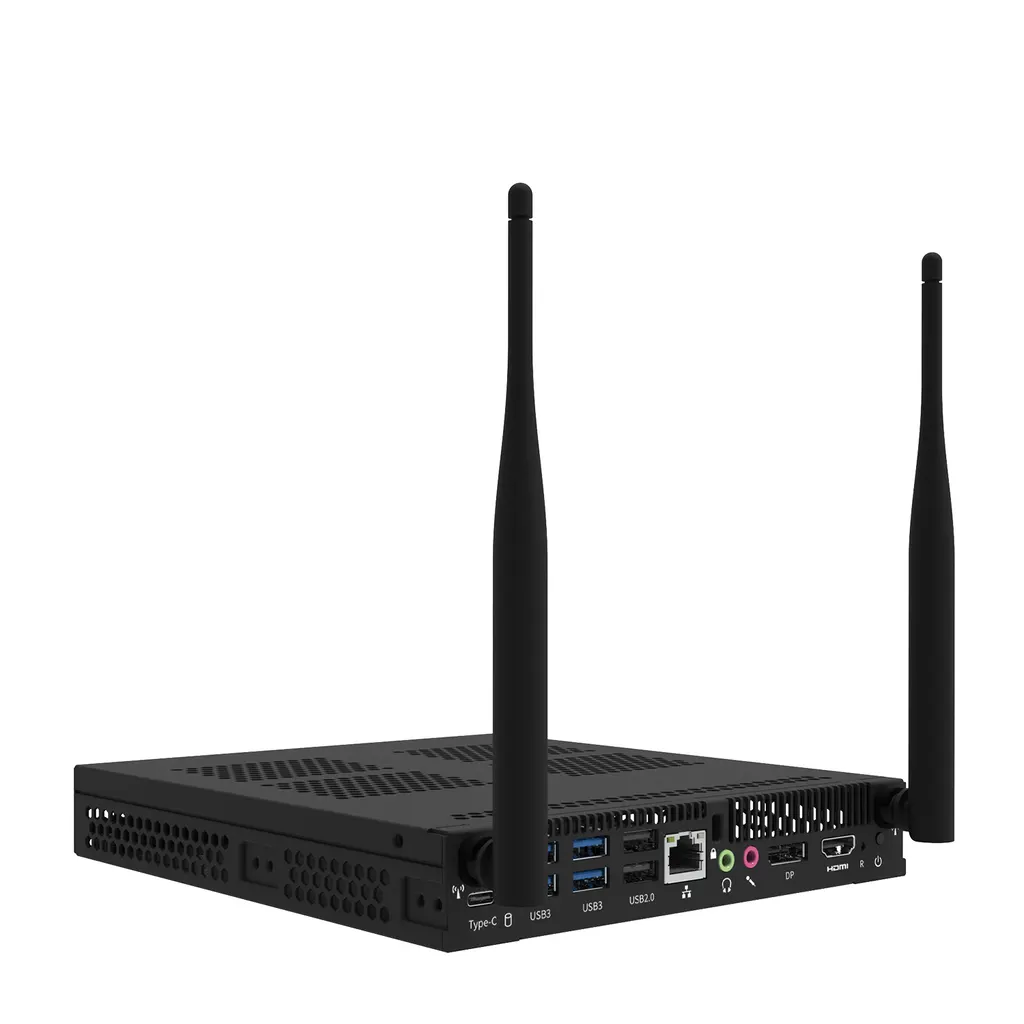

The Intel Core i7-12650H suits presentation software, browsers, whiteboard apps and video conferencing clients. Memory starts at 16GB and can be expanded to a maximum of 32GB. Storage is a 512GB SSD that supports M.2 SATA and M.2 NVMe drives, with TPM encryption listed for stored data. The module has four USB 3.0 ports, two USB 2.0 ports, one HDMI output (version 2.0), one DisplayPort output (version 1.2), a microphone input and a line output. Networking covers an integrated 10/100/1000M LAN port, Wi-Fi 6 (IEEE 802.11ax) and Bluetooth 5.2. There is no VGA port.

Where it fits in Qatar

A private school in Al Wakrah. Classrooms fitted with 65-inch or 75-inch compatible displays let teachers start lessons from the panel itself. Every room runs the same Windows 11 Pro setup, which keeps technical support consistent across a campus.

A boardroom in West Bay. An 86-inch compatible display suits meetings with teams abroad, with wired LAN or Wi-Fi 6 for the network connection. Check the room's microphone and speaker connections against the module's microphone input and line output before installation.

A hotel lobby in The Pearl. The panel can run digital signage content without a separate computer behind the screen. Lobbies see frequent door openings, so confirm the air temperature before mounting.

Planning heat, power and installation in Qatar

The rated operating range is 0°C to 40°C at 10% to 90% humidity, and storage is rated from -20°C to 60°C. Outdoor temperatures in Qatar regularly pass 45°C in summer, so install the display in an air-conditioned room and confirm conditions with the SmartRooms Qatar team first. The module takes a 12V to 19V DC input, draws a maximum of 90W and uses 0.5W on standby. Check your display model against the compatible list: 65MR6DE, 75MR6DE, 86MR6DE, 65MR6DE-E, 75MR6DE-E, 86MR6DEE, 65MR61DE-E, 75MR61DE-E, 86MR61DE-E and 86X1EE. A free site survey checks the wall, cable routes and power arrangement.

The module is covered by the manufacturer's warranty. SmartRooms Qatar supplies it, delivers to all eight municipalities of Qatar and offers professional installation, with quotations usually issued within one working day. Public bodies can order through purchase orders (LPOs) or government tenders, including Monaqasat, and pay by bank transfer, cheque or purchase order.

To request a quote, send the display model you own or plan to buy, the number of rooms and any notes on room conditions, and the SmartRooms Qatar team will confirm the right module for your installation.
