65-inch InfinityBoard 2.1

What this discontinued all-in-one collaboration display is for

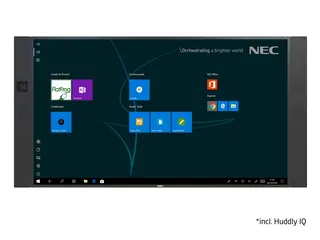

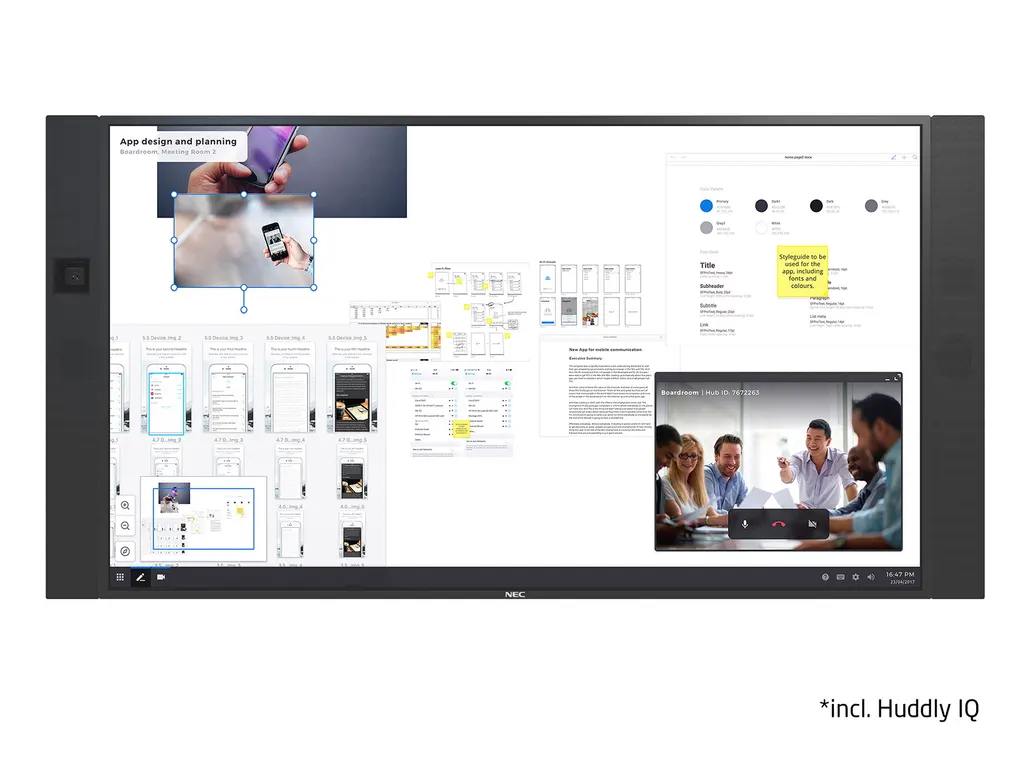

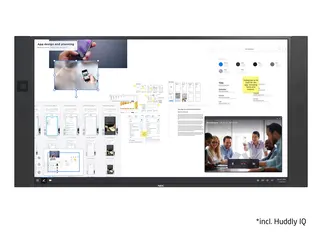

This 65-inch all-in-one unit brings together a 4K touch panel, a video conferencing camera, conference speakers and an integrated computer. NEC has discontinued this model, so this page is written for organisations that already run one, buyers comparing it with other collaboration displays, and anyone who needs a replacement. Request a quote for a current equivalent or a compatible replacement.

Display, touch and writing performance

The panel uses a VA layer with direct LED backlighting and a native 3840 x 2160 resolution. It is rated at 500 cd/m² and ships set to 350 cd/m². Typical contrast is 4000:1, and viewing angles are rated at 178 degrees in both directions, so people seated off to the side still see clear content. The InGlass touch layer handles up to 20 simultaneous touches within 15 ms and responds to fingers, gloves and styluses of 2 mm or more. A 3 mm anti-glare toughened front passes 88 percent of light and reduces reflections in bright rooms.

Camera, speakers and the slot-in computer

The Huddly IQ camera outputs 1080p at 30 fps with a 150-degree diagonal field of view, 3x lossless digital zoom and Genius Framing, which keeps participants in shot as they move around. The camera has no microphone, so audio pickup depends on how the room is set up. The side-mounted speakers accept up to 40 W. The slot-in PC uses an Intel Core i7 processor, 8 GB of DDR4 memory, a 128 GB SSD and Windows 10 Professional, with 802.11ac Wi-Fi and Bluetooth 4.2. Because it is an OPS module, it can be swapped separately from the panel.

Where it fits in Qatar meetings

• Government meeting rooms: a department team in Msheireb reviewing bilingual documents with colleagues joining from other sites, while several presenters share from their own devices through Mosaic Connect, which is included.
• University seminar rooms: a research group in Education City marking up shared files on the screen with the pens, with palm rejection so hands can rest on the glass.
• Boardrooms in West Bay: a finance or executive team meeting with partners abroad. The 65-inch size suits small and mid-sized rooms rather than lecture halls, where an 86-inch panel would give more reach.

What to plan before installation

Without its stand the unit weighs 64.4 kg and measures 1,721.3 x 897 x 86 mm, so plan for at least two people to lift it and use a wall or trolley that can carry the load. The rear uses 400 x 400 and 600 x 400 VESA patterns with M8 holes. NEC lists the BalanceBox 400 HEAVY and PD02W T L L wall mounts and three trolleys as accessories, so confirm which fit your wall or floor in the quotation. A free site survey from SmartRooms Qatar lets the team check structure, cable routes and access before installation.

The rated operating range is 0 to +35 °C at 20 to 80 percent humidity, and the front is rated IP5x. Qatar summers can push rooms past that range, so place the unit only in air-conditioned indoor spaces, keep vents clear and confirm conditions with the SmartRooms Qatar team before ordering. Rated consumption is 242 W in the shipment Eco setting, and NEC lists a 3-year warranty that includes the backlight.

To check whether a current equivalent or a compatible replacement suits your room, request a quote from SmartRooms Qatar and send your room size, mounting plan and connection needs.
