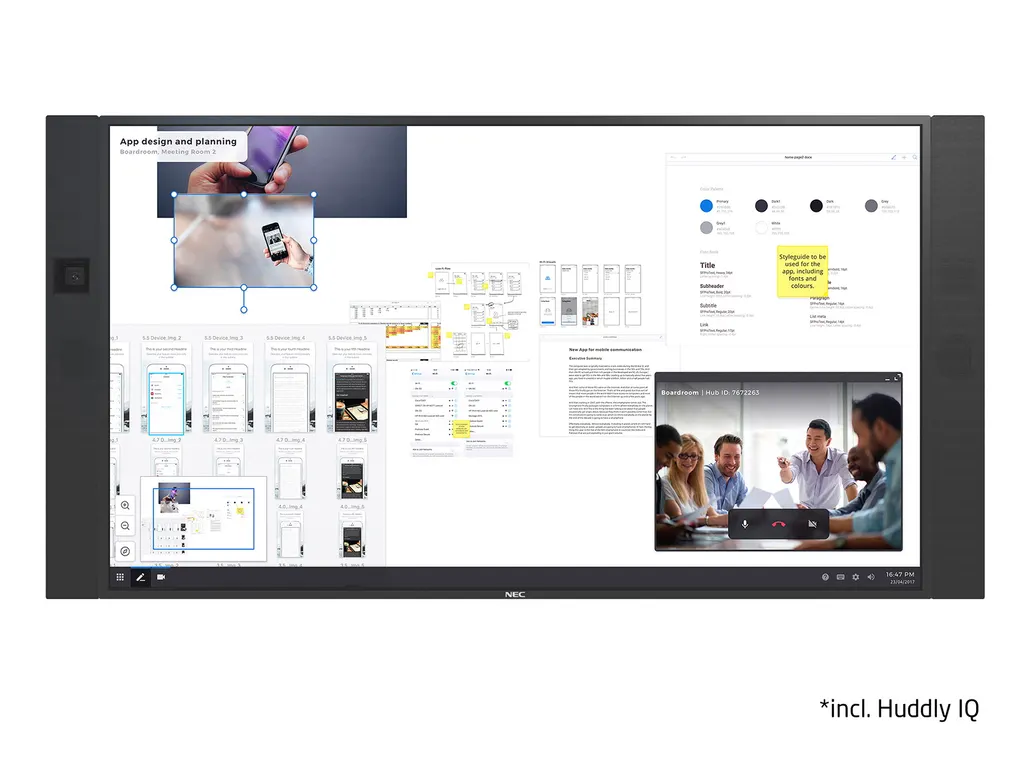

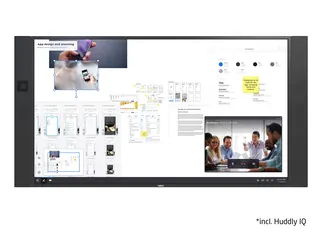

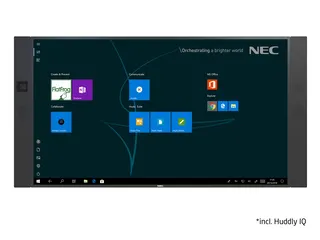

86-inch InfinityBoard 2.1
NEC 86-inch InfinityBoard 2.1 Interactive Collaboration Display
- Screen size
- 86 / 217
- Resolution
- 3840 x 2160
- Touch
- InGlass™
- System
- Microsoft Windows 10 Professional
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The NEC 86-inch InfinityBoard 2.1 is a discontinued all-in-one collaboration display, so the manufacturer no longer supplies it. It combines a 3840 x 2160 InGlass touch panel supporting up to 20 touches, an integrated Huddly IQ camera, side speakers, and an OPS slot-in PC running Windows 10 Professional. Organisations already running it, or comparing against newer boards, can request a quote for a current equivalent from SmartRooms Qatar.
What the NEC 86-inch InfinityBoard 2.1 is
The InfinityBoard 2.1 is an all-in-one collaboration display built around an 86-inch IPS panel, designed for meeting rooms where one large surface handles brainstorming, document review and video calls. NEC has discontinued this model, so this page is written for owners, for buyers comparing it with other large boards, and for anyone who needs a replacement.
Touch and display performance
The panel offers 3840 x 2160 resolution and a typical contrast ratio of 1200:1, rated at 500 cd/m² with the shipment setting at 350 cd/m². The InGlass touch layer supports up to 20 simultaneous touches, accepts fingers, gloves and styluses of 2 mm or more, and works with Windows Ink. Its anti-glare toughened glass transmits 88% of light. The specification lists palm rejection as not supported, so confirm this before comparing it with other boards.
Camera, speakers and slot-in PC
The integrated Huddly IQ camera records 1080p at 30 fps across a 150-degree diagonal view and offers 3x lossless digital zoom. It has no microphone, so audio comes from conference speakers rated at 40 W input. The OPS slot holds a slot-in PC with an Intel i7-7820EQ processor, 8 GB of DDR4 memory and Windows 10 Professional. The panel provides three HDMI and two DisplayPort inputs, four USB 3.0 hub ports, and RS232 and LAN control.
Where this 86-inch board fits in Qatar
An 86-inch screen suits boardrooms and lecture halls rather than small huddle spaces. Typical settings include:
- Boardrooms in West Bay or Msheireb, where a review board displays documents and joins a video call in the same session.
- Seminar rooms in Education City, where students present on the panel while remote partners join through the camera.
- Engineering meeting rooms in Mesaieed or Ras Laffan, where drawings are marked up while colleagues abroad join the call.
Installation, environment and warranty
Operating temperature is rated 0 to +35°C with 20 to 80% humidity. Summer temperatures in Qatar can exceed 45°C, so install the board in an air-conditioned room away from lobby sun and window-facing walls. The board weighs 91.7 kg and measures 2,192 x 1,142 x 86 mm without its stand, so plan a structurally sound wall, extra hands for lifting and a free site survey. It supports 400 x 400 and 600 x 400 FDMI patterns with M8 holes. The manufacturer's warranty covers three years including the backlight, with optional fourth and fifth year extensions.
Because this model is discontinued, SmartRooms Qatar can quote a current equivalent or a compatible replacement, usually within one working day. Purchase orders and government tenders are accepted. Request a quote with your room size, mounting wall and video platform, and we will recommend the closest option.
Highlights
- 86-inch IPS panel at 3840 x 2160 native resolution
- InGlass touch with up to 20 simultaneous touches
- Integrated Huddly IQ camera, 1080p at 30 fps
- OPS slot-in PC with Windows 10 Professional
- Three-year manufacturer warranty including backlight
- Discontinued by NEC; quotes available for current equivalents
Classroom fit
At 86″ the farthest student should sit within about 6.4 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
91 specifications · Source: manufacturer · checked Oct 2026
Product Information3
- Product Name
- NEC 86″ InfinityBoard® 2.1
- Product Group
- LCD 86" All-in-One Collaboration Solution
- Order Code
- 40001305
Display10
- Panel Technology
- IPS with Edge LED backlights
- Active Screen Area (W x H) [mm]
- 1,895 x 1,065.9
- Screen Size [inch/cm]
- 86 / 217
- Brightness [cd/m²]
- 500, 350 (shipment setting)
- Contrast Ratio (typ.)
- 1200:1
- Viewing Angle [°]
- 178 / 178 (at contrast ratio > 10:1)
- Colour Depth [bn]
- 1.073 (10bit)
- Response Time (typ.) [ms]
- 8 (grey-to-grey)
- Haze Level [%]
- Pro (28)
- Supported Orientation
- Face Up 1; Landscape; Portrait
Touch9
- Touch Technology
- InGlass™
- Number of Touches
- Real multi-touch up to 20 touches
- Response Time [ms]
- ≤ 15
- Touch Method
- Finger; Gloves; Stylus (≥ 2 mm)
- Supported Operating System
- Native Multi-Touch: Windows 7-11, Linux, Android; Default Mouse: Windows XP and Vista, Mac OS
- Data Interface
- USB-HID
- Accuracy [mm]
- < 1
- Windows Ink
- Yes
- Palm Rejection
- No
Protective Glass3
- Type
- Premium toughened glass, anti-glare coating
- Thickness [mm]
- 3
- Light Transmission [%]
- 88 (+/- 1 %)
Resolution2
- Native Resolution
- 3840 x 2160
- Supported Resolutions
- 1920 x 1080; 1920 x 2160; 3840 x 2160; 4096 x 2160
Synchronisation Rate2
- Horizontal Frequency [kHz]
- 31.5 - 91.1
- Vertical Frequency [Hz]
- 24 - 85
Connectivity9
- Input Video Digital
- 2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
- Input Audio Analogue
- 1 x 3,5 mm jack
- Input Audio Digital
- 2 x DisplayPort; 3 x HDMI
- Input Control
- 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
- Input Data
- 1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
- Output Video Digital
- 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
- Output Audio Analogue
- 1 x 3,5 mm jack
- Output Control
- 1 x LAN 100Mbit
- USB Hub
- 4x USB 3.0
Open Modular Intelligence3
- OPS Slot
- Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
- OPS Max. Current / Power Consumption [A / W]
- 4.7 / 75
- Compute Module Slot
- Slot Technology: Compute Module 3 Slot (NEC proprietary standard)
Sensors2
- Human Sensor
- Optional, external, 4-5m range, triggered actions programmable
- Temperature Sensor
- Integrated, 3 sensors, triggered actions programmable
Electrical3
- Power Consumption [W]
- 242 shipping
- Power Savings Mode [W]
- < 0.5; < 2 (Networked Standby)
- Power Management
- VESA DPMS
Environmental Conditions2
- Operating Temperature [°C]
- +0 to +35
- Operating Humidity [%]
- 20 to 80
Mechanical7
- Dimensions (W x H x D) [mm]
- Without stand: 2,192 x 1,142 x 86
- Weight [kg]
- 91.7
- Bezel Width [mm]
- 19.8 (top/bottom); 20.3 (left/right)
- VESA Mounting [mm]
- 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
- Ingress Protection
- IP5x (front); IP2x (back)
- Packaging Dimensions (W x H x D) [mm]
- Box 1: 2,157 x 320 x 1,290; Box 2: 1,400 x 250 x 250
- Packaging Weight [kg]
- Box 1: 98; Box 2: 10.1
MediaPlayer4
- Supported File Storage / File System
- MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
- Supported Image Formats
- JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
- Supported Video Formats
- MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
- Supported Audio Formats
- MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Video Conference Camera8
- Camera Model
- Huddly IQ (no microphone)
- Viewing Angle [°]
- 150 diagonal / 120 horizontal / 90 vertical
- Resolution
- Output HD 1080p 30fps
- Aspect Ratio
- 16:9
- Optical Capabilities
- Digital Pan / Tilt / Zoom with 3x lossless digital zoom
- Driver
- Plug&Play, driverless install
- Connectivity
- SuperSpeed USB
- Software Specification
- 3D noise reduction; 3DNR sensor-model-based visual noise reduction; Flicker elimination; Genius Framing; High-quality video scaling and dewarping; Huddly InSights analytics API; Optical aberration correction; Robust automatic white balance; Spatio-temporal noise filtering
Conference Speakers4
- Input (max.) [W]
- 40
- Rated Speaker Impedance [Ω]
- 8
- Frequency Response Rate [Hz-kHz]
- 70 to 15
- Sound Pressure Level [dB]
- 82.1 (2.83 V)
OPS Slot-In PC10
- CPU
- Intel® i7-7820EQ 4 x 3 GHz base frequency (up to 3.7 GHz turbo mode)
- Graphics
- 630 integrated Gen9-LP graphics controller
- SSD
- up to 2 M.2 SSD (SATA), 128 GB
- RAM
- 8 GB (DDR4), dual channel mode
- Operating System
- Microsoft Windows 10 Professional
- Interfaces Frontside
- 1 x Micro Sim Card; 1 x USB 2.0; 1 x USB 3.1 Gen1 Type C; 2 x Antenna for WiFi; 2 x DisplayPort 1.2 ++; 2 x USB 3.0; RJ45 10 / 100 / 1000 Mbps
- Interfaces Backside
- Internal HDMI 1.4 or DisplayPort 1.2; Internal OPS interface to OPS slot-in PC (JAE 80-pin connector)
- Wi-Fi
- Intel Dual Band Wireless-AC 8260 802.11ac, dual band; Wi-Fi and bluetooth 4.2 adapter
- Security
- TPM (Trusted Platform Module)
- EDID/DDC Support
- Internal OPS Interface DisplayPort up to 4096 x 2160 at 60 Hz
Available Software2
- Free Software Included
- Mosaic Connect
- Software
- FlatFrog Whiteboard; Hoylu (single user license); Windows 10 Professional
Available Options2
- Accessories
- Trolley (PD02MHA, PD03MHA); Wall mount (BalanceBox 650 MEDIUM, PDW T XL-2)
- Compute Module Slot
- NEC Compute Module; Raspberry Pi Compute Module 1 and 3
Regulatory1
- Safety and Ergonomics
- CE; EAC; EMC Class B; FCC; RCM; REACH; RoHS; UL/C-UL
Green Features1
- Energy Efficiency
- Carbon Savings Meter; ECOMode; Local Dimming
Additional Features4
- Special Characteristics
- 12-bit Look Up table; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2 - free download; OmniColor Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Scheduler; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log
- Shipping Content
- 1x 10 cm USB Cable; 2 x Stylus; 2x 300 cm USB Cable; Cable Clamps; CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Huddly Camera; OPS Slot-in PC; Power Cable; Remote Control; Side-mounted Speakers
- Warranty
- 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 2
- Operating Hours
- 24/7
Downloads
10 files from the manufacturer
PDF
NEC 86-inch InfinityBoard 2.1 datasheets (PDF, 340 KB)
PDF
NEC 86-inch InfinityBoard 2.1 manuals & guides (PDF, 3.6 MB)
PDF
NEC 86-inch InfinityBoard 2.1 manuals & guides (PDF, 455 KB)
PDF
NEC 86-inch InfinityBoard 2.1 brochures (PDF, 1.0 MB)
PDF
NEC 86-inch InfinityBoard 2.1 brochures (PDF)
PDF
NEC 86-inch InfinityBoard 2.1 drawings & cad (PDF, 1.0 MB)
PDF
NEC 86-inch InfinityBoard 2.1 drawings & cad (PDF, 72 KB)
PDF
NEC 86-inch InfinityBoard 2.1 certificates & compliance (PDF, 240 KB)
PDF
NEC 86-inch InfinityBoard 2.1 certificates & compliance (PDF, 580 KB)
PDF
NEC 86-inch InfinityBoard 2.1 certificates & compliance (PDF, 157 KB)
Questions about 86-inch InfinityBoard 2.1
Is the NEC 86-inch InfinityBoard 2.1 still sold by NEC?
No. NEC has discontinued this model, so it is no longer part of the manufacturer's current range. SmartRooms Qatar can quote a current equivalent or a compatible replacement that matches your room size, touch needs and video conferencing platform. Tell us which features your team relies on most, and we will recommend options you can compare side by side with the original specification.
What screen size and resolution does the InfinityBoard 2.1 offer?
It has an 86-inch IPS panel with a native resolution of 3840 x 2160, which is 4K UHD. The active screen area measures 1,895 x 1,065.9 mm, and the panel accepts 1920 x 1080, 1920 x 2160 and 4096 x 2160 inputs. That size suits boardrooms and lecture halls where people sit several metres from the display and a single screen must show spreadsheets, drawings or a full video call.
How many touch points does the InGlass touch layer support?
The touch layer supports real multi-touch of up to 20 touches with a response time of 15 ms or less. It works with fingers, gloves and styluses of 2 mm or more, and it supports Windows Ink. The specification lists palm rejection as not supported, so ask for written confirmation of that behaviour if your team will write on the screen with their hands resting on it.
Does the board include a camera and speakers for video calls?
Yes. An integrated Huddly IQ camera records 1080p at 30 fps across a 150-degree diagonal view and offers 3x lossless digital zoom. The camera has no microphone, so sound comes from the conference speakers, rated at 40 W input. In a larger room, check audio coverage across every seat during planning before you order the unit.
What is the slot-in PC and what does it run?
The OPS slot holds a slot-in PC with an Intel i7-7820EQ processor, 8 GB of DDR4 memory, Windows 10 Professional and a TPM security chip. Storage is provided by M.2 SATA SSD slots, with a listed capacity of 128 GB. The OPS slot is rated at 4.7 A and 75 W. The manufacturer says the platform is not tied to a particular software or video conferencing app, so your own applications can run on the PC.
Can it connect to laptops and conferencing platforms used in Qatar?
It provides three HDMI and two DisplayPort inputs, a USB Type-B upstream port and four USB 3.0 ports on the hub for cameras, storage or other room peripherals. Mosaic Connect software is included free of charge. Because the platform is open, teams should confirm their preferred conferencing app and laptop setup with the SmartRooms Qatar team before ordering.
Is it a good fit for a seminar room at Education City?
Yes, it suits a seminar room where students present slides or documents on a large 4K screen while partners abroad join through the built-in camera. The 86-inch size keeps detail legible for a group, and two passive pens are supplied for annotation. Confirm the room's lighting and the distance to the back row before ordering, since the anti-glare glass helps but does not replace good placement.
How should we plan wall mounting for a West Bay office?
The board weighs 91.7 kg without its stand and measures 2,192 x 1,142 x 86 mm, so the wall must be checked for load before any drilling. It supports 400 x 400 and 600 x 400 FDMI patterns with M8 holes. Book a free site survey so our team can confirm the wall, cable routes and sight lines, and plan for at least two installers when lifting.
Can it be installed in a lobby or a room that gets direct sun?
Not without a controlled environment. The operating temperature range is 0 to +35°C with 20 to 80% humidity, while summer temperatures in Qatar can exceed 45°C. Choose an air-conditioned room away from windows that catch direct sun. The front is rated IP5x and the back IP2x, so keep the unit indoors and away from open areas exposed to dust storms.
How much power does it draw, and what should facilities teams plan for?
Power consumption is listed at 242 W in the shipping setting, under 0.5 W in power-saving mode, and under 2 W in networked standby. It supports VESA DPMS power management. When fitting several rooms in a school or university, have a qualified electrician confirm circuits and socket positions, and plan cable routes for the camera, control and network connections.
What warranty applies to the InfinityBoard 2.1?
The manufacturer's warranty covers three years including the backlight, with optional fourth and fifth year extensions listed in the source data. Products are covered by the manufacturer's warranty. Before you buy, ask for the warranty terms that apply to the specific unit in your quotation, so you know exactly what applies to your installation.
How does a school or government body order several units?
Purchase orders (LPOs) and government tenders, including Monaqasat, are accepted. Payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. If you are ordering for several classrooms or boardrooms, list each room with its size and mounting wall, so the quotation covers installation and each unit's requirements accurately.
