Newline Wall Mounts (IFPI-19X)

Name: Newline IFPI-19X Wall Mount for 55-86 Inch Interactive Displays
Brand: Newline
SKU: newline-wall-mounts-apac
Availability: InStock

Overview

The Newline IFPI-19X is a black wall mount for 55 to 86-inch interactive displays. It carries up to 136.4 kg (300 lbs) and supports VESA patterns up to 860 x 480 mm. Its dual steel frame and rail design allow sideways panel placement, and an open wall plate gives cables a route. Suited to boardrooms, lecture halls and classrooms across Qatar. Request a quote.

What the IFPI-19X is built to hold

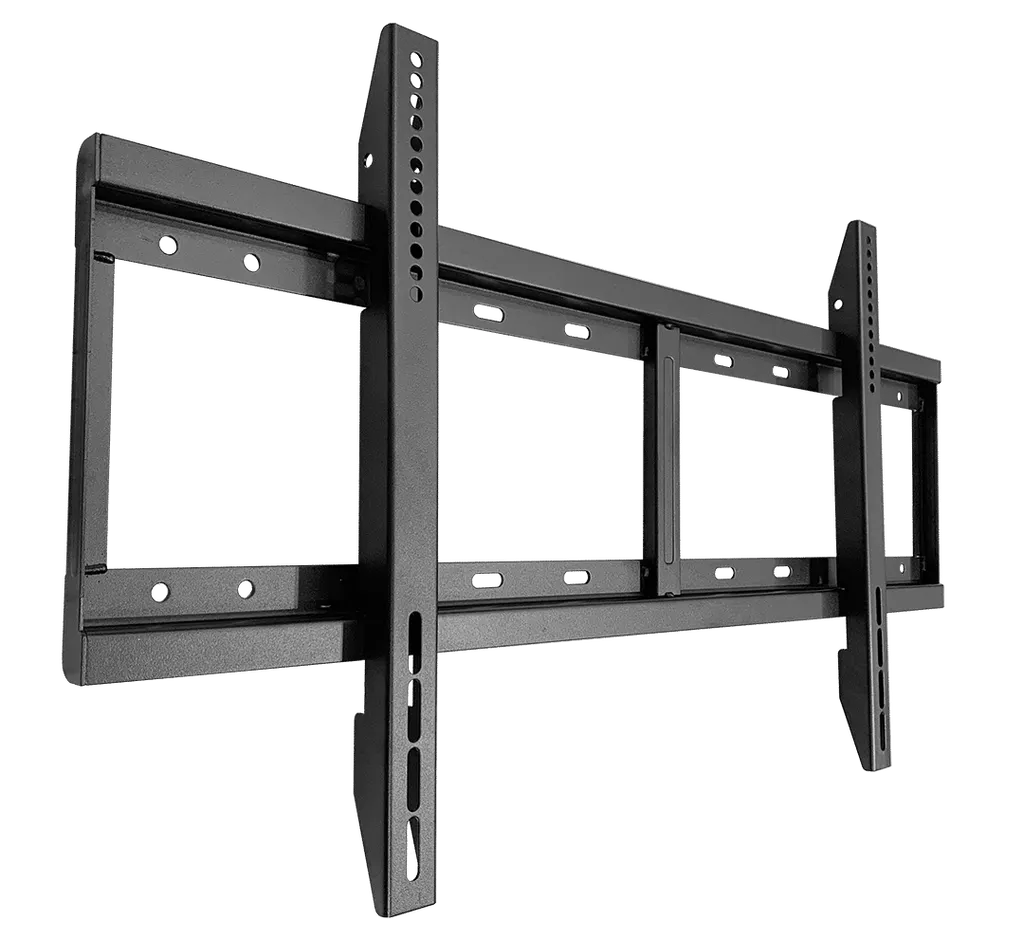

The IFPI-19X is a wall mounting kit for Newline interactive displays from 55 inches to 86 inches. It holds the panel flat against the wall so the screen stays in view for every session. The kit is finished in black and made from cold rolled steel sheet (SPCC), with dual steel frames that give the mount its structure. It is rated to carry up to 300 lbs (136.4 kg). The lower profile keeps the panel close to the wall, which suits meeting rooms where floor space and wall depth are limited.

Specifications to check against your panel and wall

Compare these figures with your display and your wall before ordering. Bracket A, the wallboard component, measures 500 x 36.5 x 32.6 mm and weighs 3.75 kg per unit. Bracket B, the part locked to the wall, measures 895 x 261 x 19.5 mm. The mount supports a VESA hole pattern up to 860 x 480 mm and holds the panel 2.5 inches (63.5 mm) off the wall.

Screen range: 55 to 86 inches
Load rating: 136.4 kg (300 lbs)
VESA: up to 860 x 480 mm
Material and colour: cold rolled steel sheet (SPCC), black
Packing: four units per carton, 19.3 kg per carton

Where it fits in Qatar

In a boardroom in West Bay with an 86-inch panel, the rail design helps centre the screen over the table, and the open wall plate keeps power and video cables out of sight behind it.

A school fitting out several classrooms in Al Wakrah with 65-inch panels can standardise on one mount type across rooms, which keeps the installation consistent throughout the building and simplifies planning.

A training centre in Education City or a meeting room in Msheireb may choose an 80-inch panel for presentations to groups. The mount dimensions and VESA range suit these layouts once the exact panel model is confirmed.

Planning the installation and requesting a quote

Confirm that the wall can take the combined weight of the bracket and panel, and check the VESA pattern of your exact display against the 860 x 480 mm limit. SmartRooms Qatar offers a free site survey, so our team can look at the wall type, cable routes and viewing height before anything is fixed. The source data for this kit gives no operating temperature range or outdoor rating, so for lobbies with glazing, sun-exposed walls or dust-prone areas, confirm the environment with the SmartRooms Qatar team before you order.

Send your room sizes, panel model and wall type to request a quote. The SmartRooms Qatar team usually returns a quotation within one working day, and we deliver to all eight municipalities of Qatar. Government ministries, schools and universities can issue an LPO or tender reference, and payment can be made by bank transfer, cheque or purchase order.

Highlights

Supports 55-inch to 86-inch interactive displays
Rated for a maximum capacity of 136.4 kg (300 lbs)
VESA compatibility up to 860 x 480 mm
Cold rolled steel SPCC construction in black
Open wall plate provides space for cable routing
Rail design allows left and right panel placement

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

6 specifications · Source: manufacturer · checked Oct 2026

Model6

For screen: 55" - 86"
Maximum Capacity: 300 lbs / 136.4 kg
Dimensions for Bracket A (L x W x H): 500 x 36.5 x 32.6 mm
Dimensions for Bracket B (L x W x H): 895 x 261 x 19.5 mm
VESA: Compatible up to 860 x 480 mm
Material / Color: Cold rolled steel sheet SPCC / Black

Downloads

3 files from the manufacturer

PDF Datasheets SpecSheet_Newline_WM_202105.pdf 671 KB PDF Datasheets SpecSheet_Newline_WM_202201.pdf 801 KB PDF Manuals & guides wall_mount_installation.pdf 686 KB

Questions about Wall Mounts (IFPI-19X)

Which panel sizes does the IFPI-19X support?

The IFPI-19X is rated for interactive displays from 55 inches to 86 inches. The datasheet lists supported sizes as 55, 65, 70, 75, 80 and 86 inches, so any panel from that list is within range. Before ordering, check that your exact display model is listed as compatible, because screen size alone does not confirm that the mounting holes match.

How much weight can the mount carry?

The rated maximum capacity is 300 lbs, which is 136.4 kg. Check the weight of your specific panel against that figure and confirm the wall can carry the combined load of the bracket and panel before installation begins. A site survey from SmartRooms Qatar can check the wall construction as part of the pre-installation visit.

Which VESA pattern does the mount support?

The mount supports VESA hole patterns up to 860 x 480 mm, which the datasheet also gives as 33.86 inches wide by 18.89 inches high. Measure the rear mounting holes of your display before ordering. If your panel pattern is smaller and sits within that limit, it fits. If you are unsure, send the panel model with your quote request.

Is this mount suitable for an 86-inch panel in a West Bay boardroom?

Yes. 86 inches is the top of the supported size range, so an 86-inch panel in a West Bay boardroom falls within the mount's limits. The rail design lets the panel shift left or right on the wall plate, which helps centre it over the table. Confirm the panel weight and VESA pattern, and book a free site survey to check the wall and viewing height before fixing.

Can a school in Al Wakrah use it for several 65-inch classroom panels?

65 inches is within the supported range and appears in the datasheet list of sizes. A school fitting out several classrooms in Al Wakrah can use the same mount type in every room, which keeps the installation consistent across the building and makes planning simpler. Each classroom wall should still be checked for structure before the mounts are fixed.

How far does the mount hold the panel from the wall?

The datasheet gives a depth of 2.5 inches, which is 63.5 mm, from the wall to the panel. This shallower gap suits narrow training rooms in Education City or Msheireb where furniture sits close to the wall. Measure the space between the wall and any fixed furniture or equipment before choosing a height, because cables also occupy part of that clearance.

How are cables handled with this mount?

The wall plate is open, which leaves space for power and signal cables to pass behind the panel. The rail design also lets the display be moved left or right for placement. Plan cable routes during the site survey so runs stay short and tidy. The mount itself does not add ports, so confirm which rear connections your panel uses.

What is the mount made from and what colour is it?

The IFPI-19X is made from cold rolled steel sheet, SPCC, and finished in black. The datasheet describes dual steel frames that contribute to the mount strength. Black suits most meeting rooms and classrooms and keeps the mount low key against dark or neutral walls. The source data does not list other finishes, so black is the colour to plan for.

Do I need a site survey before installing it in Doha?

A site survey is recommended, and SmartRooms Qatar provides one free of charge. For a heavy 86-inch panel, the survey checks the wall type, fixing points, viewing height and cable routes before any drilling. This matters in older Doha buildings, where wall construction can vary. Booking the survey before ordering helps the quotation reflect the actual site conditions.

What are the dimensions and weights of the two brackets?

Bracket A measures 500 x 36.5 x 32.6 mm with a net weight of 3.75 kg per unit. Bracket B, which is locked to the wall, measures 895 x 261 x 19.5 mm. Four units pack per carton, with a carton weight of 19.3 kg and a packing size of 1016 x 231 x 332 mm. Use these figures to confirm that wall space and the route to the room will accommodate the parts.

Can it be installed in a glass-fronted lobby or an outdoor area?

The source data for this mount does not give an operating temperature range, humidity rating or outdoor rating, so SmartRooms Qatar cannot confirm it for outdoor use. Summer temperatures in Qatar can exceed 45 degrees Celsius and dust storms are common, so describe the exact location in your quote request. The team will confirm whether the environment suits the kit before you order.

How do I request a quote for this mount and how can I pay?

Send the panel model, number of units, wall type and room location with your quote request. The SmartRooms Qatar team usually returns a quotation within one working day. Payment can be made by bank transfer, cheque or purchase order, and government ministries, schools and universities can issue an LPO or tender reference for the IFPI-19X order.
