OneScreen Wall Mount · Price in Qatar

Name: OneScreen Wall Mount MHA01 for 75 to 90-inch Touchscreens
Brand: OneScreen
SKU: onescreen-wall-mount
Availability: InStock

Overview

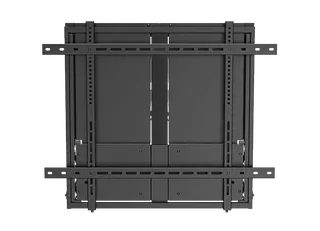

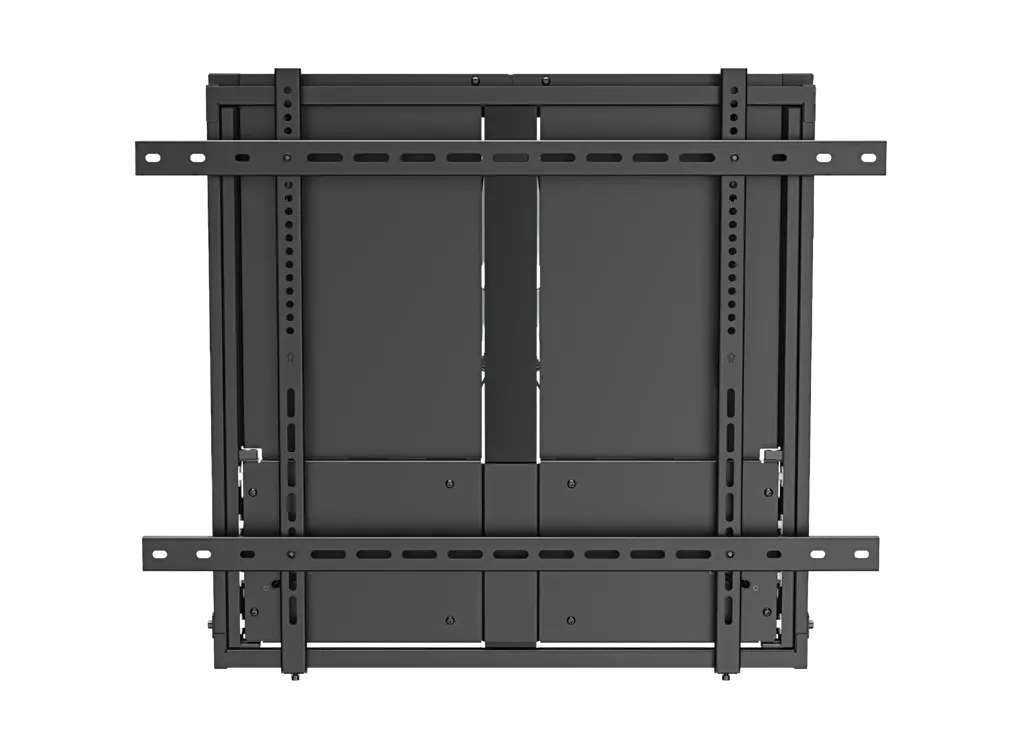

The OneScreen MHA01 is a fixed wall plate mount for touchscreens measuring 75 to 90 inches. It holds the panel 4.2 inches off the wall, offers 15.7 inches of height adjustment and lists a weight capacity of 132 to 198 lbs. Its matte black aluminum and steel build suits boardrooms in West Bay, lecture rooms in Education City and school halls across Qatar. Request a quote to confirm the fit for your panel.

What this wall mount does

The OneScreen MHA01 is a fixed wall plate mount built to hold touchscreens between 75 and 90 inches. It brings the panel close to the surface, with a profile of 4.2 inches from the wall, so the display does not stand proud of the room. It is an accessory in the interactive flat panel range, not a display in its own right.

Specifications that shape the installation

The listed weight capacity is 132 to 198 lbs, and the mount itself weighs 61.7 lbs. That means the wall and its fixings must carry the mount and the panel together, so check the panel weight before ordering. Height can be adjusted across a range of 15.7 inches, which helps level the screen once it is hung. The mount supports VESA patterns 400 x 200, 400 x 300, 400 x 400 and 400 x 600, and its hole pattern is listed as both VESA and universal.

Mounting options and wall planning

Solid wall installation
Double stud installation with 16-inch (406 mm) or 17.7-inch (450 mm) spacing
Fixed wall plate construction, with a direction indicator listed in the specifications

Where it fits in Qatar

A corporate boardroom in West Bay or Msheireb replacing a projector and screen is a common case. A panel in the 75 to 90 inch range needs a clean, level wall, and the 4.2-inch profile keeps the display close to the surface while cables are routed behind it.

A private school in Al Wakrah fitting out several classrooms or a multipurpose hall can use the same mounting detail across rooms. Consolidating the units on one local purchase order (LPO) keeps the paperwork simple for the school administration.

A university teaching room in Education City or a government training room in Doha often has a wall that must be measured first. Confirming whether the wall is solid or double stud, and the spacing, prevents delays on the day of fixing.

The data does not give an operating temperature range for this accessory. If the wall faces a glazed lobby exposed to summer heat above 45°C, confirm the room conditions with the SmartRooms Qatar team before ordering.

What to plan before ordering

Confirm the panel is within 75 to 90 inches and matches a listed VESA pattern
Check that the wall and fixings can carry the mount plus the panel
Measure stud spacing or confirm solid wall construction
Plan cable routing for a 4.2-inch depth from the wall
Allow for two people to handle the packed mount, which weighs 70.6 lbs gross and measures 5.3 x 32.8 x 31.9 inches

Request a quote

SmartRooms Qatar offers free site surveys before wall-mounting, so the wall type and stud positions are confirmed before the panel arrives. We deliver to all 8 municipalities of Qatar, and quotations usually come within one working day. Payment is by bank transfer, cheque or purchase order. Request a quote for the OneScreen MHA01 and tell us your panel model and wall type so we can confirm the fit.

Highlights

Fits touchscreens from 75 to 90 inches
Weight capacity listed at 132 to 198 lbs
Profile sits 4.2 inches from the wall
15.7-inch display height adjustment range
Solid wall or 16 or 17.7-inch double stud installation
Matte black powder-coated aluminum and steel construction

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

20 specifications · Source: manufacturer · checked Oct 2026

Specifications20

Heavy duty steel construction allows: for accomodating various display sizes/
Compact design makes the wall mount: seamless behind the display
Smooth and easy adjustment of height: with minimum effort required to adjust
Model Number: OneScreen Wall Mount-MHA01
Material: Aluminum and Steel
Color: Matte Black
Surface Finish: Powder Coating
Supported Screen Sizes: 75" - 90"
Mounting Hole Pattern: VESA & Universal
Compatible VESA Patterns: 400 x 200, 400 x 300, 400 x 400, 400 x 600
Weight Capacity: 132 lbs - 198 lbs
Profile (Distance from Wall): 4.2"
Display Height Adjustment Range: 15.7"
Installation: Solid Wall, Double Stud (16"/17.7") (406mm/450mm)
Product Weight: 61.7 lbs
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Product Dimensions: 4.2" x 33.1" x 27.4"
Packaging Dimensions: 5.3" x 32.8" x 31.9"
Gross Weight: 70.6 lbs

Downloads

2 files from the manufacturer

PDF Datasheets OneScreen-Height-Adjustable-Wall-Mount-Spec-Sheet.pdf 592 KB PDF Manuals & guides Height-Adjustable-Wall-Mount-MHA01-Installation-Manual.pdf 2.3 MB

Questions about Wall Mount

What is the OneScreen MHA01 wall mount used for?

It is an adjustable wall mount for touchscreens from 75 to 90 inches. It holds the panel on a fixed wall plate, sitting 4.2 inches from the wall, which suits meeting rooms and classrooms where a clean wall line matters. It is an accessory for panels in the interactive flat panel range, not a display itself.

Which screen sizes does it support?

The mount is specified for screens from 75 to 90 inches. Before ordering, confirm your panel's exact size, weight and VESA pattern against the product specifications, since this mount is designed for that size band only. SmartRooms Qatar quotations usually come within one working day, and the team can check the fit with you as part of the quote.

How much weight can the mount carry?

The weight capacity is listed at 132 to 198 lbs. The mount itself weighs 61.7 lbs, so the wall must support the mount plus the panel. Send your panel's weight with your quote request so the team can confirm the capacity is suitable before the order is placed.

Which VESA patterns are compatible?

Compatible VESA patterns are 400 x 200, 400 x 300, 400 x 400 and 400 x 600. The hole pattern is described as VESA and universal. Check the back of your panel against these four patterns, and if your display uses a different spacing, ask for a compatibility check in your quote request.

Can it be installed on a solid wall and on stud walls?

Yes. The specifications list solid wall and double stud installation, with stud spacing of 16 inches (406 mm) or 17.7 inches (450 mm). A stud wall needs the frame positions measured first, which is why SmartRooms Qatar offers a free site survey before fixing begins.

How much height adjustment does it allow?

The display height adjustment range is 15.7 inches. The mount is designed for smooth adjustment, so installers can level the panel after it is hung and correct small differences in wall alignment. This matters in long rooms, where a slightly crooked screen is easy to notice from the back row.

Would this mount suit a boardroom in West Bay?

It can, for a panel between 75 and 90 inches. A boardroom in West Bay or Msheireb often has a single wall for the screen, and the 4.2-inch profile keeps the display close to that wall. Plan the cable route before fixing, and confirm the wall construction and the panel weight with the team.

Can a private school in Al Wakrah use this for several classrooms?

Yes, if each room has a panel in the 75 to 90 inch range and the walls suit the same mounting details. Placing the order on one local purchase order (LPO) keeps the paperwork simple for the school administration. Ask for the quotation to list each classroom's wall type so the installation plan matches every room.

Is it suitable for a lecture room in Education City?

A lecture room with a large front wall can use this mount when the panel falls in the 75 to 90 inch range. Confirm whether the wall is solid or double stud at 16 or 17.7 inches, and allow for the 61.7 lb mount plus the panel weight before booking the installation with your team.

Can I mount it on a lobby wall that faces glass in summer?

The data does not give an operating temperature range for this accessory, so SmartRooms Qatar cannot confirm it for glazed or exposed locations. Summer temperatures in Qatar can exceed 45°C, and the room conditions should be reviewed before ordering. Share the room layout and wall orientation with the team when you request a quote.

What should I know about delivery and handling?

The packed mount measures 5.3 x 32.8 x 31.9 inches and weighs 70.6 lbs gross, so it needs two people and a clear route to the wall. SmartRooms Qatar delivers to all 8 municipalities of Qatar, and quotations usually come within one working day. Payment can be made by bank transfer, cheque or purchase order.
