PMB000L654

Discontinued model: what current owners and buyers need to know

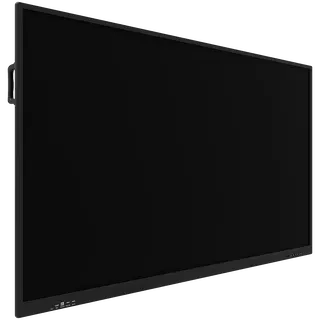

Prestigio has discontinued the MultiBoard 65-inch Light Series Gen 4, model PMB000L654. It is still a fully specified interactive board with a 4K panel, Android 8.0 and a range of front and rear connections, so it remains relevant to organisations that already run it and to buyers comparing options. If you need to expand an existing set of boards or find a like-for-like match, SmartRooms Qatar can review your requirements and quote a current compatible replacement.

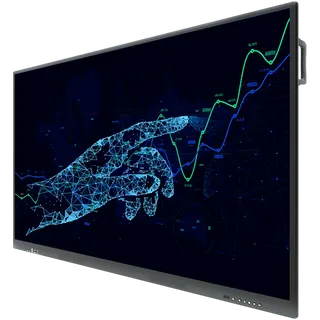

Display and touch performance

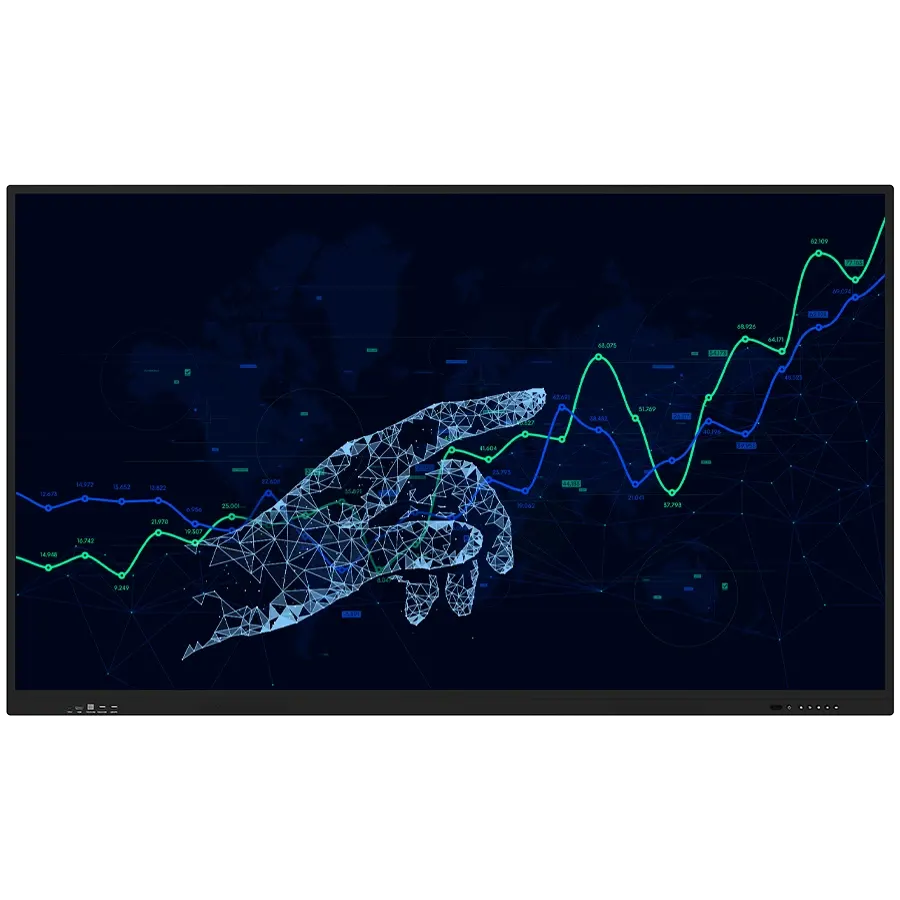

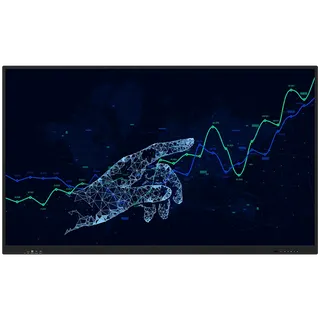

The 65-inch TFT LCD panel runs at a maximum resolution of 3840x2160 at 60Hz, with a 16:9 aspect ratio and a 0.372 mm dot pitch. The rated brightness is 400 cd/m², the contrast is 4,000:1 and the response time is 8 ms. The glass is toughened, the backlight is D-LED, and the manufacturer quotes a lifetime of 30,000 hours.

Touch uses infrared recognition with 20 touch points for finger input and 10 simultaneous writing points. The board can also write in two colours at the same time, which suits teams annotating the same slide. The manufacturer states that its light sensors and brightness allow use in bright sunlight, a claim worth testing in rooms with large windows in Doha.

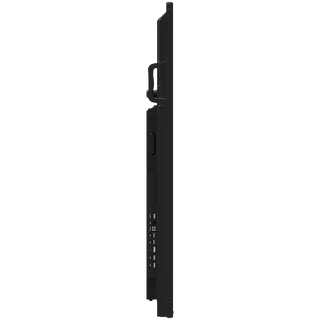

Ports, computing and audio

• Three HDMI In 2.0 inputs and one HDMI Out for laptops and external sources
• One VGA port, three USB 2.0 ports, two LAN ports, one RS232 port and two touch ports
• A front-panel USB Type-C port and a front USB 3.0 port, the latter for Windows PCs only
• Wi-Fi on IEEE 802.11 a/b/g/n/ac at 2.4/5 GHz, and Bluetooth 2.1+EDR/4.2/5.0
• A 2.1 speaker system with 2x15 W outputs and a 15 W subwoofer

The board runs Android 8.0 on an ARM Dual Core Cortex A73+A53 CPU with 3 GB of RAM and 32 GB of internal storage. If you need a Windows PC alongside the board, the embedded PC modules PC PMB528K001, PC PMB528K002 and PC PMB528K003 are listed as compatible. The embedded PC is described with a 10th Gen Intel processor and a one-year free licence for mozaBook Classroom software.

Where it fits in Qatar

A 65-inch panel suits a classroom, a training room or a mid-sized meeting room rather than a large lecture hall. Three realistic settings in Qatar:

• A private school in Al Wakrah fitting out a classroom, where teachers move between Arabic and English lessons on one board and annotate with several pens.
• A government office meeting room in West Bay, where a team connects with colleagues abroad from a laptop or conferencing system through the HDMI inputs and LAN ports.
• A training centre in Education City or Lusail running workshops, where a presenter connects a laptop quickly through the front-panel USB Type-C port.

Planning the installation

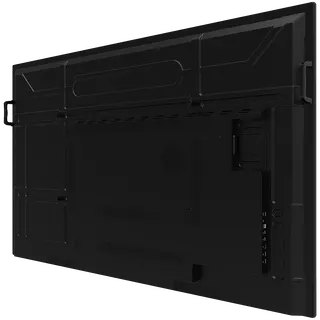

The board measures 1511.6 x 919.7 x 87.8 mm and weighs 41.5 kg, so wall mounting needs a site survey to check the wall structure and mounting height. A wall mount kit is included. Maximum power draw is 220 W, falling to 0.5 W in standby. The source data does not list an operating temperature range or mains specification, so confirm the room environment and power arrangements with the SmartRooms Qatar team before ordering.

The box includes a remote control, seven writing pens, HDMI, USB and power cables, a quick start guide and the warranty card. The manufacturer gives a 36-month warranty, unless local law requires otherwise. Schools, ministries and companies buying several units can order by purchase order (LPO), and government tenders including Monaqasat are supported. Delivery covers all eight municipalities of Qatar.

Request a quote from SmartRooms Qatar for this model or for a current compatible replacement. Include your room size, wall type and number of units, and we will confirm availability and expected timing within your quotation.
