Promethean Interactive Flat Panels Current

ActivPanel Manual Height-Adjustable Wall Mount

Promethean ActivPanel Manual Height-Adjustable Wall Mount

Storage: of

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

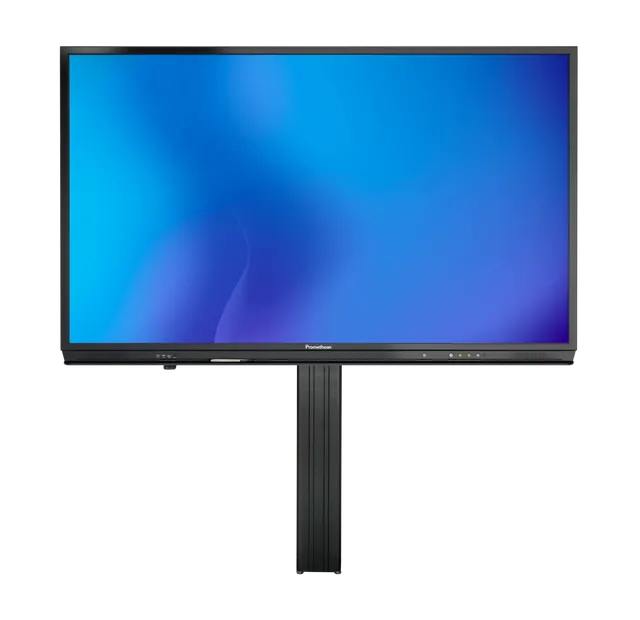

The Promethean ActivPanel Manual Height-Adjustable Wall Mount holds compatible ActivPanel displays flat against a wall and lets users raise or lower the panel by hand across 400 mm (15.7 in) of travel. It works with ActivPanel 5, 6, 9, 10, i-Series, Elements and LX models, and with the ActivPanel 10 Premium at 65, 75 and 86 inches. It suits classrooms, lecture theatres and meeting rooms in Qatar where people of different heights share one display. Request a quote for your panel size.

A manual height-adjustable mount for shared ActivPanel displays

This wall mount holds a compatible ActivPanel flat panel against a wall and lets people reposition it vertically by hand across 400 mm (15.7 in) of travel. In a room where teachers, presenters or directors of very different heights use the same screen, that range brings the touch surface to a comfortable working height without fitting a second bracket. Adjustment is made by hand rather than with a motor.

Compatibility to check before you order

The mount supports ActivPanel 5, ActivPanel i-Series, ActivPanel 6, ActivPanel Elements, ActivPanel 9, ActivPanel LX and ActivPanel 10 panels across their sizes. The exception is the ActivPanel 10 Premium, which is only supported at 65, 75 and 86 inches. Promethean requires the separate VESA mount AP-WALLMNT or AP-WALLMNT-2, so include it in the quotation. Confirm your exact panel model against the manufacturer's stand compatibility matrix before purchase.

Dimensions, weight and packing

Product dimensions listed as 559 x 609 x 69 mm and 650 x 2007 x 46 mm for the two components
Net weights of 21.6 kg and 11 kg, with packed weights of 24 kg and 11.4 kg
Packed box sizes of 630 x 740 x 95 mm and 145 x 1070 x 72 mm

The kit ships in two boxes. The first holds the wall mount with its mounting bar, wall frame cover, screw kit, side covers and installation guide. The second holds the frame assembly, a screw kit and cover strips for the floor support legs. Check both boxes against your room layout during the site survey so access and storage can be planned in advance.

Where it fits in Qatar

In a university lecture room in Education City, each lecturer or guest speaker can set an 86-inch ActivPanel 10 Premium to their height before a session, while the bracket stays fixed to the wall. In a private school in Al Wakrah fitting out classrooms for pupils of different ages, the same mount can sit lower for younger year groups and higher for older ones. In a West Bay boardroom, a presenter can stand at a comfortable height while seated participants keep a clear view of the screen.

Planning the installation

Promethean states the installation should be done by a qualified installer
Components not supplied by Promethean may affect performance, safety and warranty
Confirm the wall can carry the combined weight of the panel and mount
Book a free site survey to check walls, floors and cable routes before mounting

Summer temperatures above 45°C and dust storms are common in Qatar, but the source data for this mount does not give an operating temperature range, so confirm the room environment with the SmartRooms Qatar team before ordering. SmartRooms Qatar delivers to all eight municipalities, provides professional installation and issues quotations usually within one working day. Schools and government buyers can use a purchase order or a government tender. Request a quote with your panel model, quantity and room details.

Highlights

400 mm (15.7 in) manual height adjustment range
Compatible with ActivPanel 5, 6, 9, 10, i-Series, Elements and LX
ActivPanel 10 Premium supported at 65, 75 and 86 inches
Requires Promethean VESA mount AP-WALLMNT or AP-WALLMNT-2
Wall mount product dimensions listed as 559 x 609 x 69 mm
Ships in two boxes; qualified installer recommended by manufacturer

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

18 specifications · Source: manufacturer · checked Oct 2026

Wall Mount Specifications3

Compatible with all sizes of ActivPanel: 5, ActivPanel i-Series, ActivPanel 6,
ActivPanel Elements series, ActivPanel: 9, ActivPanel LX, and ActivPanel 10 panels.
Only compatible with 65", 75" and: 86" ActivPanel 10 Premium panels.

Physical Specifications5

Product Dimensions: 559 x 609 x 69 mm (22 x 24 x 3 in) 650 x 2007 x 46 mm (26 x 79 x 2 in)
Packed Dimensions: 630 x 740 x 95 mm (25 x 29 x 4 in) 145 x 1070 x 72 mm (6 x 42 x 3 in)
Net Weight: 21.6 kg (48 lbs) 11 kg (24 lbs)
Packed Weight: 24 kg (53 lbs) 11.4 kg (25 lbs)
Travel Distance (Adjustable Height): 400 mm (15.7 in)

Packed Contents2

What's in the Box: Box 1 of 1: Manual height-adjustable wall mount, mounting bar, wall frame cover, screw kit, side covers, installation guide Box 1 of 1: Frame assembly, screw kit, cover strips for floor support legs, installation guide
ActivPanel Manual Height-Adjustable Stand and Wall Mount SS 04/25: v1.6 EN-INTL

Additional Requirements2

Notes: Requires the Promethean VESA mount - AP-WALLMNT or AP-WALLMNT-2.
ActivPanel Manual Height-Adjustable Stand and Wall Mount SS 04/25: v1.6 EN-INTL

Installation1

The installation of this product should be completed by a qualified installer. Use components not supplied by Promethean or not meeting minimum specifications may impact performance, safety and warranty. For more information, visit: of

Support1

For all Promethean products, visit Support.PrometheanWorld.com.: Page 1

With Floor Support Specifications4

Comprises of Manual Height-Adjustable: Wall Mount (details on previous page) plus
Floor Support. Compatible with all sizes of ActivPanel: 5, ActivPanel i-Series, ActivPanel 6,
ActivPanel Elements series, ActivPanel: 9, ActivPanel LX, and ActivPanel 10 panels.
Only compatible with 65", 75" and: 86" ActivPanel 10 Premium panels.

Downloads

8 files from the manufacturer

PDF Datasheets ActivPanel Manual Height-Adjustable Stand and Wall Mount - Product Specifications (US).pdf 632 KB PDF Datasheets ActivPanel_Manual_Height-Adjustable_Wall_Mount_SS_0425v1.4_AR-XM.pdf 729 KB PDF Datasheets ActivPanel_Manual_Height-Adjustable_Wall_Mount_SS_0425v1.4_AR-XM.pdf 729 KB PDF Datasheets ActivPanel_Manual_Height-Adjustable_Wall_Mount_SS_0425v1.6_EN-INTL.pdf 632 KB PDF Datasheets ActivPanel_Manual_Height-Adjustable_Wall_Mount_SS_0425v1.6_EN-INTL.pdf 632 KB PDF Datasheets ActivPanel_Manual_Height-Adjustable_Wall_Mount_SS_0425v1.6_EN-INTL.pdf 632 KB PDF Manuals & guides Adjustable Stand by BalanceBox - Installation Guide v1 (International).pdf 3.6 MB PDF Manuals & guides Adjustable Stand by BalanceBox - Installation Guide v3 (International).pdf 2.2 MB

Questions about ActivPanel Manual Height-Adjustable Wall Mount

Which ActivPanel models does this wall mount support?

The mount supports ActivPanel 5, ActivPanel i-Series, ActivPanel 6, ActivPanel Elements, ActivPanel 9, ActivPanel LX and ActivPanel 10 panels across their sizes. The exception is the ActivPanel 10 Premium, which is only supported at 65, 75 and 86 inches. Check your exact panel model before ordering, because a mismatch changes which kit you need.

Is 400 mm of travel useful in a lecture hall in Education City?

Yes. The 400 mm range lets one panel suit a seated lecturer at a desk and a standing guest speaker at the front of the room. Adjustment is made by hand within that range without changing the bracket. In halls where several speakers use the same space during one day, each speaker can set the panel to a suitable height. Share the hall layout when requesting a quote.

Do I need a separate VESA mount?

Yes. Promethean requires the separate VESA mount AP-WALLMNT or AP-WALLMNT-2 with this wall mount. Include the chosen VESA mount in your quotation so the full assembly is reviewed together. Ask the SmartRooms Qatar team to confirm which of the two options matches your panel before you issue a purchase order, so the installation is not held up by a missing component.

What are the dimensions and weight of the kit?

The source lists dimensions of 559 x 609 x 69 mm and 650 x 2007 x 46 mm for the two components, with net weights of 21.6 kg and 11 kg. Packed weights are 24 kg and 11.4 kg. Share these figures with your building or facilities team so they can confirm lift access, storage space and whether the wall construction suits the load before delivery.

Can a school with mixed-age pupils use this mount in Qatar?

Yes, if the panel is one of the compatible models. A private school in Al Wakrah fitting out classrooms for primary and middle-stage pupils can set the panel lower for younger year groups and higher for older ones. Because the mounting height depends on the classroom layout, send the room measurements with your quote request so the team can plan the installation accurately.

Why would a West Bay boardroom choose a height-adjustable mount?

Directors often sit while a presenter stands during the same meeting. The 400 mm travel lets the presenter use a comfortable height while seated participants keep the screen in clear view. Before mounting, a free site survey can check the wall space around the table, the viewing distance and the cable routes, so the panel size and mount height are right for the room.

Does the mount need a qualified installer?

Promethean states that installation should be completed by a qualified installer. Using components not supplied by Promethean, or ones that do not meet minimum specifications, may affect performance, safety and warranty. SmartRooms Qatar provides professional installation, and wall fixings, cable routing and the VESA mount can be planned together during the free site survey.

What is included in the box?

The first box contains the manual height-adjustable wall mount, a mounting bar, a wall frame cover, a screw kit, side covers and an installation guide. The second box contains the frame assembly, a screw kit and cover strips for the floor support legs. Because the packing details also refer to a floor support configuration, state the configuration you need clearly in your quote request.

Is this mount rated for Qatar summer heat and dust?

The source data for this mount does not give an operating temperature range or a dust rating, so SmartRooms Qatar will not state one. When requesting a quote, describe the room: whether it is air-conditioned, whether it faces a window, and whether it is near an entrance or loading area. This lets the team confirm the environment before the mount is ordered.

Can we buy this through a government tender or an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. When a ministry or school equips several rooms, the mounts and VESA brackets can be listed on one order so the bill of materials stays consistent across rooms and the installation can be scheduled together.

What warranty applies to this mount?

Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. This page does not state a warranty period or terms, so request the warranty details with your quotation. Components that are not supplied by Promethean may affect warranty cover, so review the full kit and accessories list before installation.

How do I request a quote for this wall mount?

Send the panel model and size, the number of units, the room type and the wall construction details, then request a quote. Quotations are usually issued within one working day. SmartRooms Qatar delivers to all eight municipalities of Qatar and can arrange a free site survey before mounting, so the quotation reflects the actual room.
